Plan 623250DJ
Modern Pool House with Table Area and Enclosed Hangout Area
Heated S.F.
487
Baths
1
Stories
1
What's Included
Plan Details
  • This modern pool house has is designed to provide the ultimate retreat for both entertainment and relaxation. With its sleek lines and contemporary aesthetics, it seamlessly blends into the surrounding landscape.
  • A pergola-covered table area connects the two discrete areas of the pool house. A built-in grill is perfect for hosting summer barbecues. A dedicated covered hot tub space is nearby.
  • A dedicated space for pool equipment and mechanical storage is a must-have for any pool house and this one delivers.
  • On the right, you'll find your open hangout area which includes a wet bar, a microwave and an under-counter refrigerator set under a soaring sloped ceiling.
  • A fully equipped bathroom has a shower, toilet and sink and is accessible from the table area and the main pool house area.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Pool House with Table Area and Enclosed Hangout Area

  • 487

    Heated s.f.

  • Beds

  • 1

    Baths

  • 1

    Floors

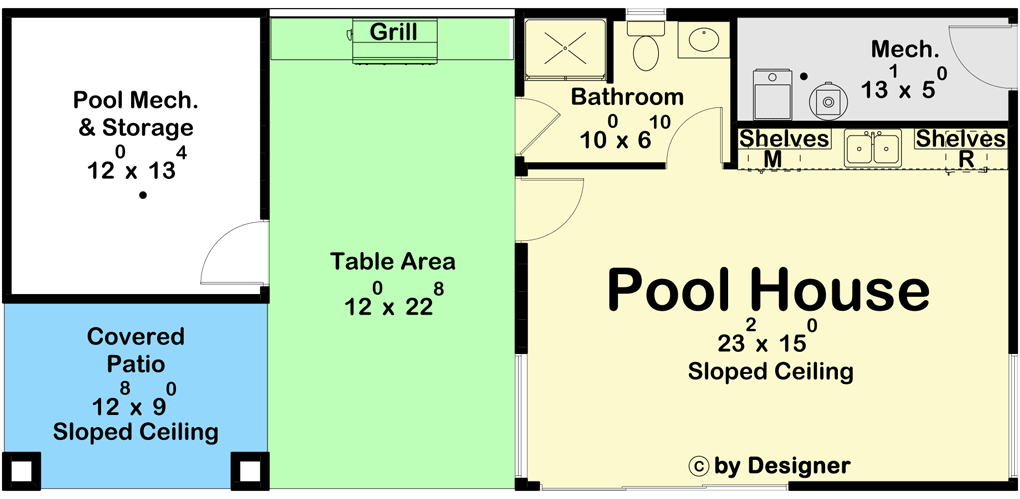

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 487 sq. ft.
  • 1st Floor: 487 sq. ft.

Dimensions

  • Width: 48' 8"
  • Depth: 23' 0"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
