1.
Cover Sheet- project statistics,
including square footages, 3D images (typically), general notes and drawings
sheet index.
2.

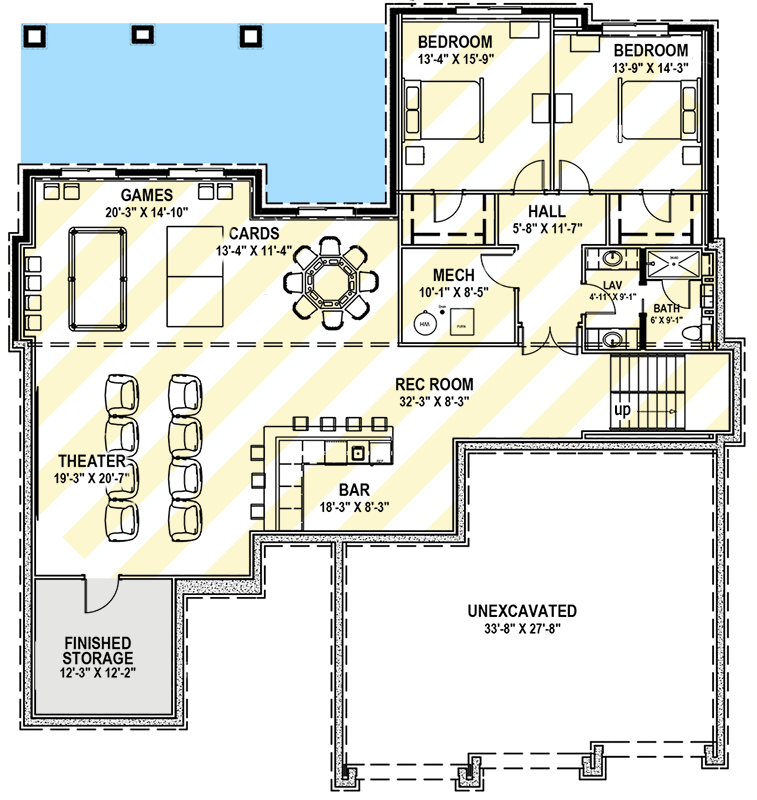

Foundation/basement plan-showing
room/wall layout, beams, posts and joist direction, and often electrical
outlets, switches and light locations.
3.

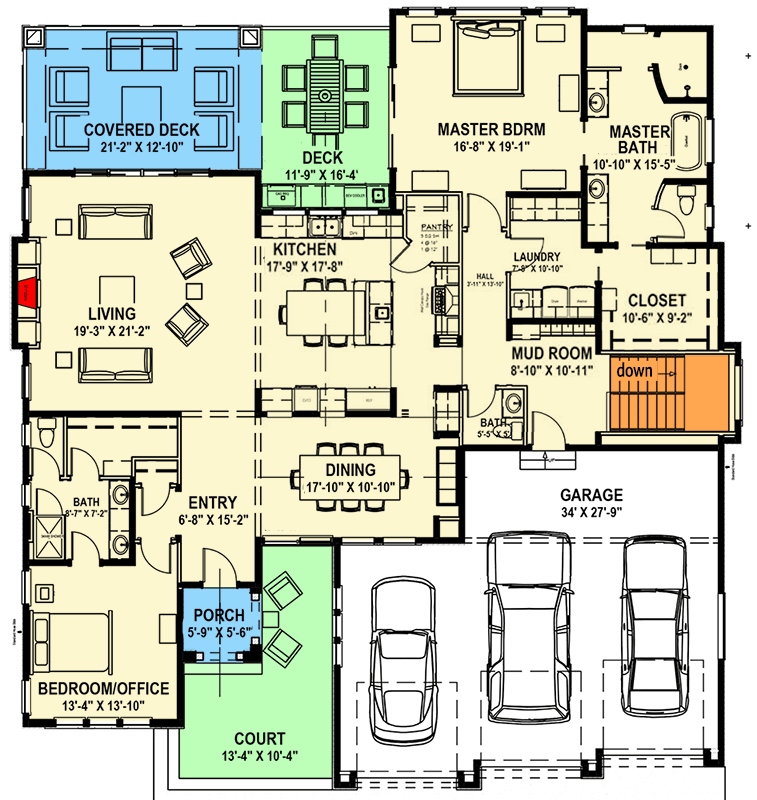

Main Level Plan-floor plan rooms and
walls dimensioned, window and door sizes noted, plumbing, millwork locations
and other general notes.
4.
Upper Level Plan-(if needed)-same
information as Main Level.
5.
Roof Plan-layout with pitch markers,
dimensions and notes.
6.
Main Level Electrical Plan-
electrical outlets, switches and light locations shown.
7.
Upper Level Electrical Plan-(if
needed) electrical outlets, switches and light locations shown.
8.
Exterior Elevations-Elevations of
the Front and Right side with notes, dimensions and material designations.
9.
Exterior Elevations-Elevations of
the Back and Left side with notes, dimensions and material designations.
10. Sections and details-One or more building sections to show
vertical relationships and construction plate heights, details as needed.
11. Interior Elevations and Details-mostly millwork, fireplace
and other items that need additional explanation, details as needed.
