Plan 23617JD
Modern Prairie House Plan with Stadium Seating in Home Theater - 4787 Sq Ft
Heated S.F.
4,787
Beds
3-4
Baths
3 - 4
Stories
2
Cars
3
Plan Details

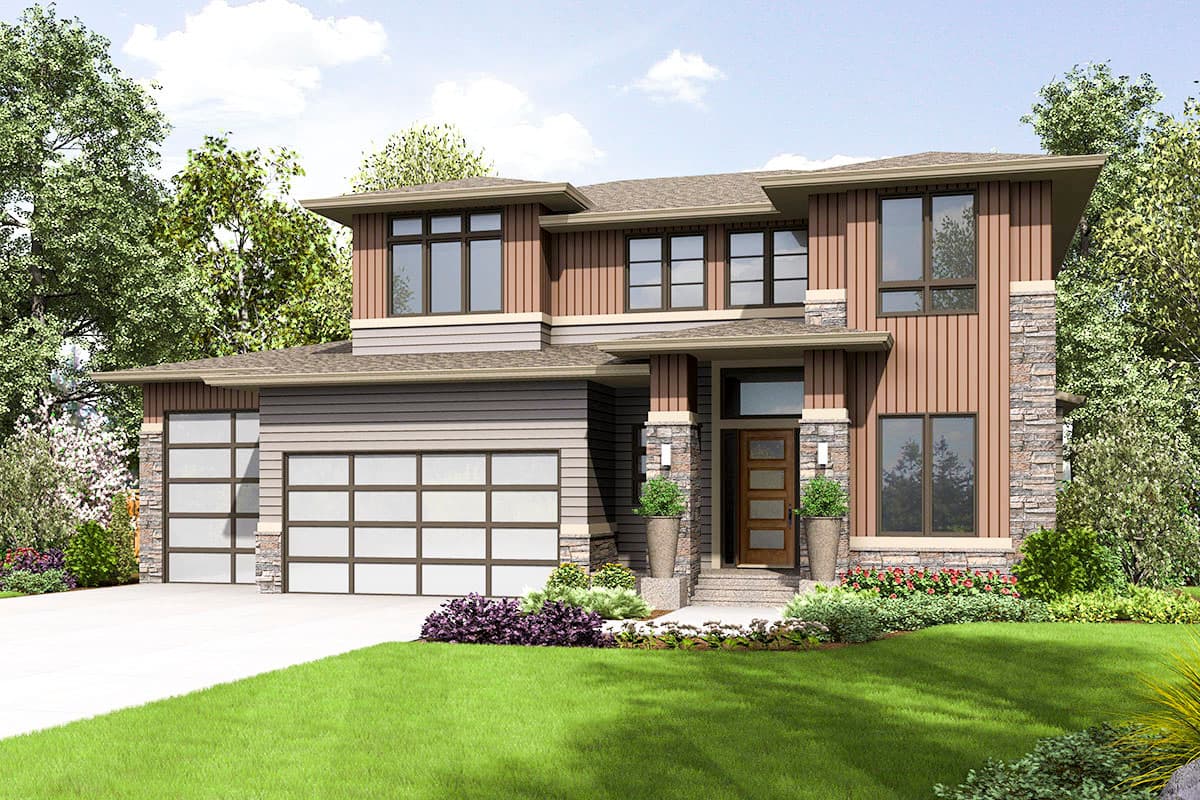

  • This Modern Prairie house plan is loaded with high end amenities that cover three living levels including a finished basement.

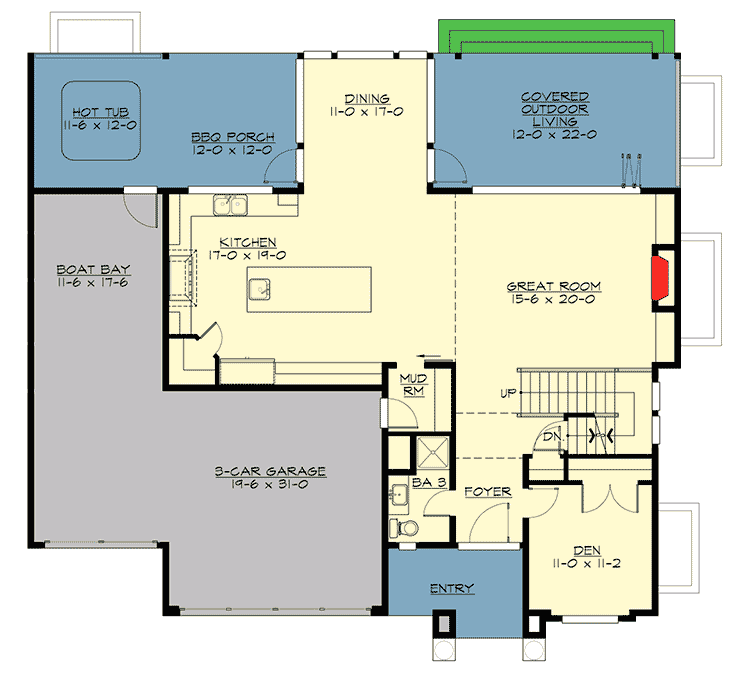

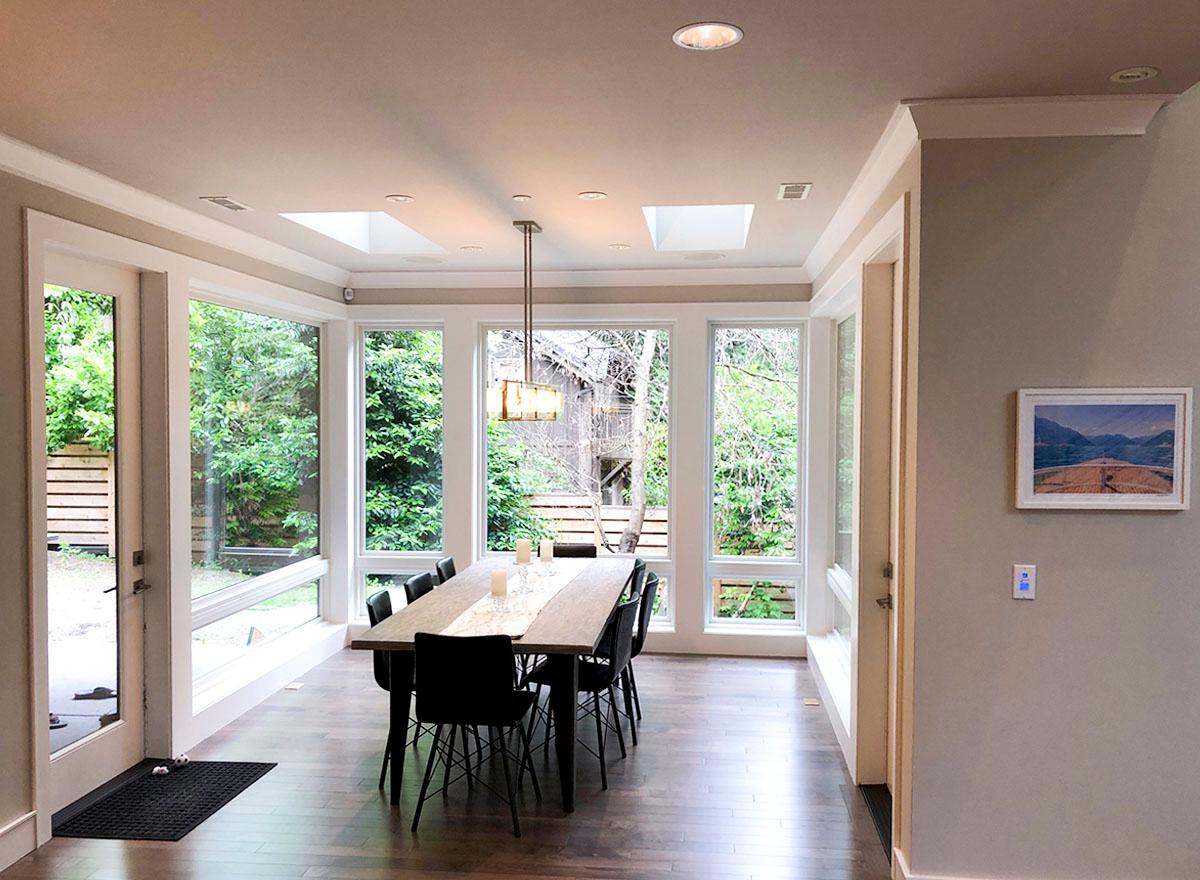

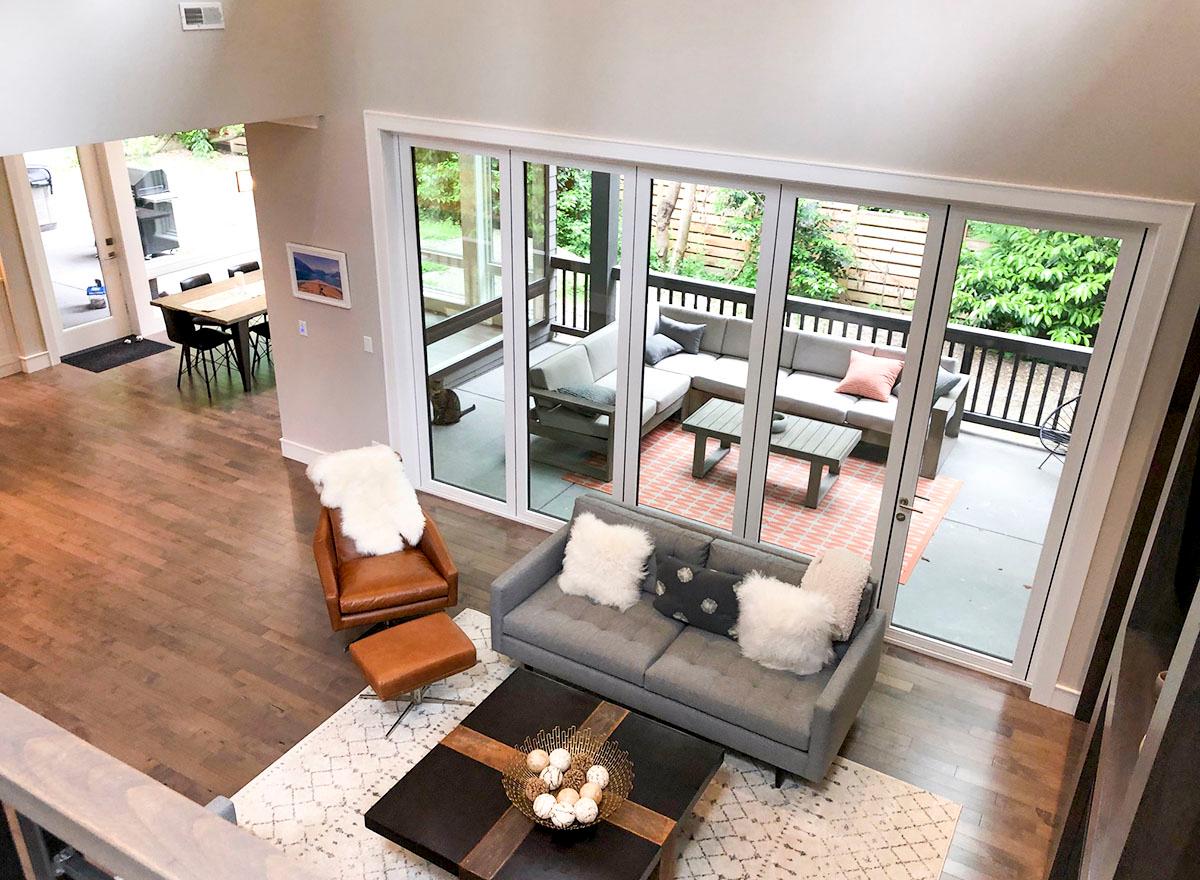

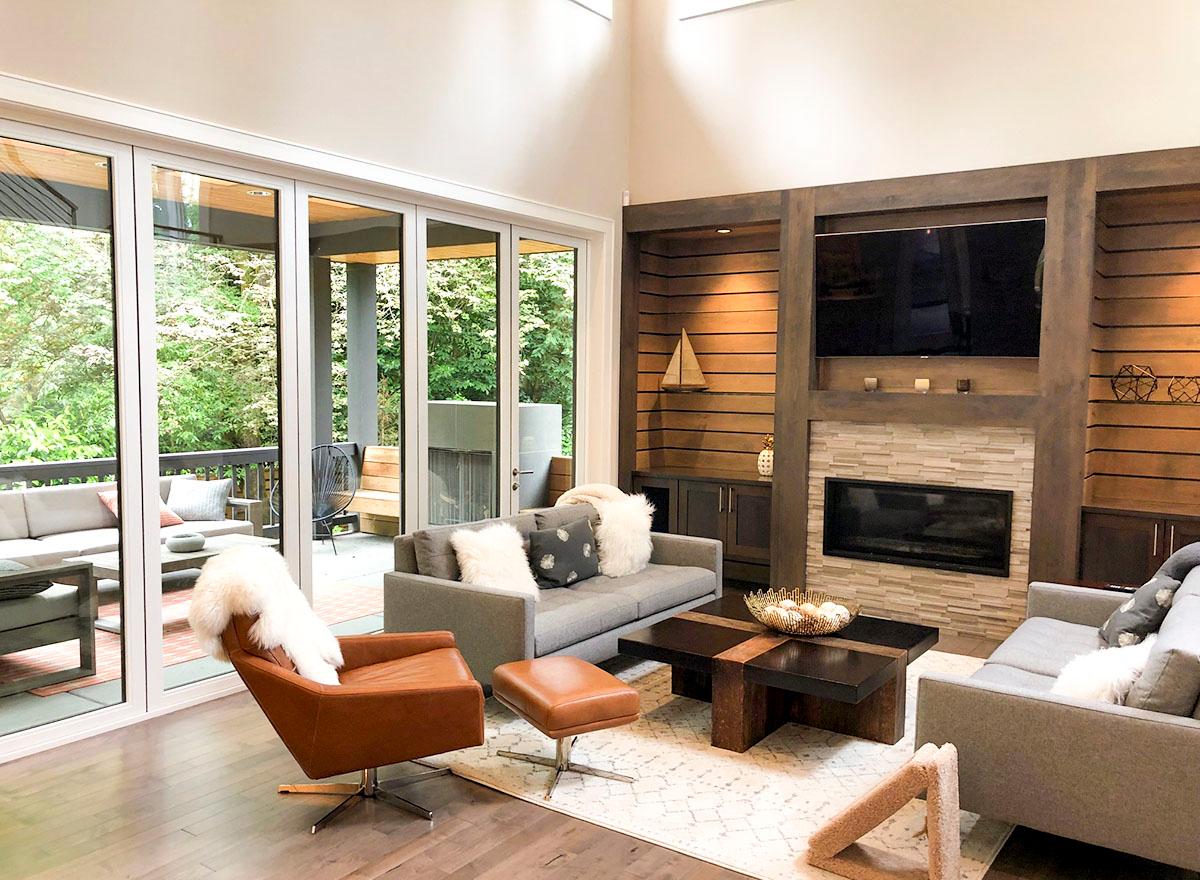

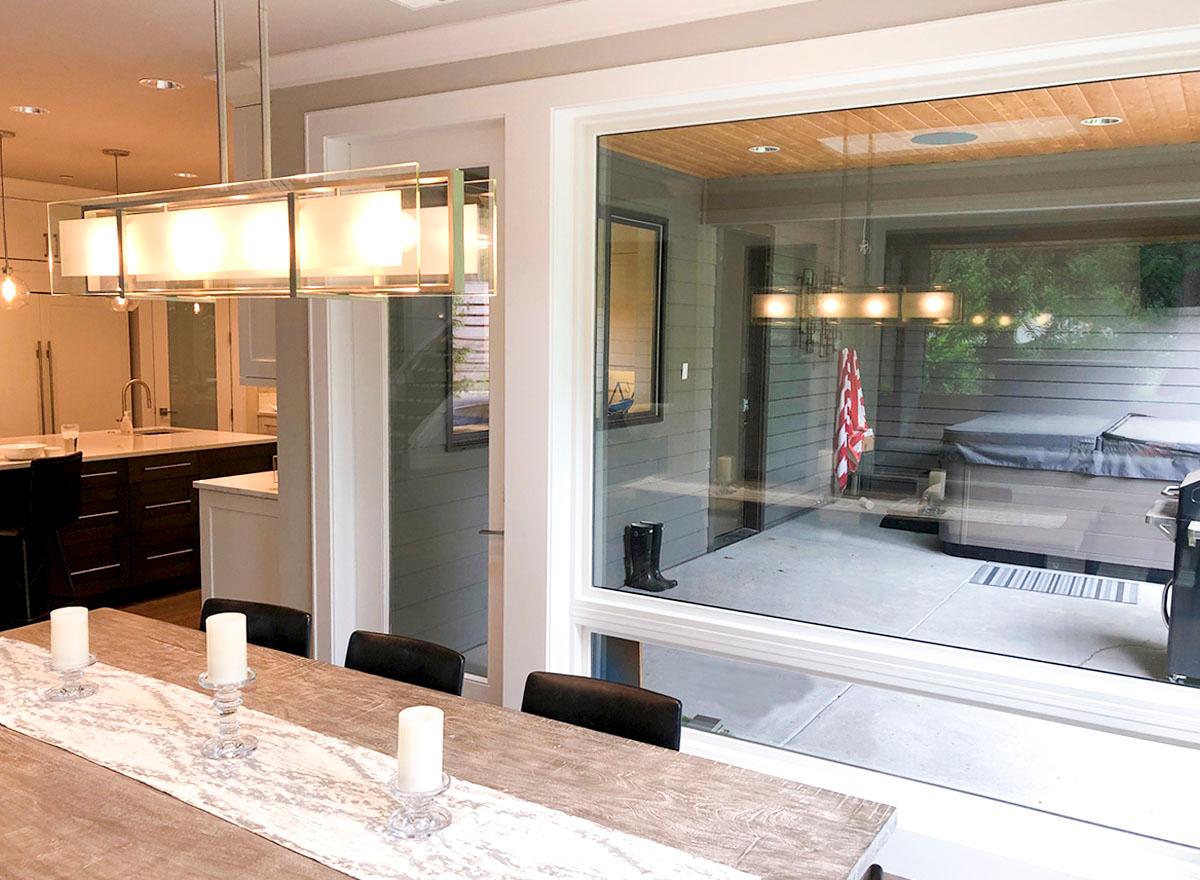

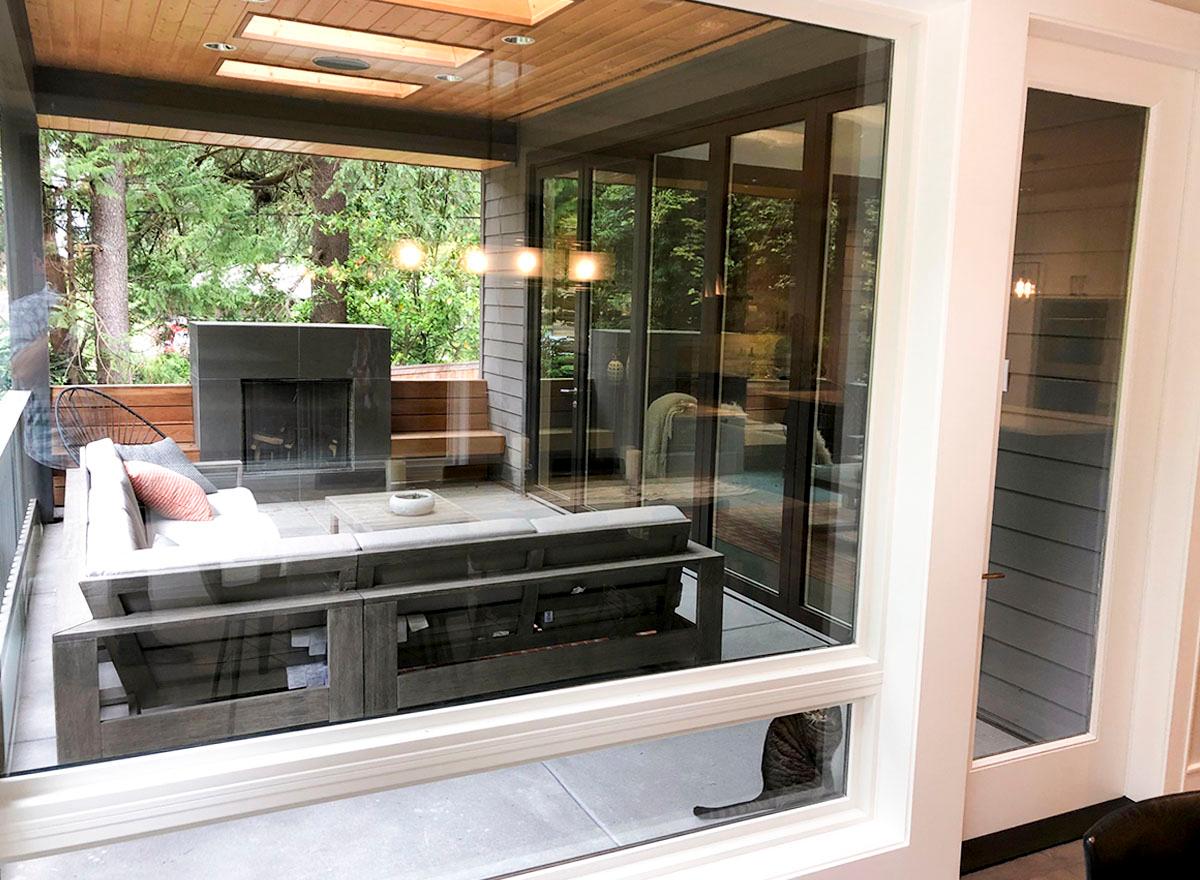

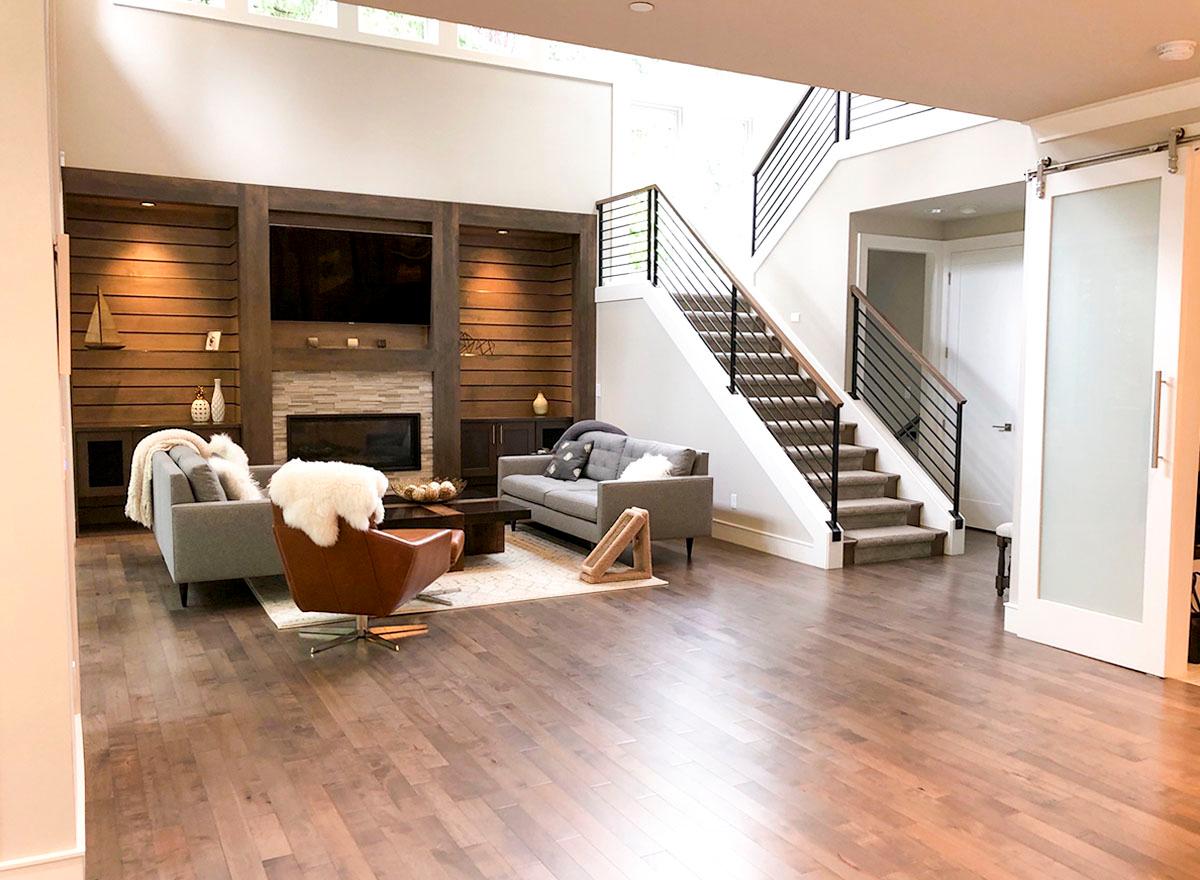

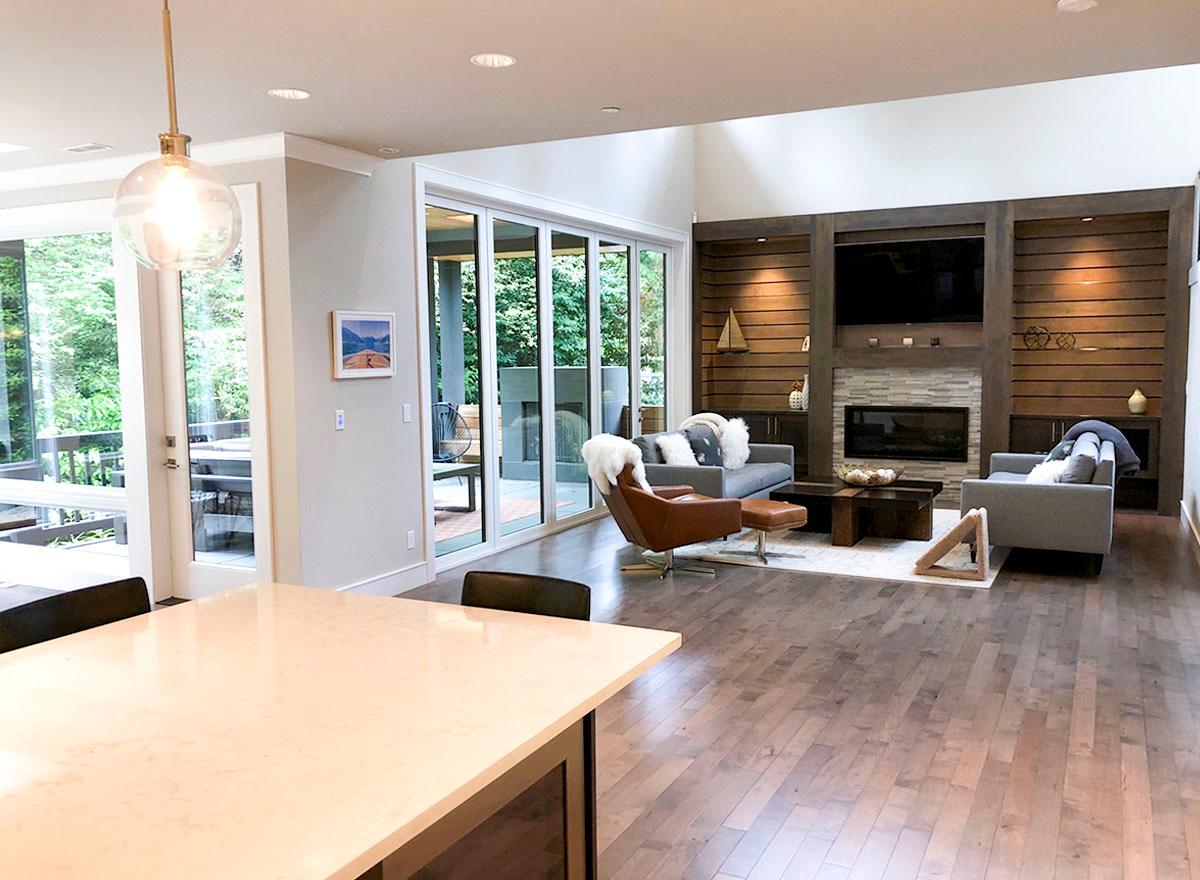

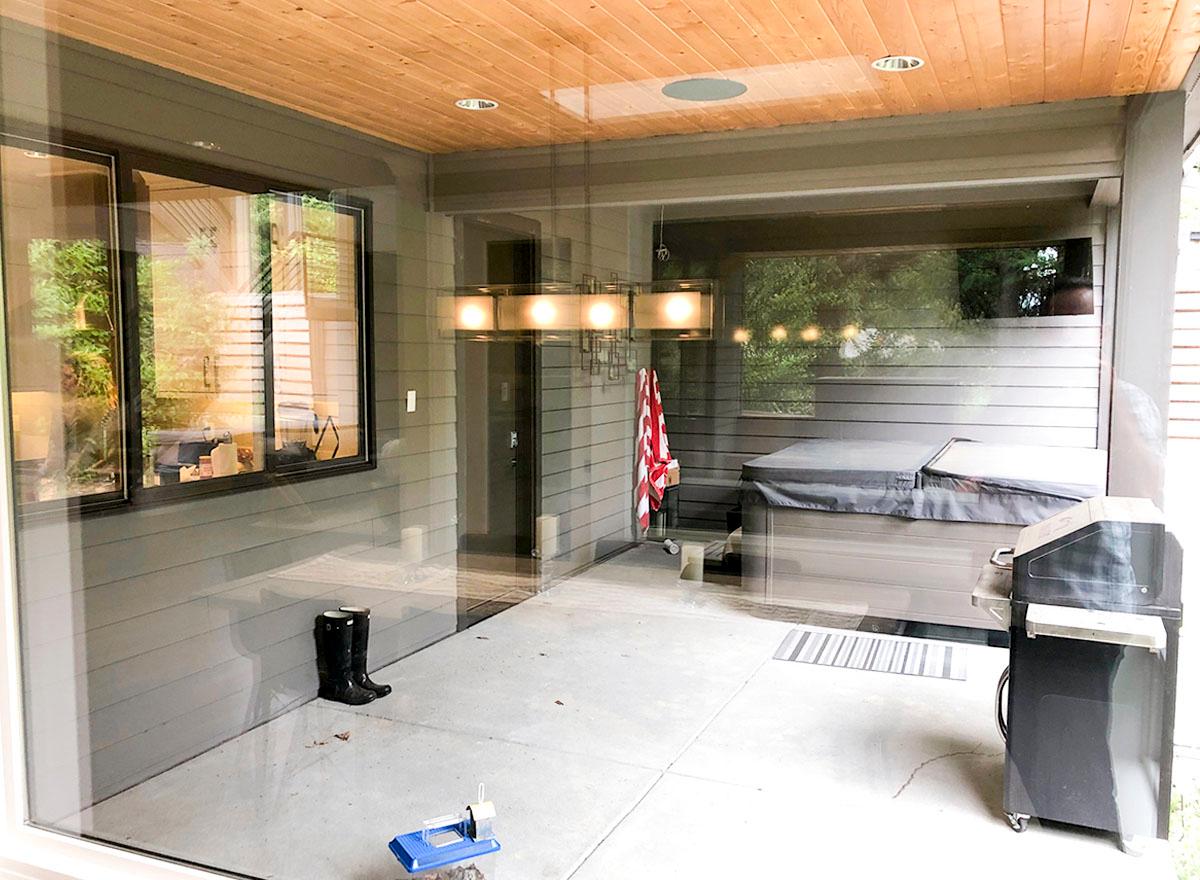

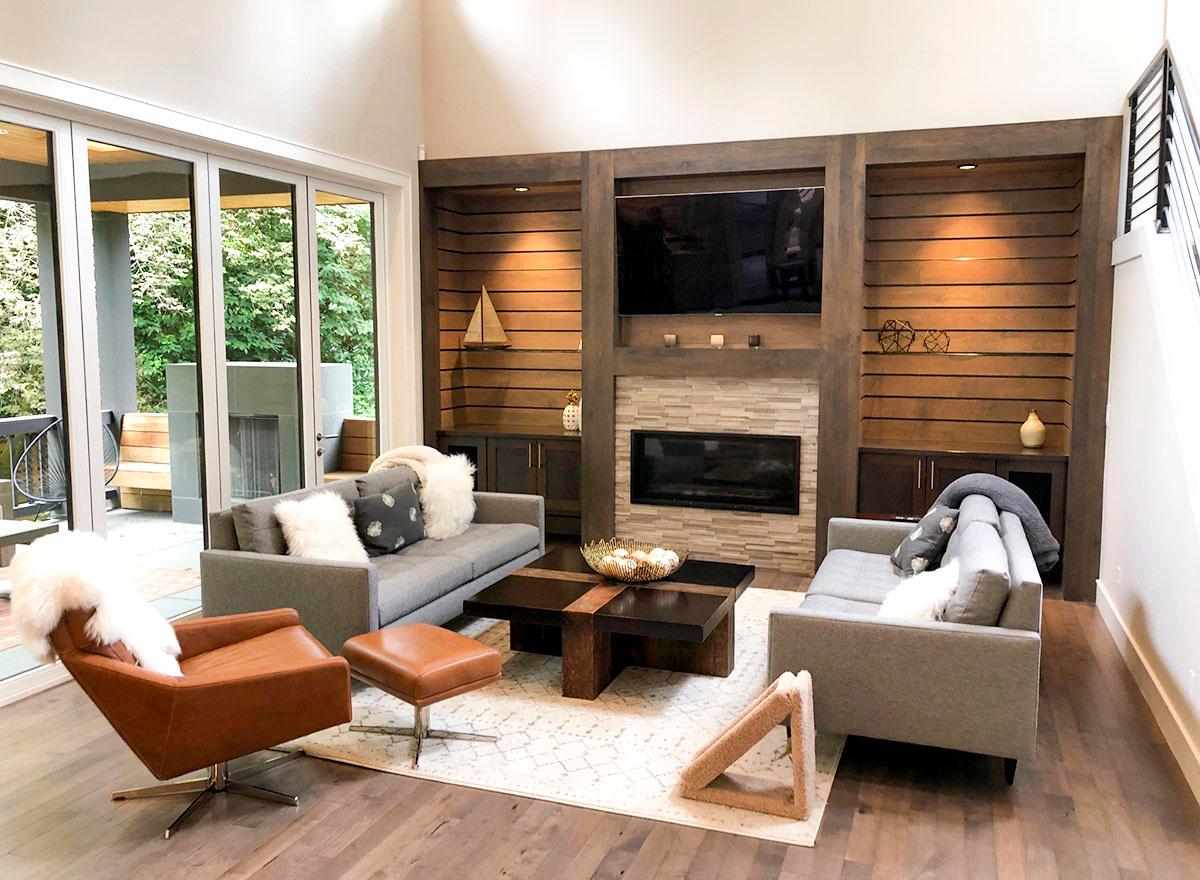

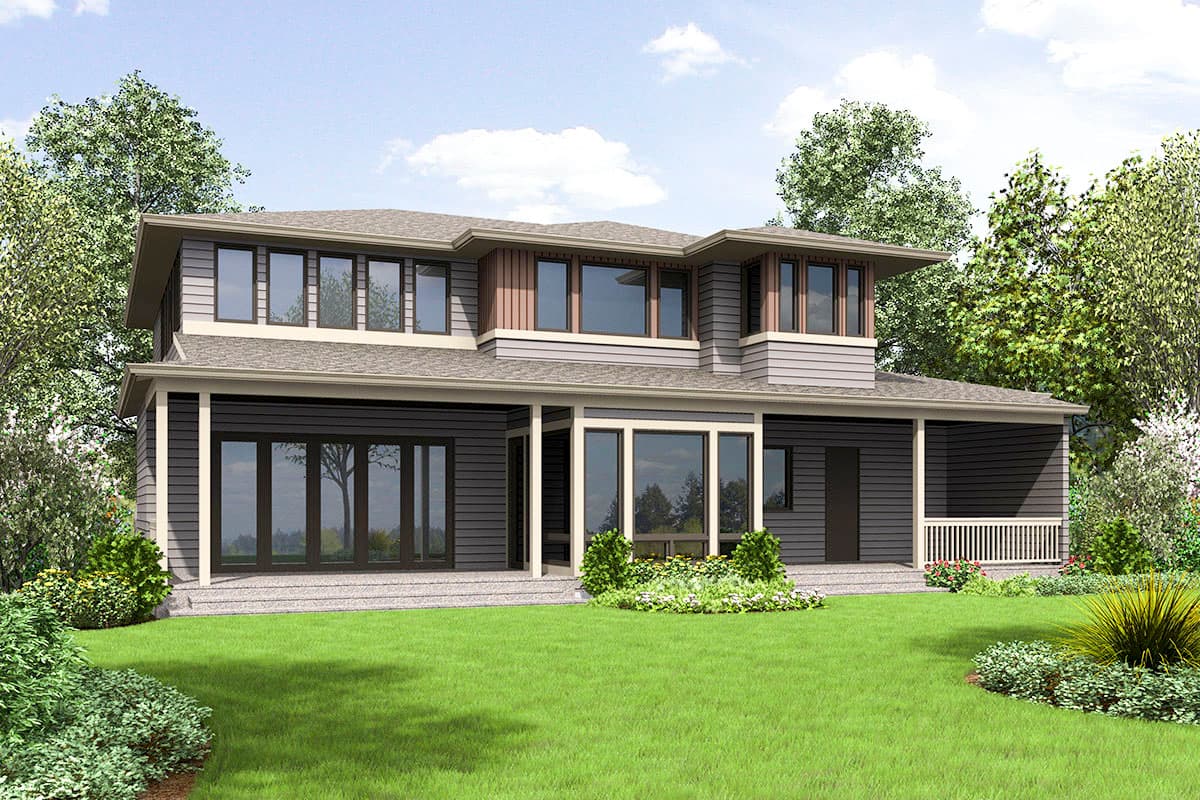

  • Windows on three sides of the dining room flood the area with light. A folding door system in the 2-story great room slides back to take you right out to the covered outdoor living room.

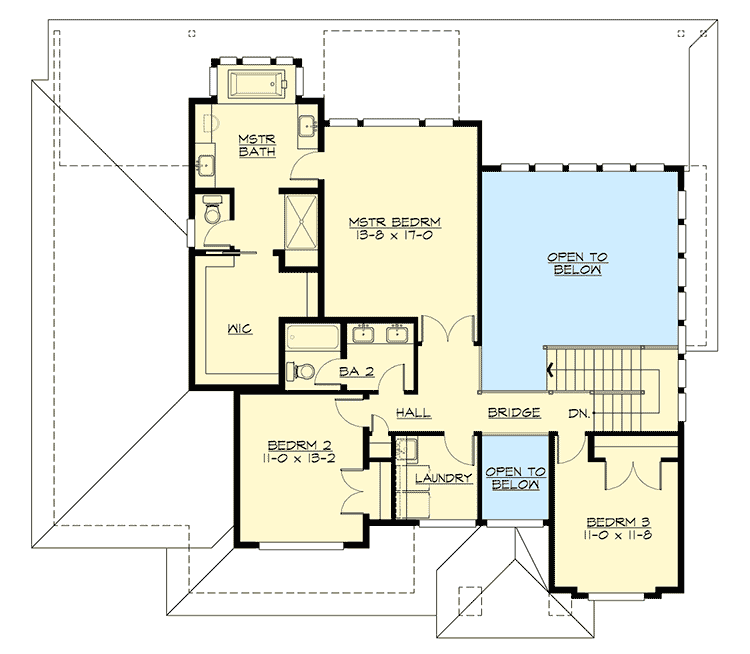

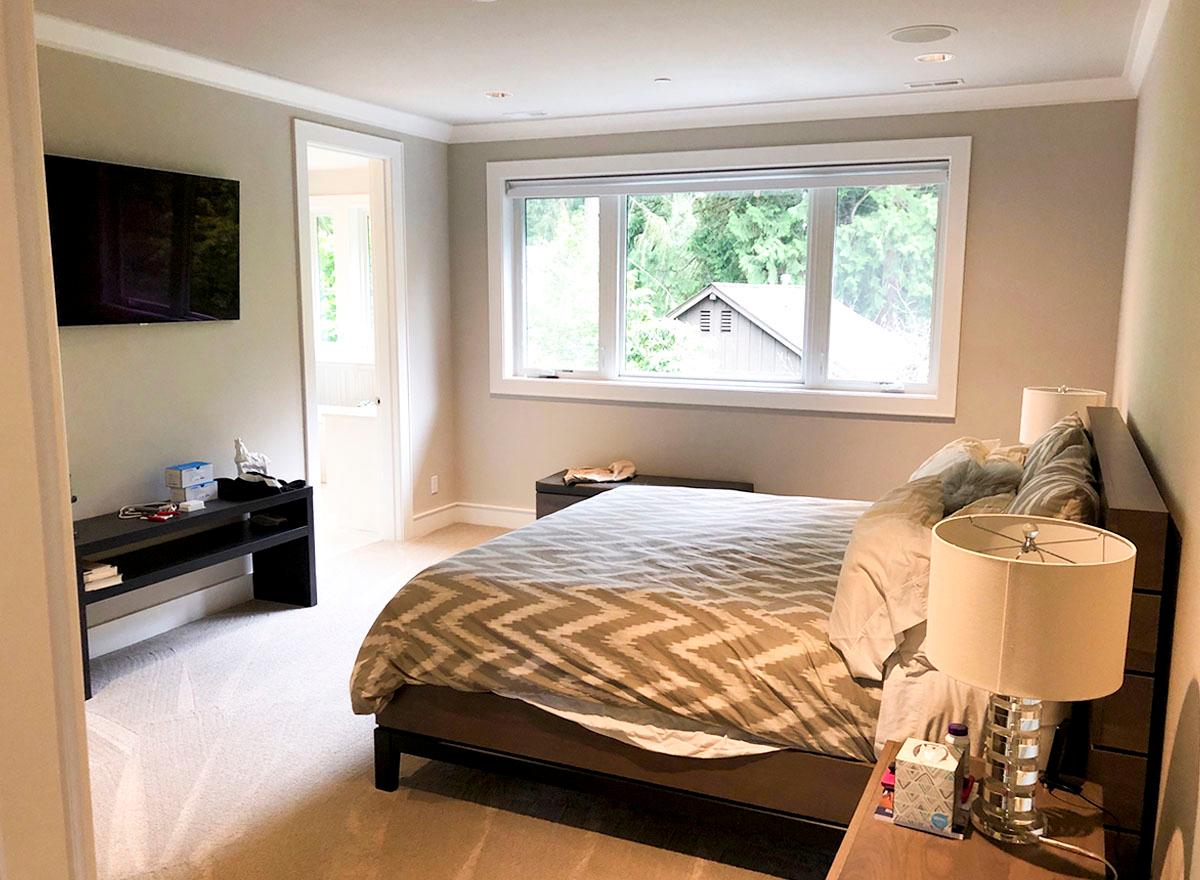

  • On the second floor, a balcony bridge has open railing on two sides so you can see into the great room and foyer below. The laundry room serves all three bedrooms on this floor.

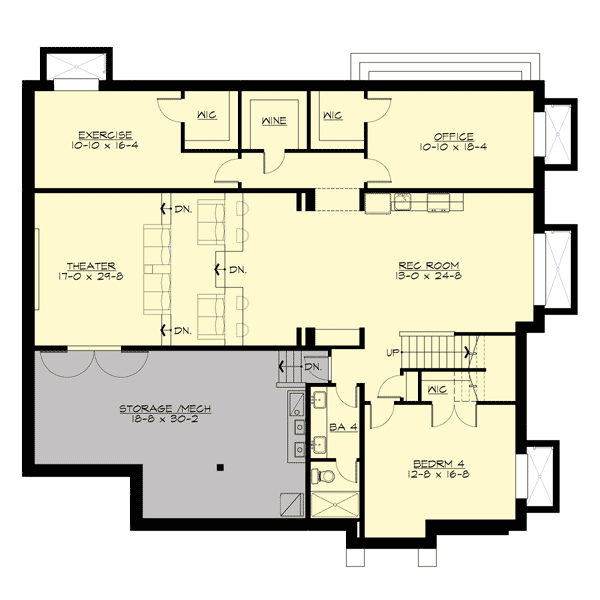

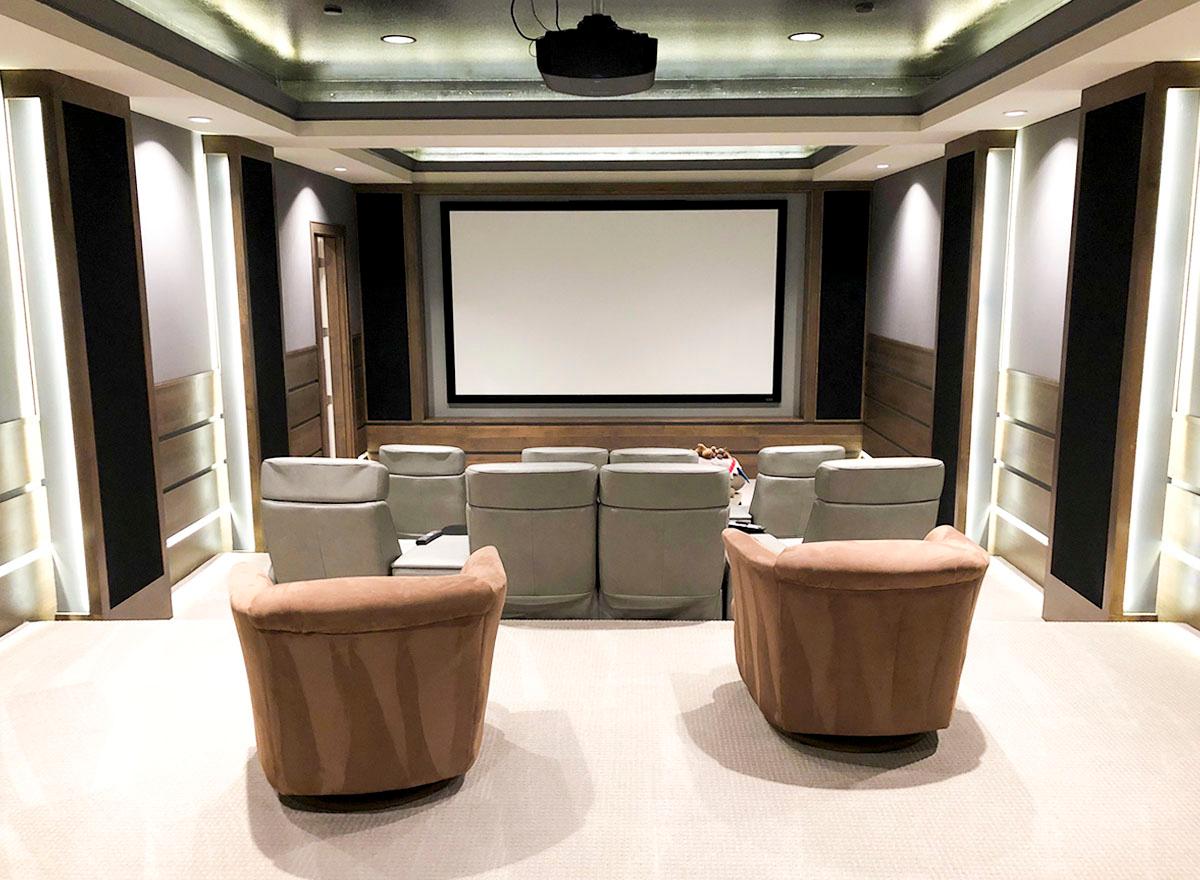

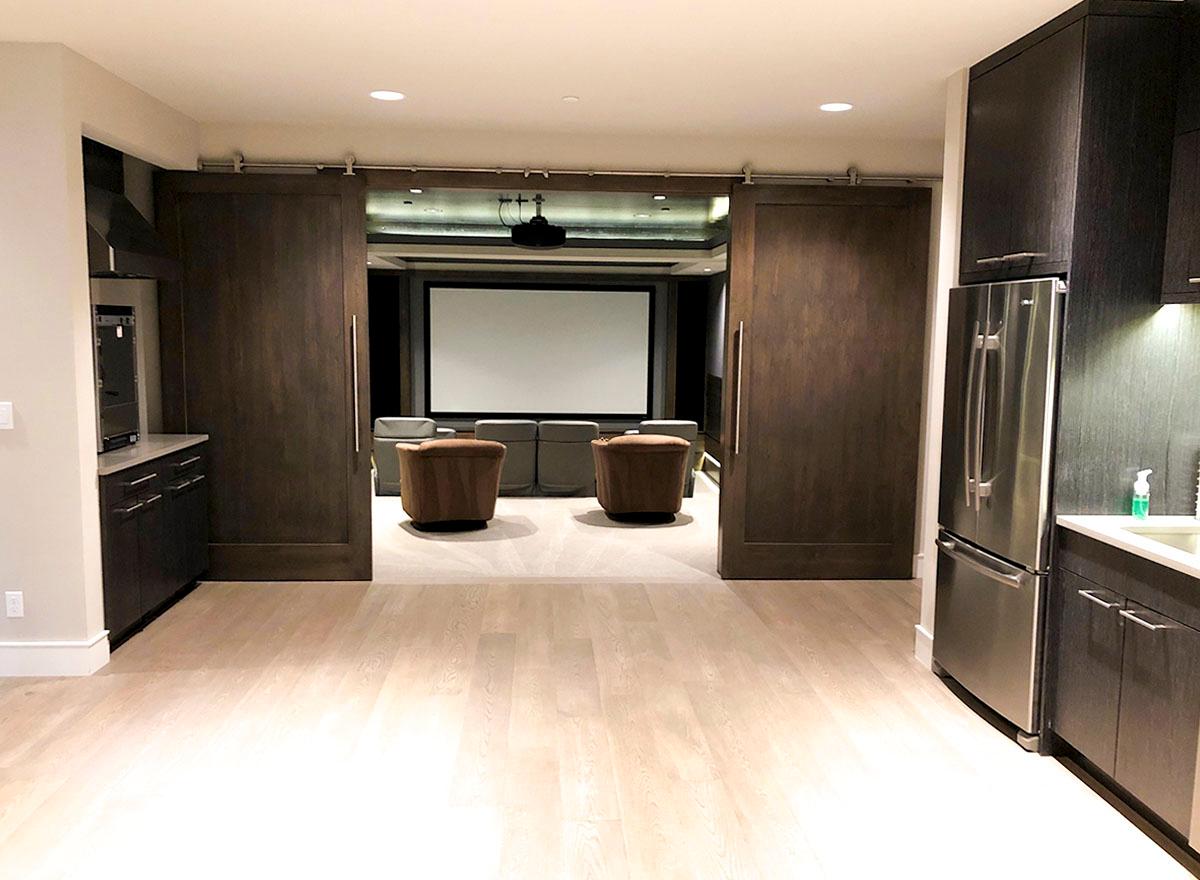

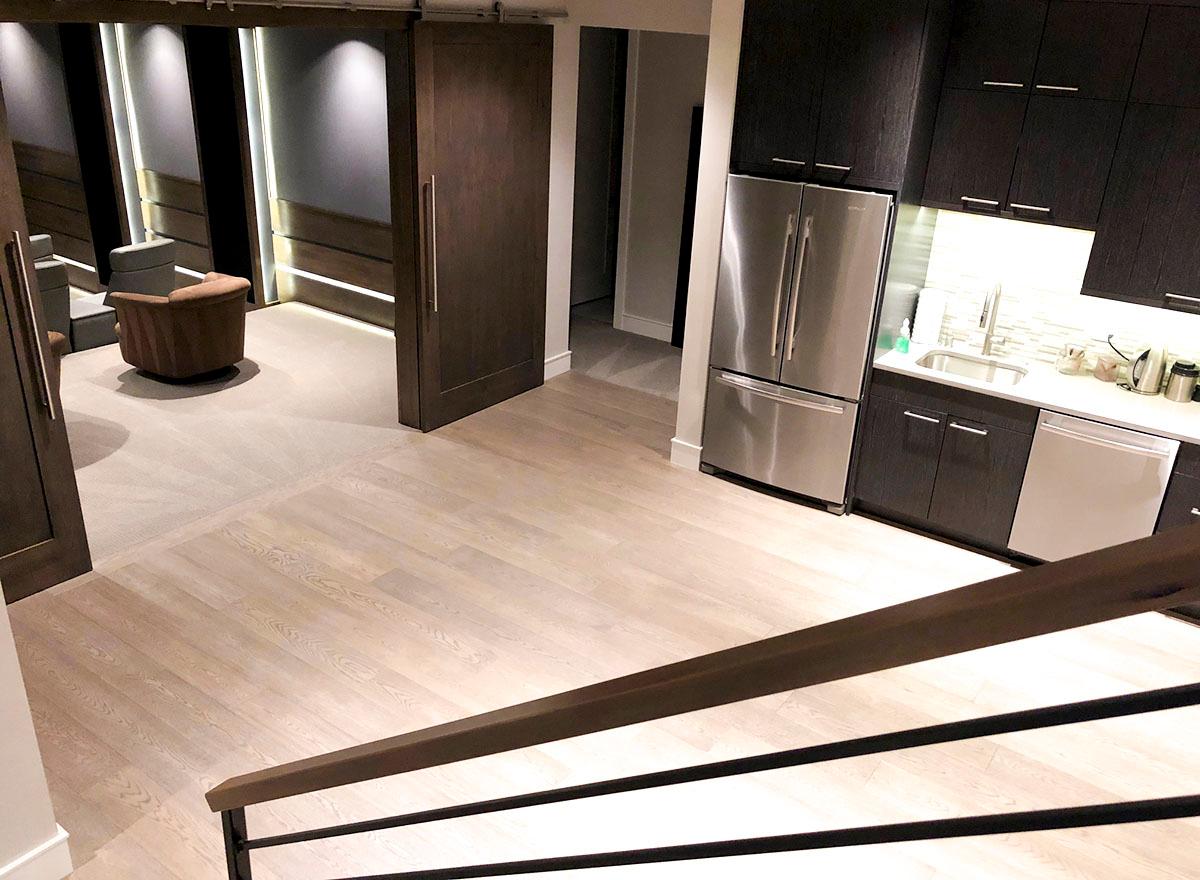

  • The best part of the house is the spectacular finished lower level where you get a huge home theater with platform levels, a dedicated exercise room, wine cellar, home office and an extra bedroom and bathroom.

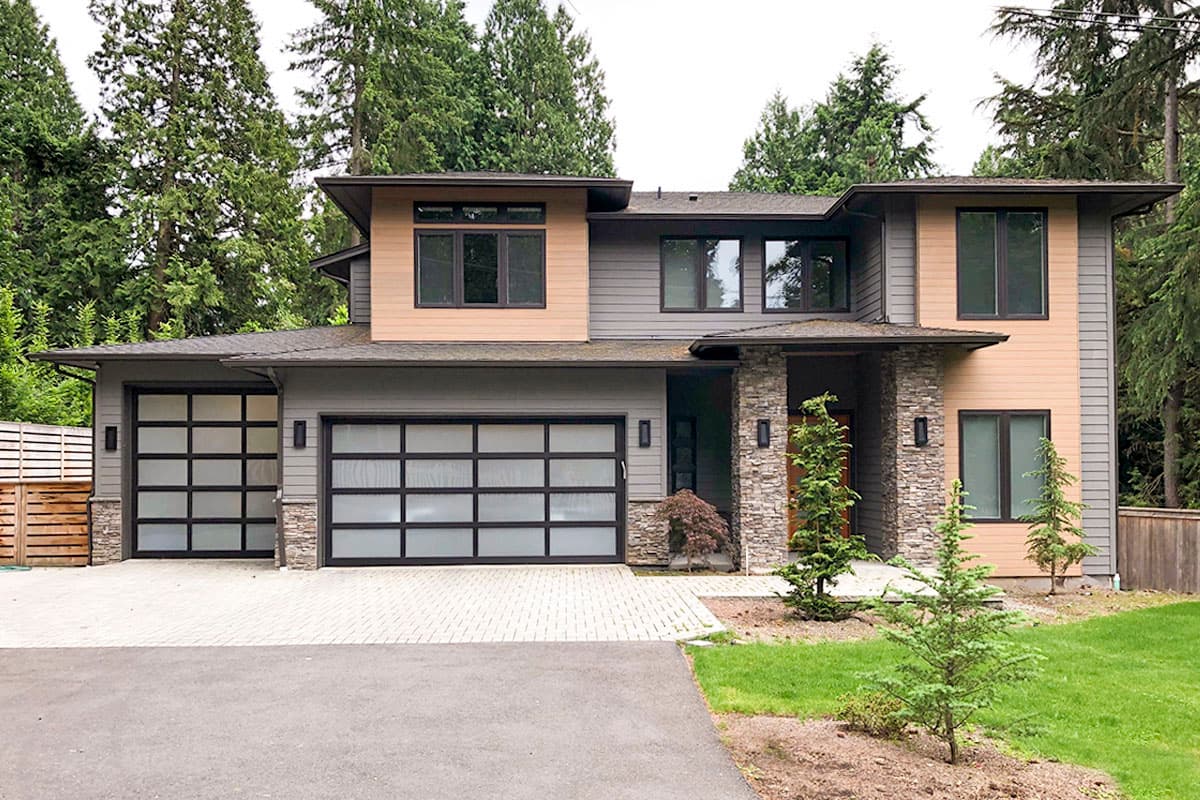

  • The 3 car garage has a boat bay in the back with a door to the barbecue porch.

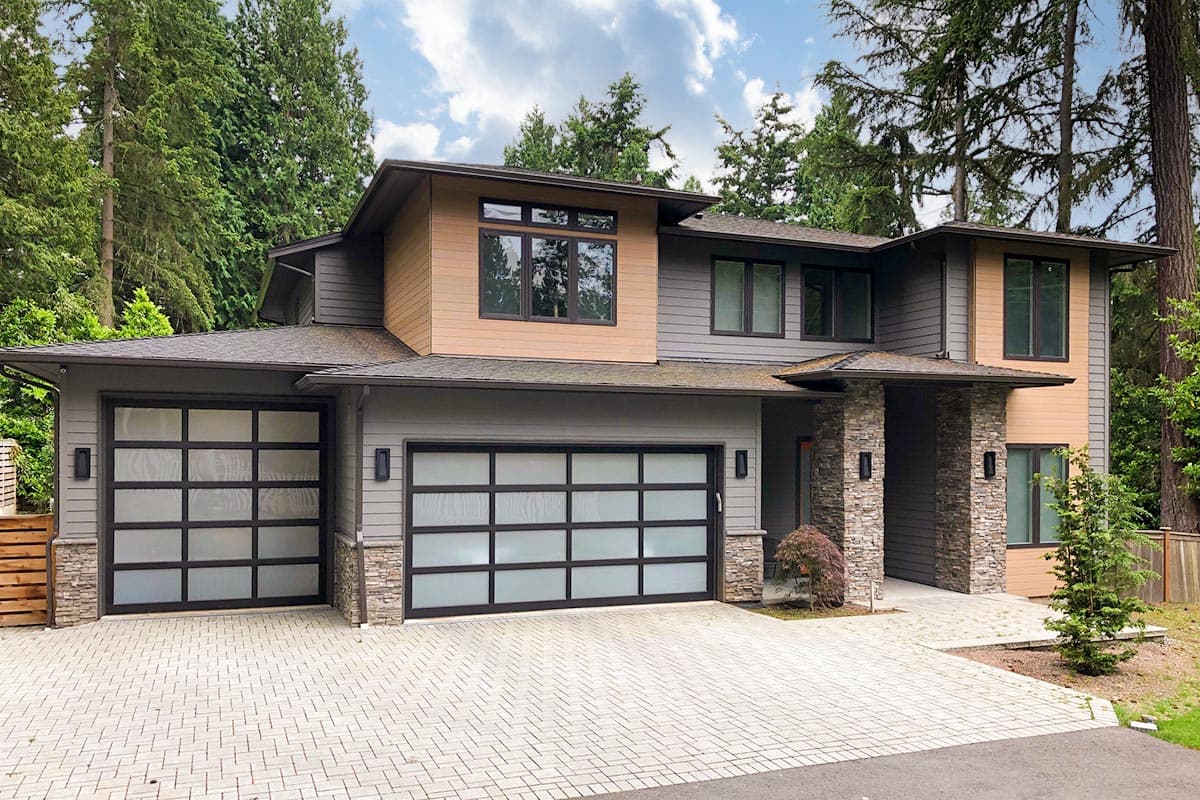

  • Related Plan: Get a crawlspace foundation with house plan 23698JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

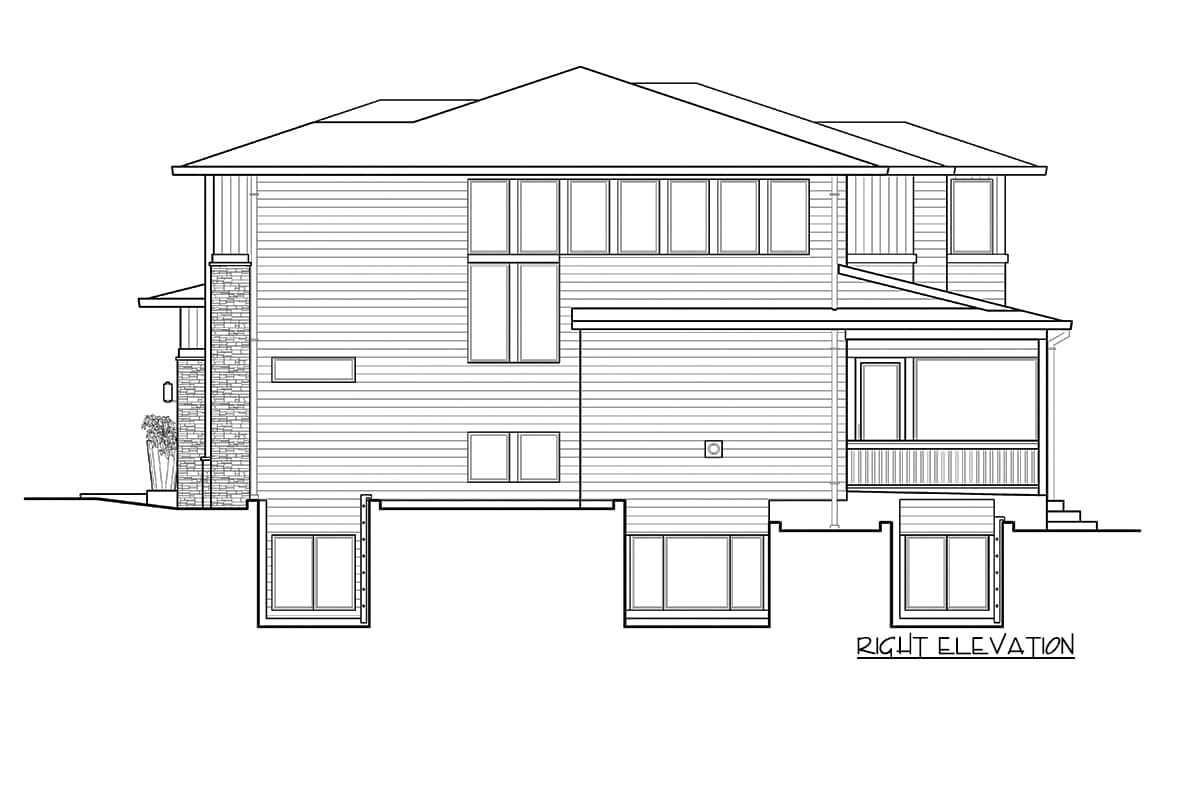

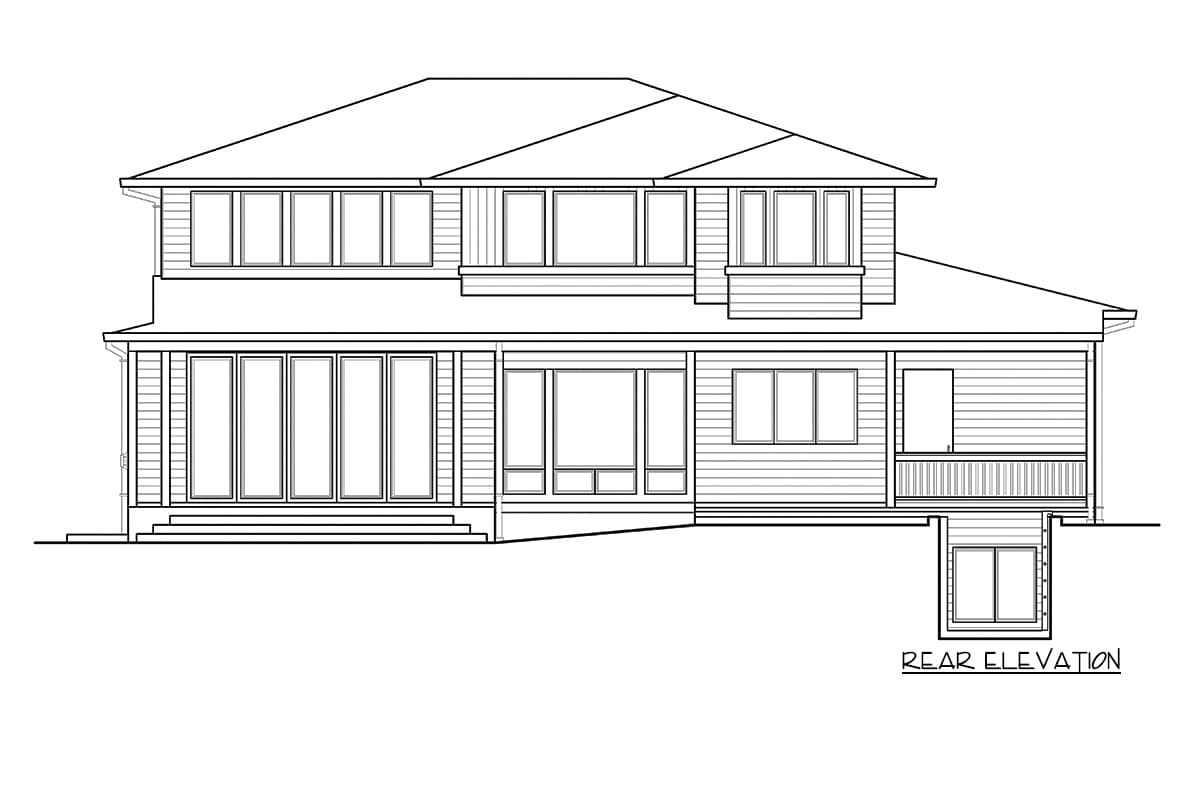

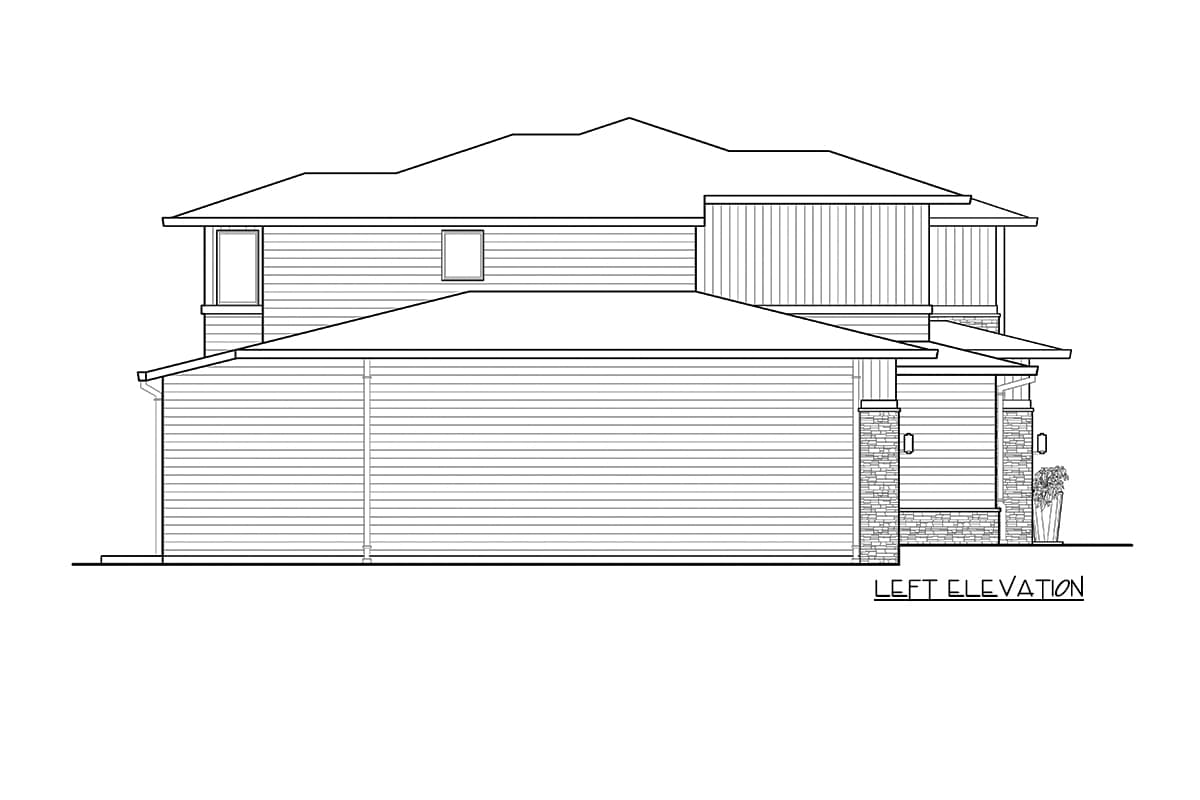

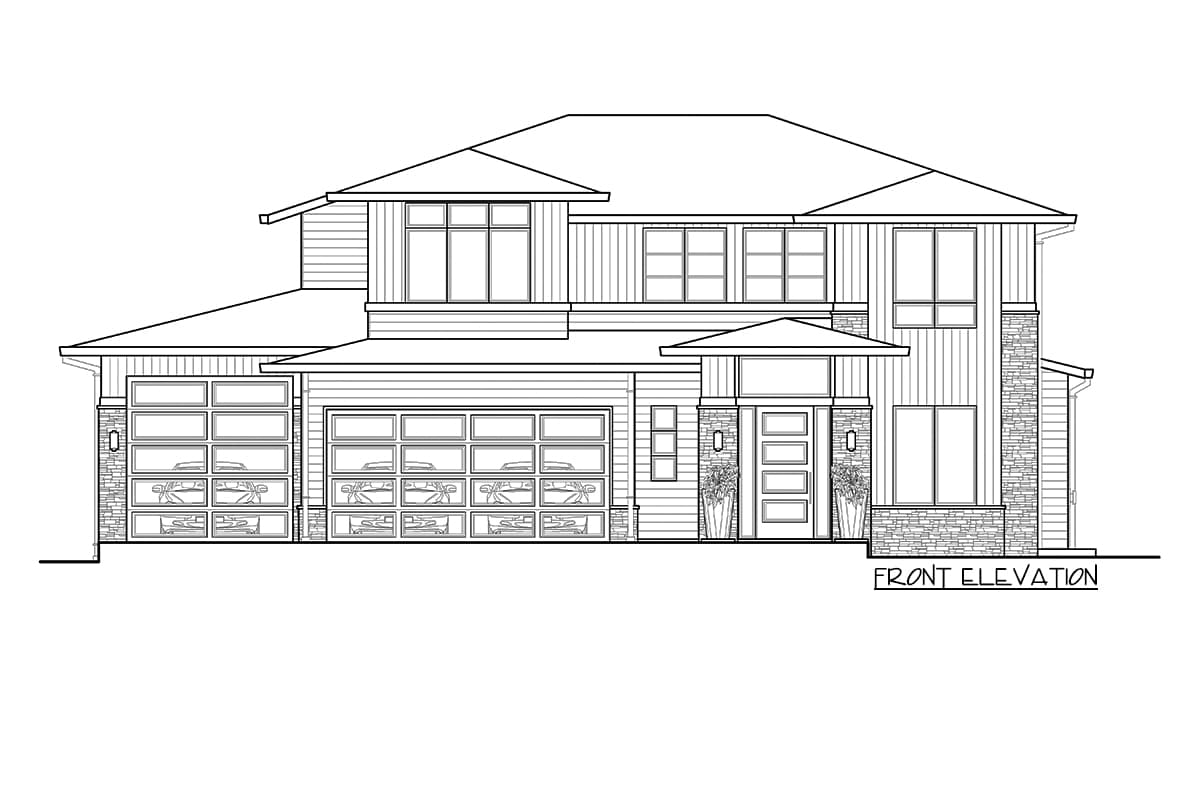

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Prairie House Plan with Stadium Seating in Home Theater - 4787 Sq Ft

  • 4,787

    Heated s.f.

  • 3-4

    Beds

  • 3 - 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,787 sq. ft.
  • Lower Level: 2,232 sq. ft.
  • 1st Floor: 1,380 sq. ft.
  • 2nd Floor: 1,175 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 52' 0"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4

Garage

  • Type: Attached
  • Area: 784 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
