Modern House Plan with Two-Story Ceilings

Pageloader

Modern House Plan with Two-Story Ceilings

Plan 23698JD

  • 2,555

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

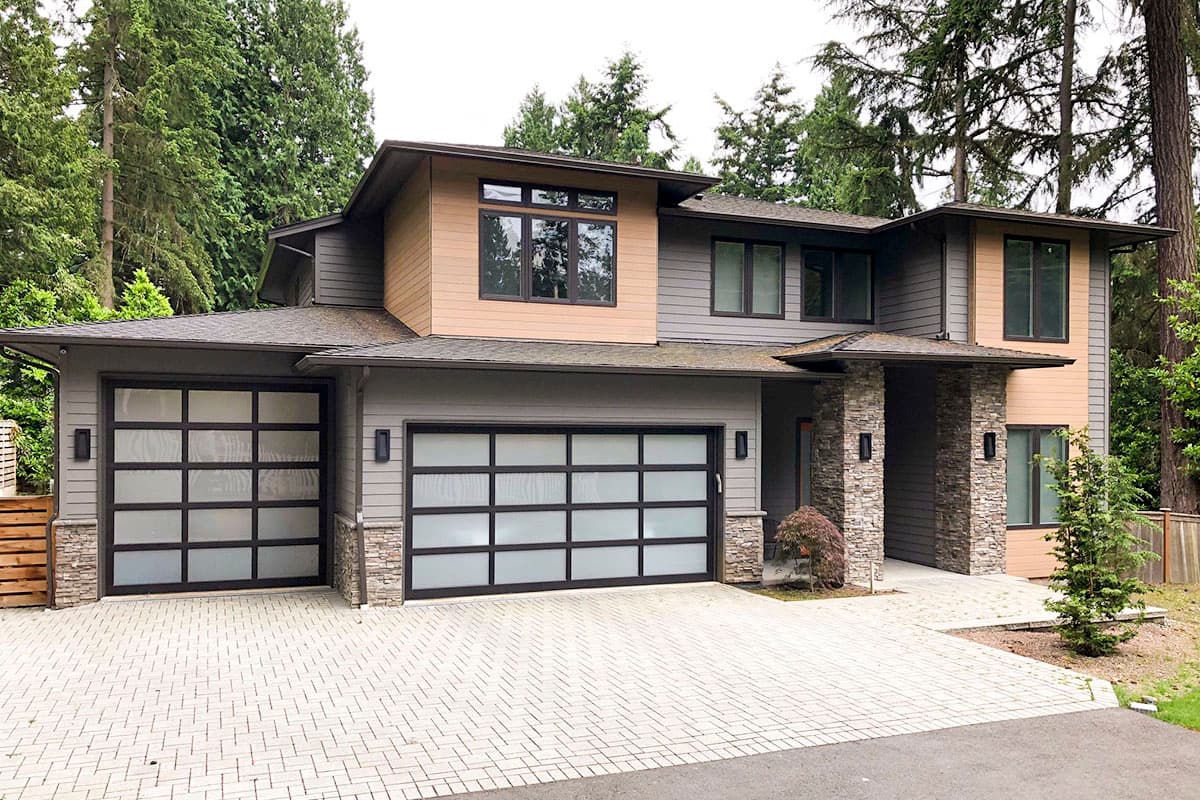

  • Stone and vertical siding serve to grab your attention as you approach the entry to this modern house plan.
  • The big transom window over the front door brings extra light into the home.
  • The open floor plan makes the main living space feel huge so every room can enjoy the great room fireplace
  • Windows on three side of the dining area maximize the outdoor views, with covered porches on each side.
  • Both the great room and foyer have dramatic two-story ceilings.
  • All three bedrooms are up on the second floor where there's a laundry room and balcony bridge that overlooks the rooms below.
  • This home comes with a huge tandem garage with boat bay.
  • Related Plan: Get a finished basement with house plan 23617JD.
  • NOTES: Additional fees apply when building in the State of Washington. Contact us for more information.
  • SHIPPING NOTES: Please allow up to 20 business days for delivery.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

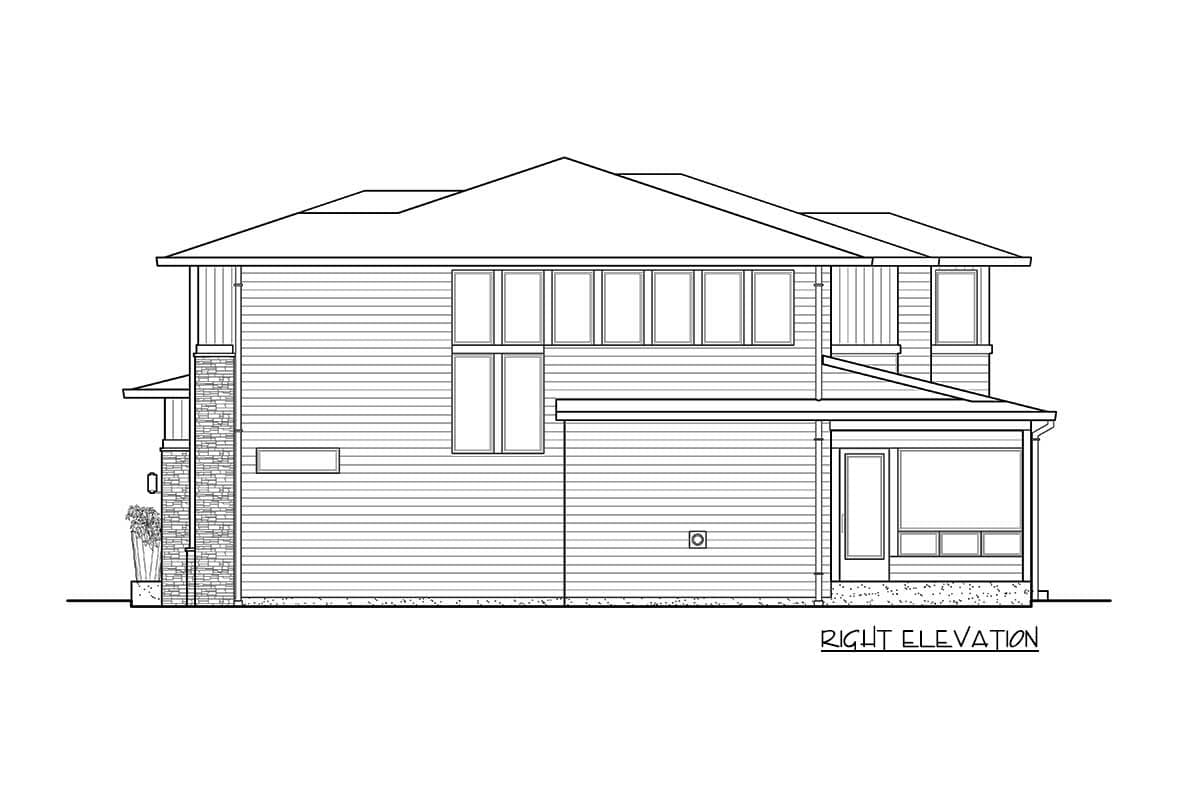

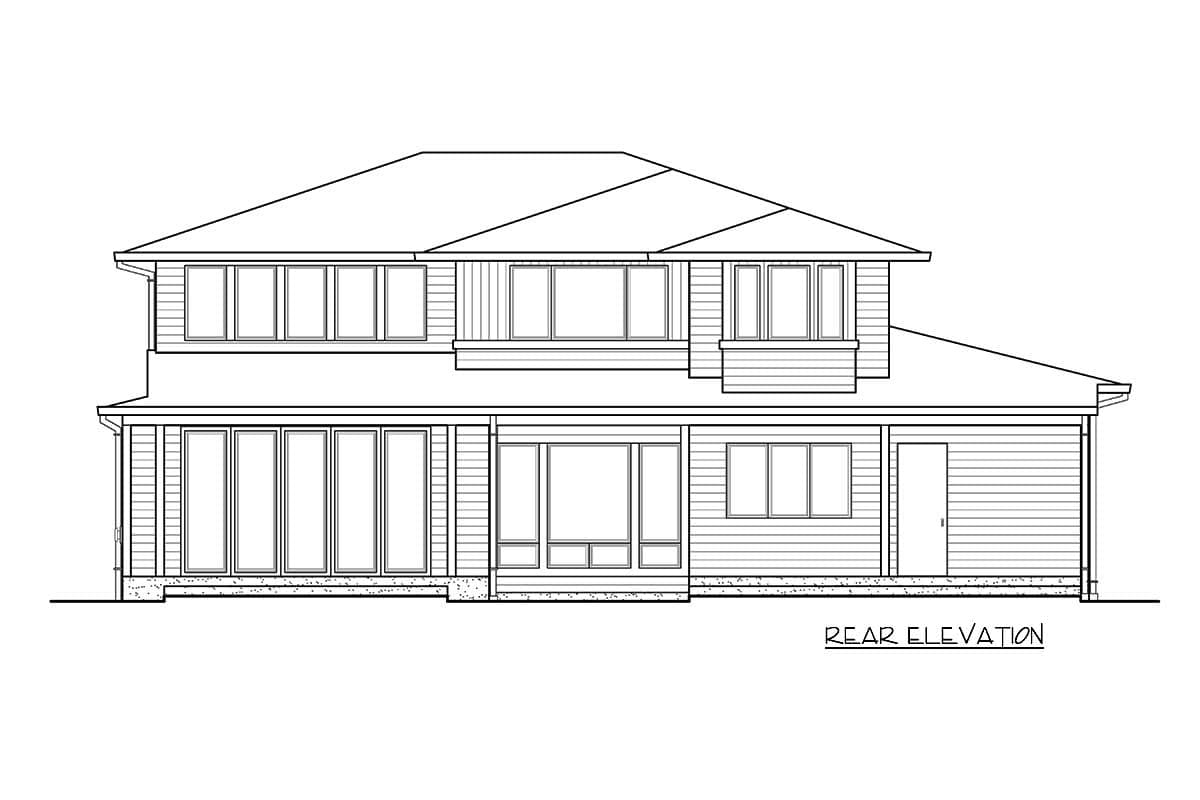

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Modern House Plan with Two-Story Ceilings

  • 2,555

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,400
  • 5 Sets PLUS $1,500
  • CAD - multi-use $2,400
  • View all purchase option online

About This Plan

  • Stone and vertical siding serve to grab your attention as you approach the entry to this modern house plan.
  • The big transom window over the front door brings extra light into the home.
  • The open floor plan makes the main living space feel huge so every room can enjoy the great room fireplace
  • Windows on three side of the dining area maximize the outdoor views, with covered porches on each side.
  • Both the great room and foyer have dramatic two-story ceilings.
  • All three bedrooms are up on the second floor where there's a laundry room and balcony bridge that overlooks the rooms below.
  • This home comes with a huge tandem garage with boat bay.
  • Related Plan: Get a finished basement with house plan 23617JD.
  • NOTES: Additional fees apply when building in the State of Washington. Contact us for more information.
  • SHIPPING NOTES: Please allow up to 20 business days for delivery.

Floor Plans

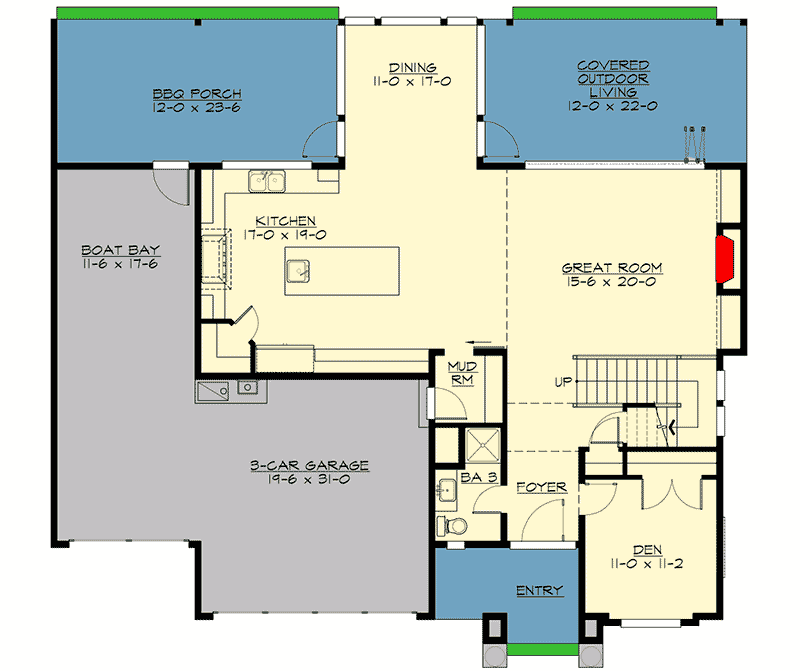

  • Main Level

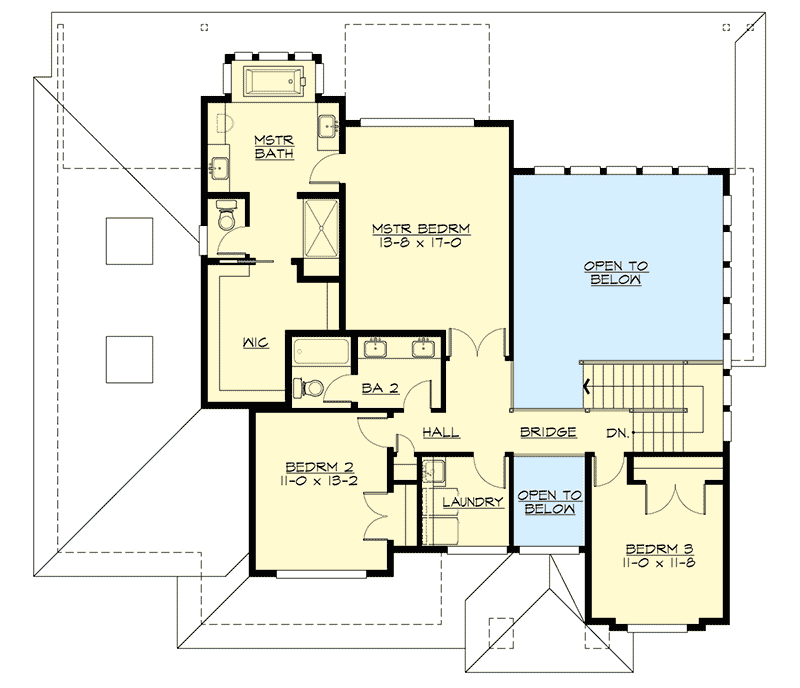

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,555 sq. ft.
  • 1st Floor: 1,380 sq. ft.
  • 2nd Floor: 1,175 sq. ft.
  • Porch, Rear: 546 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 58' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 784 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
