Plan 22484DR

Modern Ranch Duplex with Matching 2-Bed Units - 1127 Sq Ft Each - 2 Beds and 2 Baths

Heated S.F.
2,252
Units
2
Width
Depth

Floor Plan

Plan 22484DR

Main Level
Main Level
Unfinished Basement
Unfinished Basement
Basement Stairs Location
Basement Stairs Location

Plan 22484DR

M-F 9am-5pm EST |

1-203-761-8500

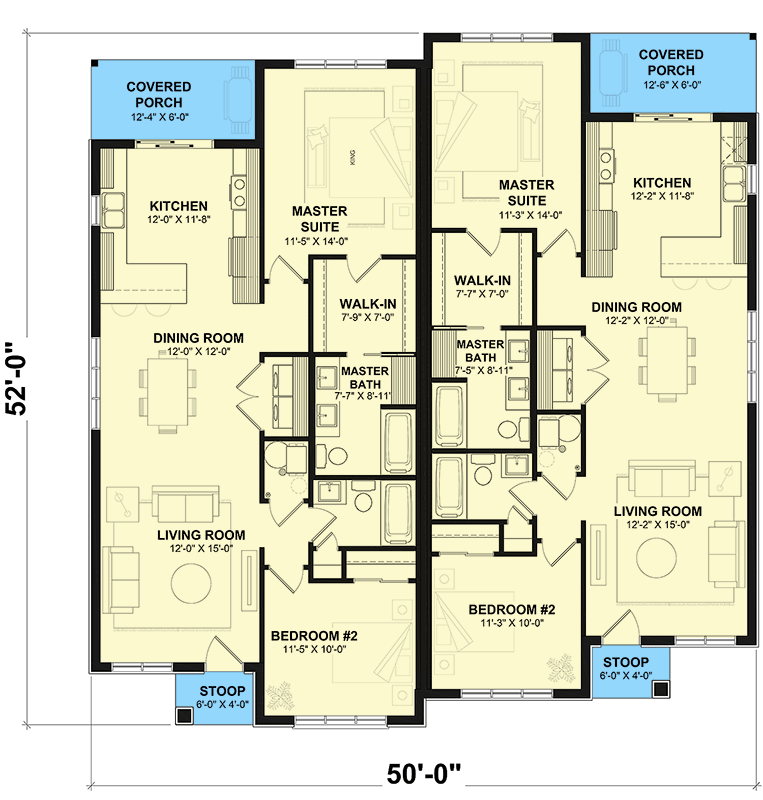

Main Level

Plan 22484DR: Modern Ranch Duplex with Matching 2-Bed Units - 1127 Sq Ft Each - 2 Beds and 2 Baths - Floor Plan - Main Level - Traditional

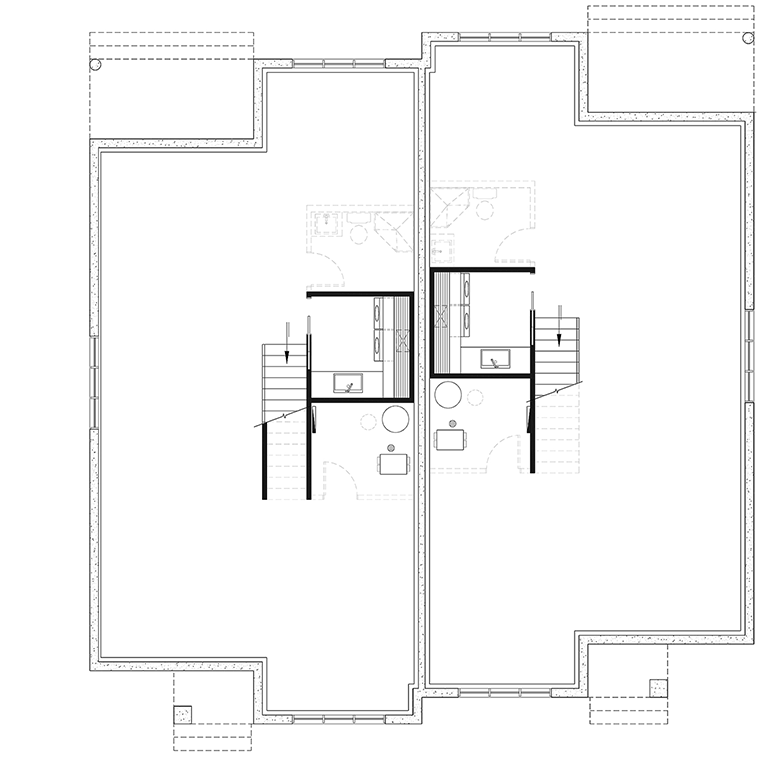

Unfinished Basement

Plan 22484DR: Modern Ranch Duplex with Matching 2-Bed Units - 1127 Sq Ft Each - 2 Beds and 2 Baths - Floor Plan - Unfinished Basement - Traditional

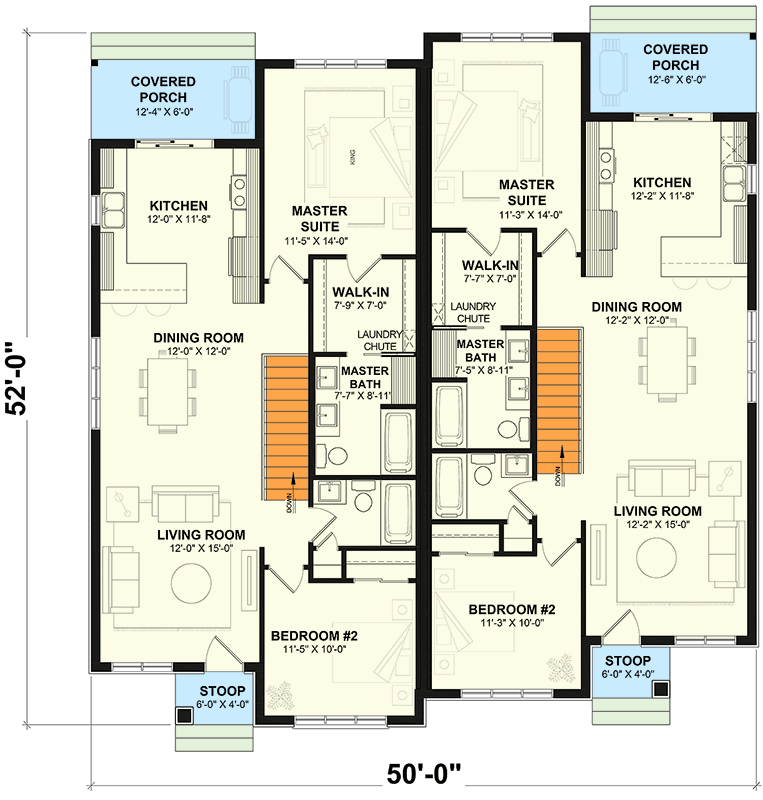

Basement Stairs Location

Plan 22484DR: Modern Ranch Duplex with Matching 2-Bed Units - 1127 Sq Ft Each - 2 Beds and 2 Baths - Floor Plan - Basement Stairs Location - Traditional

Plan Details

  • This 2-family house plan gives you 2 matching units each with 2 beds and 2 baths.
  • Each unit is 25'-wide and gives you 1,127 sq. ft. of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,127Sq. Ft.
1127 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
25'width
50'depth
17' 6"height
Unit B
Heated Area
1,125Sq. Ft.
1125 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
25'width
50'depth
17' 6"height

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,252 sq. ft.

1st Floor

2,252 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

52' 0"

Max Ridge Height

17' 6"

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,252 sq. ft.

1st Floor

2,252 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

52' 0"

Max Ridge Height

17' 6"

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
