Plan 67782NWL

Modern Ranch Home Plan with Option for Walk-Out Basement

Heated S.F.
2,804
Beds
4
Baths
3 - 4
Stories
1
Cars
2

Floor Plan

Plan 67782NWL

Main Level
Main Level
Basement Level
Basement Level
Walkout Basement Level
Walkout Basement Level

Plan 67782NWL

M-F 9am-5pm EST |

1-203-761-8500

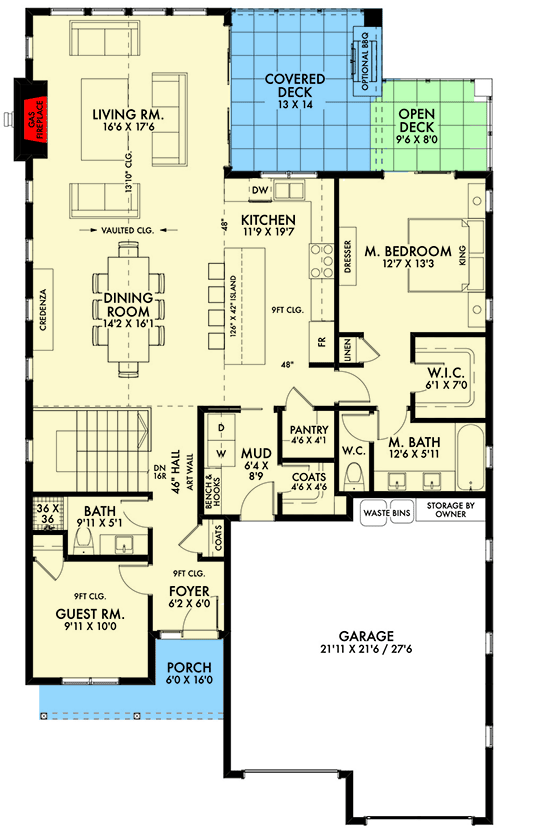

Main Level

Plan 67782NWL: Modern Ranch Home Plan with Option for Walk-Out Basement - Floor Plan - Main Level - New American, Ranch

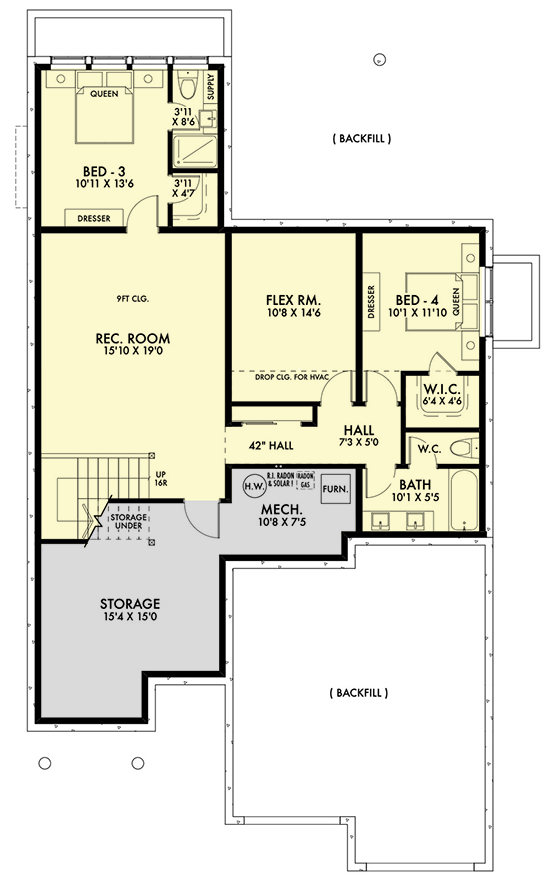

Basement Level

Plan 67782NWL: Modern Ranch Home Plan with Option for Walk-Out Basement - Floor Plan - Basement Level - New American, Ranch

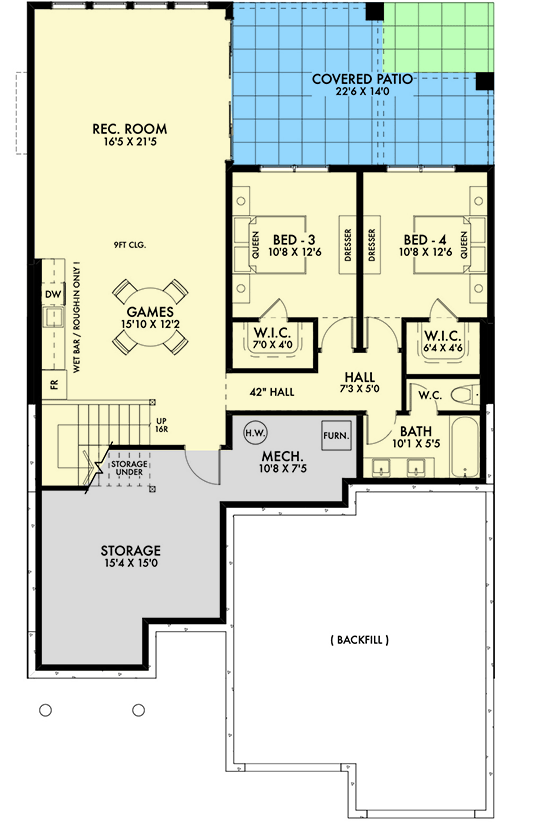

Walkout Basement Level

Plan 67782NWL: Modern Ranch Home Plan with Option for Walk-Out Basement - Floor Plan - Walkout Basement Level - New American, Ranch

Plan Details

  • The gable roof above this modern, ranch home plan allows for a vaulted ceiling throughout the open concept floor plan. The flexible design offers a second outdoor living space on the lower level with the optional walk-out basement.
  • When entering from the front door, discover a guest bedroom to the left of the foyer, next to a full bath. A few steps further, the open and airy kitchen boasts a large island in the center with counter-height seating.
  • The living room is drenched in natural light, and features oversized glass doors that extend the living space to a rear covered deck.
  • The main-floor master bedroom is situated behind the 2-car garage, and provides access to the back deck, a walk-in closet, and 4-fixture bath.
  • Downstairs, two additional bedrooms share the basement with a spacious recreation room, and ample unfinished space is ideal for storage. Choose the walk-out basement option for a slightly different configuration.
  • BUILDING RESTRICTION: This plan cannot be built in British Columbia, Canada.

What's Included

  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan
  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,804 sq. ft.

Lower Level

1,229 sq. ft.

1st Floor

1,575 sq. ft.

Porch, Front

96 sq. ft.

Deck

258 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

574 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8' 9"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,804 sq. ft.

Lower Level

1,229 sq. ft.

1st Floor

1,575 sq. ft.

Porch, Front

96 sq. ft.

Deck

258 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

574 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8' 9"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
