Plan 264173KMD

Modern Ranch House Plan: 4 Beds, 3-Car Garage, Expansive Outdoor Living

Heated S.F.
3,043
Beds
4
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 264173KMD

Main Level
Main Level

Plan 264173KMD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 264173KMD: Modern Ranch House Plan: 4 Beds, 3-Car Garage, Expansive Outdoor Living - Floor Plan - Main Level - Ranch, Southwest

Plan Details

  • This inviting 3,043 sq. ft. Modern Ranch House Plan features 4 bedrooms, 3 full bathrooms, 1 half bath, and a generous 911 sq. ft. 3-car side-entry garage, all wrapped in a charming stone and stucco exterior.
  • Step into a welcoming foyer that immediately opens to the spacious great room, offering an expansive view towards the rear. A secluded study is thoughtfully placed near the entry, ideal for a home office or quiet library.
  • The heart of the home unfolds in an open-concept layout, seamlessly connecting the great room, dining area, and a gourmet kitchen. The kitchen boasts a large island perfect for casual meals and entertaining, complemented by a practical butler's walk-in pantry.
  • Designed for privacy, the master suite occupies its own wing, featuring a luxurious master bath with a separate tub and shower, and an expansive wardrobe. Three additional bedrooms are situated on the opposite side of the home, offering comfort and convenience with well-appointed bathrooms.
  • Beyond the main living areas, a practical mudroom provides a transition point from the garage, while a well-placed utility room offers everyday convenience.
  • Embrace outdoor living on the substantial 450 sq. ft. covered patio, perfect for al fresco dining or evening relaxation, complete with an outdoor kitchen and a cozy outdoor fireplace for cooler evenings. A charming 273 sq. ft. front porch adds curb appeal and a welcoming touch.

What's Included

  • Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction.  Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

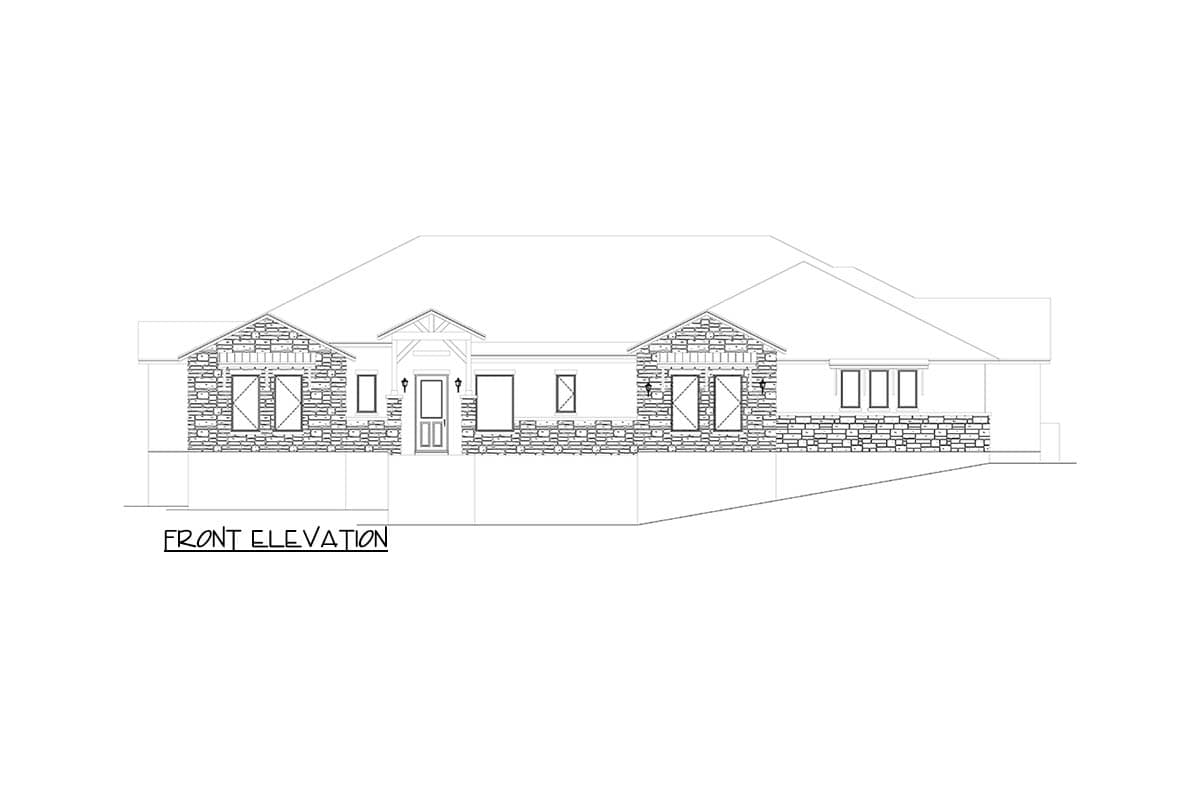

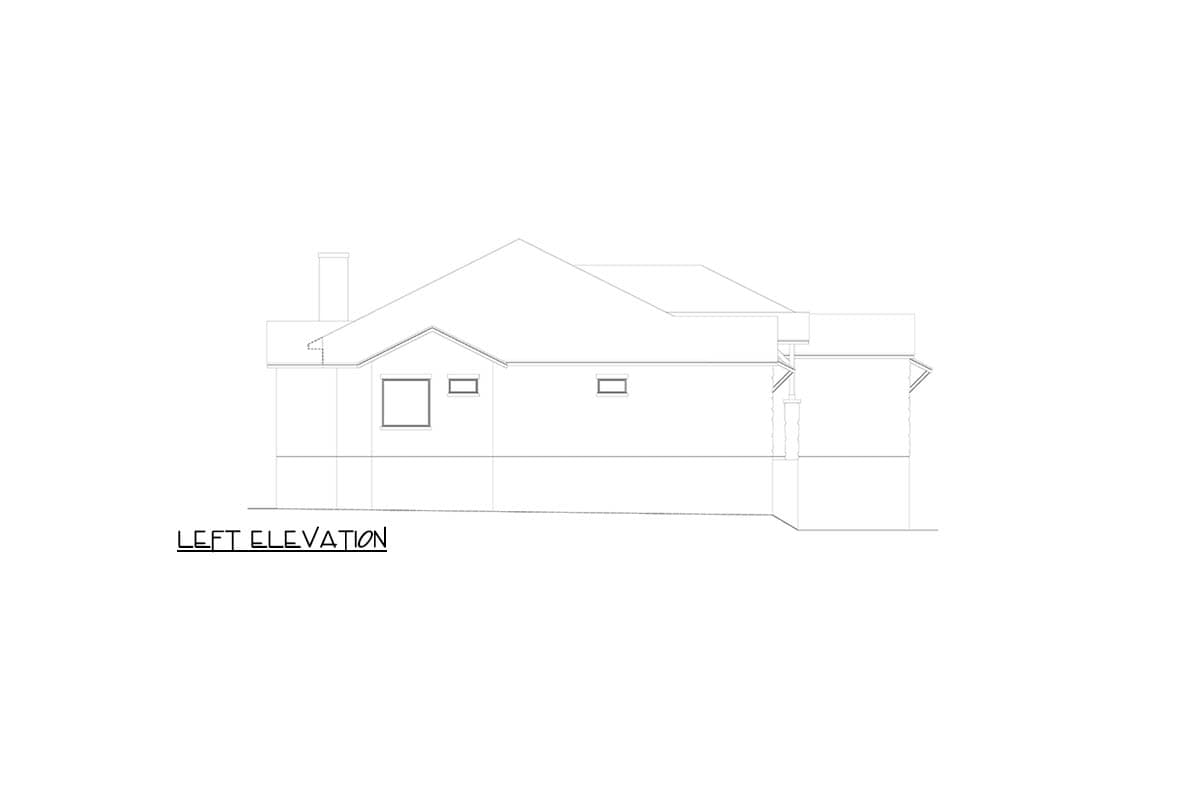

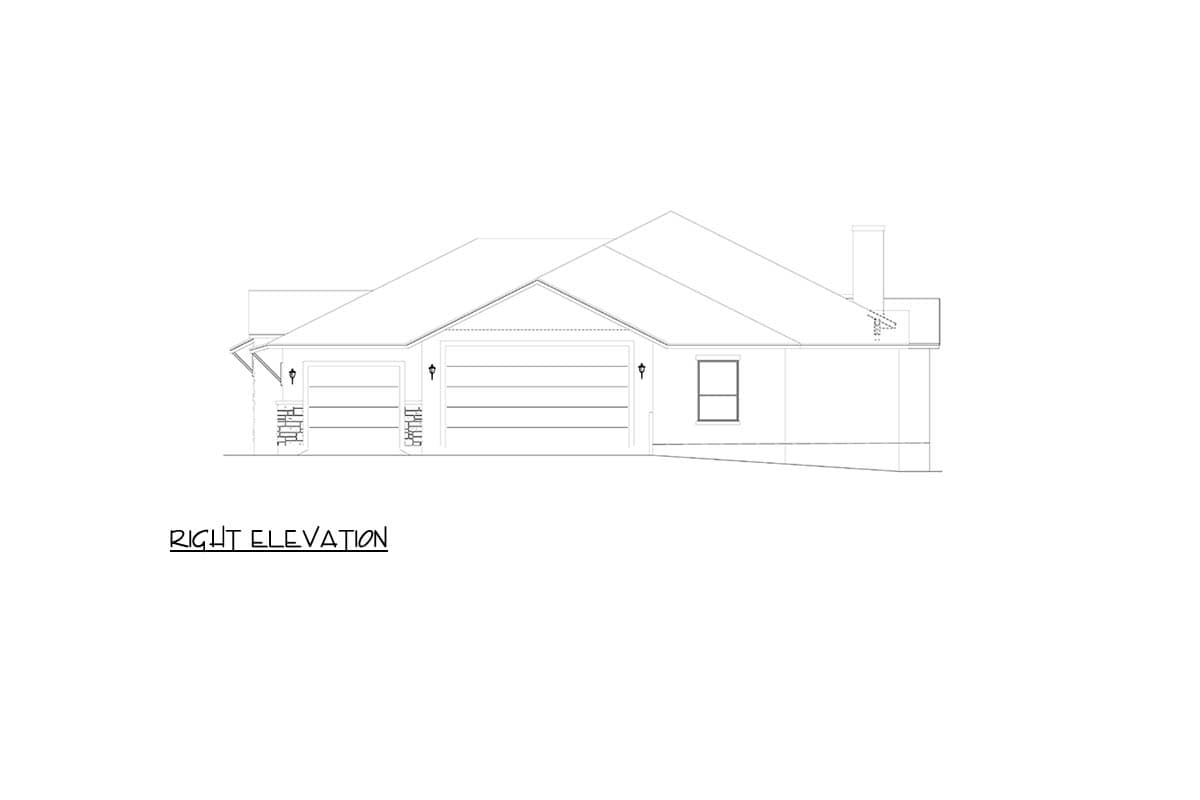

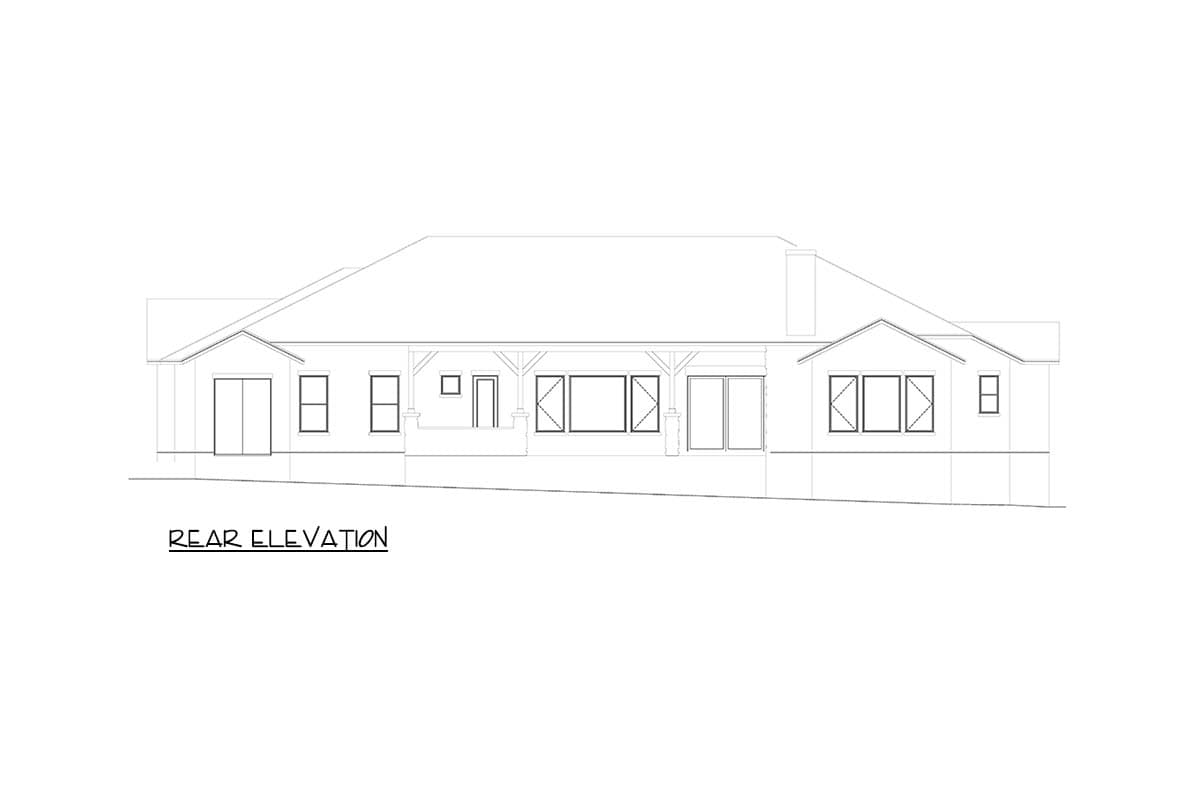

  • Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure.  Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
  • Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
  • Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed.  Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
  • Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
  • Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
  • Sections: Also known as a cut through the entire structure.  This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
  • Electrical Plan: Complete with layout and location of lights, switches and plugs.  When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,043 sq. ft.

1st Floor

3,043 sq. ft.

Porch, Front

273 sq. ft.

Covered Patio

450 sq. ft.

Storage

62 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

94' 0"

Depth

66' 4"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

911 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Ranch

Southwest

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,043 sq. ft.

1st Floor

3,043 sq. ft.

Porch, Front

273 sq. ft.

Covered Patio

450 sq. ft.

Storage

62 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

94' 0"

Depth

66' 4"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

911 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Ranch

Southwest

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry
