Modern Ranch House Plan with 1-Bed Apartment

Heated S.F.
3,138
Beds
4
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 280114JWD

Main Level
Main Level
Lower Level
Lower Level

Plan 280114JWD

M-F 9am-5pm EST |

1-203-761-8500

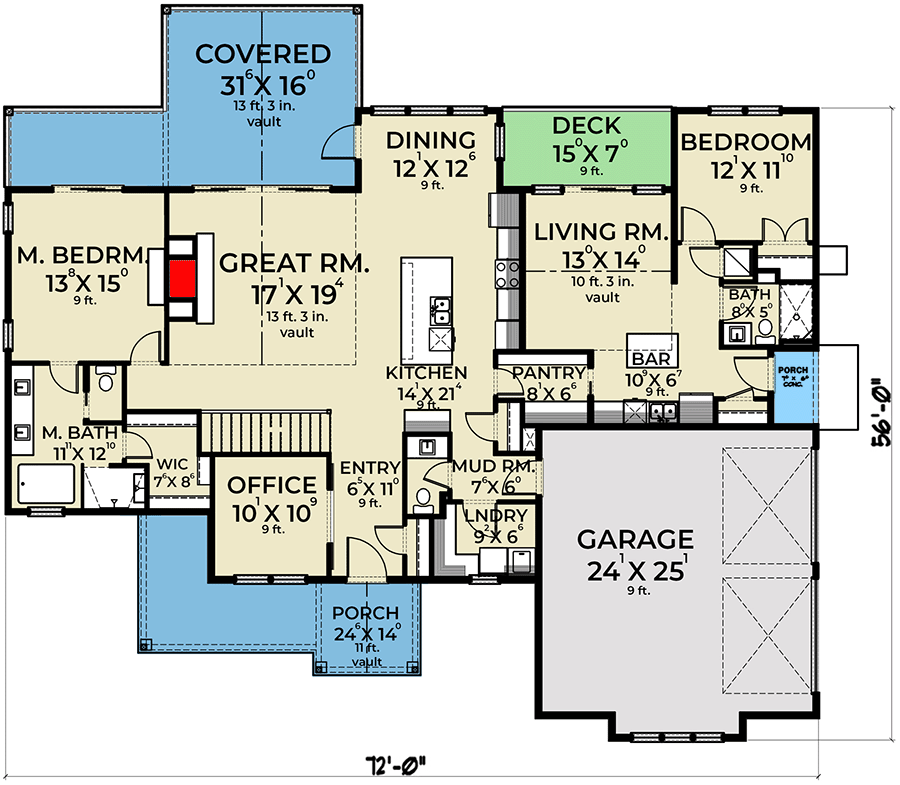

Main Level

Plan 280114JWD: Modern Ranch House Plan with 1-Bed Apartment - Floor Plan - Main Level - Contemporary, New American, Ranch

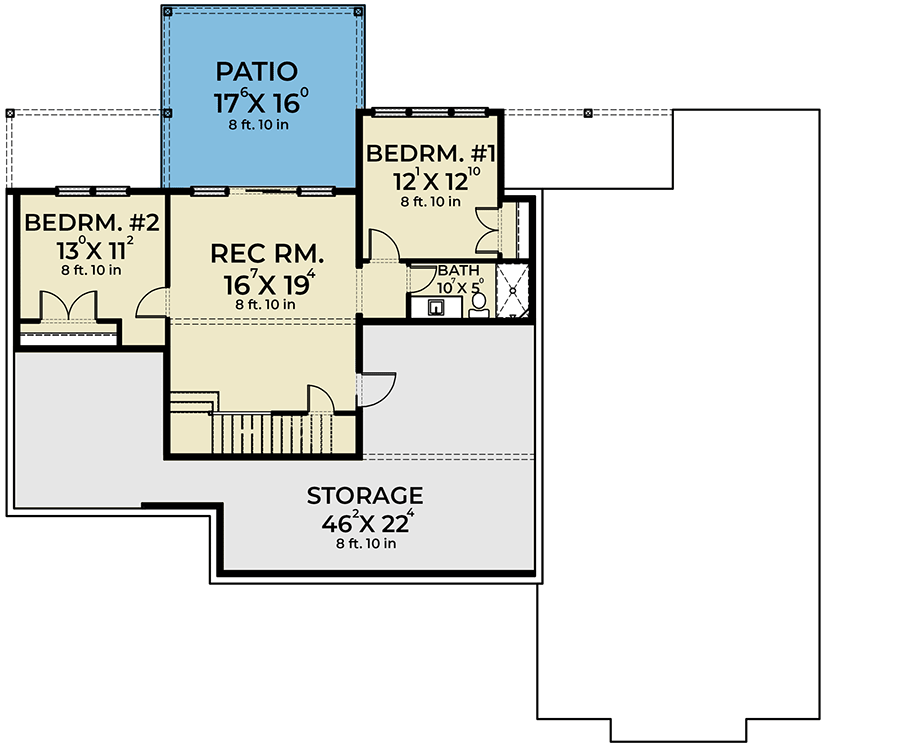

Lower Level

Plan 280114JWD: Modern Ranch House Plan with 1-Bed Apartment - Floor Plan - Lower Level - Contemporary, New American, Ranch

Plan Details

  • The fresh exterior of this ranch house plan adds a modern twist to classic features, enhanced by metal roof and stone accents.
  • The front porch welcomes you inside, where a coat closet rests across from a home office. The great room, kitchen, and dining area are all open to one another and topped by a vaulted ceiling that continues onto the rear porch.
  • The master bedroom is paired with a 5-fixture ensuite and walk-in closet.
  • Downstairs, you will find two additional bedrooms on either side of the generous recreation room, along with a full bath.
  • The 1-bedroom apartment is located behind the 2-car garage and can be utilized as an income property or in-law suite. Access the apartment from the walk-in pantry, or a private exterior door.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,138 sq. ft.

Lower Level

904 sq. ft.

1st Floor

2,234 sq. ft.

Deck

480 sq. ft.

Storage

740 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

56' 0"

Max Ridge Height

25' 1"

Garage

Type

Attached

Area

658 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8' 10"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

New American

Ranch

Special Features

Bedrooms - Clustered

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,138 sq. ft.

Lower Level

904 sq. ft.

1st Floor

2,234 sq. ft.

Deck

480 sq. ft.

Storage

740 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

56' 0"

Max Ridge Height

25' 1"

Garage

Type

Attached

Area

658 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8' 10"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

New American

Ranch

Special Features

Bedrooms - Clustered

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
