Plan 135408GRA

Modern Ranch House Plan with Split Bedrooms and 3-Car Garage

Heated S.F.
2,280
Beds
3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 135408GRA

Main Level
Main Level

Plan 135408GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

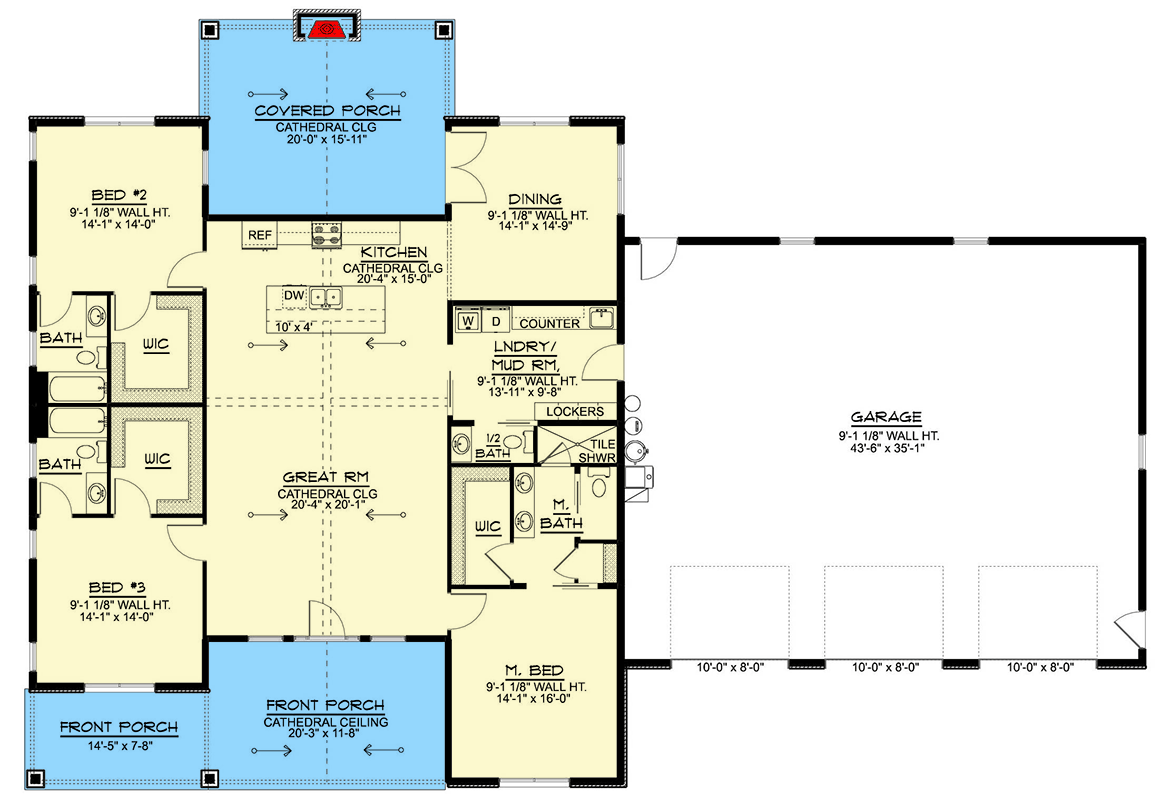

Plan 135408GRA: Modern Ranch House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - Main Level - Barndominium, Contemporary, Modern, Ranch

Plan Details

  • This expansive 2,280 sq. ft. Modern Ranch house plan features 3 bedrooms, 3.5 bathrooms, and a generous 1584 sq. ft. 3-car side-entry garage, all wrapped in a sleek contemporary exterior with stone and timber accents.
  • Step inside from the grand covered entry, defined by an impressive timber truss, to discover a home designed for effortless living. The layout immediately opens into a dramatic two-story great room, setting a tone of spacious elegance and abundant natural light.
  • The open-concept design seamlessly connects the great room to the gourmet kitchen and dining area, fostering a natural flow for daily life and entertaining. A convenient main-level laundry and dedicated mudroom are thoughtfully placed for practical living.
  • The primary master suite is privately situated on the first floor, offering a tranquil retreat. Its split-bedroom design ensures privacy, with secondary bedrooms thoughtfully separated, each providing comfortable accommodations.
  • Expansive covered porches totaling 685 sq. ft. provide ample space for enjoying the outdoors, complete with an inviting outdoor fireplace, perfect for evening relaxation or morning coffee.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,280 sq. ft.

1st Floor

2,280 sq. ft.

Porch, Combined

685 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 0"

Depth

64' 0"

Max Ridge Height

18' 11"

Garage

Type

Standard, Attached

Area

1584 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Barndominium

Contemporary

Modern

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,280 sq. ft.

1st Floor

2,280 sq. ft.

Porch, Combined

685 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 0"

Depth

64' 0"

Max Ridge Height

18' 11"

Garage

Type

Standard, Attached

Area

1584 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Barndominium

Contemporary

Modern

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Two Story Great Room
