Modern Rustic Hill Country Stone House Plan with Two Master Suites and 3-Car Garage

Name: Plan 54067LK: Modern Rustic Hill Country Stone House Plan with Two Master Suites and 3-Car Garage
Brand: Architectural Designs
SKU: 54067LK
Price: 2475.0 USD
Availability: InStock

Heated S.F.

3,645

Beds

Baths

4.5

Stories

Cars

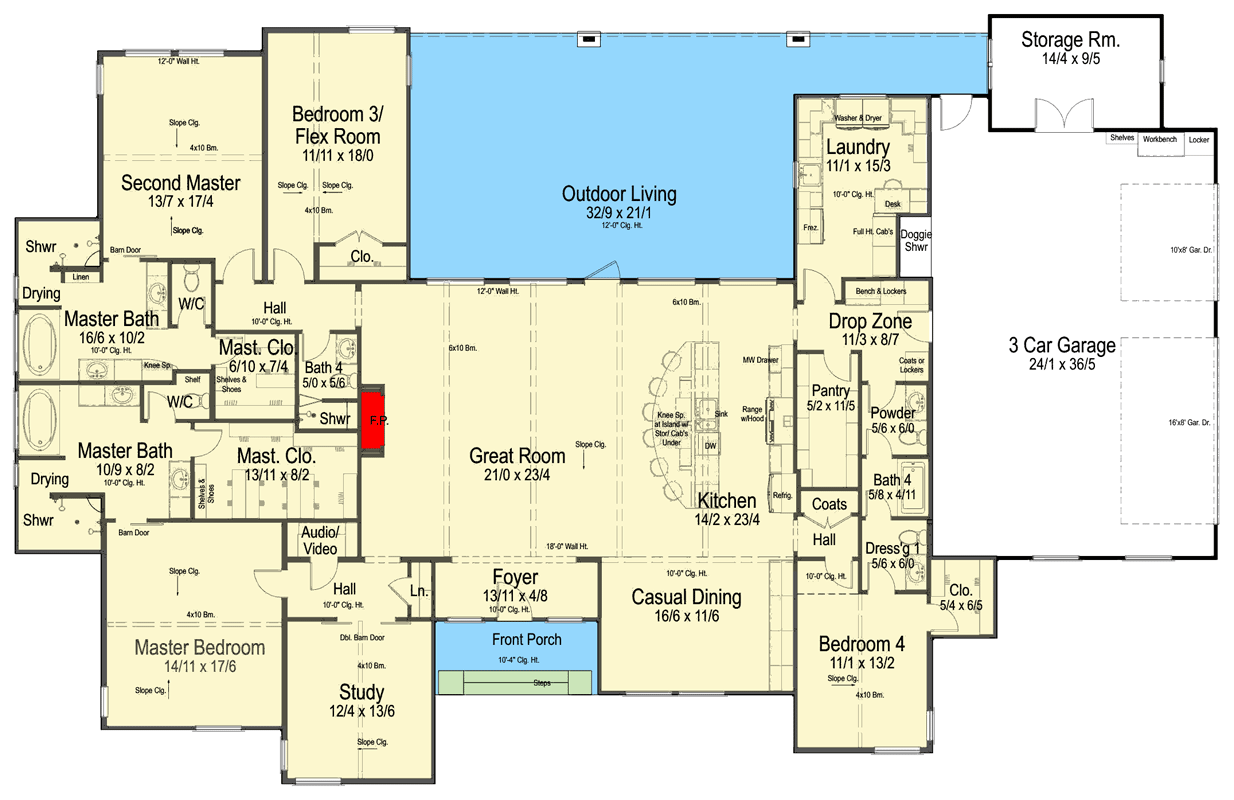

Floor Plan

Plan Details

This 3,645 sq ft modern rustic house plan features 4 bedrooms, 4.5 baths, and a generous 1083 sq ft 3-car attached garage, all wrapped in an inviting stone and wood exterior with a sleek metal roof.
A stately stone entrance welcomes you into a thoughtfully designed layout, offering immediate views into spacious living areas with impressive 10-foot ceilings.
The heart of the home boasts an open-concept flow between the main living area, a formal dining room, and a breakfast nook, complemented by a convenient walk-in pantry in the kitchen.
Designed for ultimate comfort, this plan uniquely features two master suites on the first floor, separated for privacy, alongside two additional split bedrooms, ensuring ample personal space for all.
A dedicated library/study and a versatile flex room provide adaptable spaces for work, hobbies, or relaxation.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
