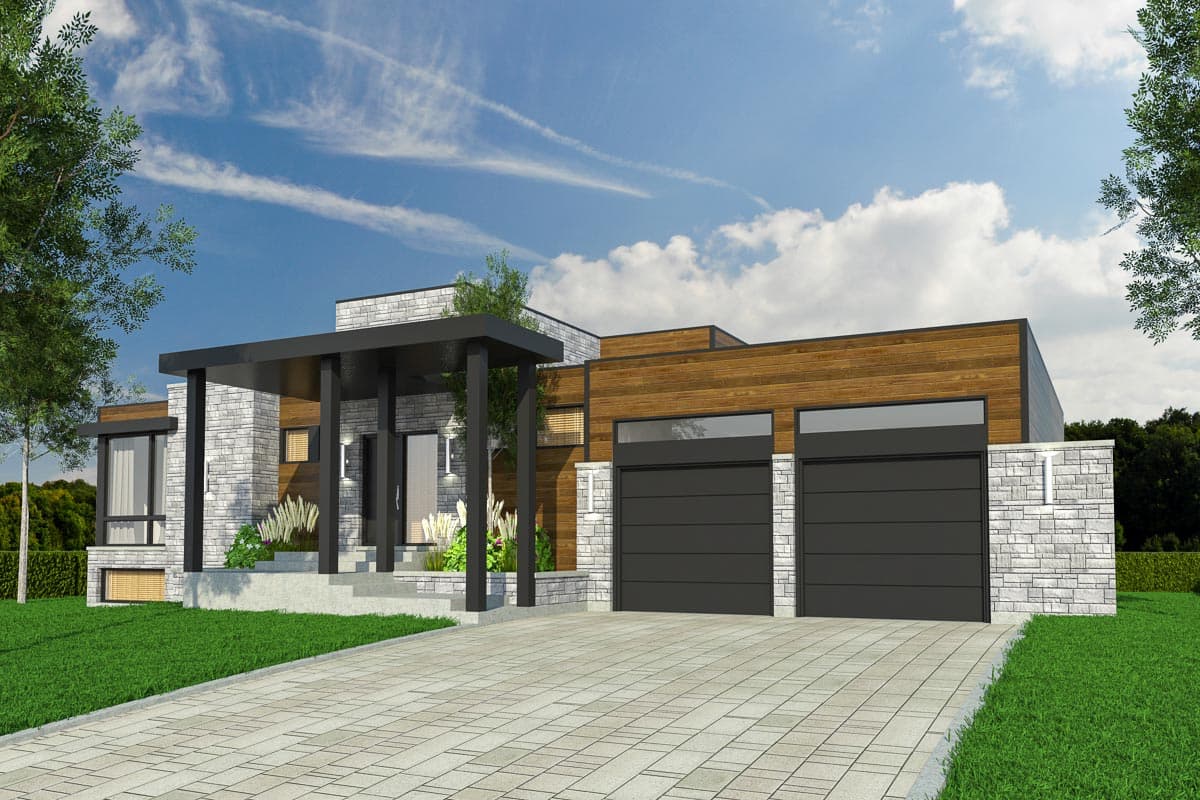

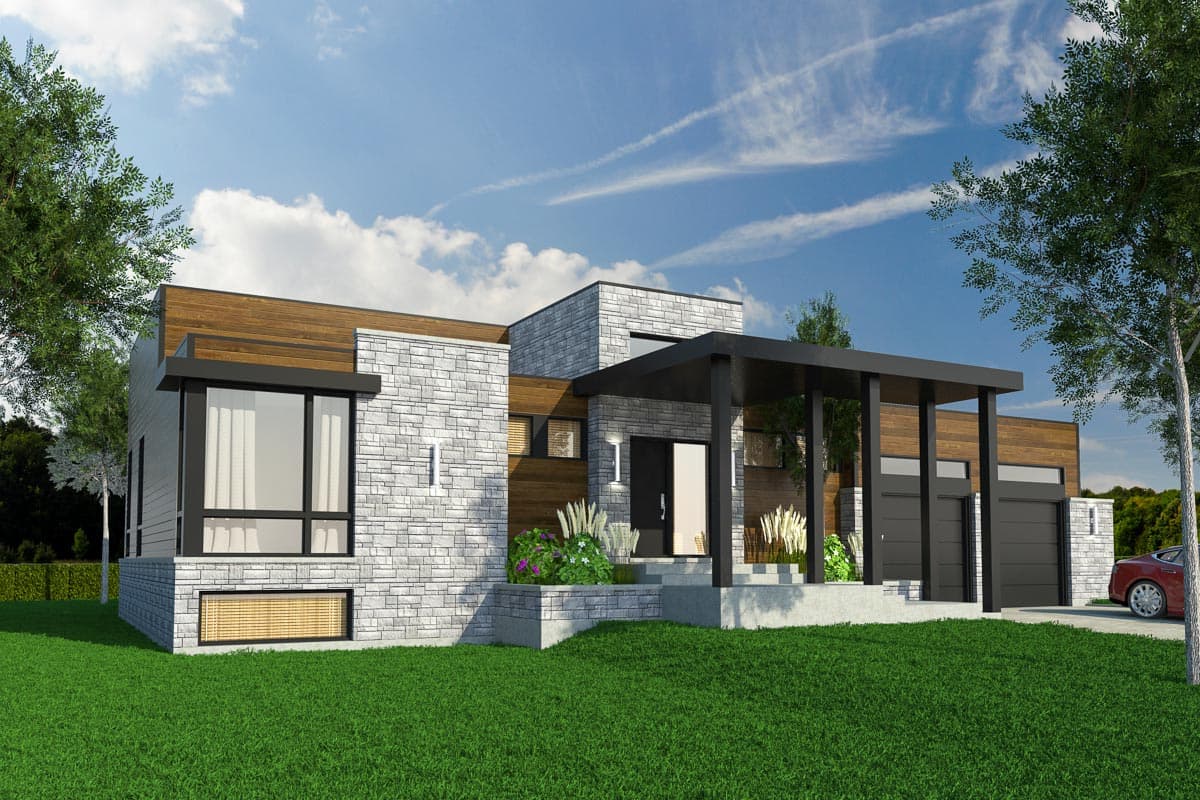

Modern Split Bedroom House Plan with Garage Workshop

Plan 90317PD

  • 1,594

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A large walk-in closet in the foyer of this 2-bed modern house plan gives you great storage and helps manage clutter.
  • The kitchen gives you a large walk-in pantry (more storage) and an island with cooktop and two sinks on the work side and seating for up to five on the other side. The kitchen looks out on the dining and living room and to the back through large windows.
  • Sliding doors in the dining room take you to the patio in back.
  • The master bedroom has a five-fixture bath and a roomy walk-in closet while Bed 2 - located across the home for your privacy - has a linear closet.
  • Stairs take you to the unfinished basement.
  • A workshop is located in back of the 2-car garage and has access to the outside.

Each plan set includes the following:

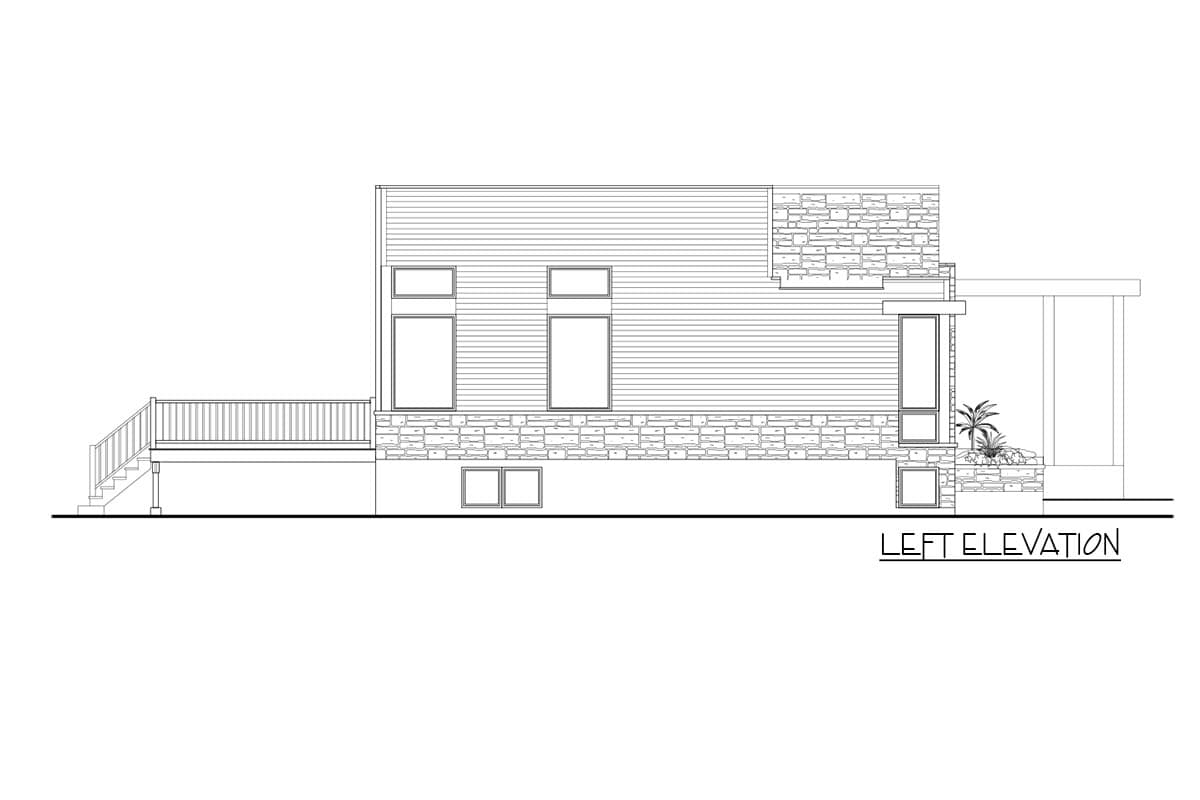

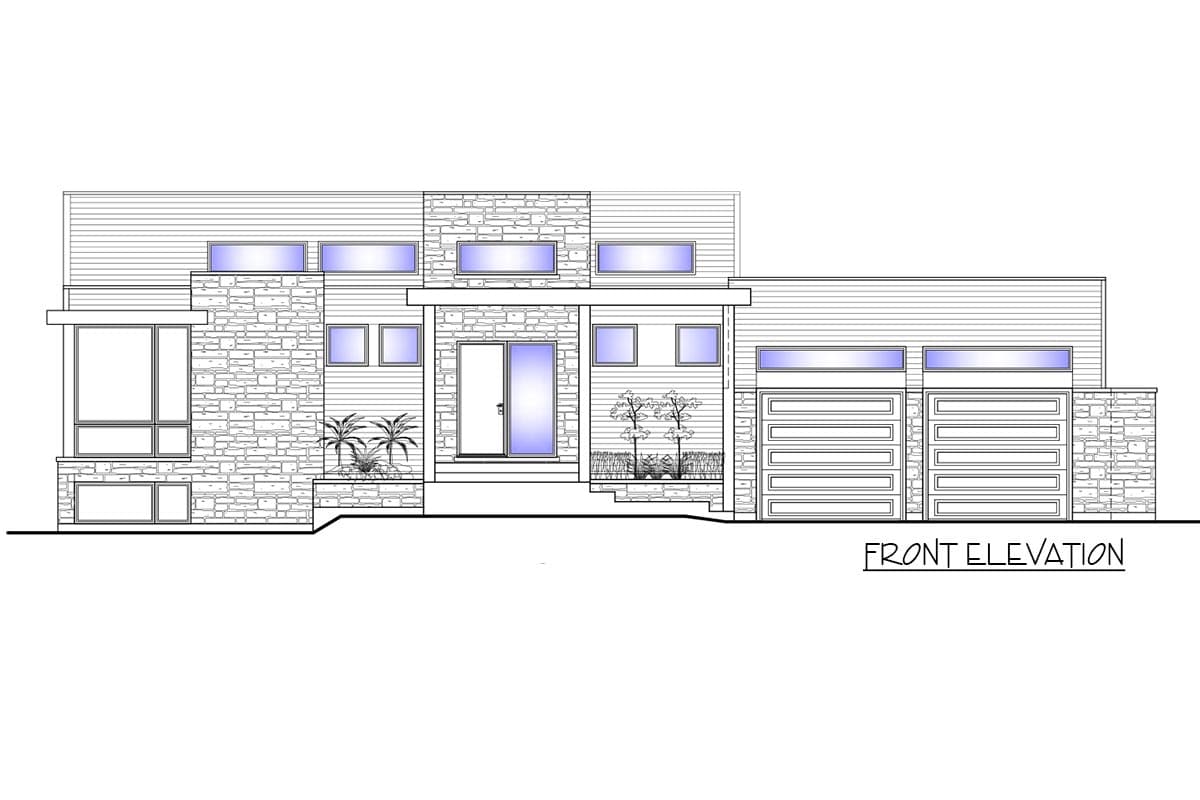

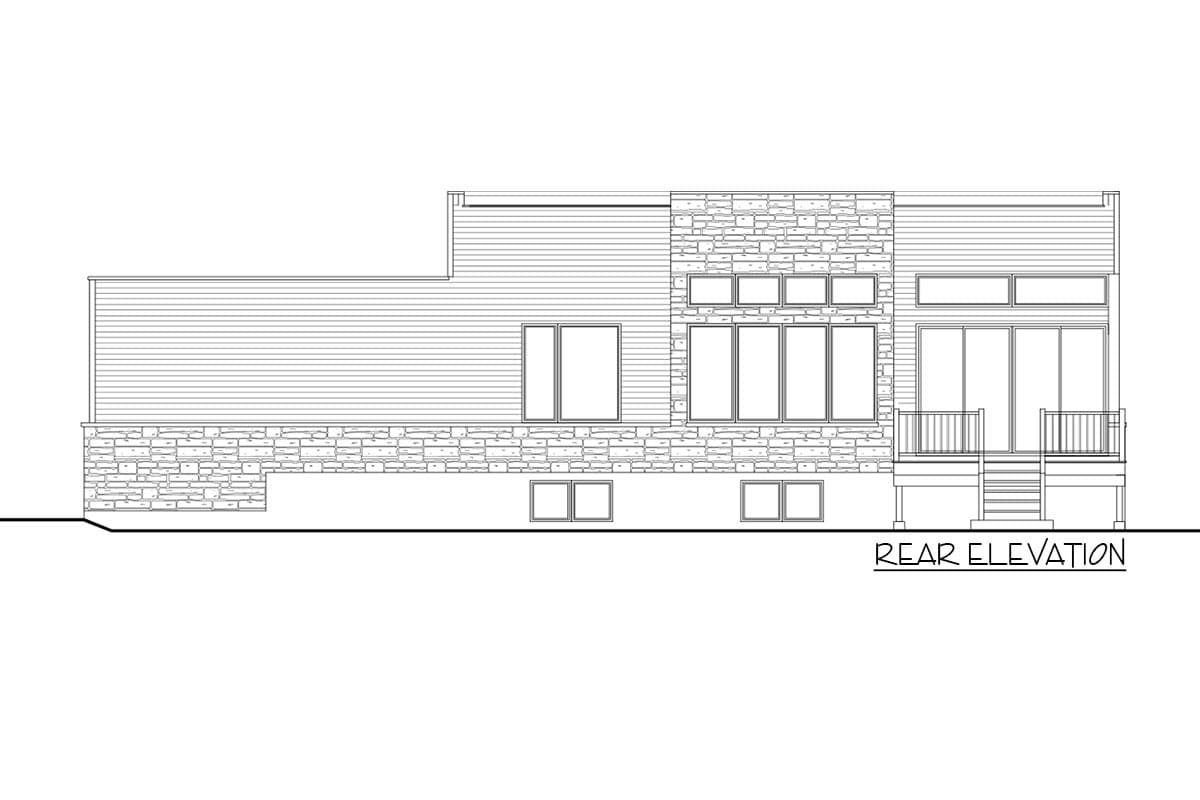

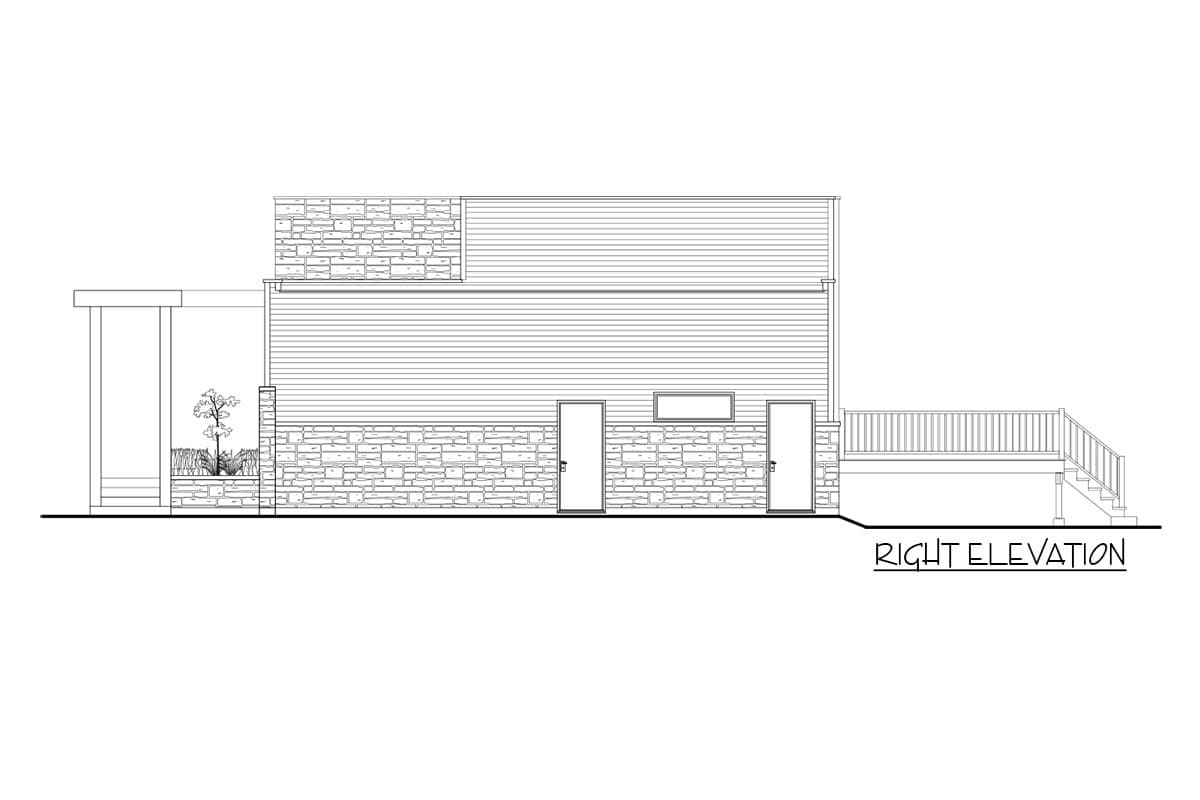

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

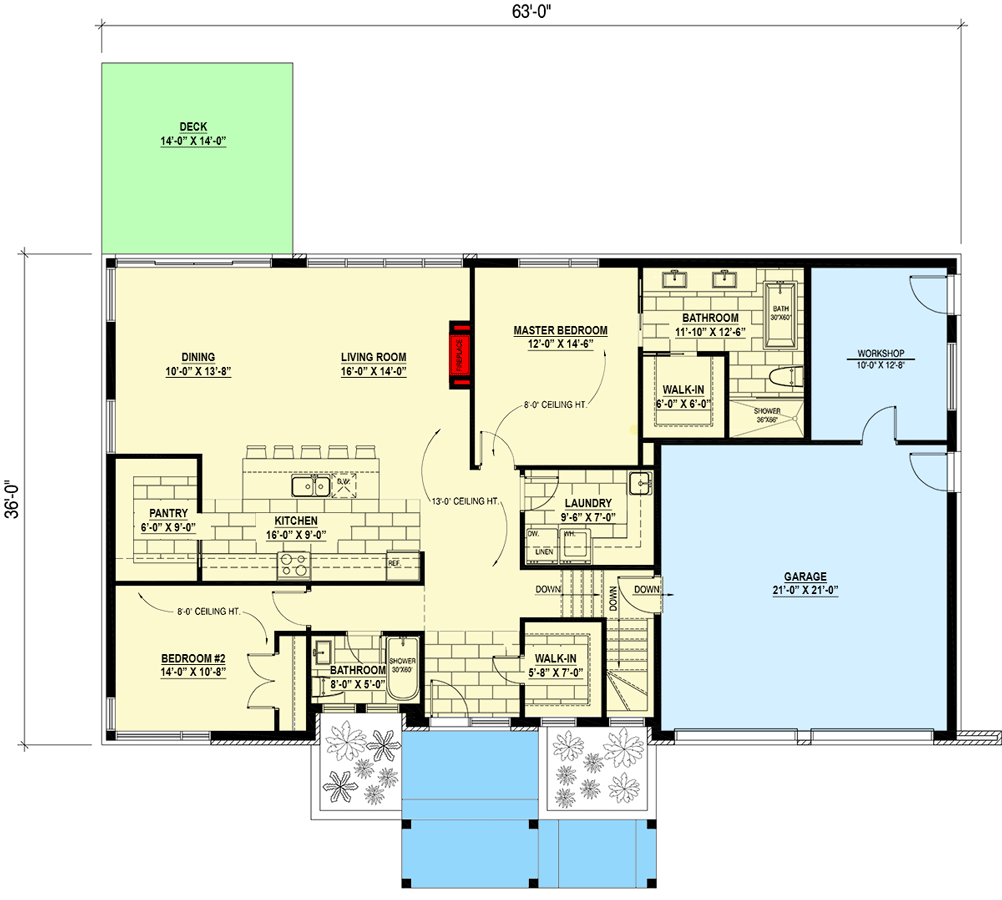

Modern Split Bedroom House Plan with Garage Workshop - 90317PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,594 sq. ft.
  • 1st Floor: 1,594 sq. ft.
  • Porch, Rear: 196 sq. ft.
  • Porch, Front: 158 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 36' 0"
  • Max ridge height: 19' 2"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Split Bedroom House Plan with Garage Workshop

  • 1,594

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,132
  • 8 Sets $1,177
  • PDF - Single-Build $1,531
  • 4 Sets + PDF $1,681
  • CAD + PDF - Single Build $2,346
  • View all purchase option online

About This Plan

  • A large walk-in closet in the foyer of this 2-bed modern house plan gives you great storage and helps manage clutter.
  • The kitchen gives you a large walk-in pantry (more storage) and an island with cooktop and two sinks on the work side and seating for up to five on the other side. The kitchen looks out on the dining and living room and to the back through large windows.
  • Sliding doors in the dining room take you to the patio in back.
  • The master bedroom has a five-fixture bath and a roomy walk-in closet while Bed 2 - located across the home for your privacy - has a linear closet.
  • Stairs take you to the unfinished basement.
  • A workshop is located in back of the 2-car garage and has access to the outside.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,594 sq. ft.
  • 1st Floor: 1,594 sq. ft.
  • Porch, Rear: 196 sq. ft.
  • Porch, Front: 158 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 36' 0"
  • Max ridge height: 19' 2"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 90317PD
View this and more for this plan by visiting www.architechtecturaldesigns.com/90317PD
|
