Plan 72307DA

Modern Split Level House Plan with Street Level Garage

Heated S.F.

1,509

Beds

1-2

Baths

2

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

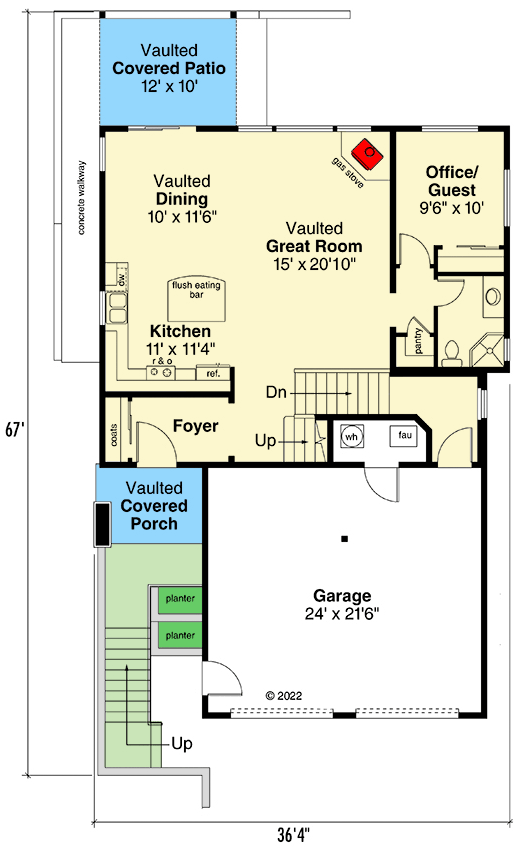

Modern Split Level House Plan with Street Level Garage - 72307DA floor plan - Main Level

2nd Floor

Reverse Floor Plan

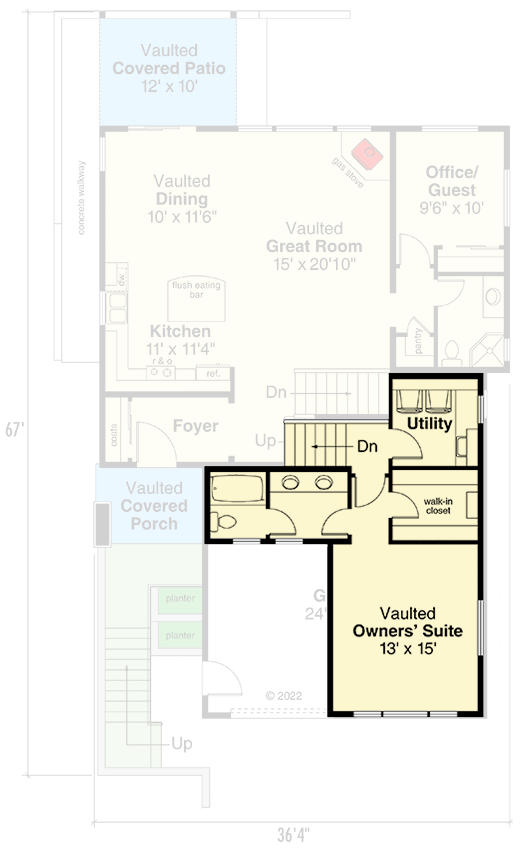

Modern Split Level House Plan with Street Level Garage - 72307DA floor plan - 2nd Floor

Plan Details

Designed for an uphill sloping lot, this split level house plan presents a modern exterior. Enter from the street-level garage and take a half flight of stairs to the main living area.
From the front door, the foyer is laid out as an alcove to provide privacy to the great room that fills most of the main floor.
Through the cased opening on the right, the floor plan opens to soaring vaulted ceilings in the great room. A cozy gas stove is tucked in the corner and can be enjoyed throughout the informal living area.
A flex room that could serve as a home office or guest bedroom rounds out the main level.
Upstairs, discover the vaulted owners' suite with a compartmentalized ensuite and walk-in closet, next door to the second floor laundry room.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering An artist's drawing of the home, usually viewed from the front, and general construction notes.

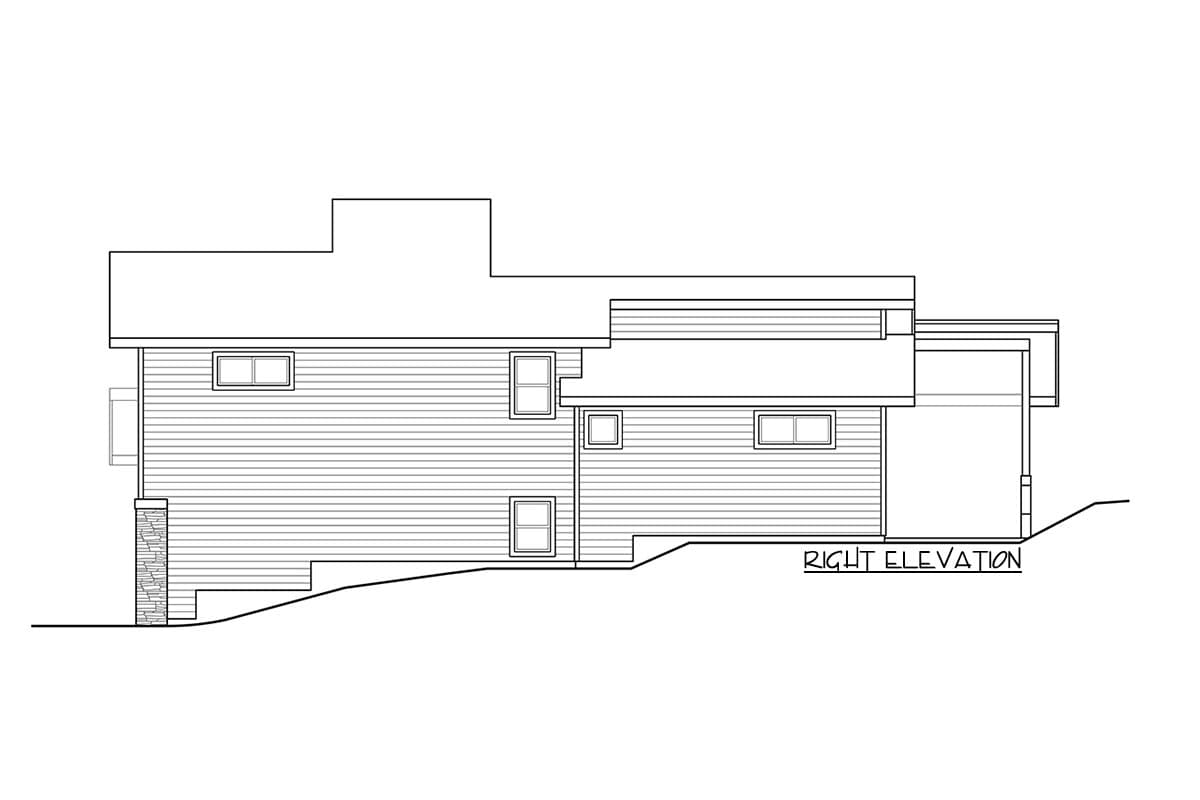

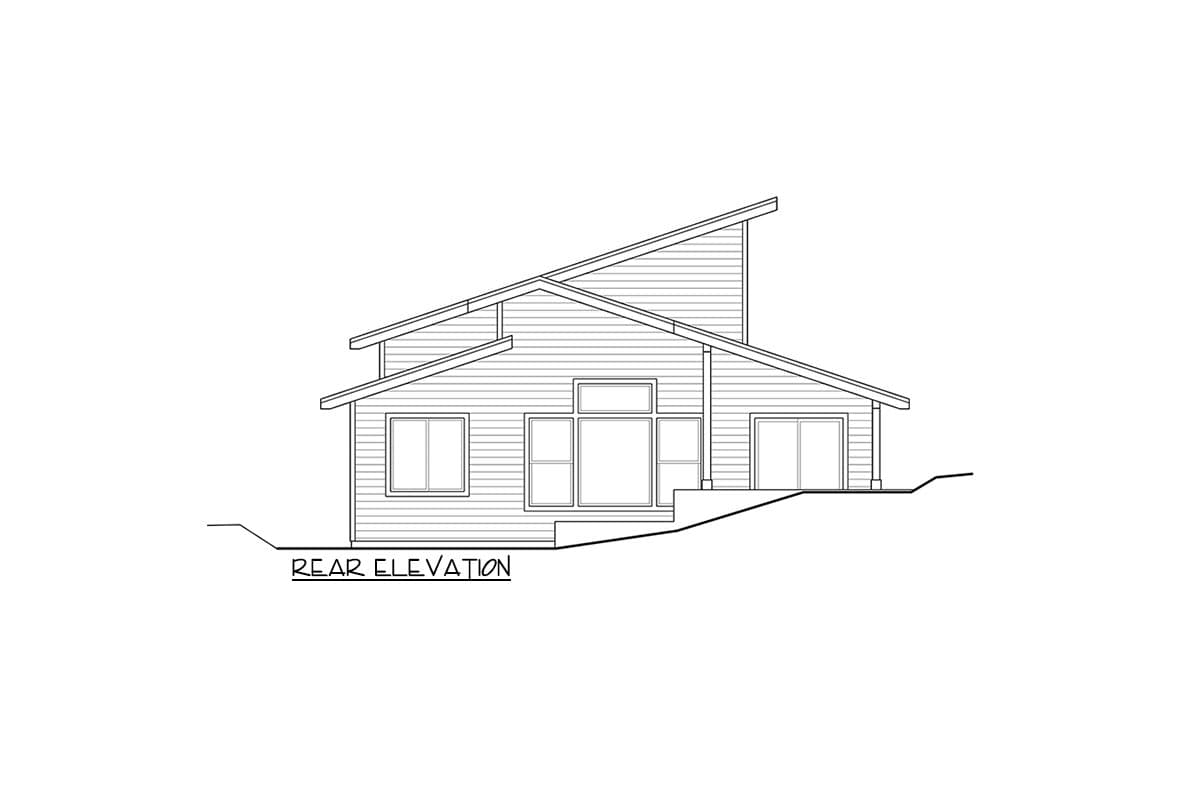

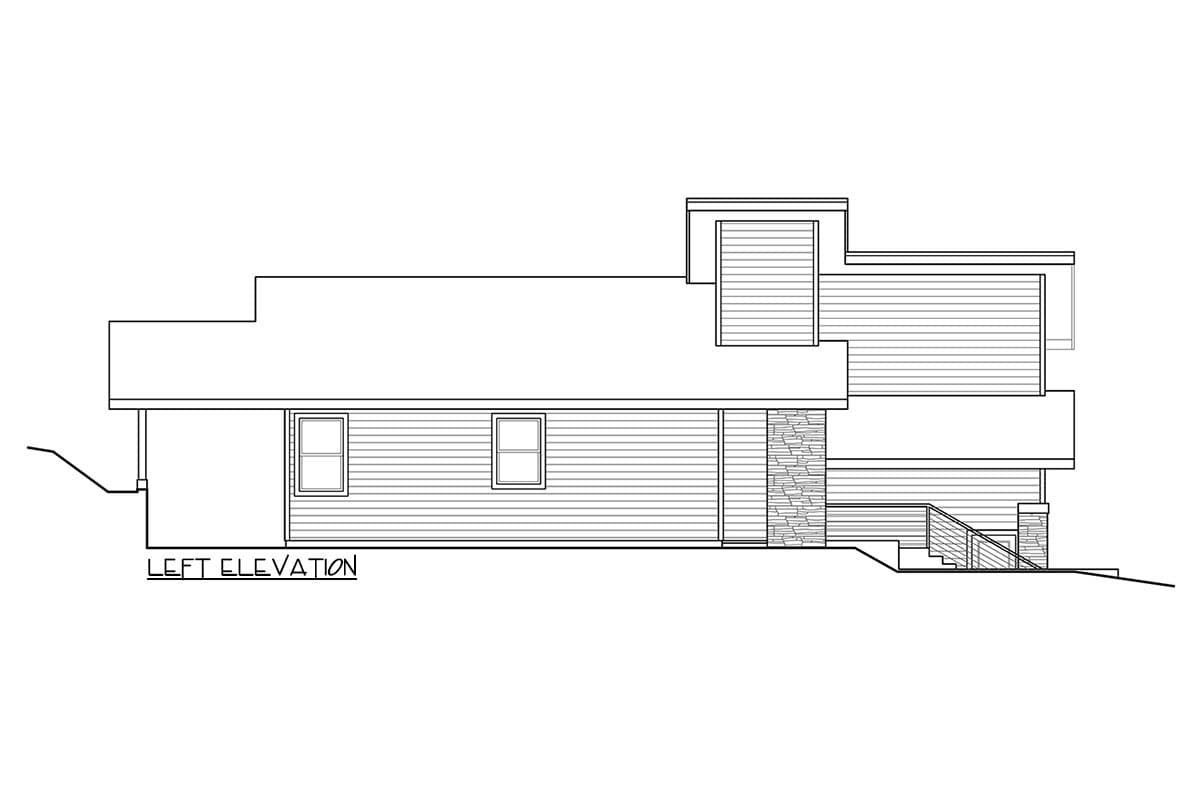

Elevations Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc. Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,509 sq. ft.

1st Floor:

1,030 sq. ft.

2nd Floor:

479 sq. ft.

Beds/Baths

Bedrooms:

1 or 2

Full bathrooms:

2

Foundation Type

Standard Foundations:

Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

36' 4"

Depth:

67' 0"

Max Ridge Height:

29' 8"

Garage

Type:

Drive Under, Attached

Area:

583 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch:

4 on 12

Framing Type:

Stick And Truss

Architectural Style

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room
