Modern-style House Plan with a Compact Footprint and 3 Upstairs Bedrooms
Heated S.F.
1,500
Beds
3
Baths
2.5
Stories
2
Cars
1
Plan Details
  • This modern-style house plan has great curb appeal with its covered porch and cedar siding accents.
  • At just 1,500 square feet, this plan is efficient and compact, giving it a lower cost to build.

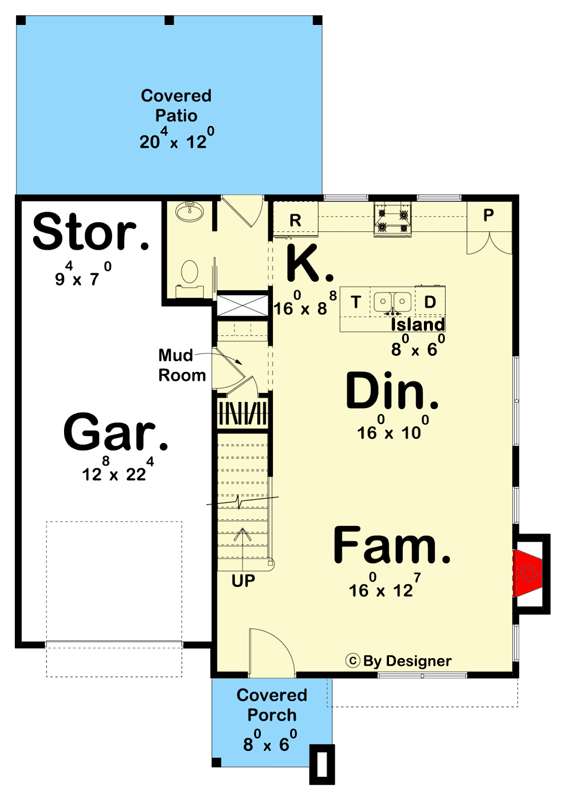

  • Inside, the family room, dining room, and kitchen flow seamlessly in an open layout. The family room is warmed by a fireplace and the large front windows allow in plenty of natural light. The kitchen includes a working island with a snack bar and a nice reach-in pantry.
  • A powder bath is conveniently located off the rear of the kitchen.

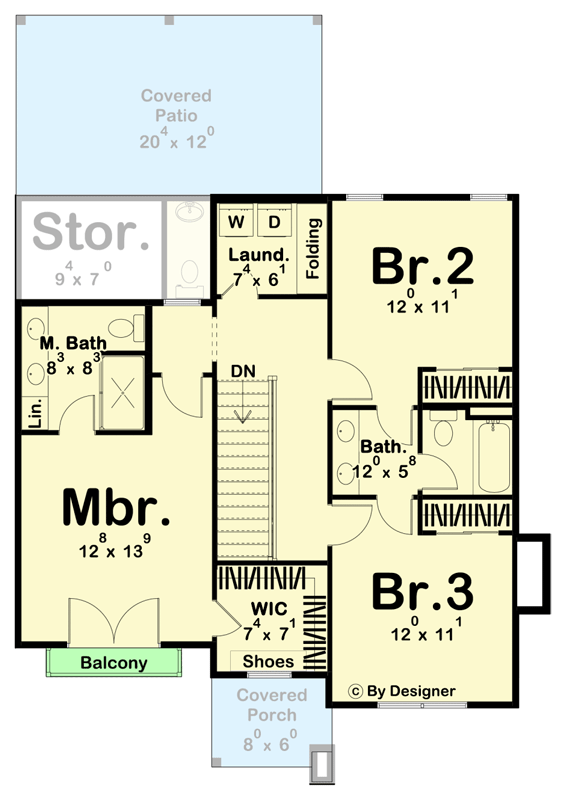

  • Upstairs you'll find 3 bedrooms, including the master with dual vanities and a walk-in shower in the bathroom.
  • Bedrooms 2 and 3 share a Jack and Jill bathroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern-style House Plan with a Compact Footprint and 3 Upstairs Bedrooms

  • 1,500

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,500 sq. ft.
  • 1st Floor: 675 sq. ft.
  • 2nd Floor: 825 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 51' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 366 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
