Plan 623171DJ Modern-Style Pool House Plan with Outdoor and Indoor Fireplaces

472 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern-Style Pool House Plan with Outdoor and Indoor Fireplaces

Plan 623171DJ

  • 472

    Heated s.f.

  • 1

    Baths

  • 1

    Stories

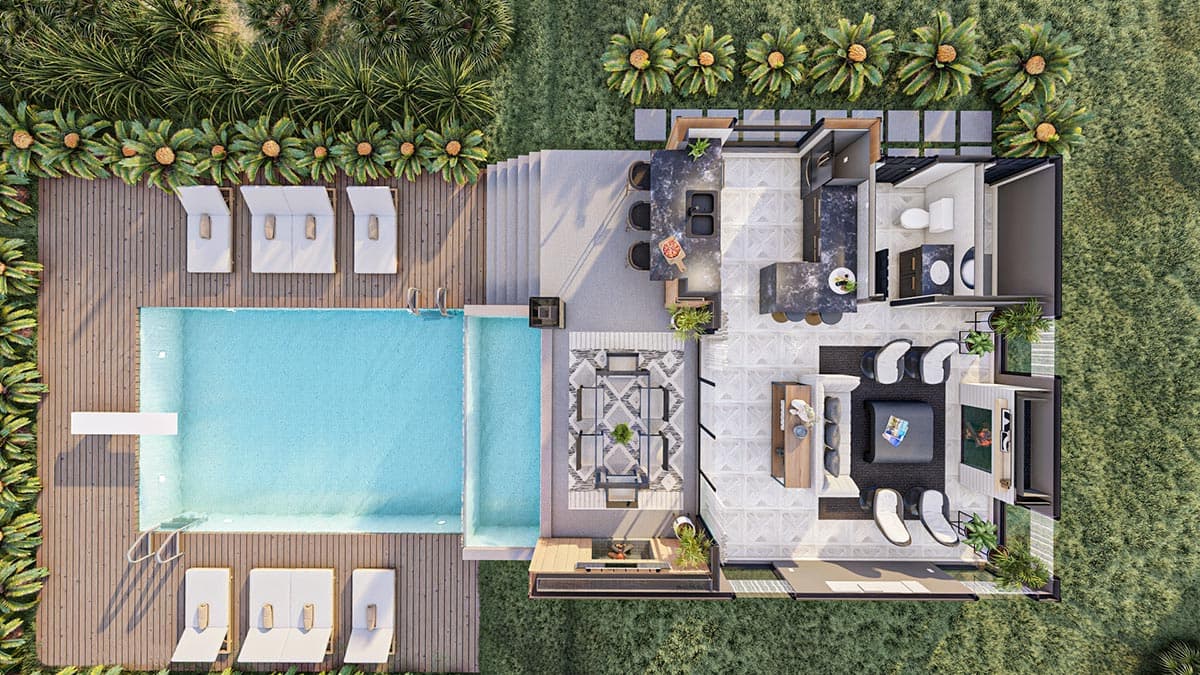

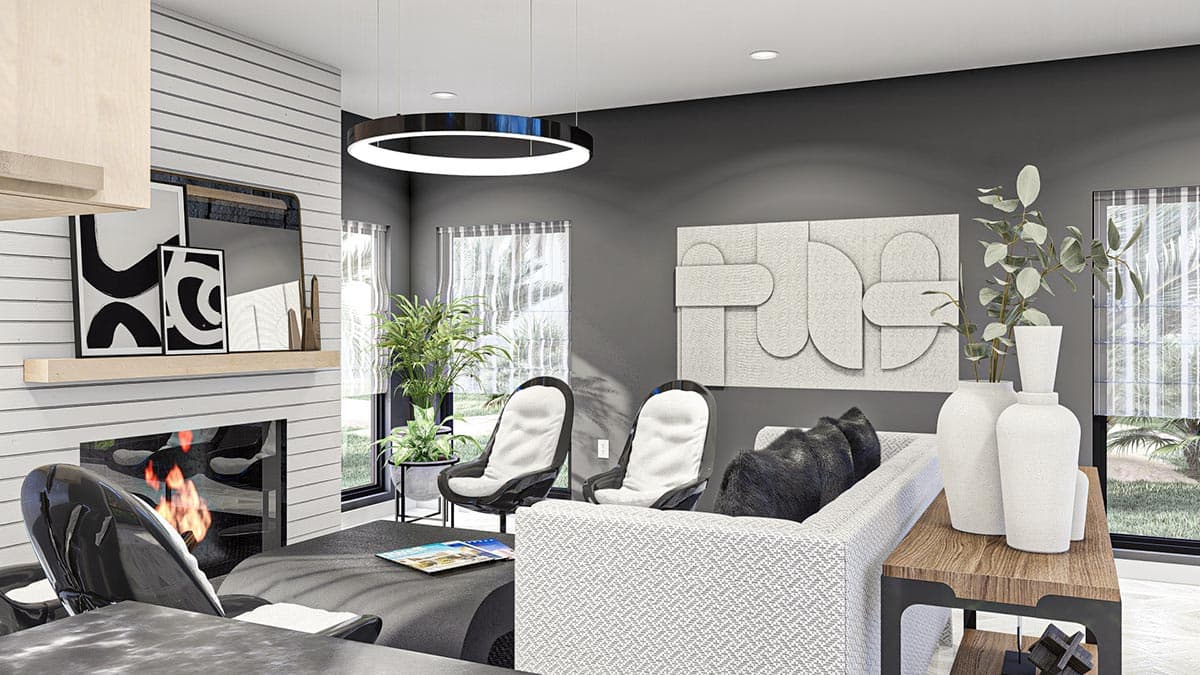

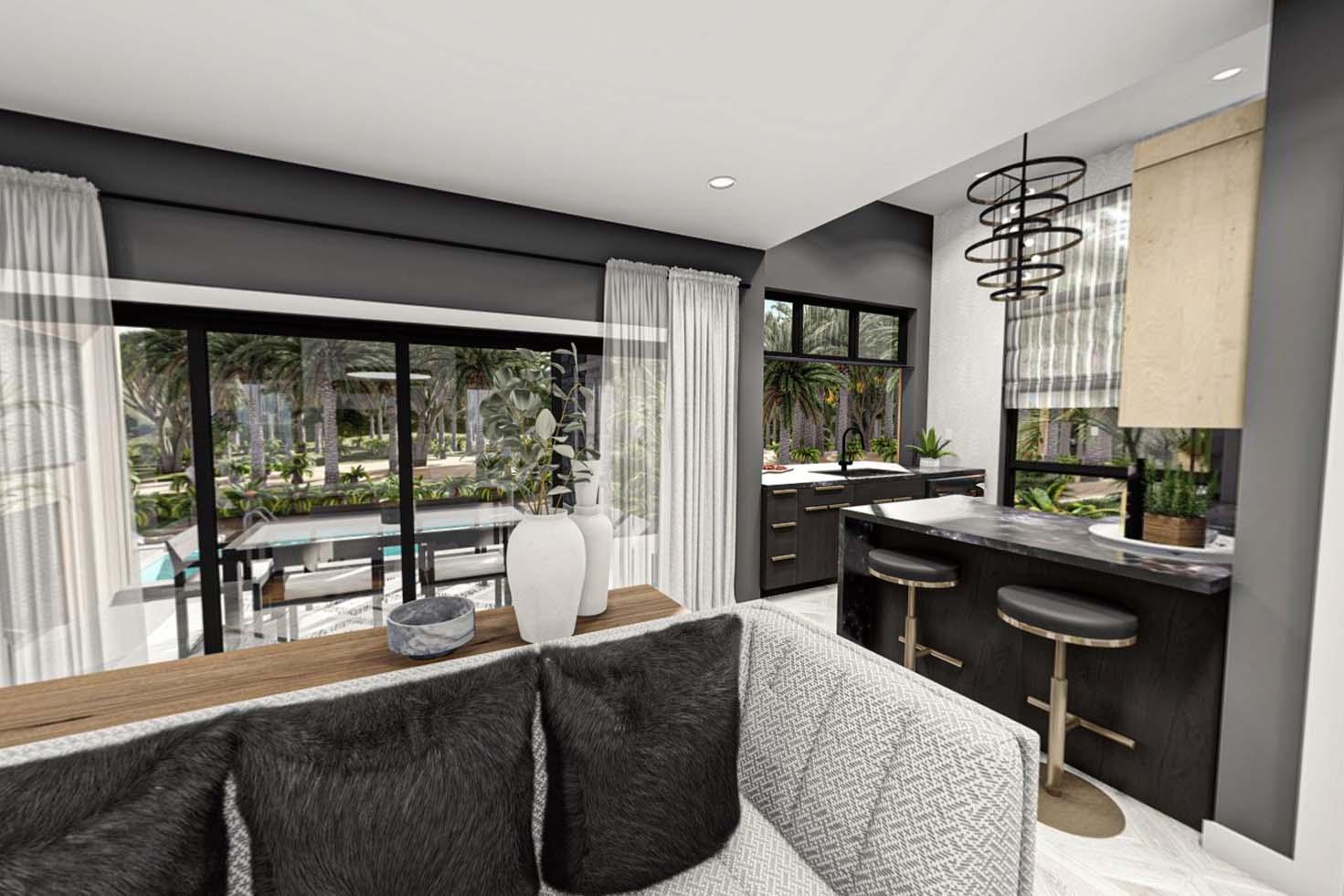

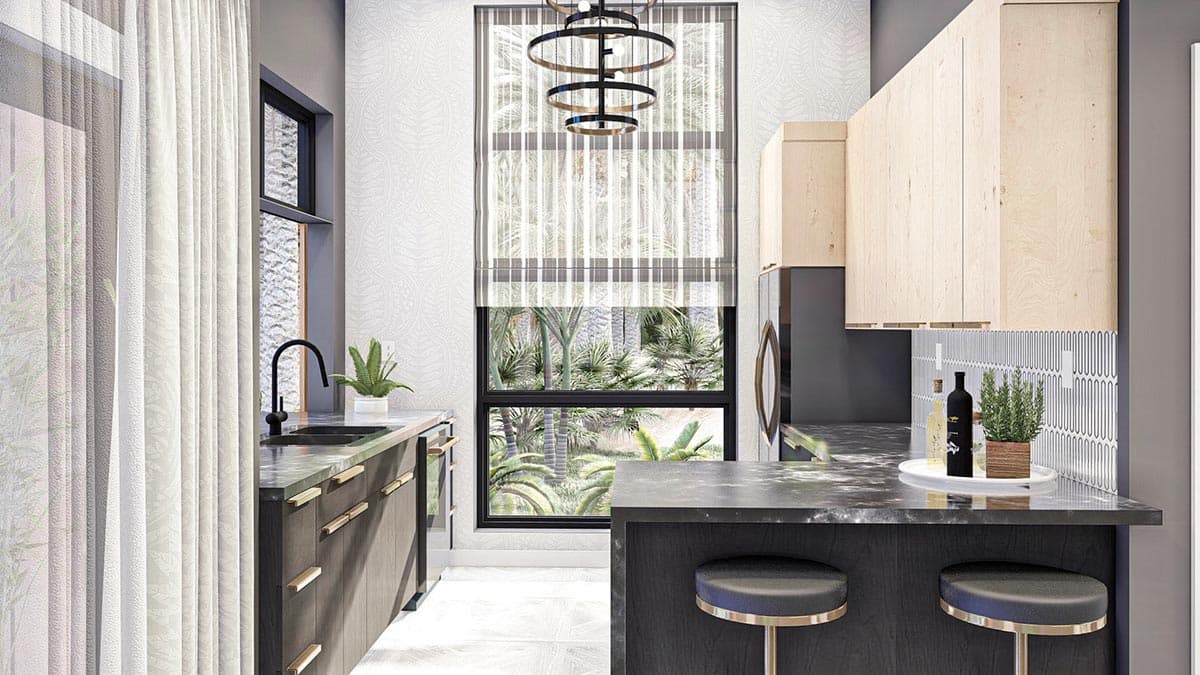

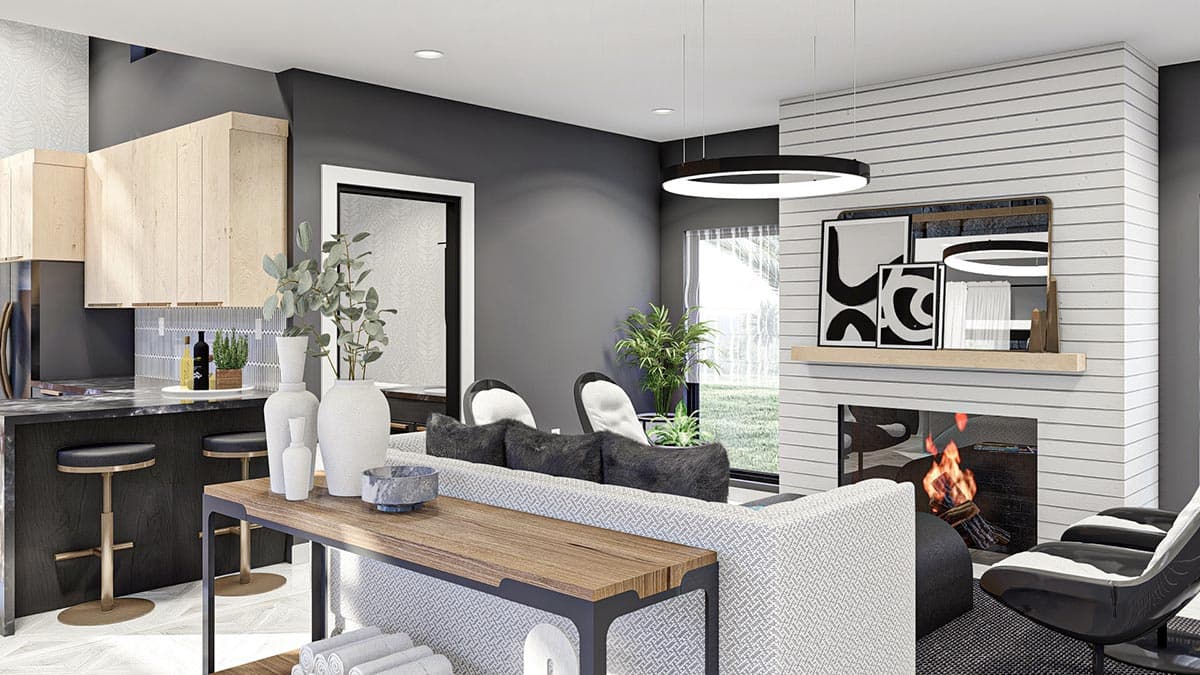

  • This modern-style pool house plan makes a great addition to your pool landscape. It gives you 472 square feet of heated indoor space including a kitchen, a bathroom and an open living space with fireplace.

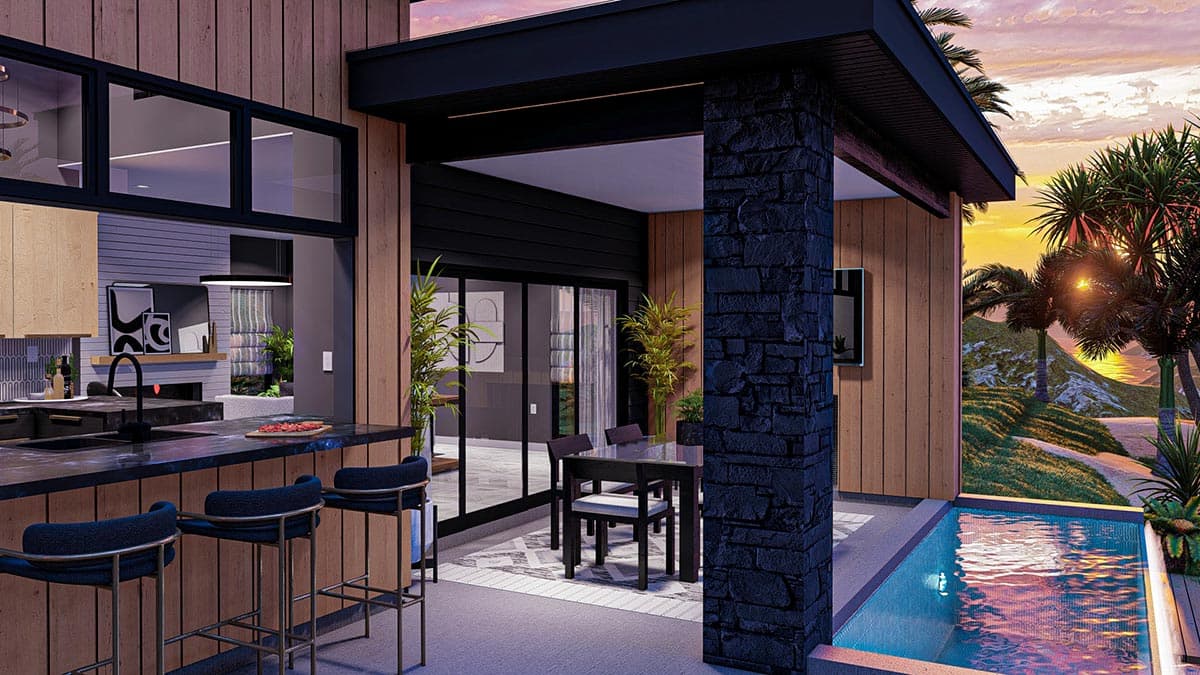

  • Th front wall opens giving you access to the covered porch with fireplace.
  • A dedicated storage room is accessible from outside on the back-left side.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

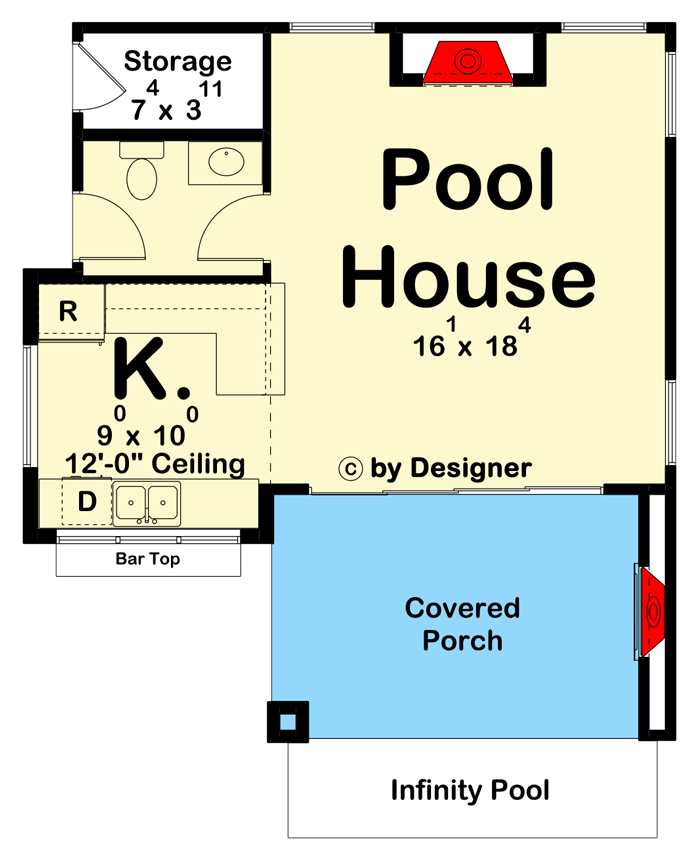

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern-Style Pool House Plan with Outdoor and Indoor Fireplaces - 623171DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 472 sq. ft.
  • 1st Floor: 472 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 26' 4"
  • Depth: 29' 0"
  • Max ridge height: 13' 2"

Roof Details

  • Primary Pitch: 9 on

Architectural Style

Special features

Plan Collections

Modern-Style Pool House Plan with Outdoor and Indoor Fireplaces

  • 472

    Heated s.f.

  • Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $600
  • 5 Sets + PDF $850
  • PDF - Unlimited Build $1,100
  • CAD + PDF - Single-Build $1,100
  • CAD - Unlimited Build $1,600
  • View all purchase option online

About This Plan

  • This modern-style pool house plan makes a great addition to your pool landscape. It gives you 472 square feet of heated indoor space including a kitchen, a bathroom and an open living space with fireplace.
  • Th front wall opens giving you access to the covered porch with fireplace.
  • A dedicated storage room is accessible from outside on the back-left side.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 472 sq. ft.
  • 1st Floor: 472 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 26' 4"
  • Depth: 29' 0"
  • Max ridge height: 13' 2"

Roof

  • Primary Pitch: 9 on
Plan 623171DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623171DJ
|
