Plan 42452DB
Modern Triplex House Plan with 3 Bedroom Units - 1277 Sq Ft Each
Heated S.F.
3,831
Units
3
Width
66'
Depth
38'
Cars
3
What's Included
Plan Details
  • This modern triplex house plan gives you matching side-by-side units. Each 22'-wide unit gives its owners 3 beds, 2.5 baths and a 1-car garage.
  • Each unit has 1,277 square feet of heated living space (562 square feet on the main floor and 715 square feet on the second floor).
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get a duplex version with house plan 42451DB and a four-plex with house plan 42600DB.
Unit A
1,277 Sq. Ft.
562 Sq. Ft. 1st Floor
715 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
217 Sq. Ft.
22' w 38' d 25' 3" h
Unit B
1,277 Sq. Ft.
562 Sq. Ft. 1st Floor
715 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
217 Sq. Ft.
22' w 38' d 25' 3" h
Unit C
1,277 Sq. Ft.
562 Sq. Ft. 1st Floor
715 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
217 Sq. Ft.
22' w 38' d 25' 3" h
What's Included
  • General Notes

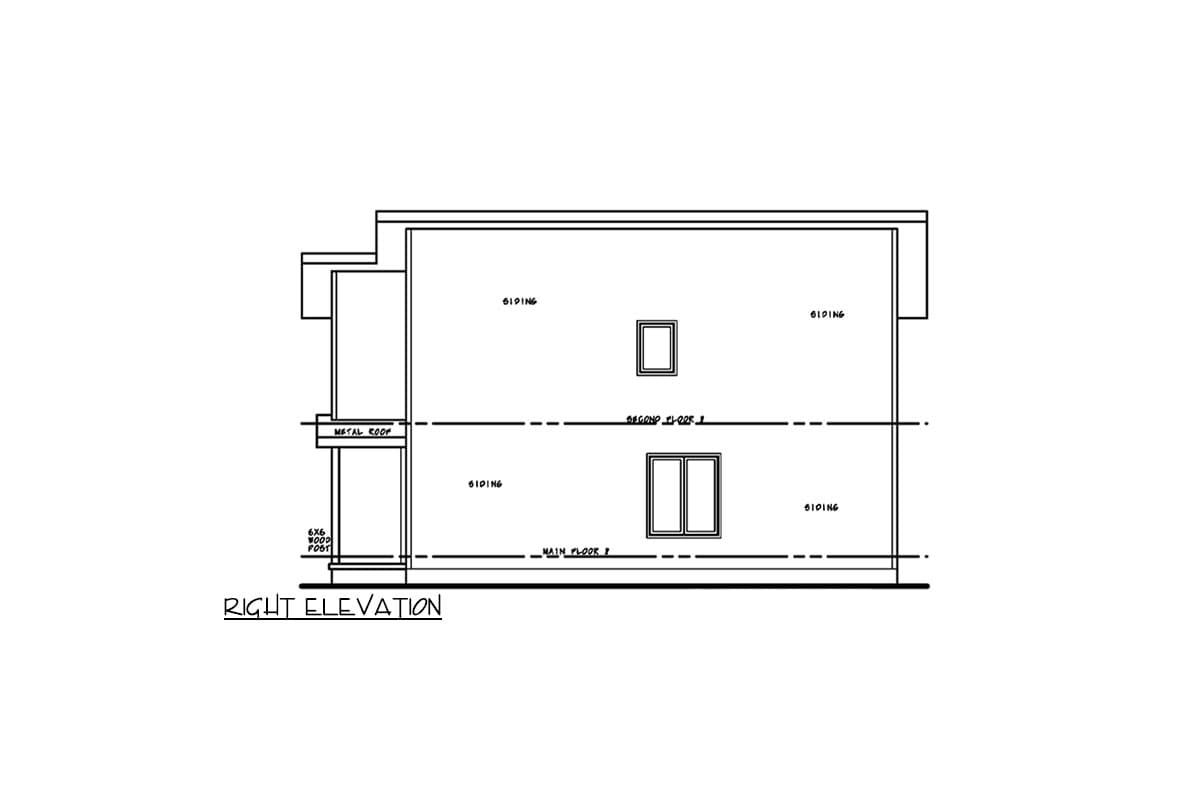

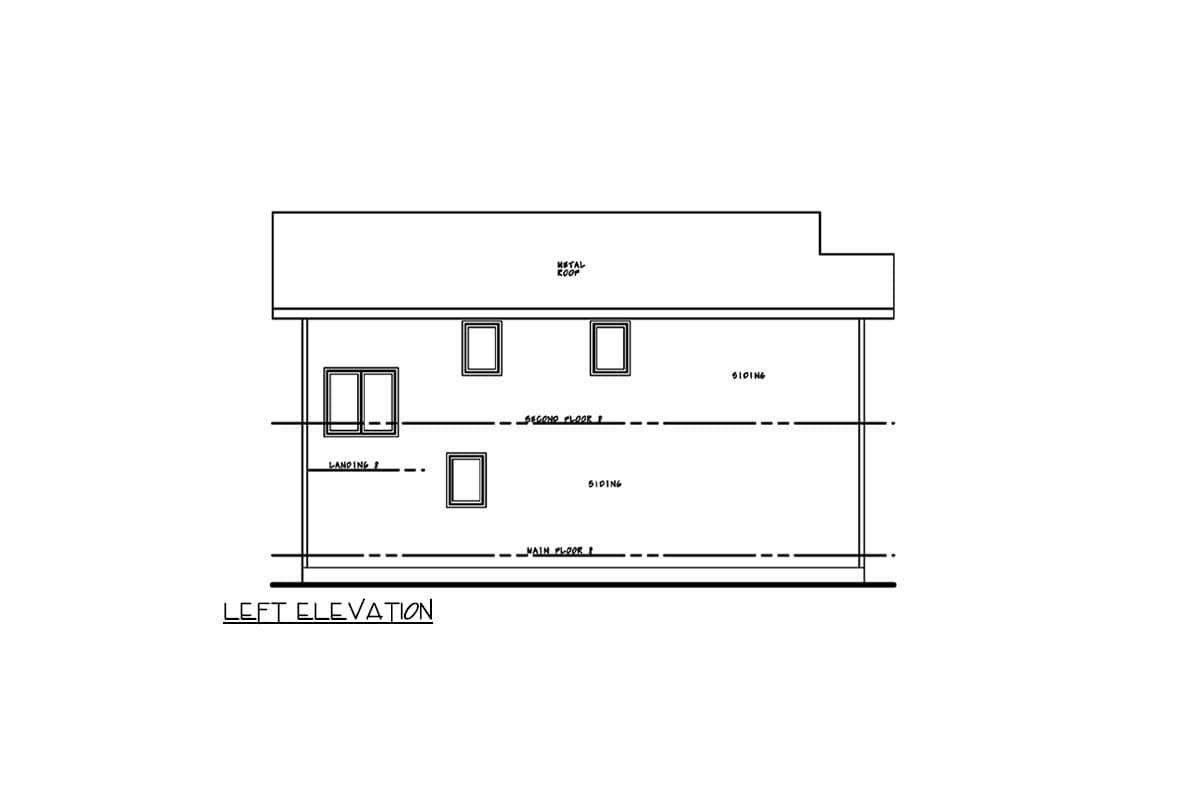

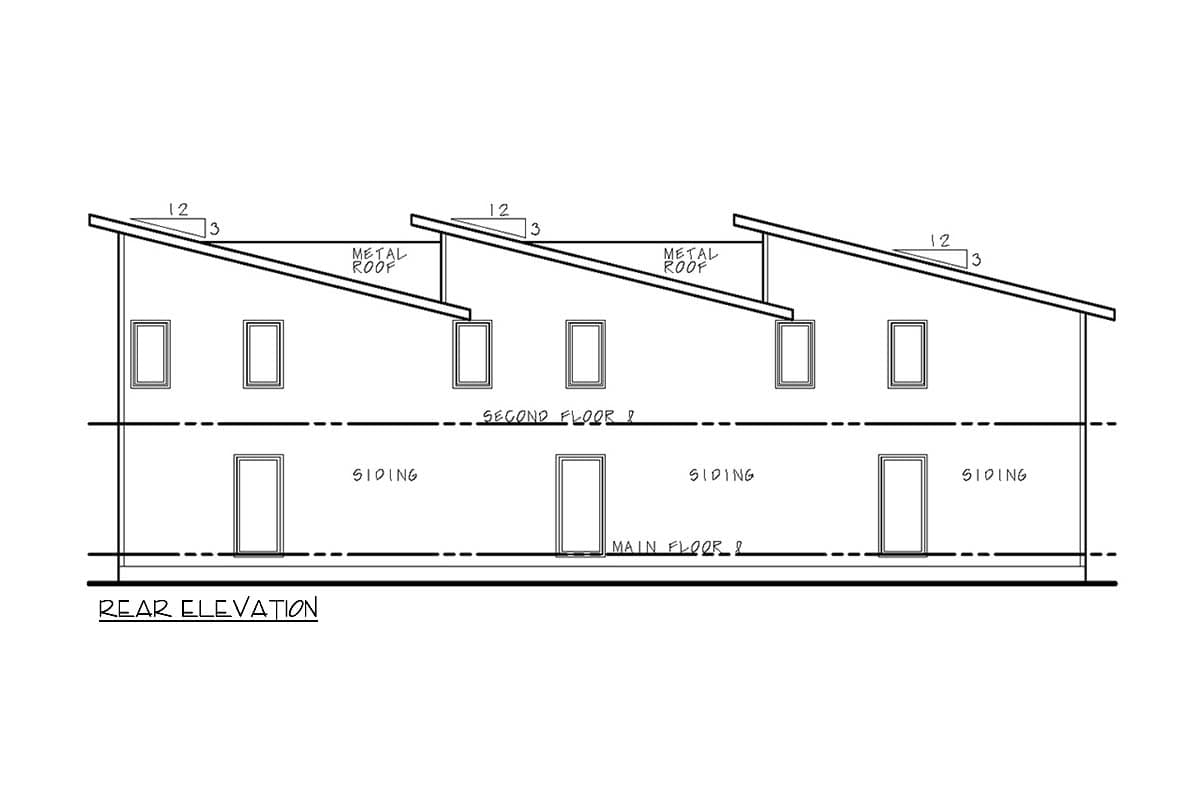

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section

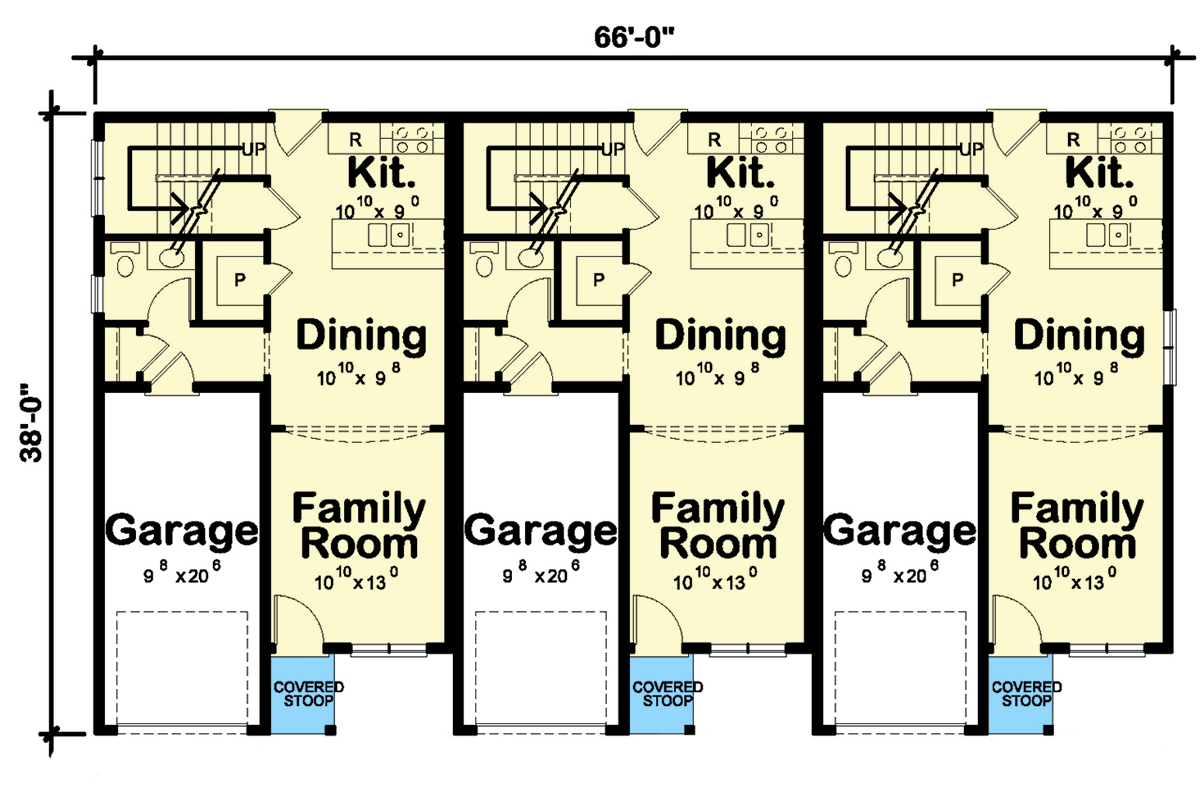

  • Main Level Floor Plan

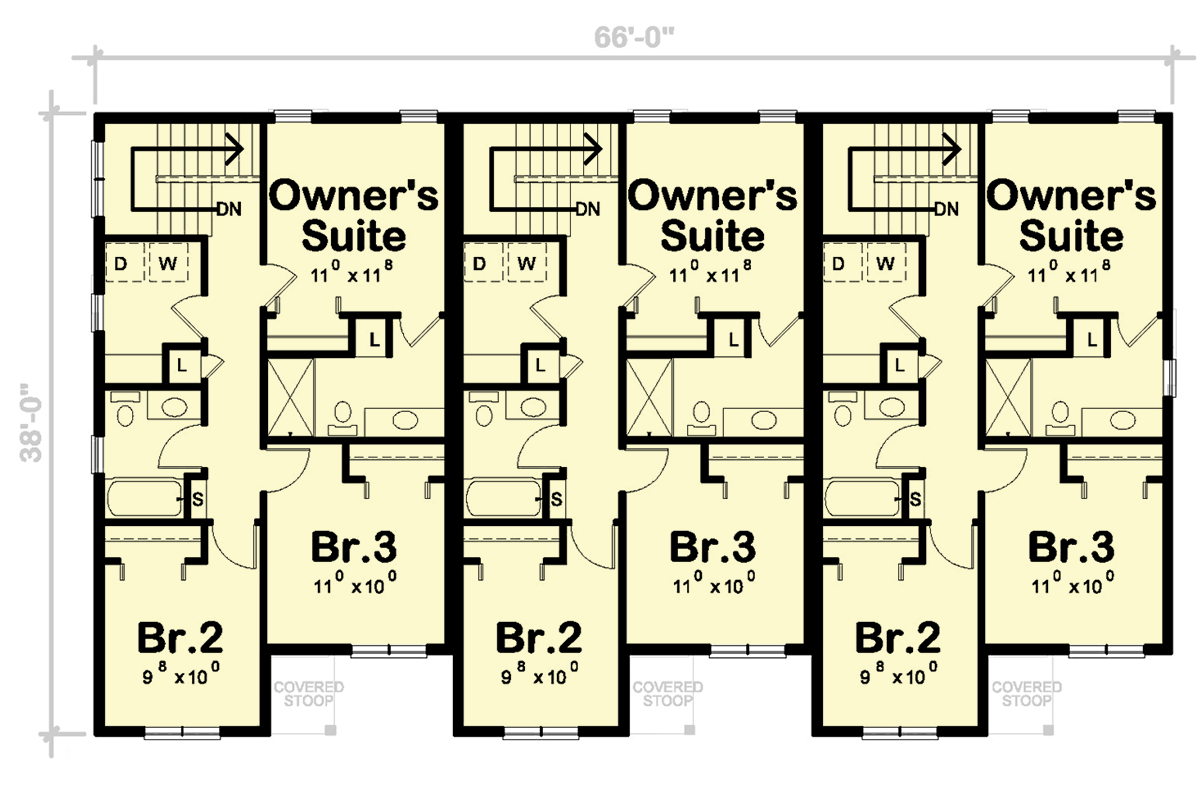

  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Triplex House Plan with 3 Bedroom Units - 1277 Sq Ft Each

  • 3,831

    Heated s.f.

  • 3

    Units

  • 66'

    Width

  • 38'

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,831 sq. ft.
  • 1st Floor: 1,686 sq. ft.
  • 2nd Floor: 2,145 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 38' 0"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 6
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 651 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 3 on 12
