Plan 85259MS Modern Triplex House Plan with Drive-Under Parking

6,687 3 53' 0" 68' 11" 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Triplex House Plan with Drive-Under Parking

Plan 85259MS

  • 6,687

    Heated s.f.

  • 3

    Units

  • 53' 0"

    Width

  • 68' 11"

    Depth

  • This modern home plan provides living space for three families. The two outside units give you 3 beds each and 1,991 sq. ft. of living space (left unit) and 1,993 sq. ft. (right unit) spread across two floors. The center unit gives you 4 bedrooms spread across 3 floors (920 sq. ft. main floor, 988 sq. ft. second floor, 793 sq. ft. third floor).
  • The lower level of each unit gives you parking for one vehicle and space that you can finish to suit your needs.

Each plan set is drawn to 1/4" scale and includes the following:

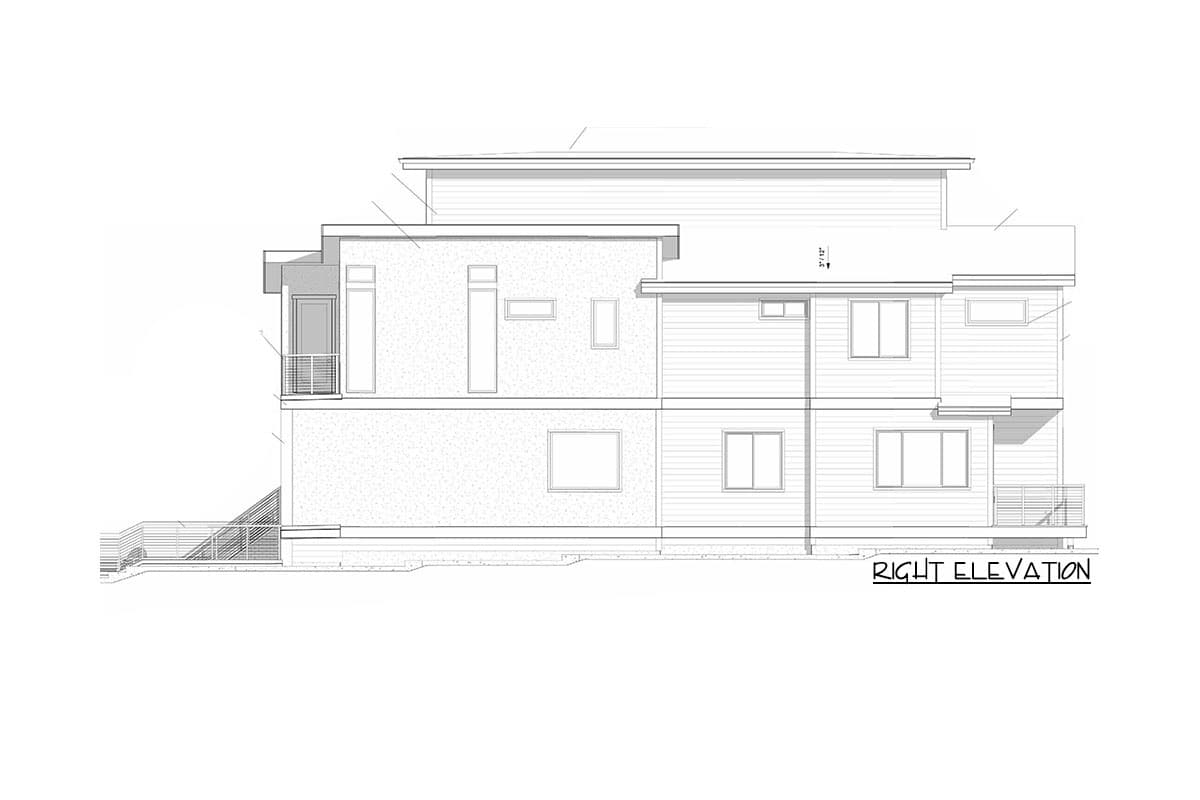

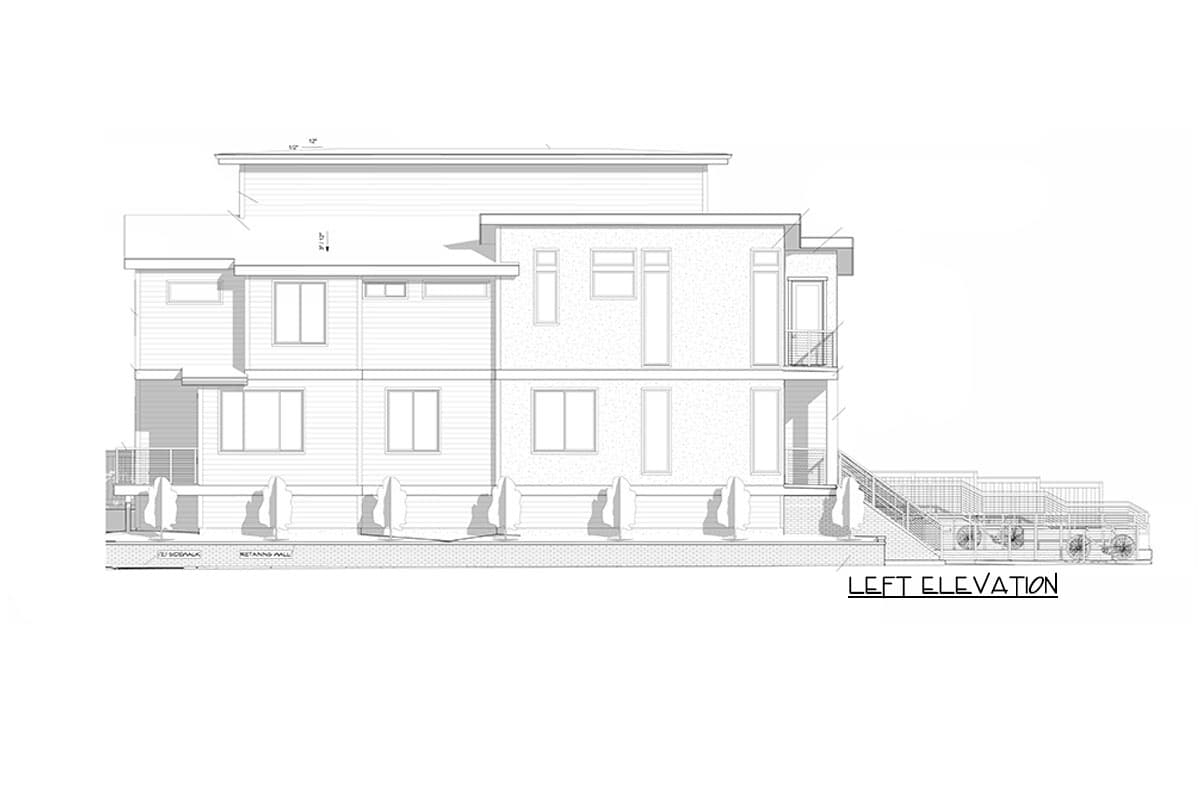

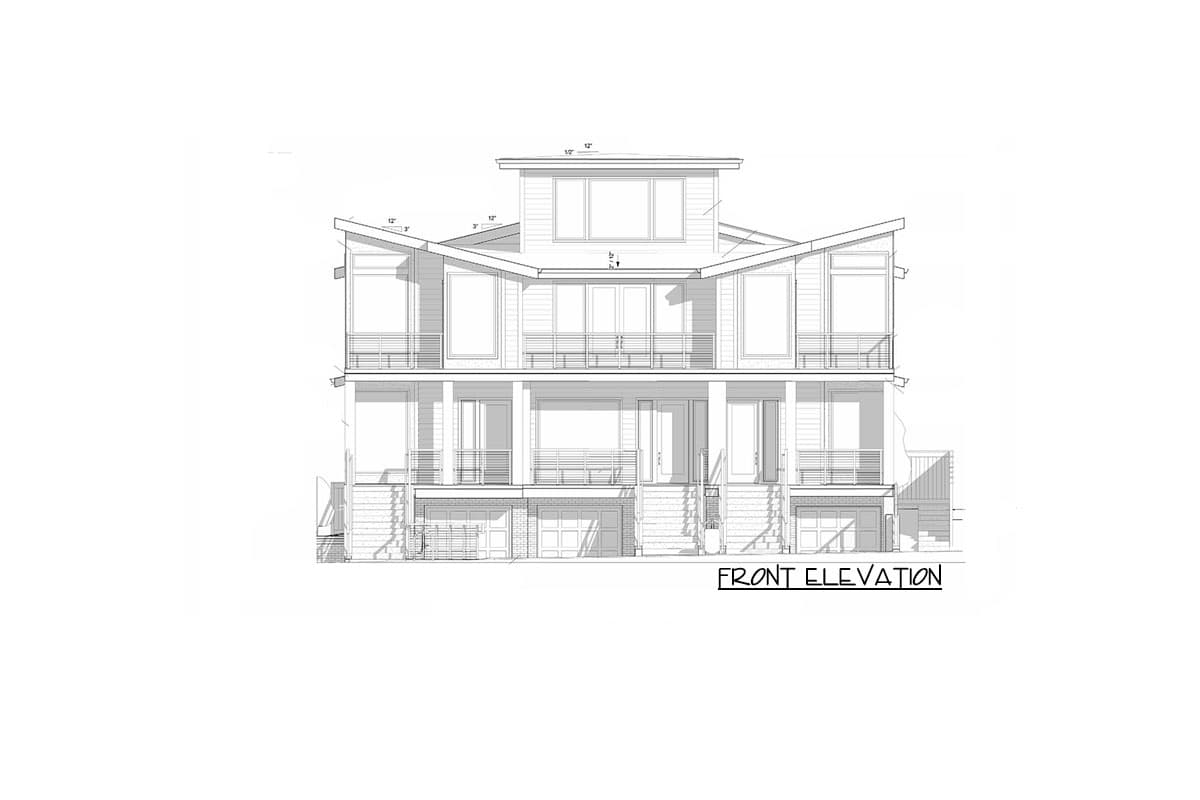

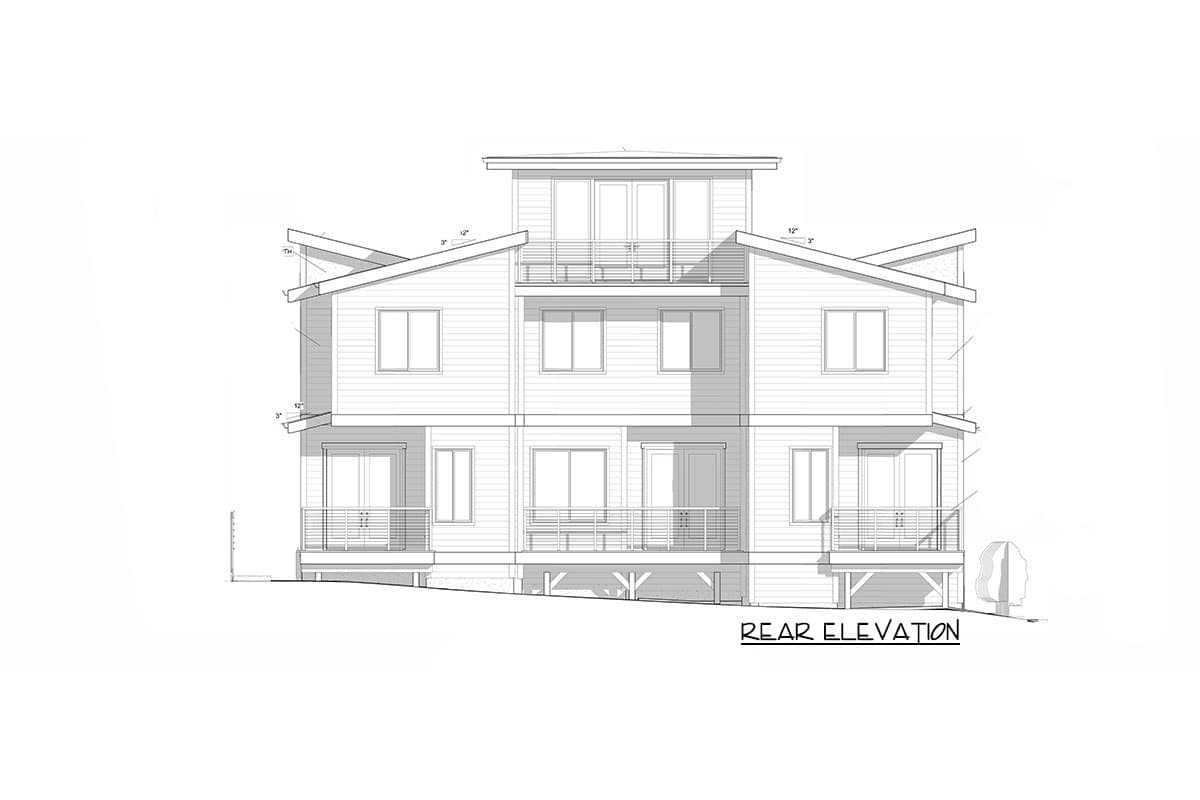

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

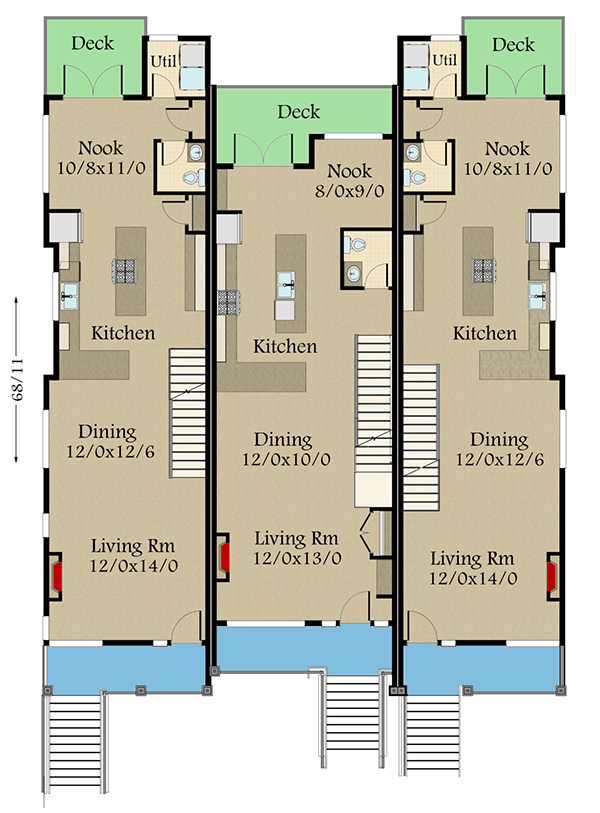

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Triplex House Plan with Drive-Under Parking - 85259MS floor plan - Main Floor

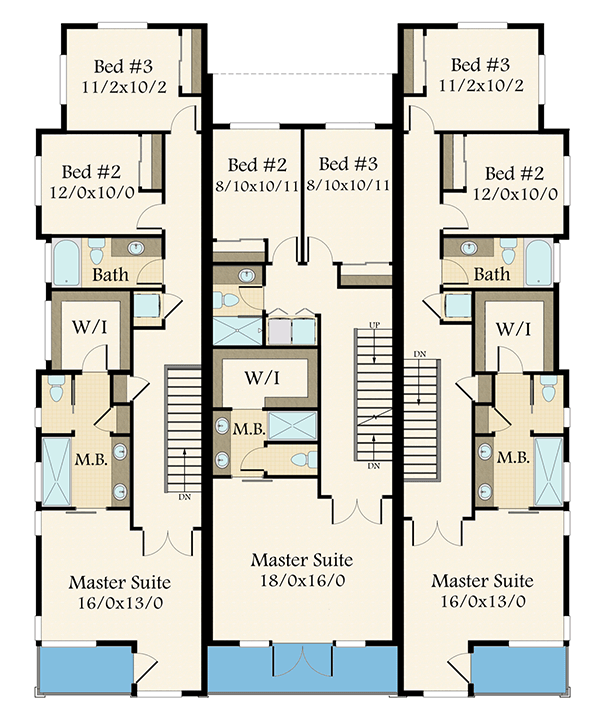

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Triplex House Plan with Drive-Under Parking - 85259MS floor plan - Second Floor

Third Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

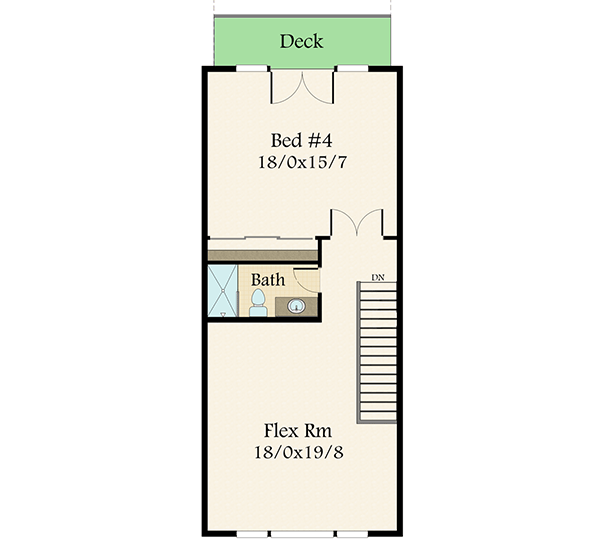

Modern Triplex House Plan with Drive-Under Parking - 85259MS floor plan - Third Floor

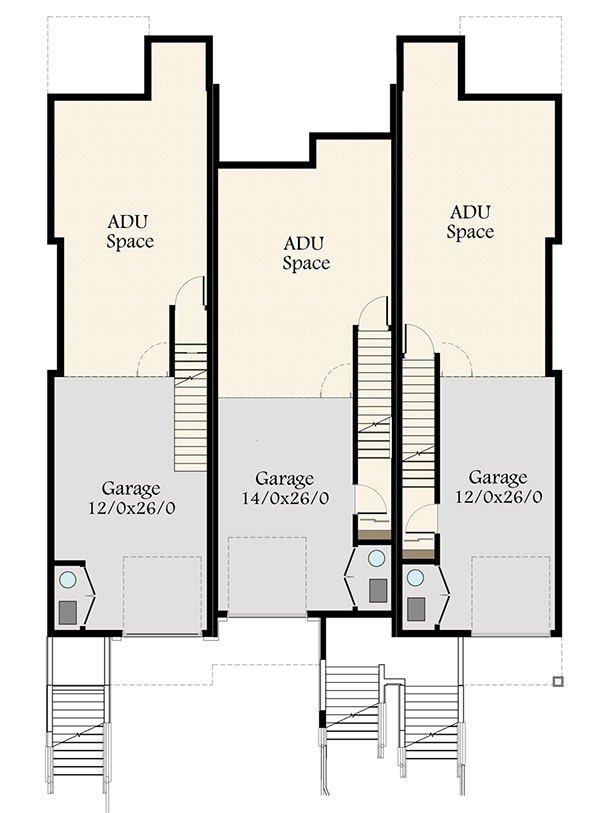

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Triplex House Plan with Drive-Under Parking - 85259MS floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,687 sq. ft.
  • 1st Floor: 2,882 sq. ft.
  • 2nd Floor: 3,010 sq. ft.
  • 3rd Floor: 793 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 7
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 68' 11"
  • Max ridge height: 42' 5"

Garage

  • Type: Drive Under
  • Area: 2883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 1" Second Floor / 9' 0" Third Floor 9' 0"

Architectural Style

Special features

Plan Collections

Modern Triplex House Plan with Drive-Under Parking

  • 6,687

    Heated s.f.

  • 3

    Units

  • 53' 0"

    Width

  • 68' 11"

    Depth

Buy This Plan
  • PDF - Single-Build $3,945
  • 6 Sets + PDF $4,680
  • CAD + PDF - Single-Build $6,687
  • View all purchase option online

About This Plan

  • This modern home plan provides living space for three families. The two outside units give you 3 beds each and 1,991 sq. ft. of living space (left unit) and 1,993 sq. ft. (right unit) spread across two floors. The center unit gives you 4 bedrooms spread across 3 floors (920 sq. ft. main floor, 988 sq. ft. second floor, 793 sq. ft. third floor).
  • The lower level of each unit gives you parking for one vehicle and space that you can finish to suit your needs.

Floor Plans

  • Main Floor

  • Second Floor

  • Third Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,687 sq. ft.
  • 1st Floor: 2,882 sq. ft.
  • 2nd Floor: 3,010 sq. ft.
  • 3rd Floor: 793 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 7
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 68' 11"
  • Max ridge height: 42' 5"

Garage

  • Type: Drive Under
  • Area: 2883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 1" Second Floor / 9' 0" Third Floor 9' 0"
Plan 85259MS
View this and more for this plan by visiting www.architechtecturaldesigns.com/85259MS
|
