Plan 100363GHR

Modern Triplex House Plan with Single-Bedroom Suites

Heated S.F.
1,908
Units
3
Width
Depth

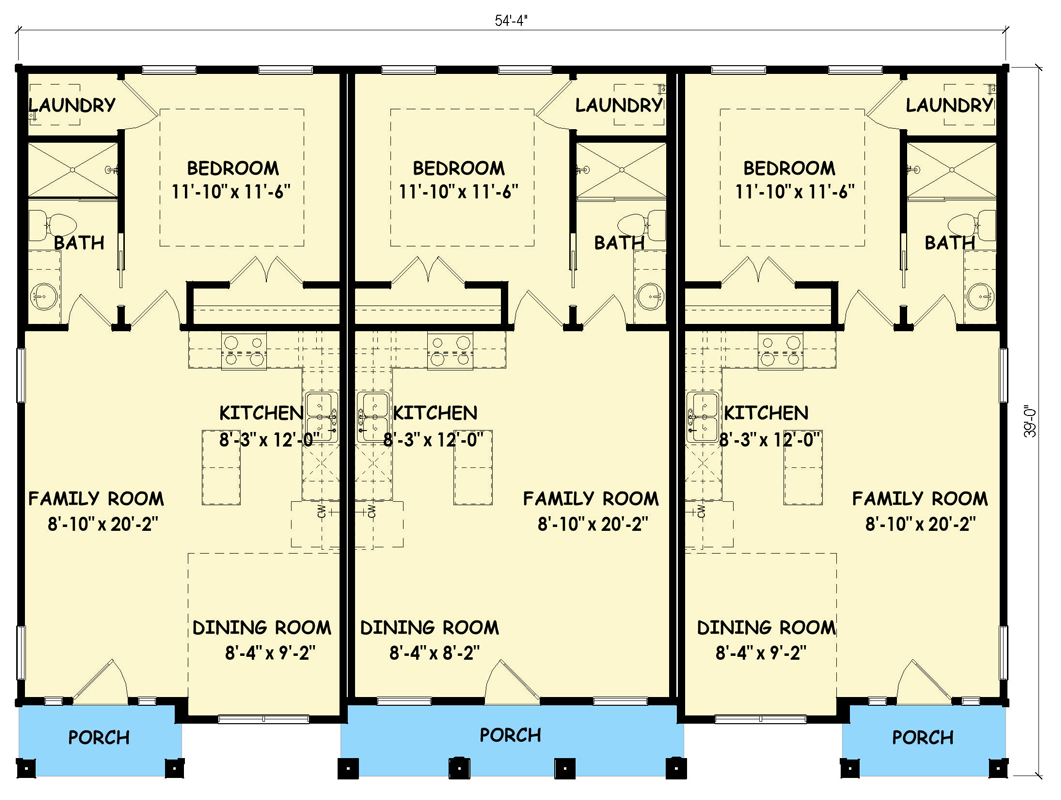

Floor Plan

Plan 100363GHR

Main Level
Main Level

Plan 100363GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 100363GHR: Modern Triplex House Plan with Single-Bedroom Suites - Floor Plan - Main Level - Contemporary, Modern

Plan Details

  • This sophisticated 1,908 sq. ft. Contemporary Modern triplex house plan offers three distinct 1-bedroom, 1-bathroom units, each designed for efficient urban living.
  • Step into each unit from its welcoming covered front porch, where an immediate sense of open space greets you with a fluid connection between the family room, dining area, and kitchen.
  • The heart of each home is the efficiently designed kitchen, featuring ample counter space and seamless flow into the dining area, crowned by a dramatic 12' 1'' volume ceiling, and the comfortable family room.
  • The private bedroom suite in each unit offers a serene retreat, complete with direct access to a well-appointed full bathroom that ingeniously integrates the main-level laundry facilities.
  • Each unit features its own charming covered front porch, providing a dedicated outdoor space perfect for morning coffee or evening relaxation.
Unit A
Heated Area
636Sq. Ft.
636 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
18'width
39'depth
22' 3"height
Unfinished Areas
25 Sq. Ft. Porch, Front
Unit B
Heated Area
636Sq. Ft.
636 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
18'width
39'depth
22' 3"height
Unfinished Areas
49 Sq. Ft. Porch, Front
Unit C
Heated Area
636Sq. Ft.
636 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
18'width
39'depth
22' 3"height
Unfinished Areas
25 Sq. Ft. Porch, Front

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,908 sq. ft.

1st Floor

1,908 sq. ft.

Porch, Front

147 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

39' 0"

Max Ridge Height

22' 3"

Ceiling Heights

First Floor

10' 1"

Room

Ceiling Type

Height

Dining Room

Volume

12' 1''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Breakfast Nook

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,908 sq. ft.

1st Floor

1,908 sq. ft.

Porch, Front

147 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

39' 0"

Max Ridge Height

22' 3"

Ceiling Heights

First Floor

10' 1"

Room

Ceiling Type

Height

Dining Room

Volume

12' 1''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Breakfast Nook

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
