Plan 36711TX

Modern Two-Story House Plan with Floating Buffet and Media Room

Name: Plan 36711TX: Modern Two-Story House Plan with Floating Buffet and Media Room
Brand: Architectural Designs
SKU: 36711TX
Price: 1700.0 USD
Availability: InStock

Heated S.F.

4,755

Beds

Baths

4.5+

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

This contemporary 4,755 sq. ft. two-story house plan includes 4 bedrooms, 4 full and 2 half baths, and a 627 sq. ft. 3-car, side-entry garage. A sleek exterior and spacious interiors characterize this modern design.
Entering the home, you're welcomed by an elegant two-story foyer leading to an open staircase. The layout features a spacious living area that seamlessly integrates with the formal dining room and a separate library/study.
The gourmet kitchen boasts a large island and butler’s pantry, opening to a cozy breakfast nook and family room. This main living area flows effortlessly to outdoor spaces.
The master suite is conveniently located on the first floor, offering privacy with dual walk-in closets and a luxurious bathroom. Upstairs, three additional bedrooms feature private baths and walk-in closets.
Special features include a media room for entertainment, ensuring ample space for relaxation and hosting guests.
Outdoor living includes a covered patio with a stunning view, ideal for alfresco dining and lounging.

What's Included

Cover sheet
Foundation Plan - schematic only

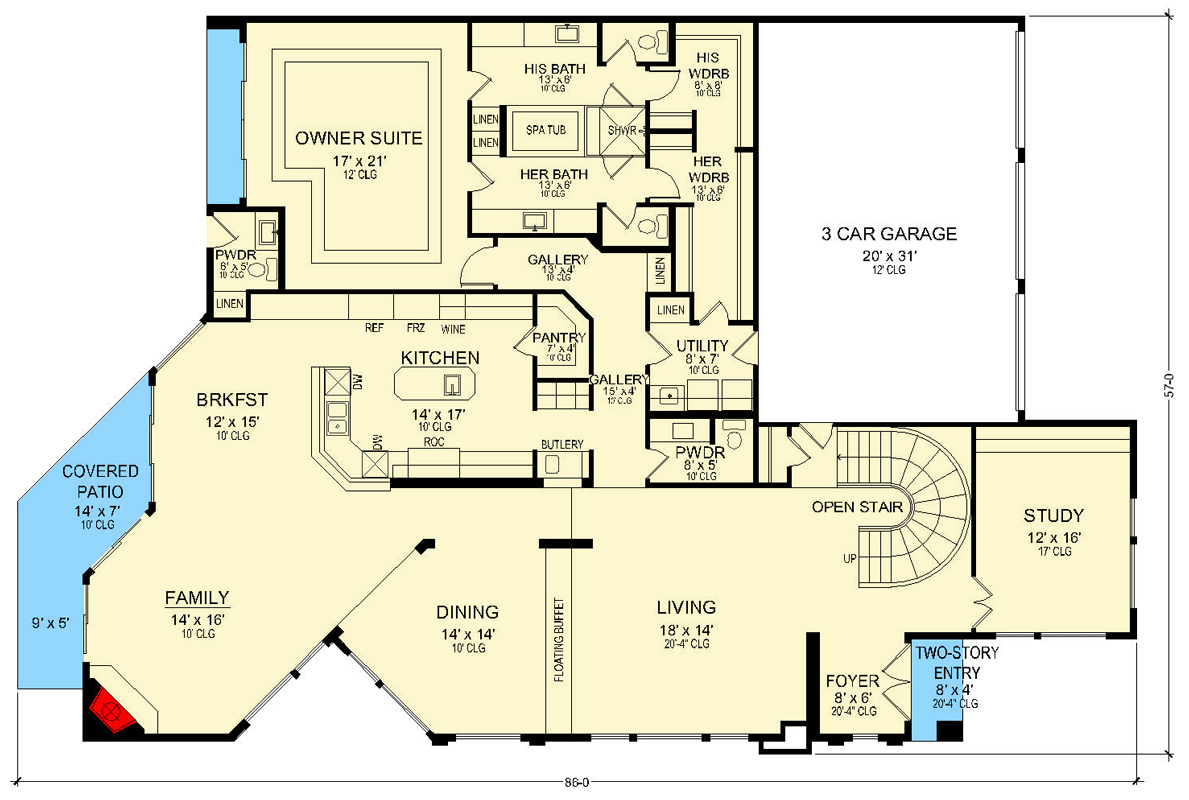

First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

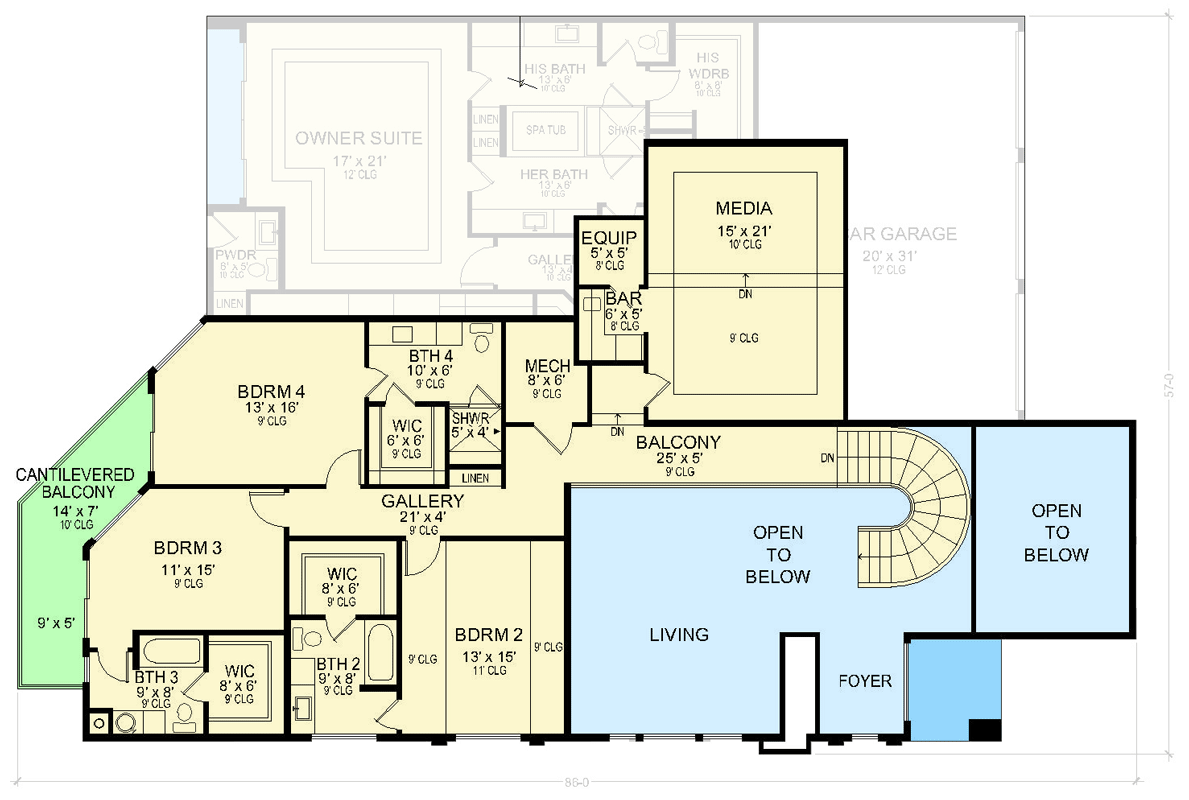

Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

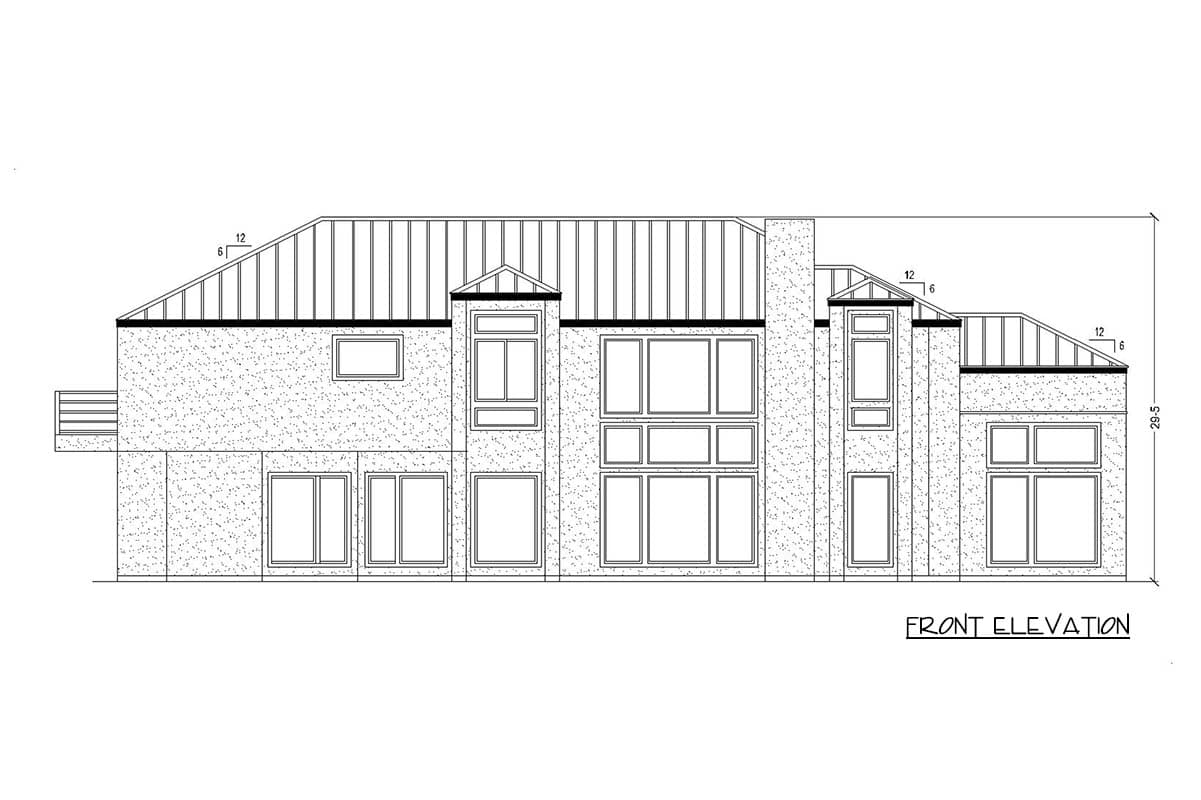

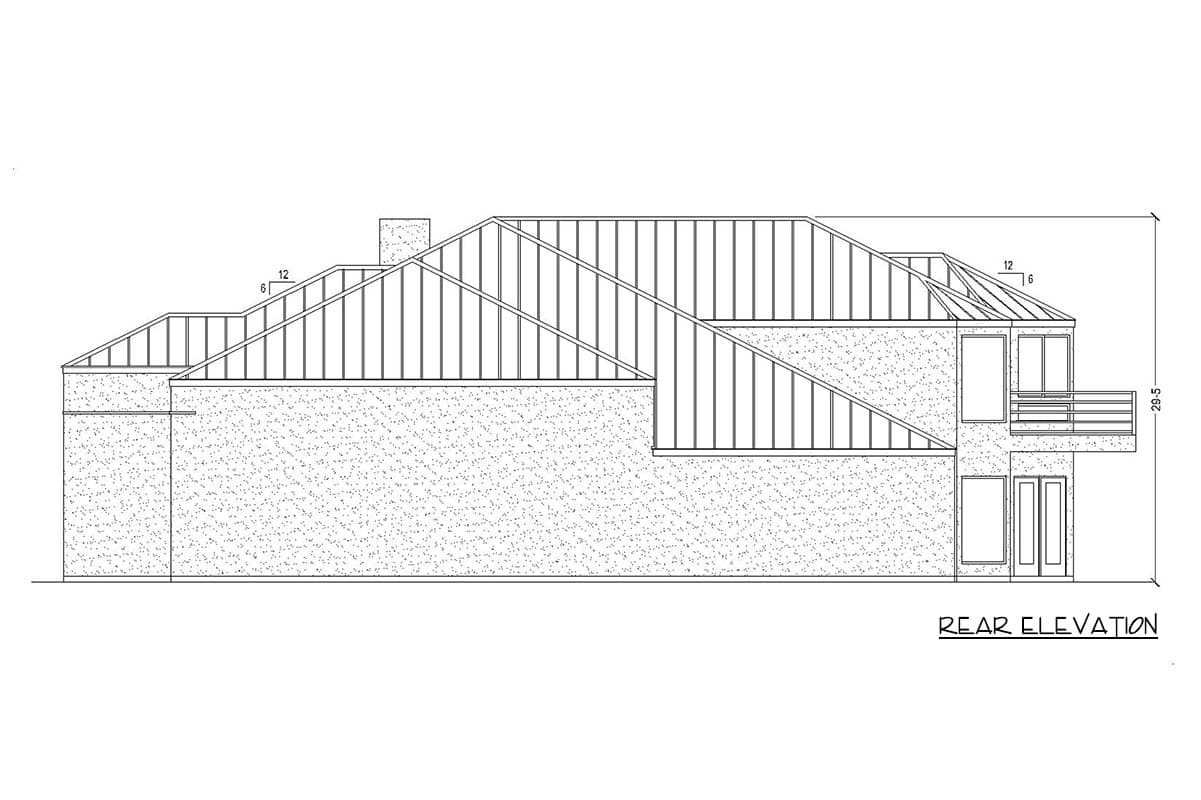

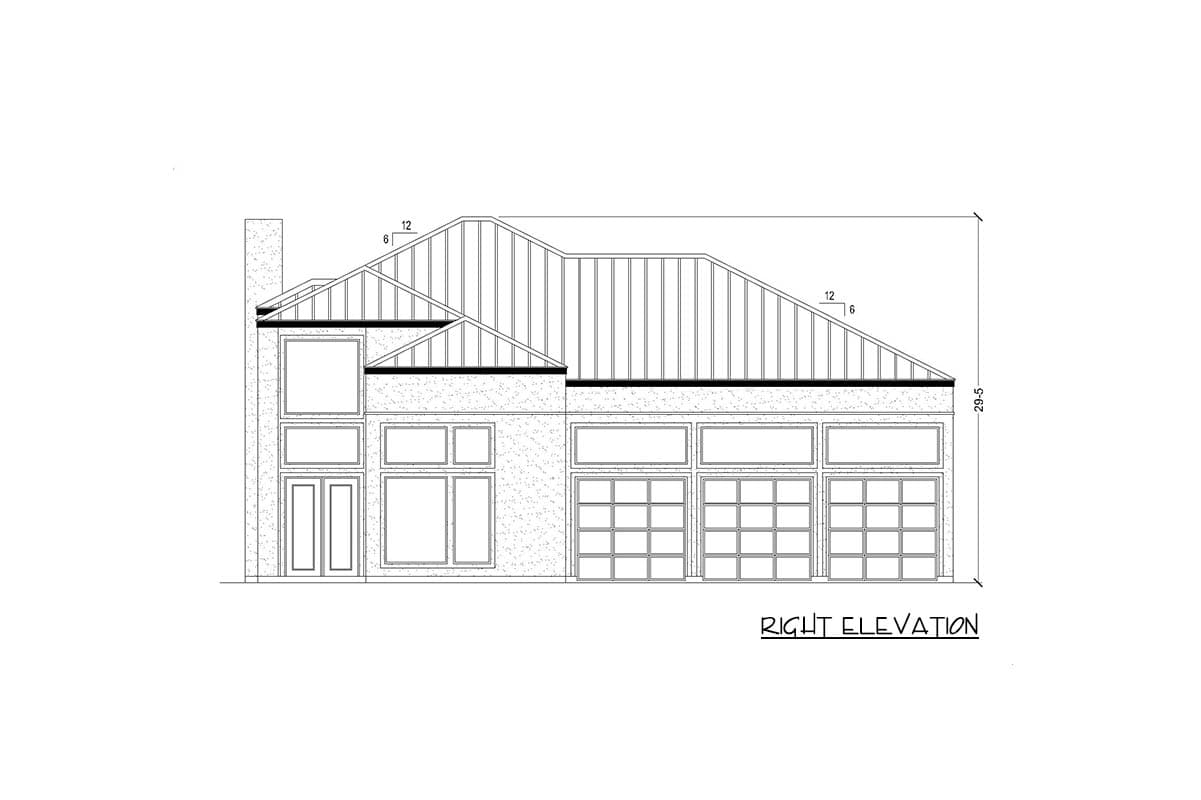

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

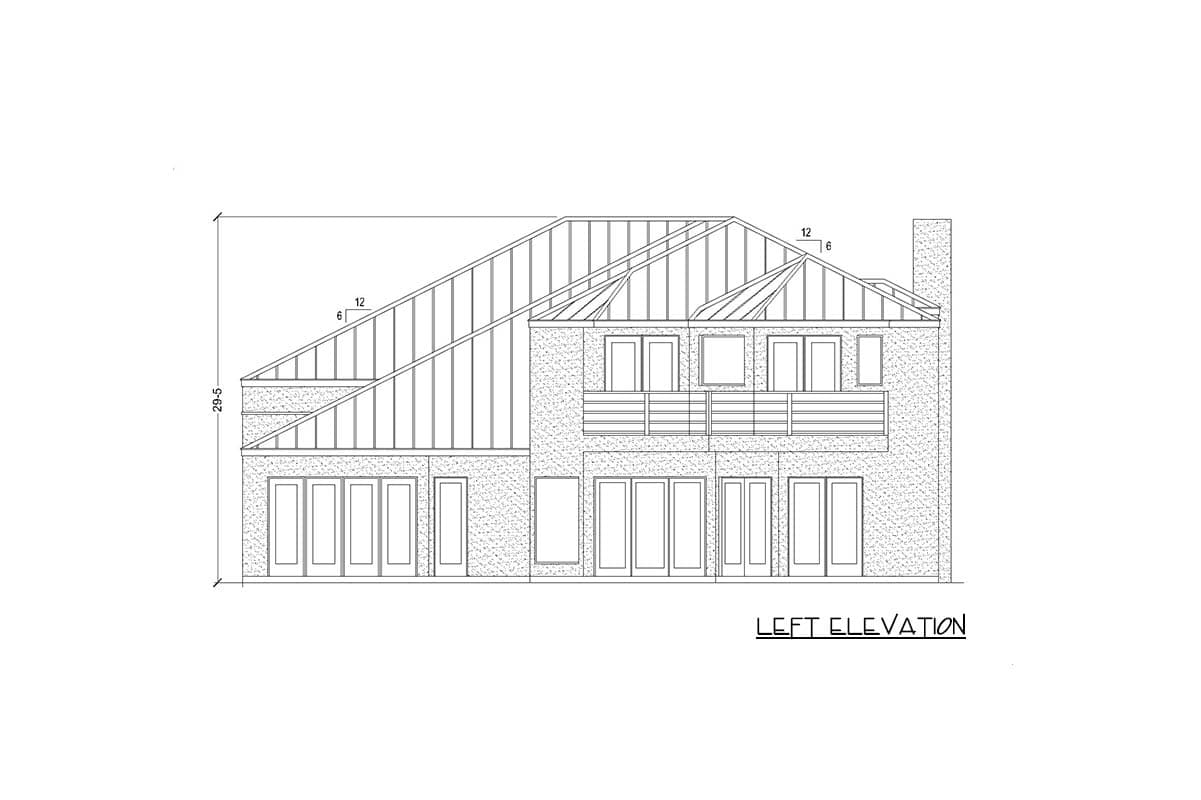

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
