Plan 68848VR Mountain Contemporary with Second Floor Porch and Third Floor Rec Room and Office

2,662 3 3.5 3 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Contemporary with Second Floor Porch and Third Floor Rec Room and Office

Plan 68848VR

  • 2,662

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 3

    Stories

  • 2

    Cars

  • Deep overhangs extend from the sloped roof on this Modern Mountain home plan.
  • A portion of the ground level is dedicated to a 2-car side load garage with storage and workspace. The rest of the floor gives you a bedroom suite with access to a den from inside and out as well as a side entry with stairs going up.
  • The heart of the home is located on the second level with a family room and fireplace located at the top of the stairs. The family room opens to the kitchen with U-shaped cabinets and an eating bar providing a comfortable and casual space for meals. Sliding doors take you to a covered deck overlooking the front.
  • Two bedrooms complete the main floor along with a washer / dryer unit in the walk-in closet.
  • The top floor has a rec room and an office, each under sloping ceilings. A half bath is a nice convenience.
  • Related Plan: Get an open deck instead of a covered one off the family room with house plan 68847VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

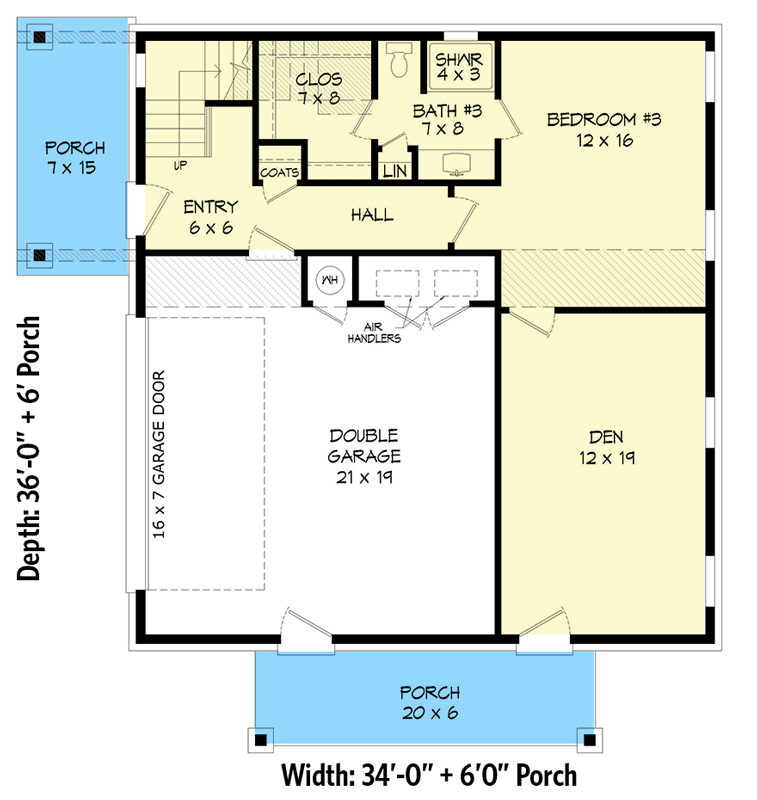

Mountain Contemporary with Second Floor Porch and Third Floor Rec Room and Office - 68848VR floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

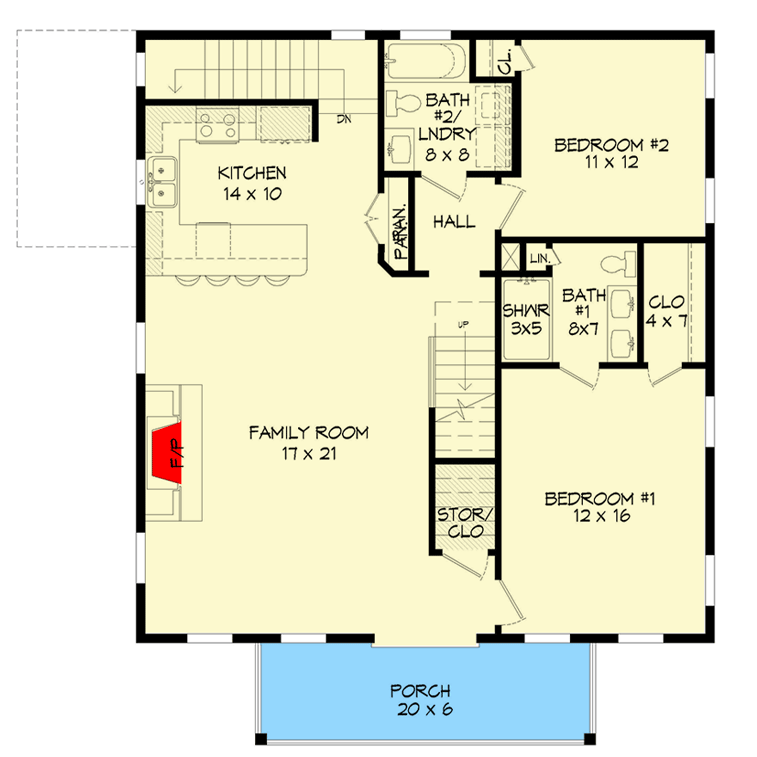

Mountain Contemporary with Second Floor Porch and Third Floor Rec Room and Office - 68848VR floor plan - Second Level

Third Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

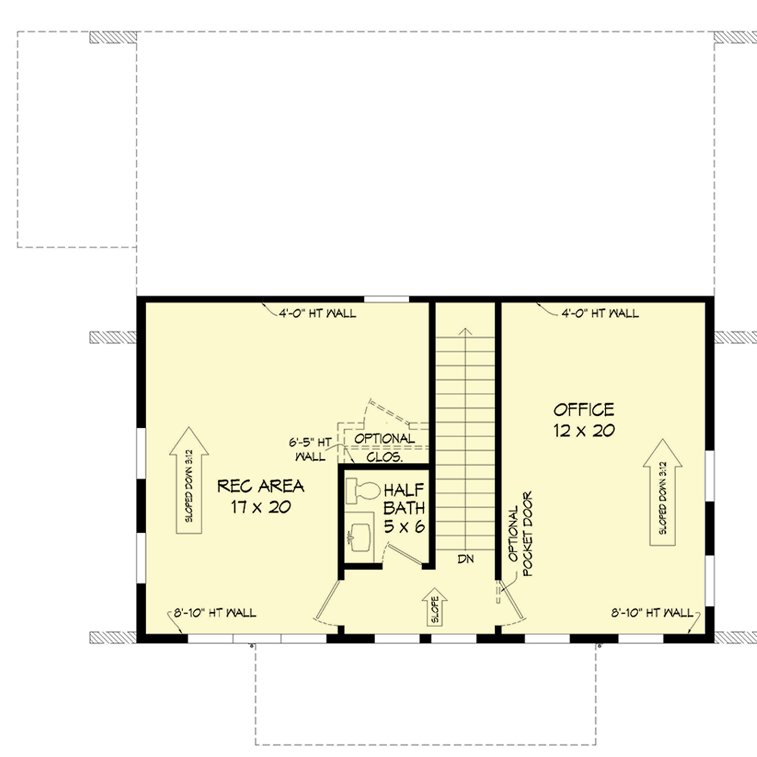

Mountain Contemporary with Second Floor Porch and Third Floor Rec Room and Office - 68848VR floor plan - Third Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,662 sq. ft.
  • 1st Floor: 744 sq. ft.
  • 2nd Floor: 1,224 sq. ft.
  • 3rd Floor: 694 sq. ft.
  • Porch, Combined: 321 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Mountain Contemporary with Second Floor Porch and Third Floor Rec Room and Office

  • 2,662

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,475
  • 5 Sets $1,560
  • 5 Sets + PDF $1,702
  • CAD + PDF - Single-Build $2,025
  • View all purchase option online

About This Plan

  • Deep overhangs extend from the sloped roof on this Modern Mountain home plan.
  • A portion of the ground level is dedicated to a 2-car side load garage with storage and workspace. The rest of the floor gives you a bedroom suite with access to a den from inside and out as well as a side entry with stairs going up.
  • The heart of the home is located on the second level with a family room and fireplace located at the top of the stairs. The family room opens to the kitchen with U-shaped cabinets and an eating bar providing a comfortable and casual space for meals. Sliding doors take you to a covered deck overlooking the front.
  • Two bedrooms complete the main floor along with a washer / dryer unit in the walk-in closet.
  • The top floor has a rec room and an office, each under sloping ceilings. A half bath is a nice convenience.
  • Related Plan: Get an open deck instead of a covered one off the family room with house plan 68847VR.

Floor Plans

  • Main Level

  • Second Level

  • Third Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,662 sq. ft.
  • 1st Floor: 744 sq. ft.
  • 2nd Floor: 1,224 sq. ft.
  • 3rd Floor: 694 sq. ft.
  • Porch, Combined: 321 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
Plan 68848VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68848VR
|
Need Help? 800-854-7852
|
Plan 68848VR
