Plan 22634DR Mountain Cottage with Walkout Basement

2,122 3 2.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Cottage with Walkout Basement

Plan 22634DR

  • 2,122

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • A ribbed metal roof caps this charming, Mountain Cottage, complete with a wraparound porch welcoming you inside.
  • To the right of the foyer, discover a mud/laundry room combo with a stacked washer and dryer. A pocket door reveals the pass-thru pantry that provides a shortcut to the kitchen.
  • A cathedral ceiling lends an elegant feature to the living room, and the open flow connects you with the dining area and kitchen to bring the family together. Retreat to the covered porch or terrace for outdoor enjoyment.
  • The lofted, master bedroom consumes the second level, along with a full bathroom.
  • Bedrooms 2 and 3 share a full bath on the lower level, and a secondary family room features a wood stove and access to a covered porch.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

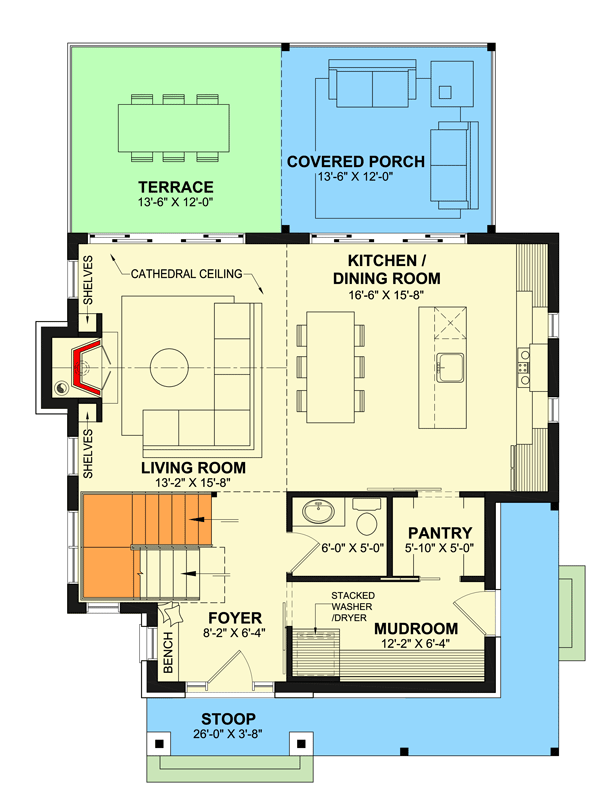

Mountain Cottage with Walkout Basement - 22634DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

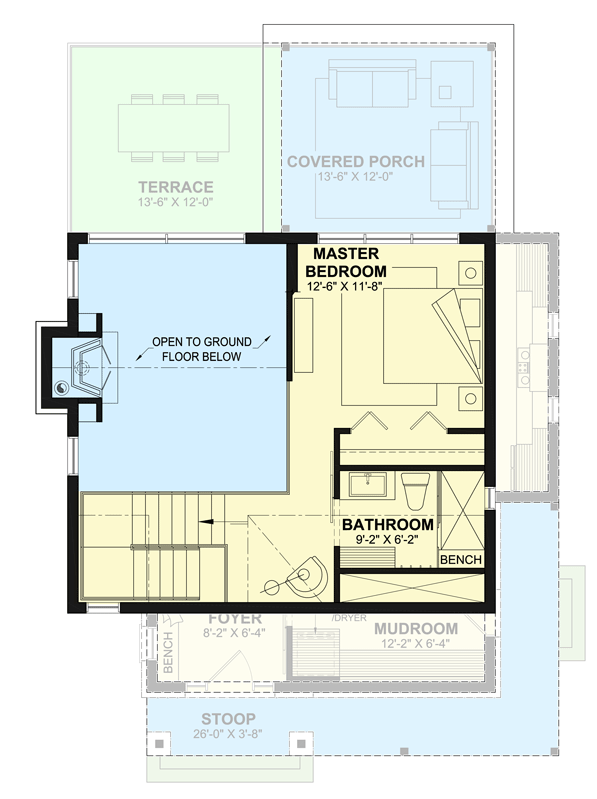

Mountain Cottage with Walkout Basement - 22634DR floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

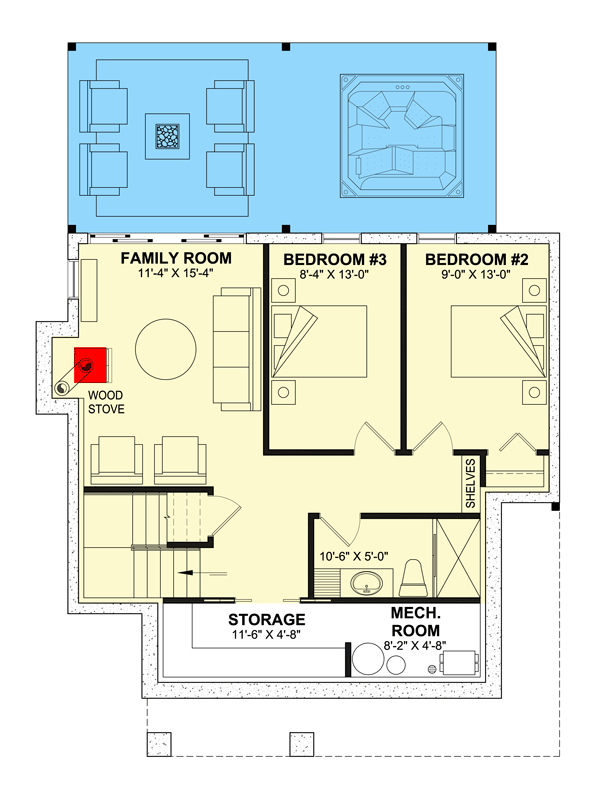

Mountain Cottage with Walkout Basement - 22634DR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,122 sq. ft.
  • Lower Level: 850 sq. ft.
  • 1st Floor: 850 sq. ft.
  • 2nd Floor: 422 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Monolithic Slab, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 29' 4"
  • Max ridge height: 25' 4"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Cottage with Walkout Basement

  • 2,122

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,500
  • 3 Sets + PDF $1,625
  • CAD + PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • A ribbed metal roof caps this charming, Mountain Cottage, complete with a wraparound porch welcoming you inside.
  • To the right of the foyer, discover a mud/laundry room combo with a stacked washer and dryer. A pocket door reveals the pass-thru pantry that provides a shortcut to the kitchen.
  • A cathedral ceiling lends an elegant feature to the living room, and the open flow connects you with the dining area and kitchen to bring the family together. Retreat to the covered porch or terrace for outdoor enjoyment.
  • The lofted, master bedroom consumes the second level, along with a full bathroom.
  • Bedrooms 2 and 3 share a full bath on the lower level, and a secondary family room features a wood stove and access to a covered porch.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,122 sq. ft.
  • Lower Level: 850 sq. ft.
  • 1st Floor: 850 sq. ft.
  • 2nd Floor: 422 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Monolithic Slab, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 29' 4"
  • Max ridge height: 25' 4"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
Plan 22634DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22634DR
|
