Plan 703013TYL Mountain Craftsman House Plan Under 4500 Square Feet with Finished Lower Level

4,452 3-4 2.5 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman House Plan Under 4500 Square Feet with Finished Lower Level

Plan 703013TYL

  • 4,452

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 4,452 square foot Mountain Craftsman house plan gives you 3 or 4 bedrooms depending upon how you use the flex room in the finished lower level (1,903 square feet).

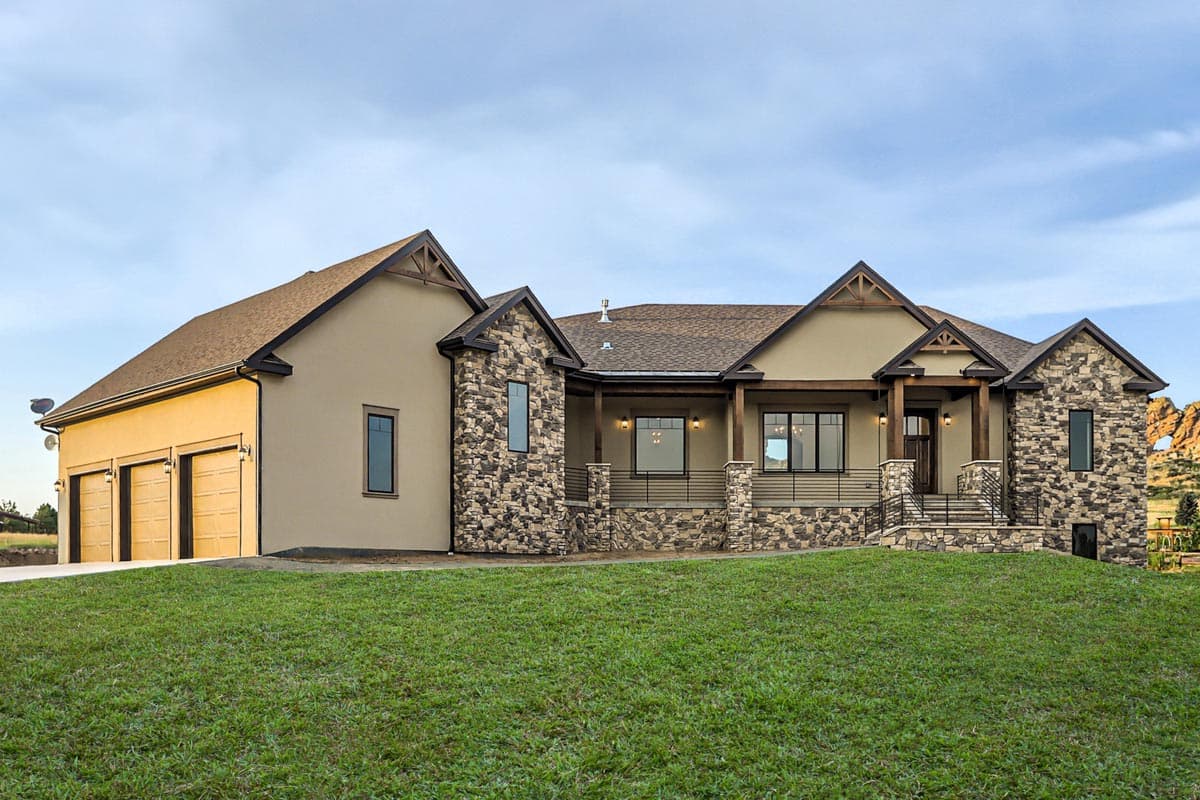

  • An angled 3-car garage comes off the left side and gives you 928 square feet of parking space and accesses the home through the mudroom with a 3'10" by 11'10" coat closet.

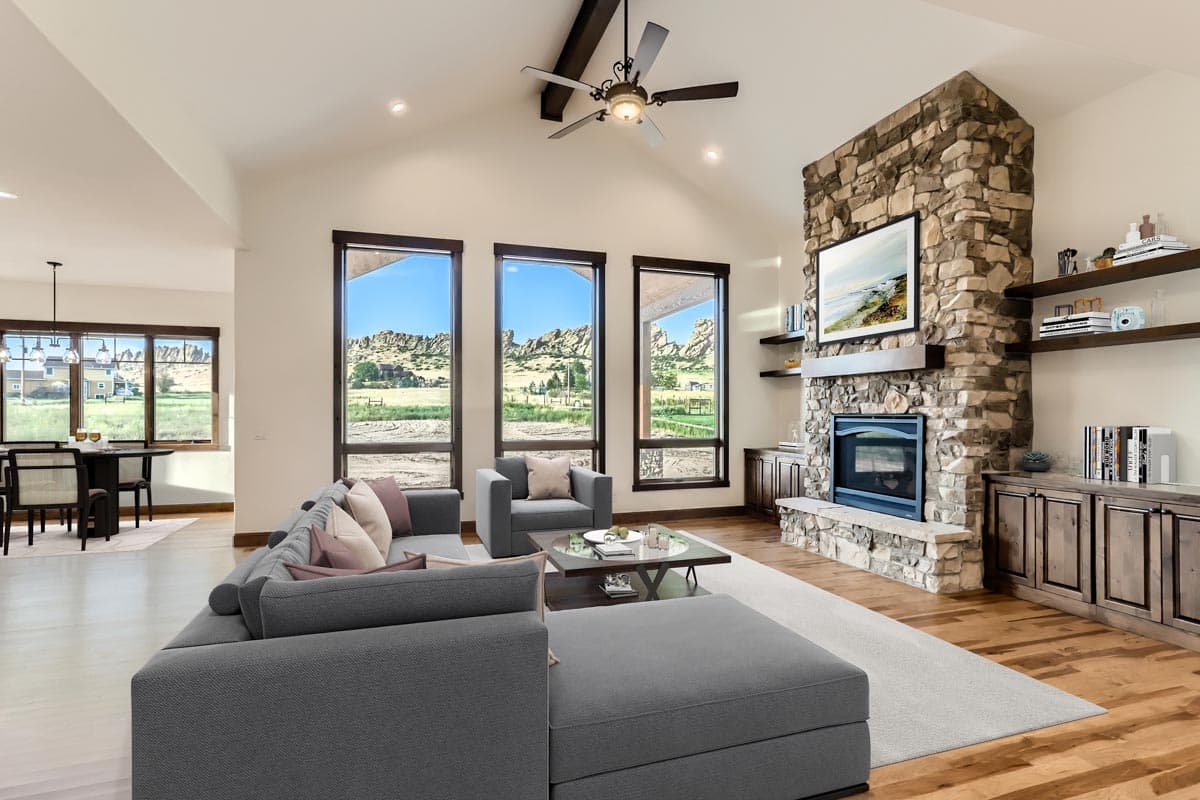

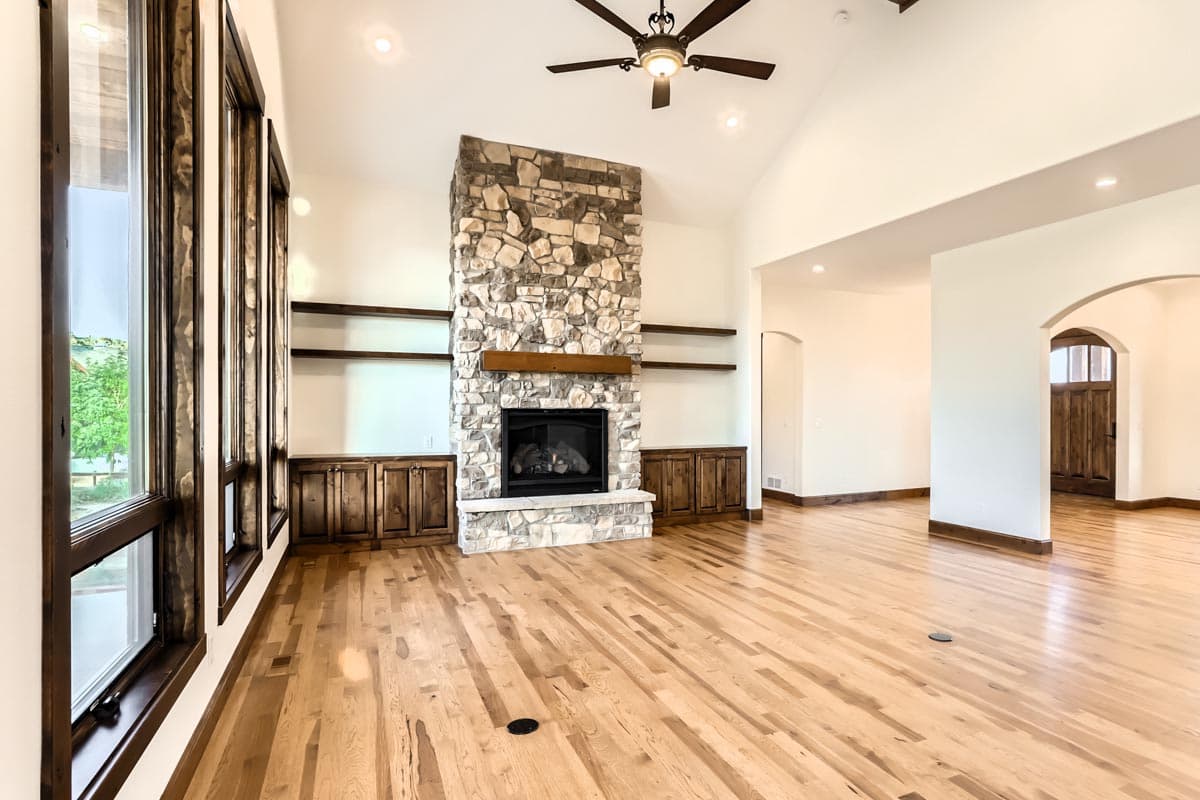

  • The great room has a vaulted ceiling which extends to the covered patio beyond. Access to the patio is gained from the breakfast room.

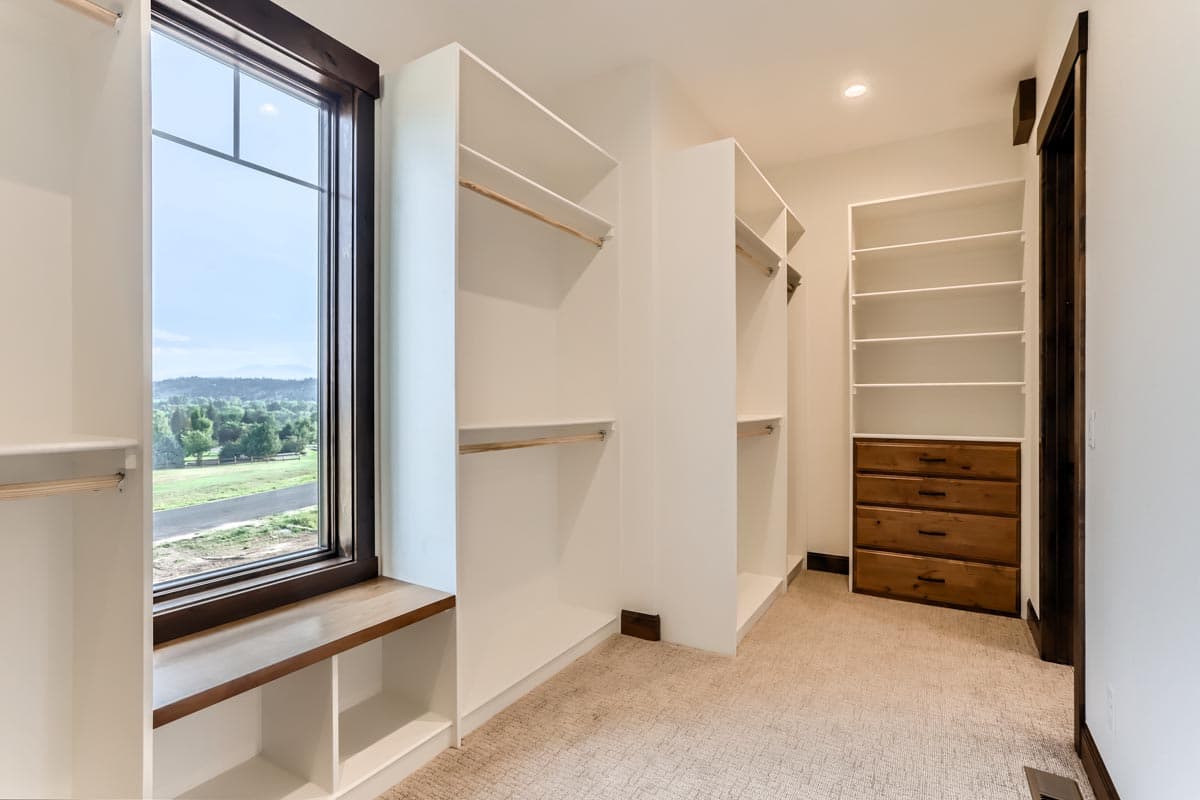

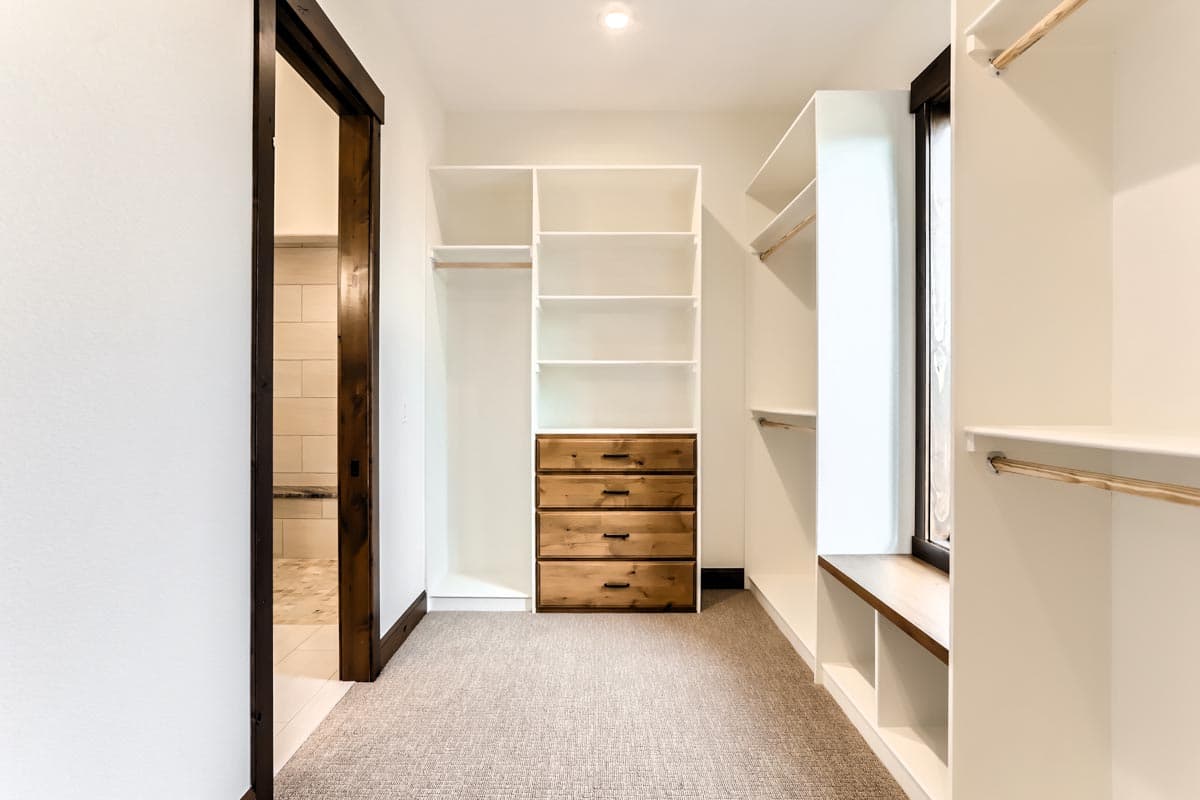

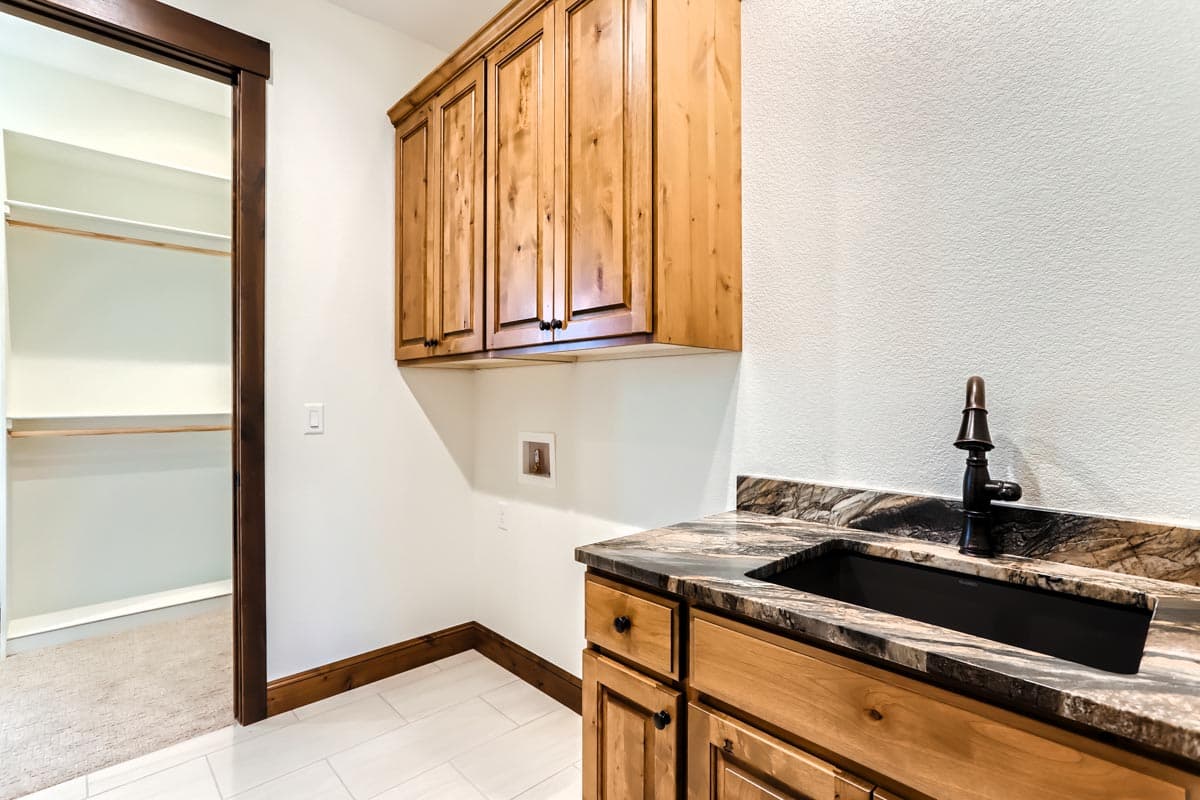

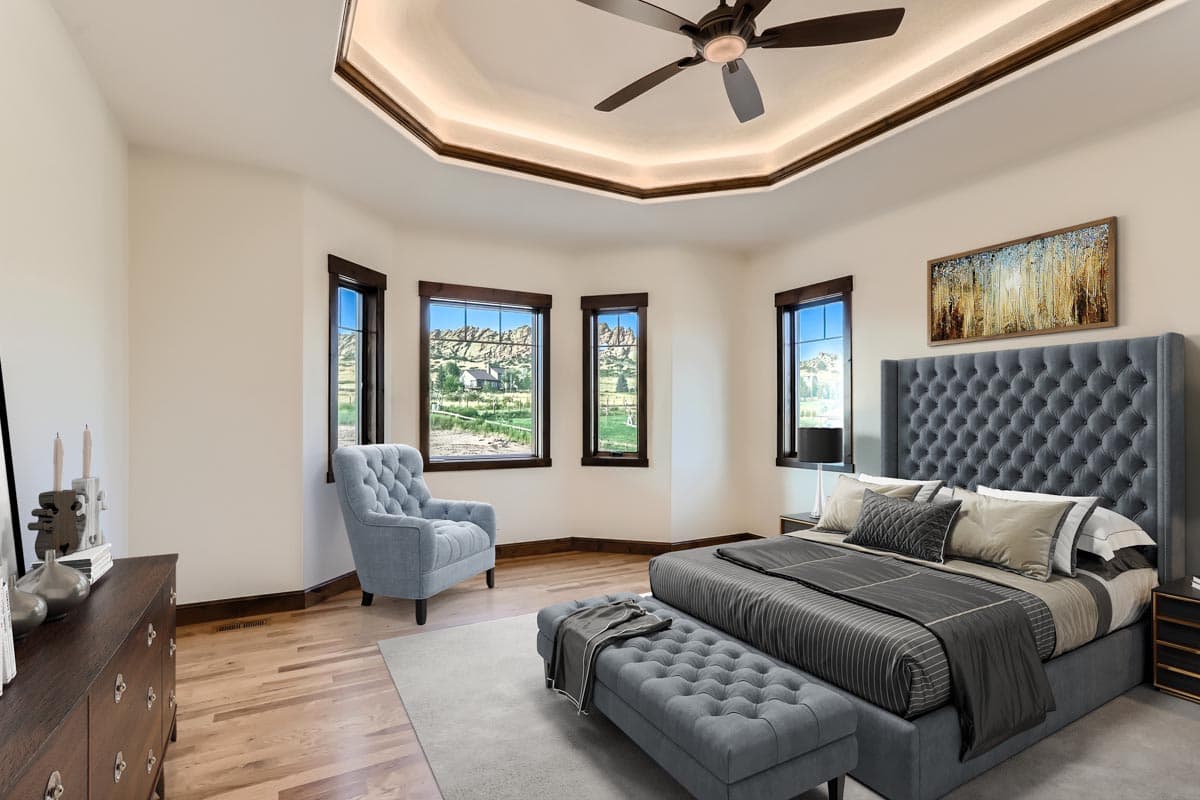

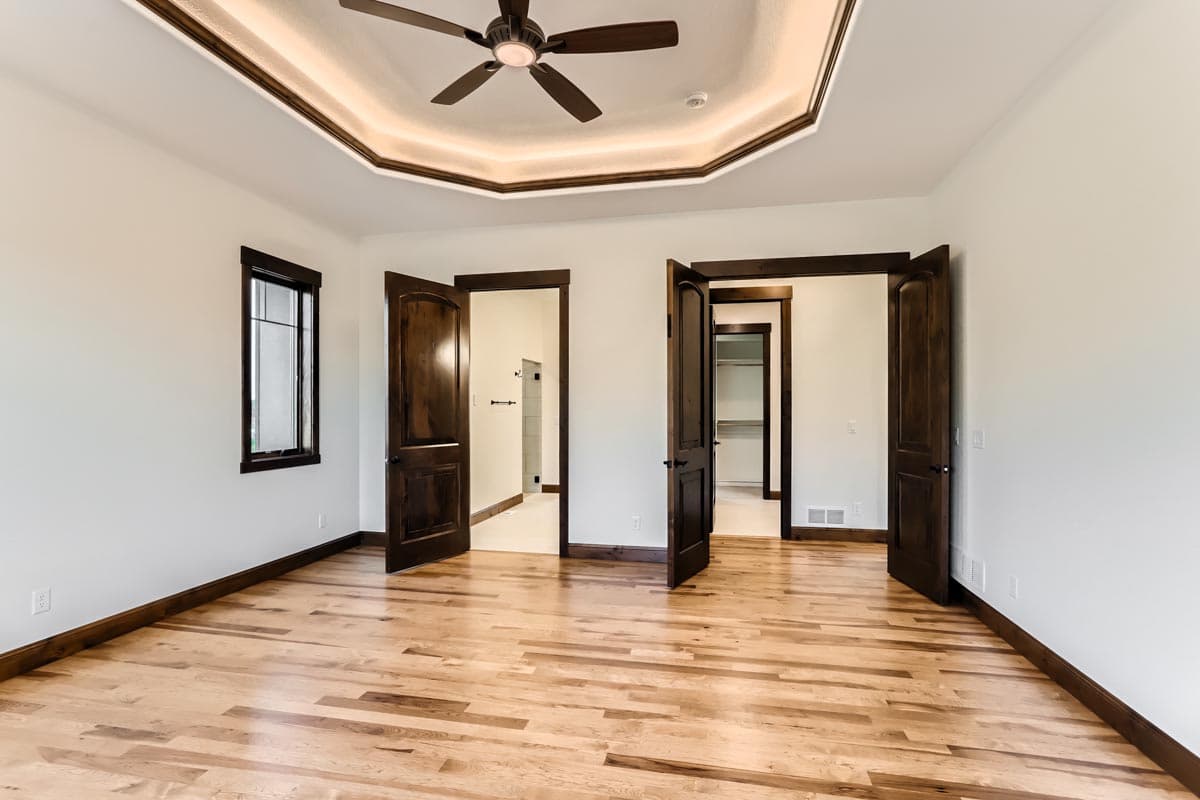

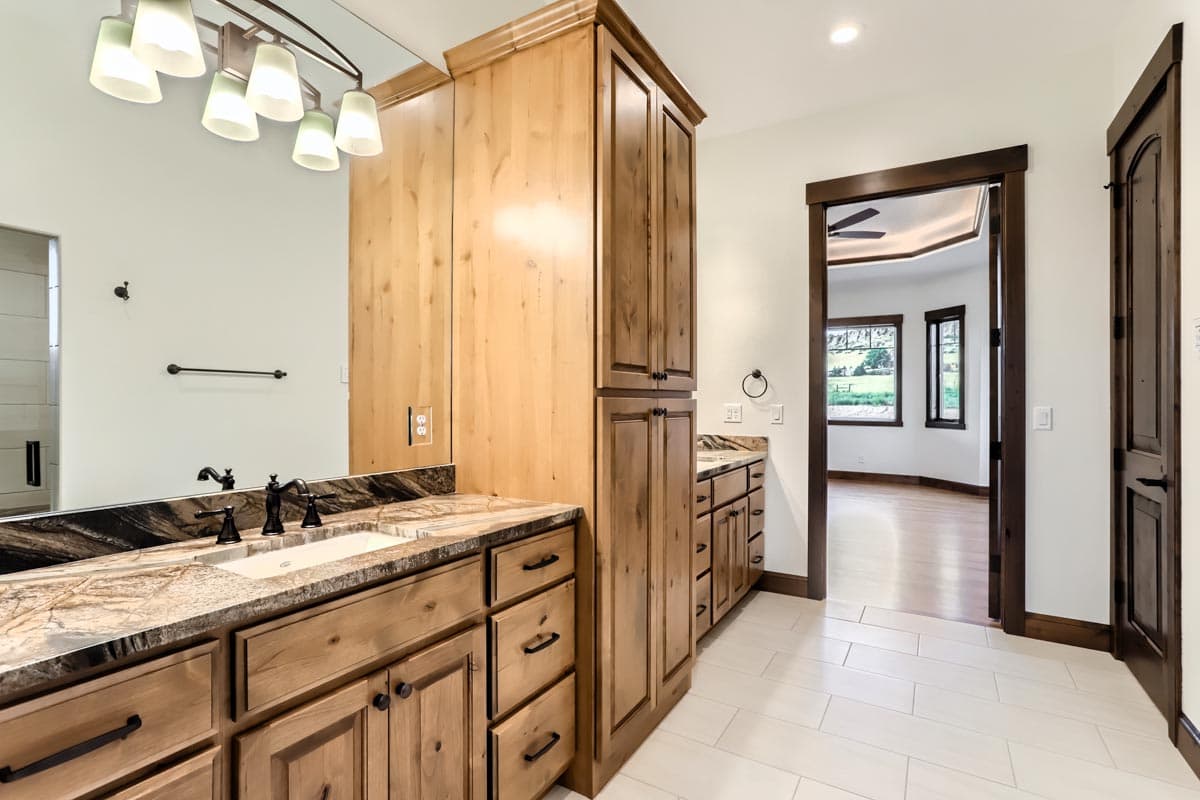

  • A split bedroom layout has the master suite occupying the entire right side of the home. Laundry is conveniently accessible from the 16'9" by 7'8" walk-in closet.

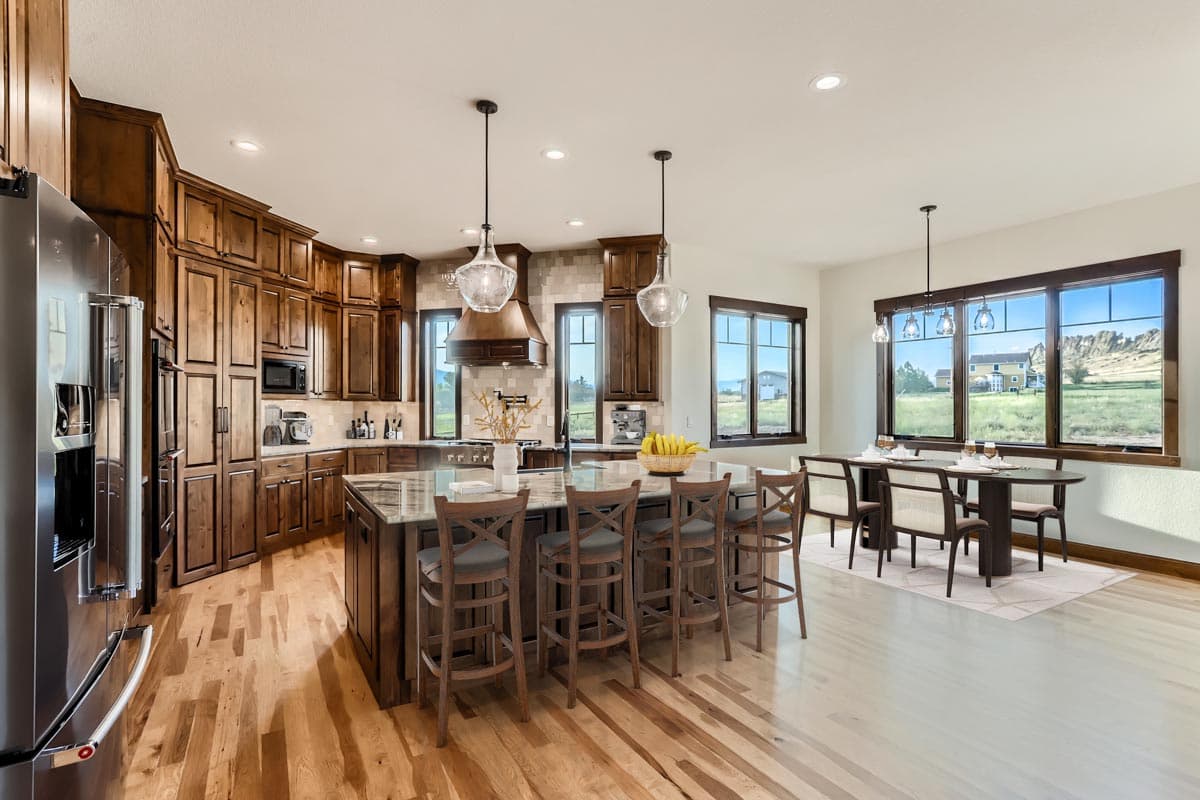

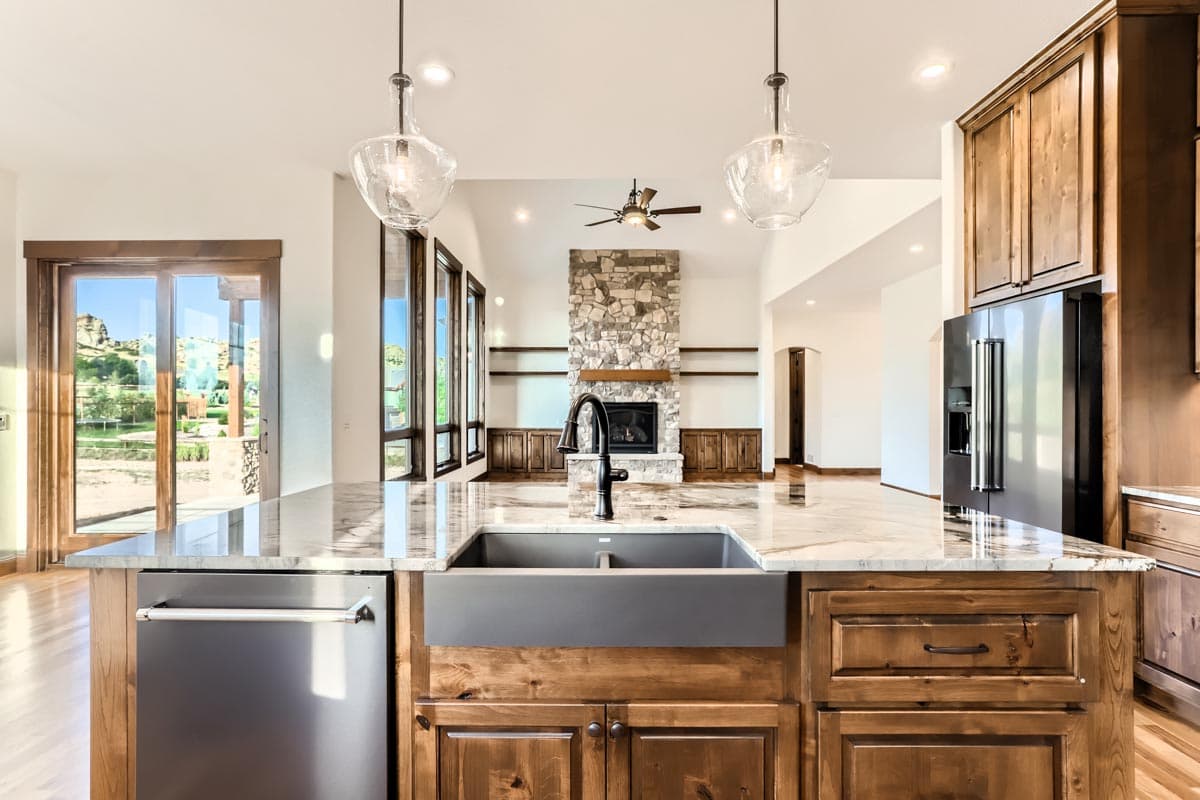

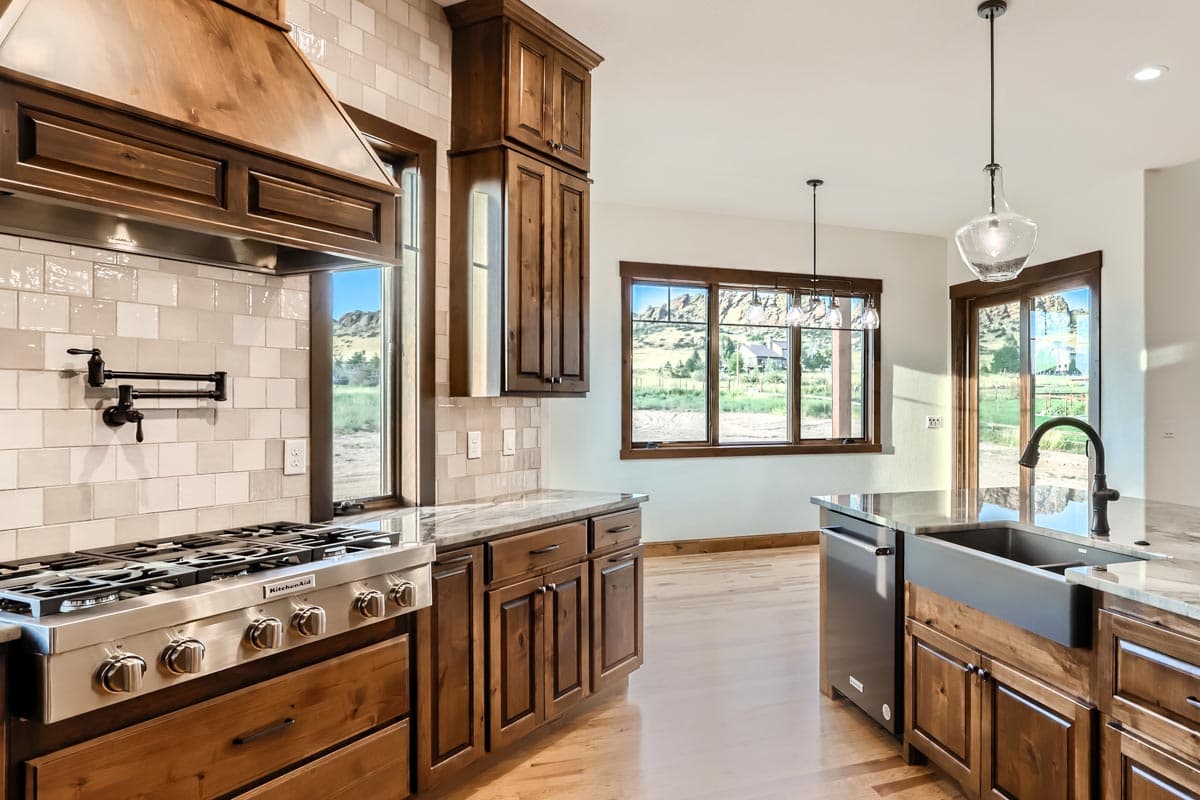

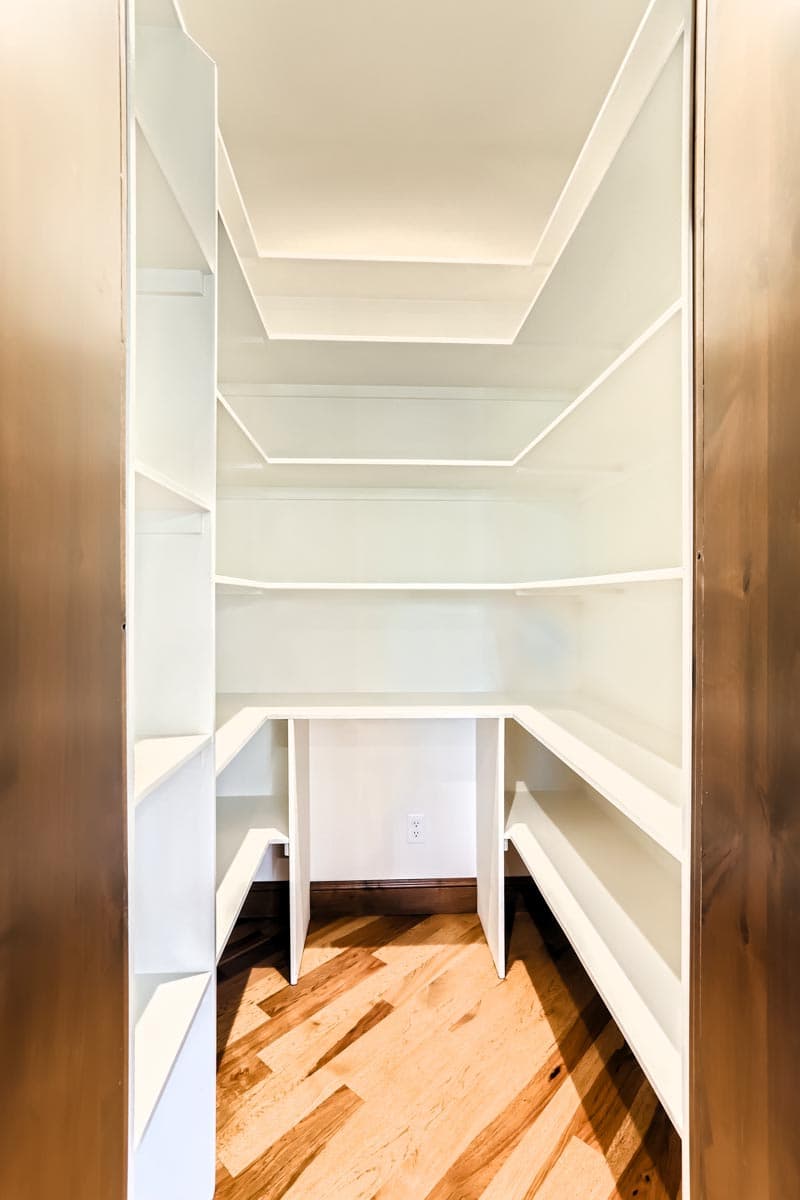

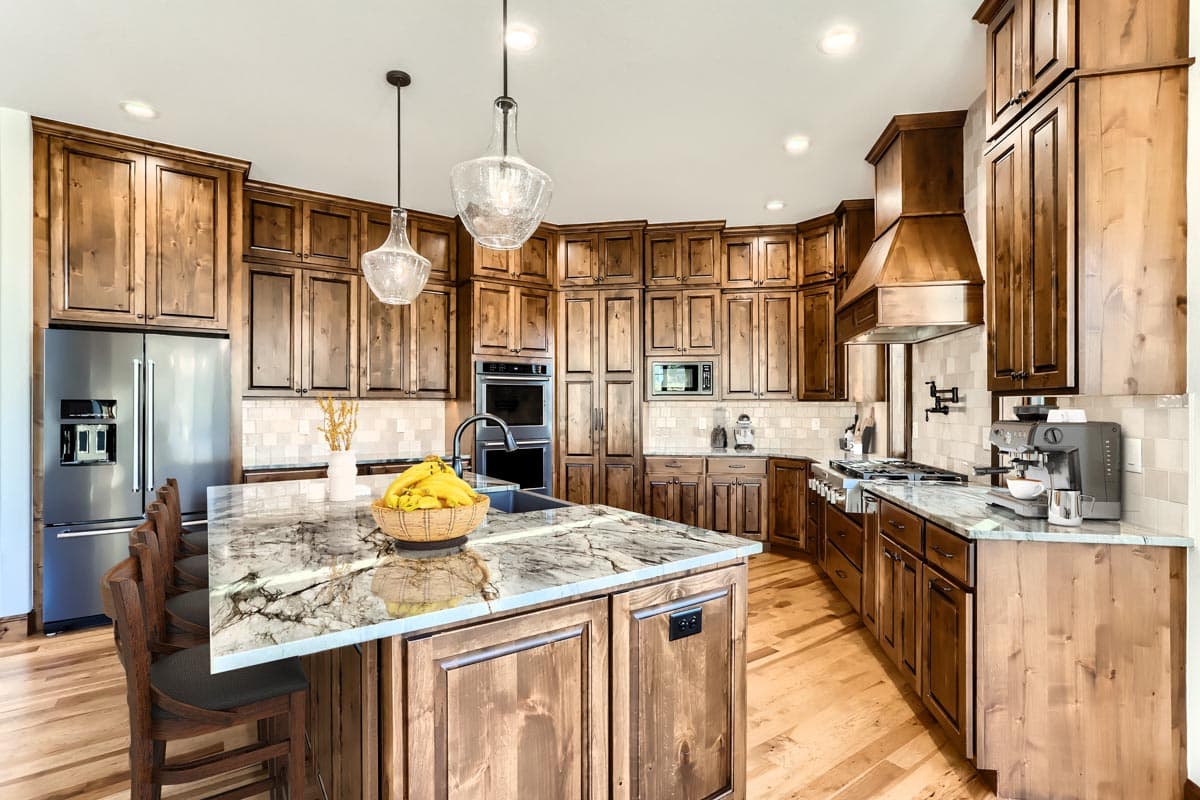

  • The kitchen has a large island with casual seating and a walk-in pantry.

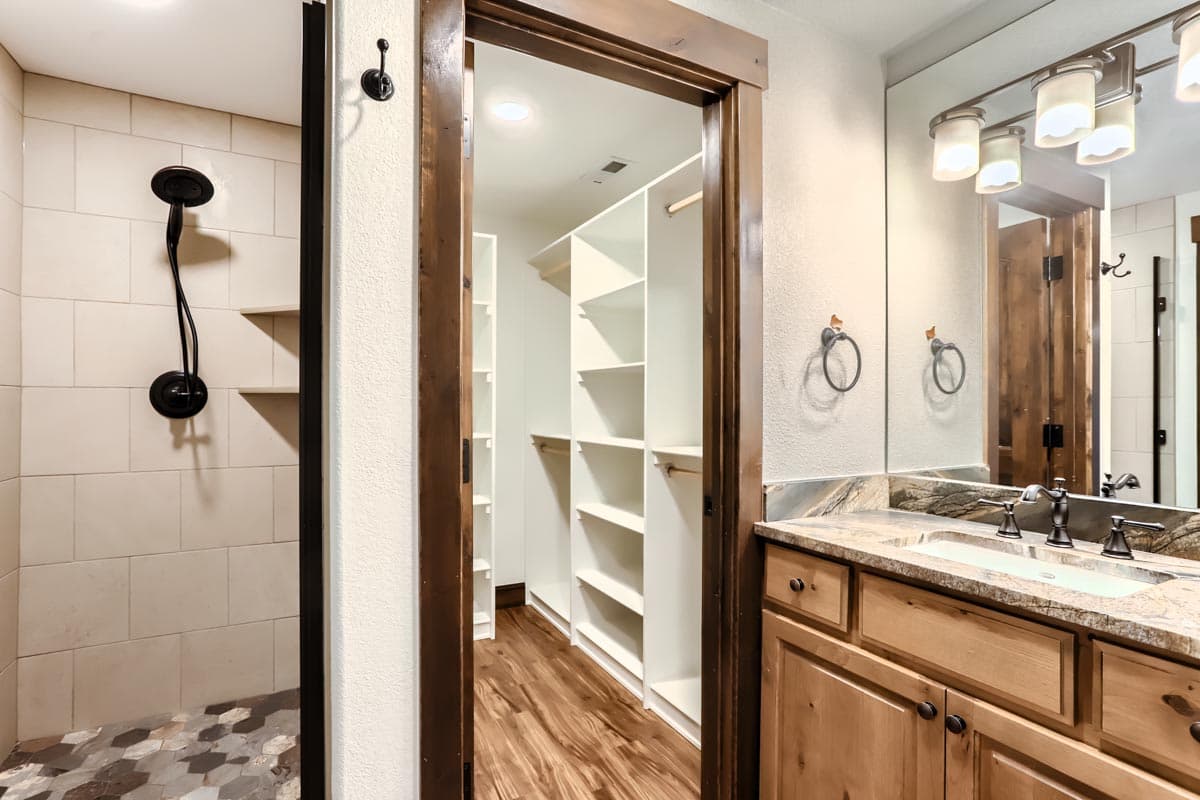

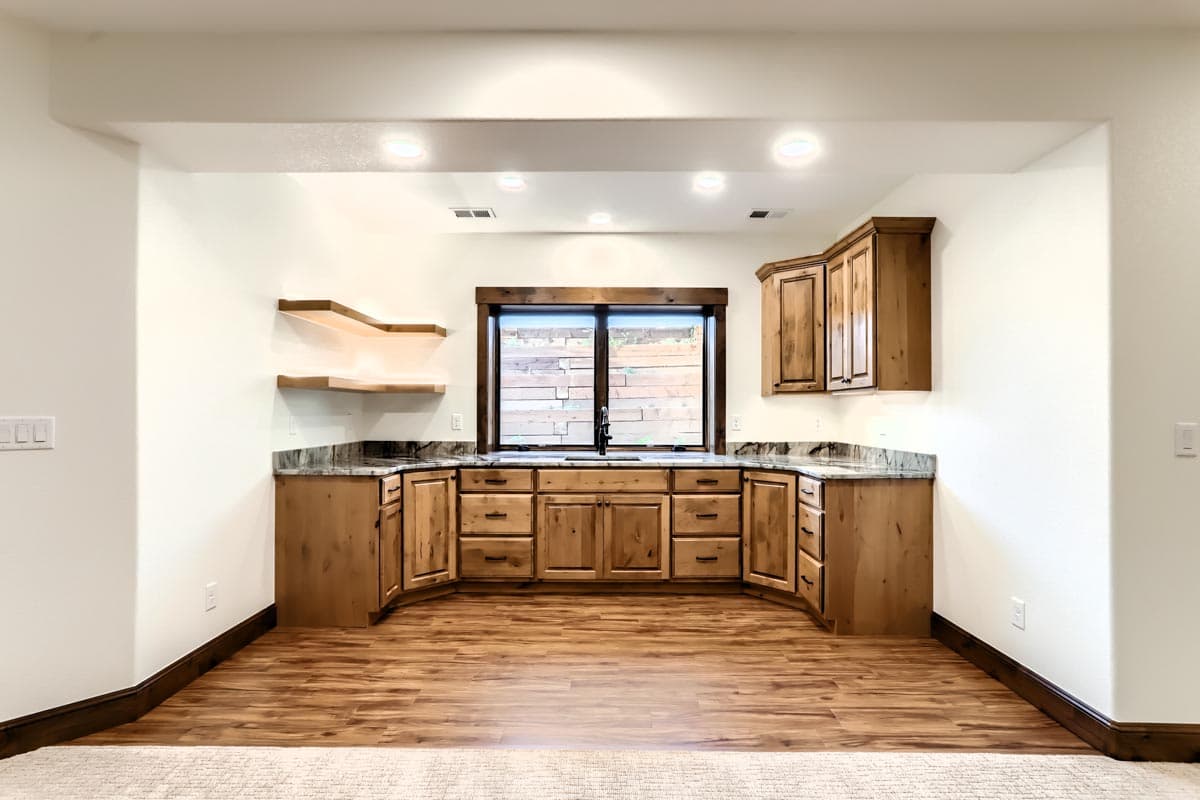

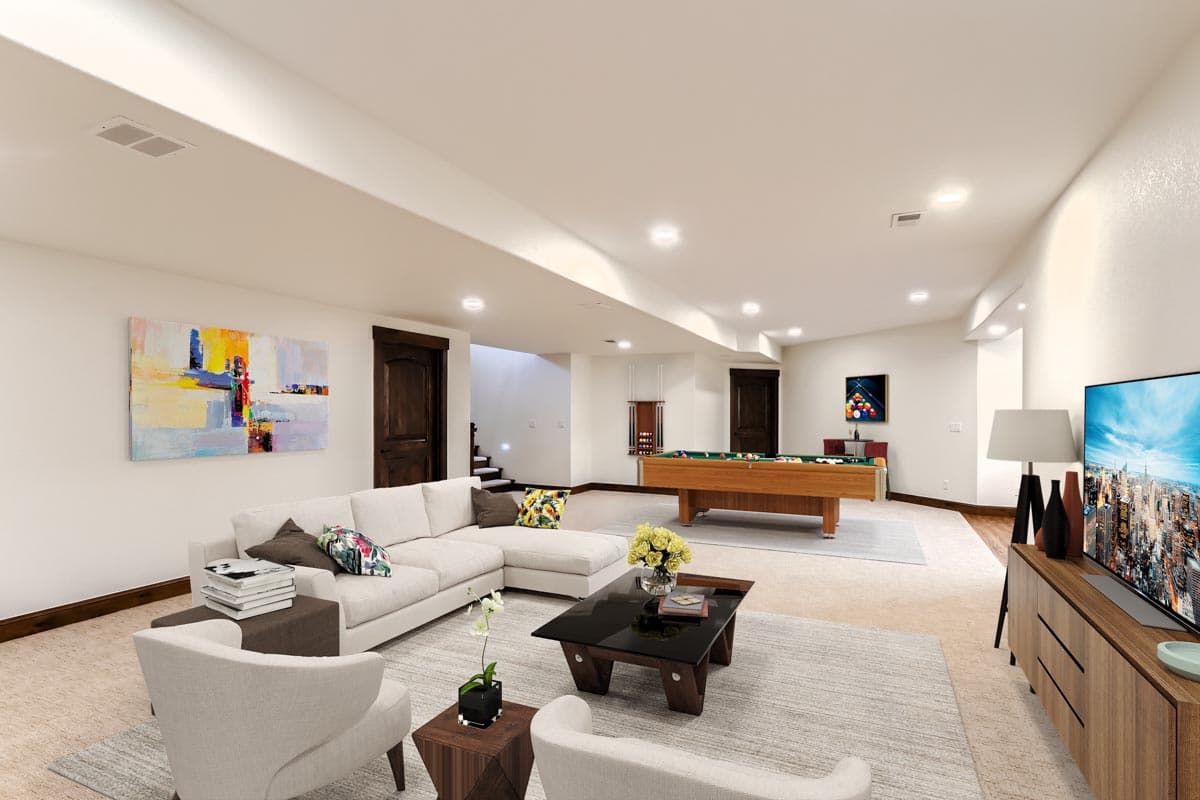

  • In the lower level you'll find a rec room with bar, a flex room that can be used as a fourth bedroom or as a gym or home office and a bedroom suite. There is also storage, a utility room and a safe room.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

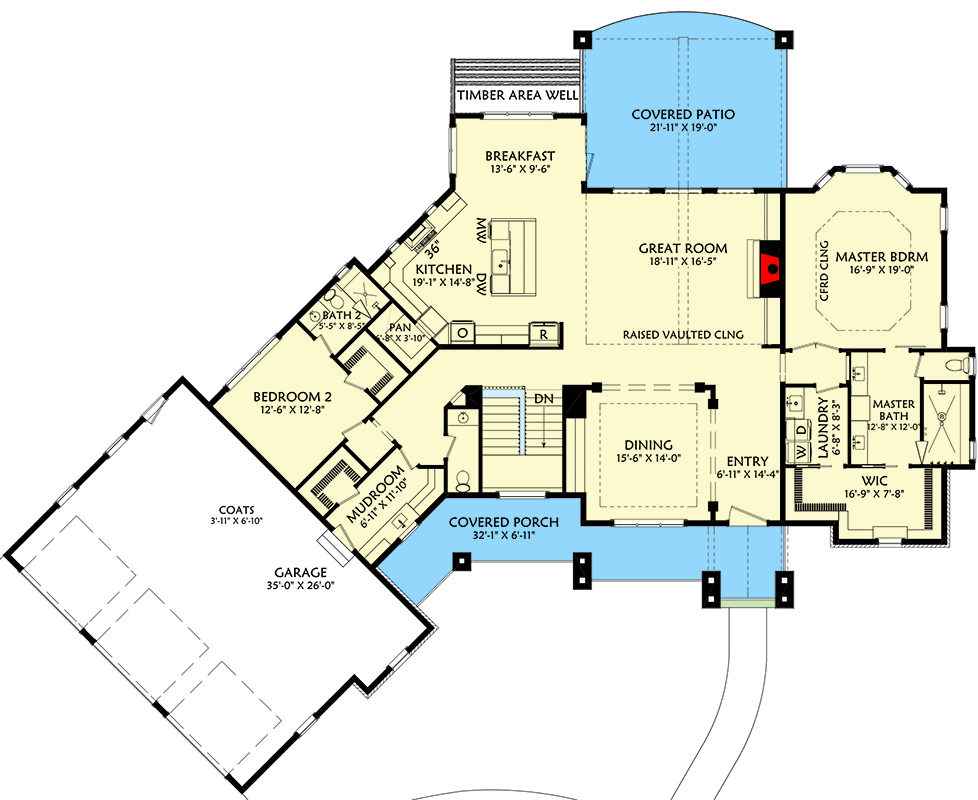

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman House Plan Under 4500 Square Feet with Finished Lower Level - 703013TYL floor plan - Main Level

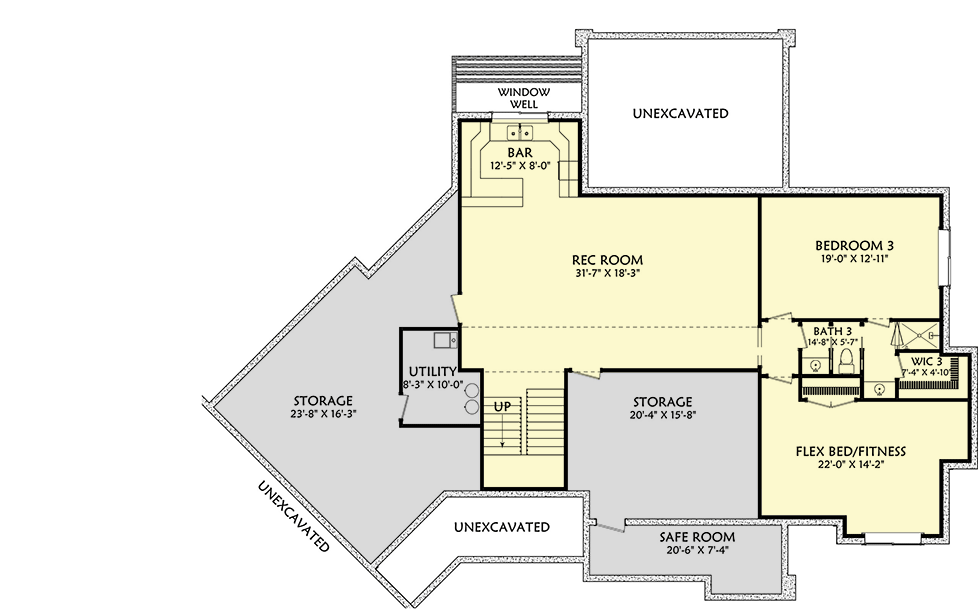

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman House Plan Under 4500 Square Feet with Finished Lower Level - 703013TYL floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,452 sq. ft.
  • Lower Level: 1,903 sq. ft.
  • 1st Floor: 2,549 sq. ft.
  • Covered Patio: 393 sq. ft.
  • Entry: 98 sq. ft.
  • Porch, Front: 290 sq. ft.
  • Basement Unfinished: 1,019 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 11"
  • Depth: 72' 5"
  • Max ridge height: 23' 10"

Garage

  • Type: Attached
  • Area: 928 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 8" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Craftsman House Plan Under 4500 Square Feet with Finished Lower Level

  • 4,452

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,750
  • CAD Unlimited + PDF $3,550
  • View all purchase option online

About This Plan

  • This 4,452 square foot Mountain Craftsman house plan gives you 3 or 4 bedrooms depending upon how you use the flex room in the finished lower level (1,903 square feet).
  • An angled 3-car garage comes off the left side and gives you 928 square feet of parking space and accesses the home through the mudroom with a 3'10" by 11'10" coat closet.
  • The great room has a vaulted ceiling which extends to the covered patio beyond. Access to the patio is gained from the breakfast room.
  • A split bedroom layout has the master suite occupying the entire right side of the home. Laundry is conveniently accessible from the 16'9" by 7'8" walk-in closet.
  • The kitchen has a large island with casual seating and a walk-in pantry.
  • In the lower level you'll find a rec room with bar, a flex room that can be used as a fourth bedroom or as a gym or home office and a bedroom suite. There is also storage, a utility room and a safe room.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,452 sq. ft.
  • Lower Level: 1,903 sq. ft.
  • 1st Floor: 2,549 sq. ft.
  • Covered Patio: 393 sq. ft.
  • Entry: 98 sq. ft.
  • Porch, Front: 290 sq. ft.
  • Basement Unfinished: 1,019 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 11"
  • Depth: 72' 5"
  • Max ridge height: 23' 10"

Garage

  • Type: Attached
  • Area: 928 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 8" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
Plan 703013TYL
View this and more for this plan by visiting www.architechtecturaldesigns.com/703013TYL
|
