Plan 280108JWD

Mountain Craftsman House Plan with Main-floor Master

Heated S.F.
2,476
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 280108JWD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 280108JWD

M-F 9am-5pm EST |

1-203-761-8500

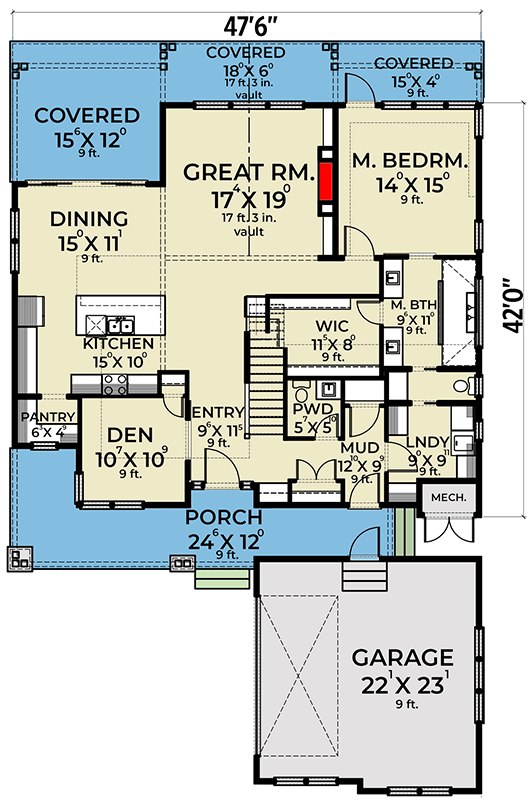

Main Level

Plan 280108JWD: Mountain Craftsman House Plan with Main-floor Master - Floor Plan - Main Level - Craftsman, Mountain, Northwest

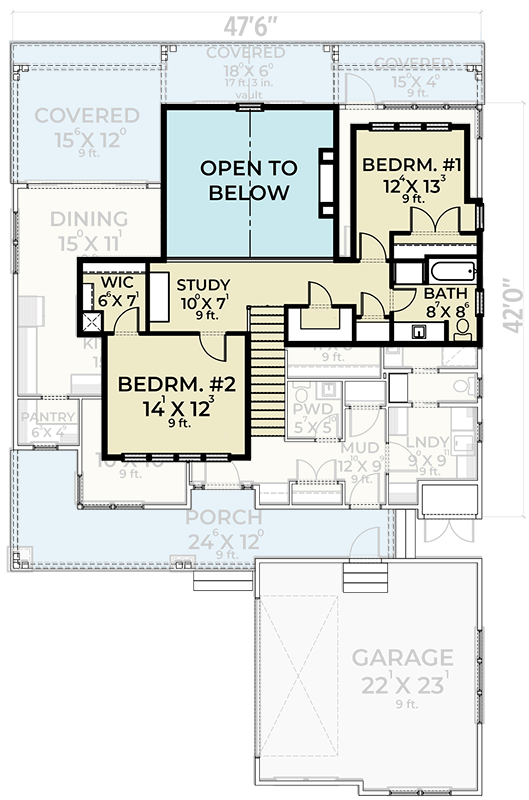

2nd Floor

Plan 280108JWD: Mountain Craftsman House Plan with Main-floor Master - Floor Plan - 2nd Floor - Craftsman, Mountain, Northwest

Plan Details

  • The natural wood siding on the exterior of this mountain Craftsman house plan blends in to the surrounding landscape, while stone accents and a ribbed metal roof lend a modern vibe to the overall appeal.
  • The well-appointed design boasts an open floor plan, main-level master suite with access to the laundry room, and a more secluded den when you need to get-away-from-it-all.
  • The kitchen includes loads of workspace, a walk-in pantry, and adjoining dining room that flows onto the rear covered porch. The multitude of windows creates a living space full of light and life.
  • The double garage protrudes from the front of the home and offers entry from the side. The front porch connects the garage to the main home, with a coat closet and powder bath just inside.
  • Upstairs, two family bedrooms share the hall bath, and a study provides a quiet space on the second level to do homework or read.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,476 sq. ft.

1st Floor

1,782 sq. ft.

2nd Floor

694 sq. ft.

Porch, Combined

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 6"

Depth

70' 0"

Max Ridge Height

30' 9"

Garage

Type

Attached

Area

542 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Northwest

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
