Plan 64569SC

Mountain Craftsman House Plan with RV Garage and Four Bedrooms

Name: Plan 64569SC: Mountain Craftsman House Plan with RV Garage and Four Bedrooms
Brand: Architectural Designs
SKU: 64569SC
Price: 2195.0 USD
Availability: InStock

Heated S.F.

4,063

Beds

Baths

4.5

Stories

Cars

4- 6

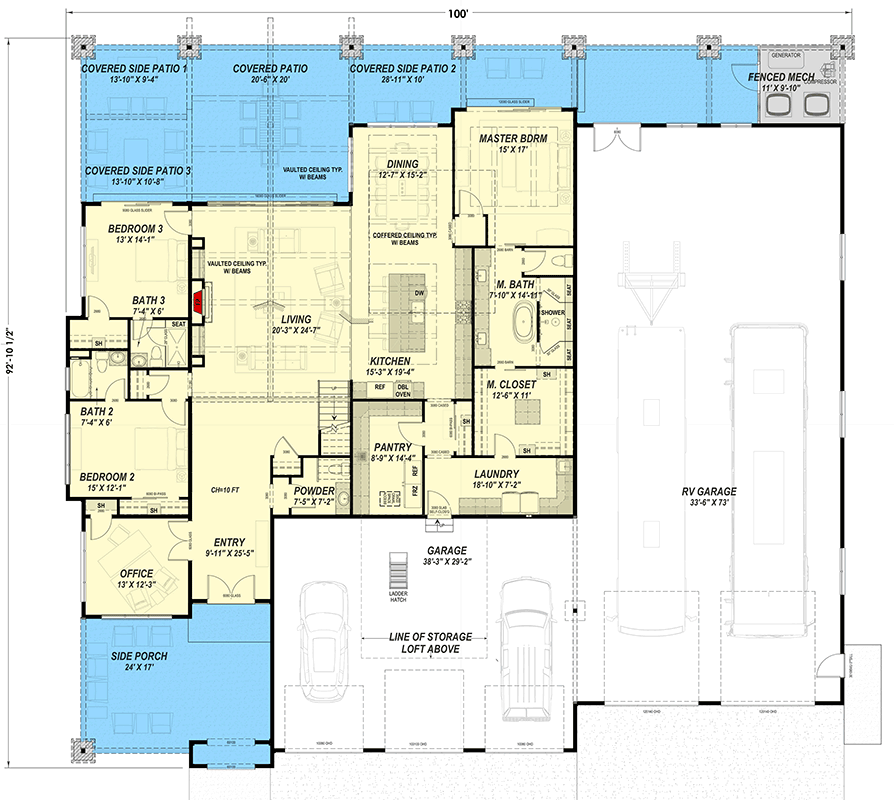

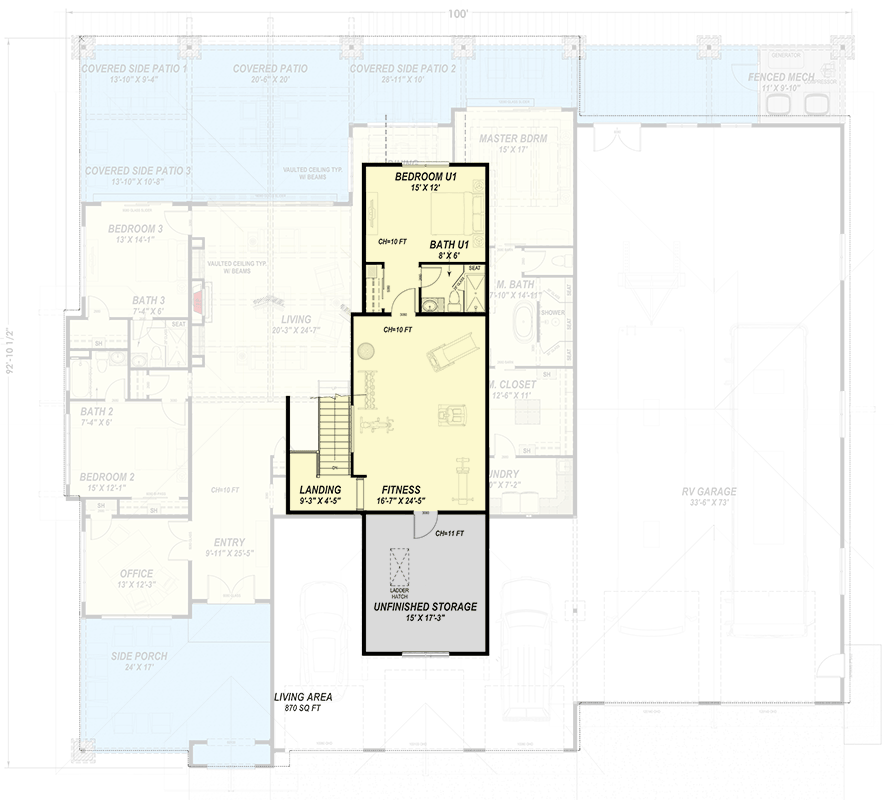

Floor Plan

Plan Details

Spanning 4,063 finished square feet, this mountain craftsman home features four bedrooms, four full baths, one half bath, and an expansive attached garage with space for up to six vehicles including an RV.
The stone-accented facade welcomes you into a refined interior where a formal dining room and a dedicated home office offer quiet spaces for work or gathering.
Central to the home, the main living area flows seamlessly, anchored by a kitchen equipped with a generous walk-in pantry that caters to both daily meals and large-scale hosting.
The private master suite is conveniently located on the main level and offers the convenience of direct access to the laundry room, while three additional bedrooms provide comfortable separation for family or guests.
A large mudroom keeps the home organized, providing a functional transition space between the massive tandem garage and the main living areas.
Enjoy the crisp mountain air from the covered front porch, a perfect spot for morning coffee surrounded by natural scenery.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

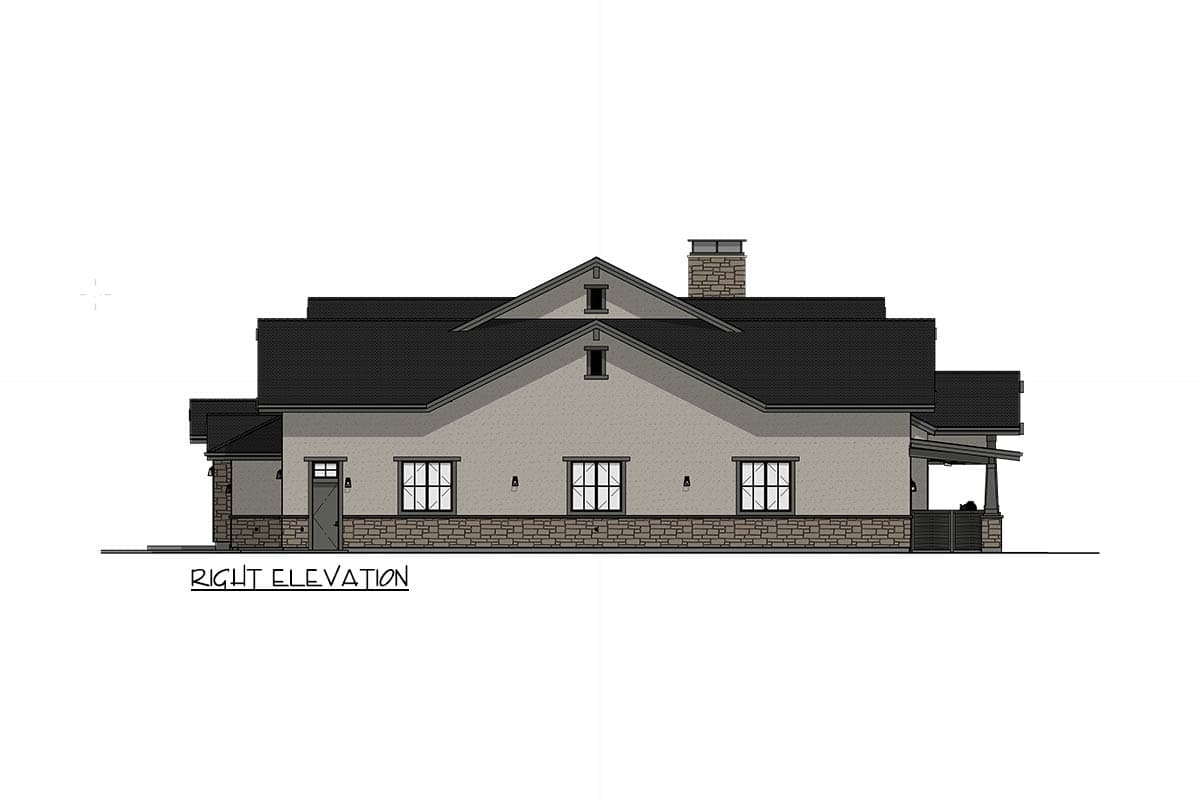

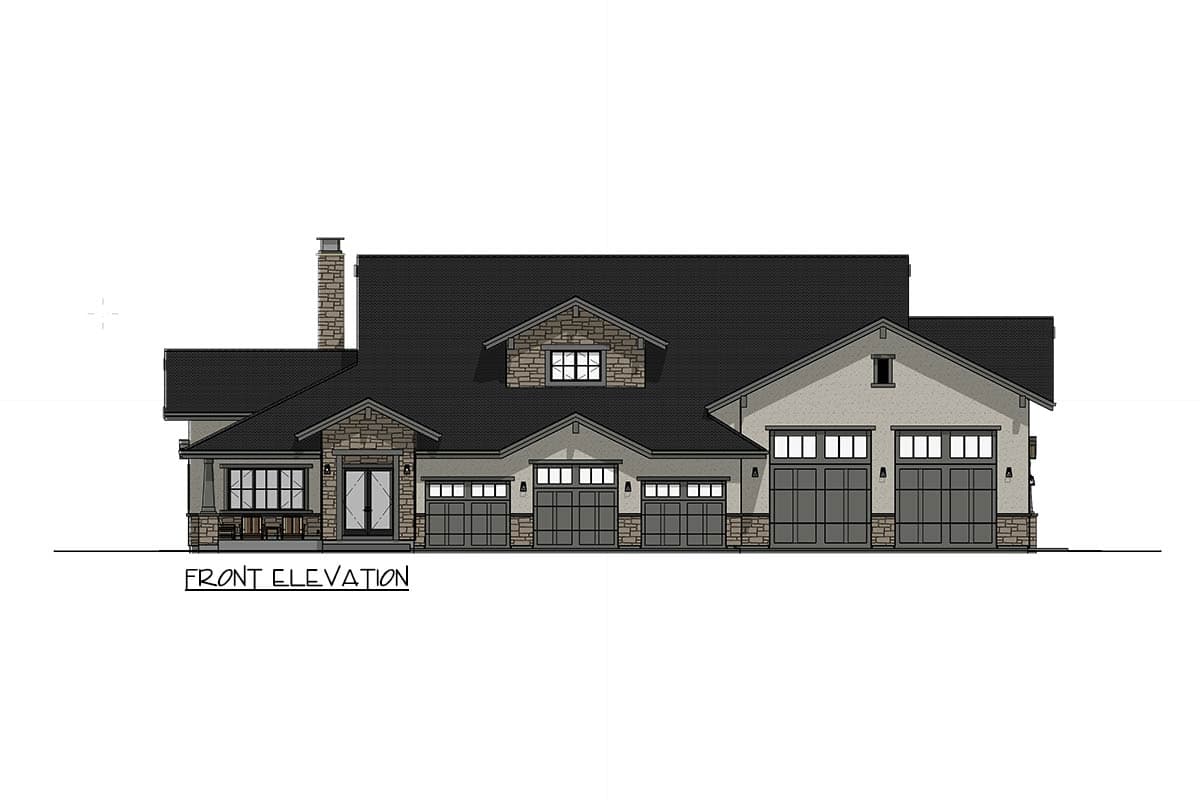

Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

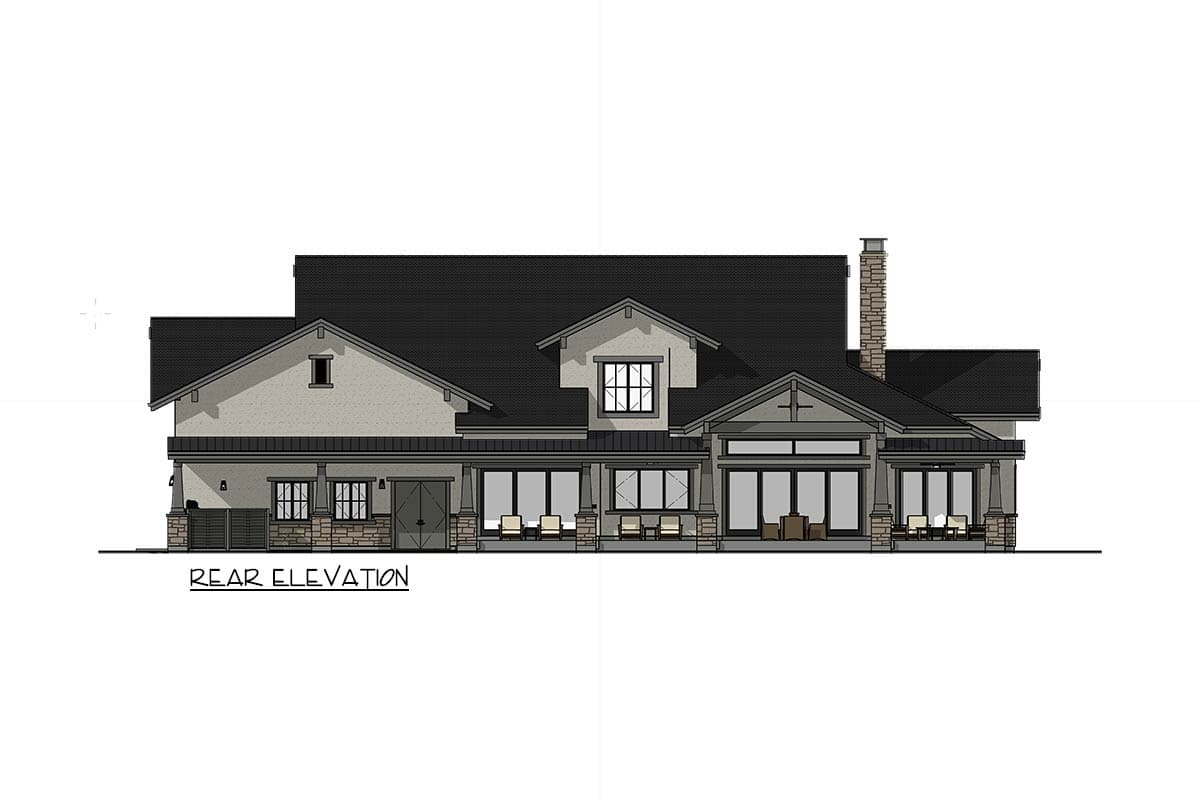

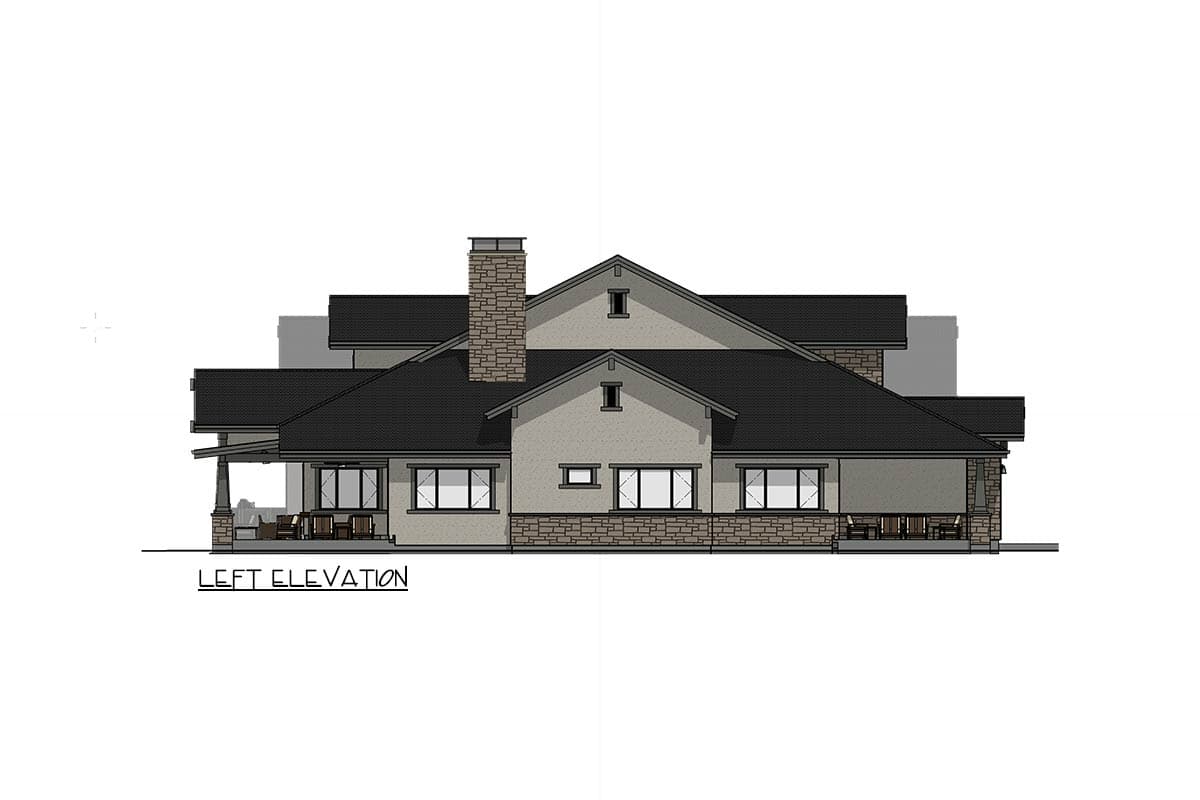

Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
