Plan 770509JME Mountain Craftsman Plan Under 4000 Square Feet with Optional Lower Level

3,907 3-4 2.5 2 2-4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Plan Under 4000 Square Feet with Optional Lower Level

Plan 770509JME

  • 3,907

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2-4

    Cars

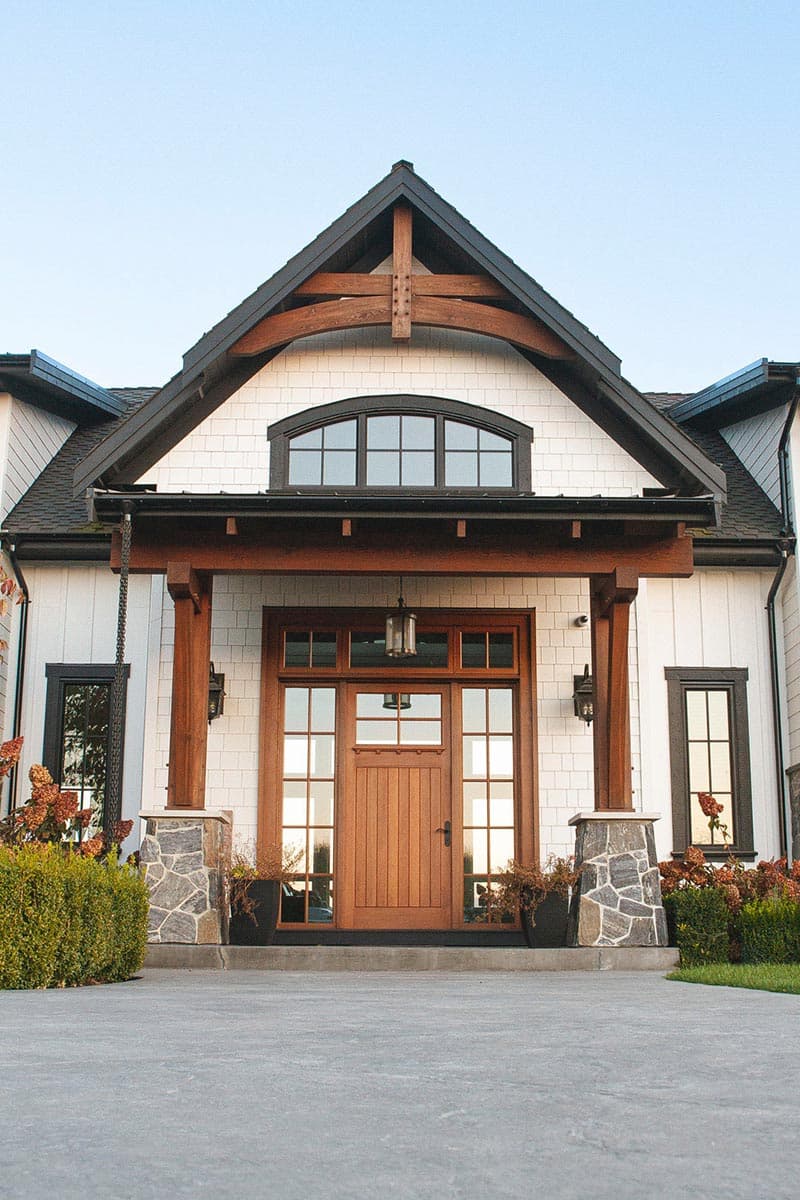

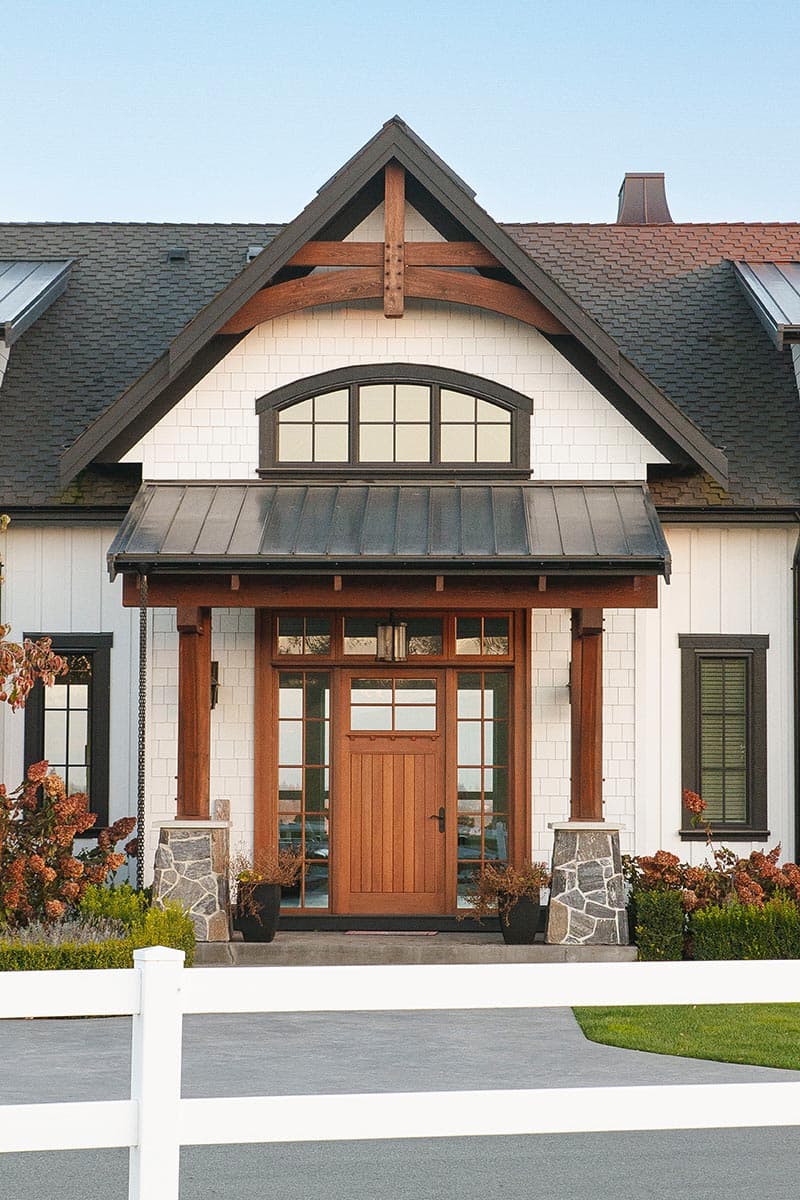

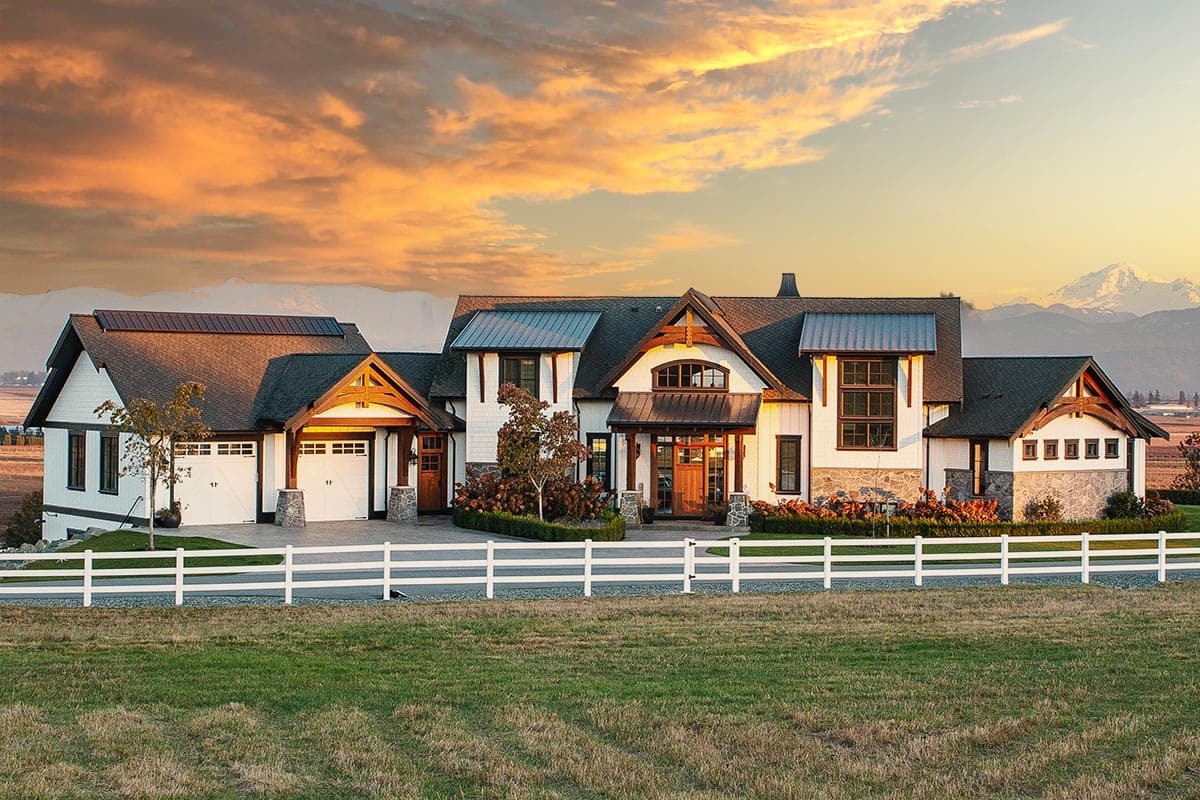

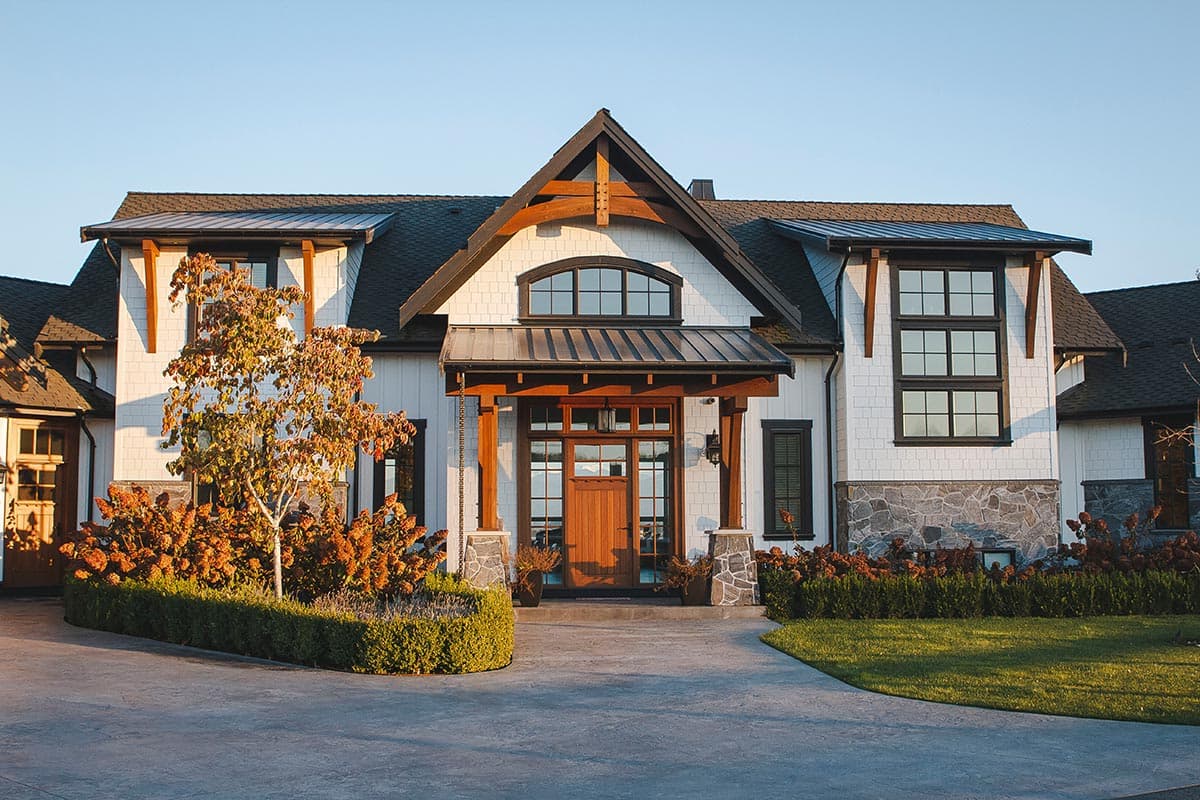

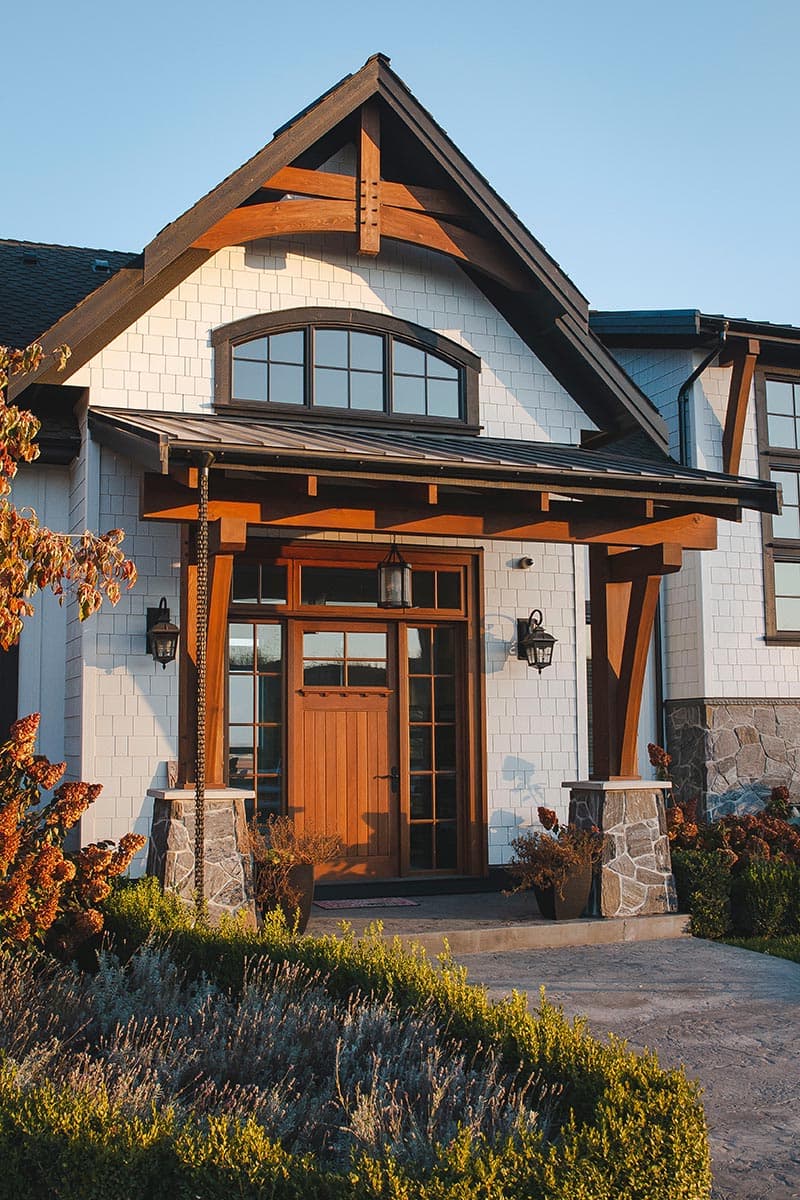

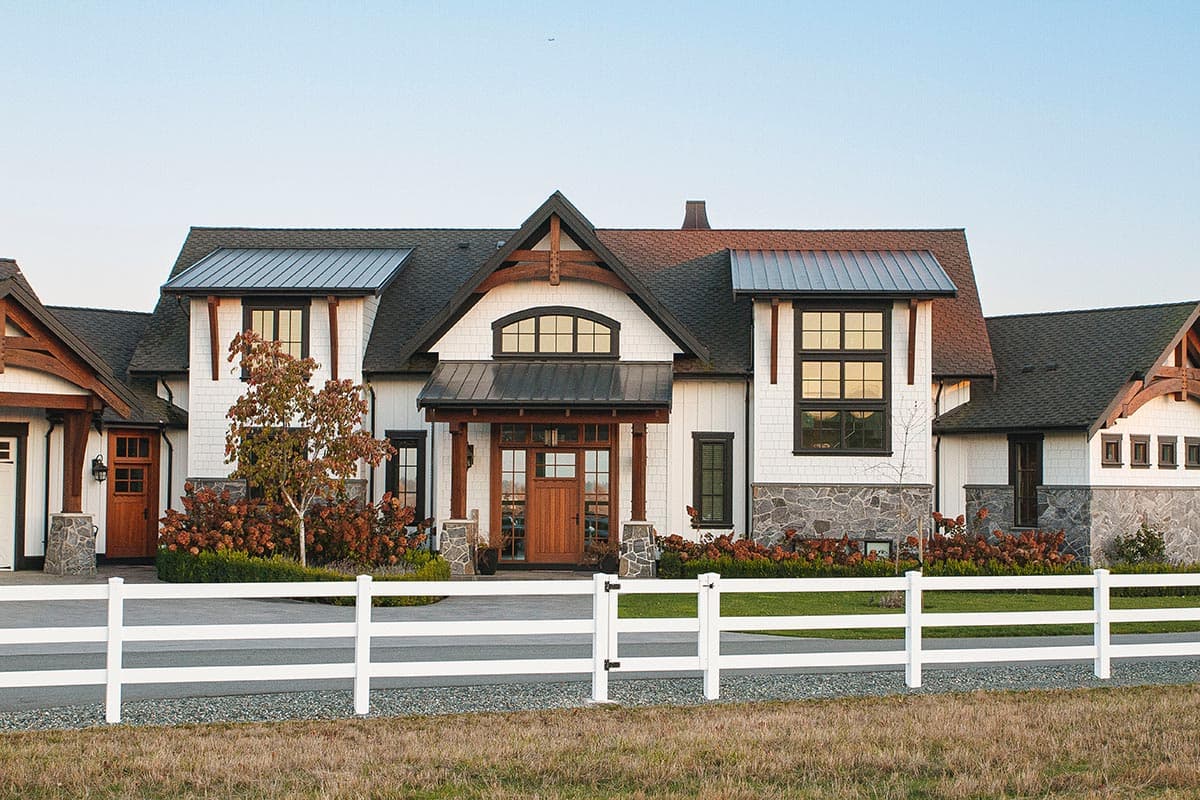

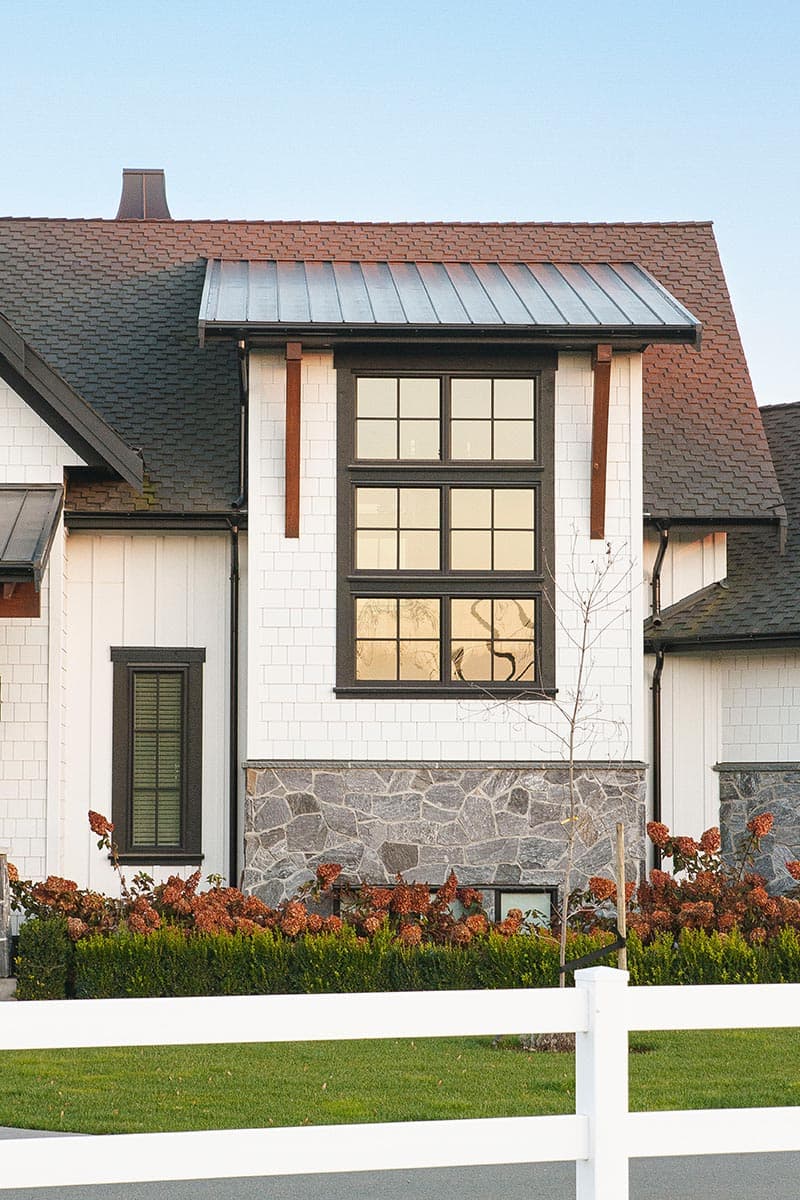

  • Metal roof accents and timber-framed gables decorate the front elevation of this Mountain Craftsman home plan that gives you 3,907 square feet of living space.
  • Tall ceilings crown the foyer and great room to create a light-filled living space, while the eat-in kitchen boasts a large range and walk-in pantry that conveniently connects to the mudroom.

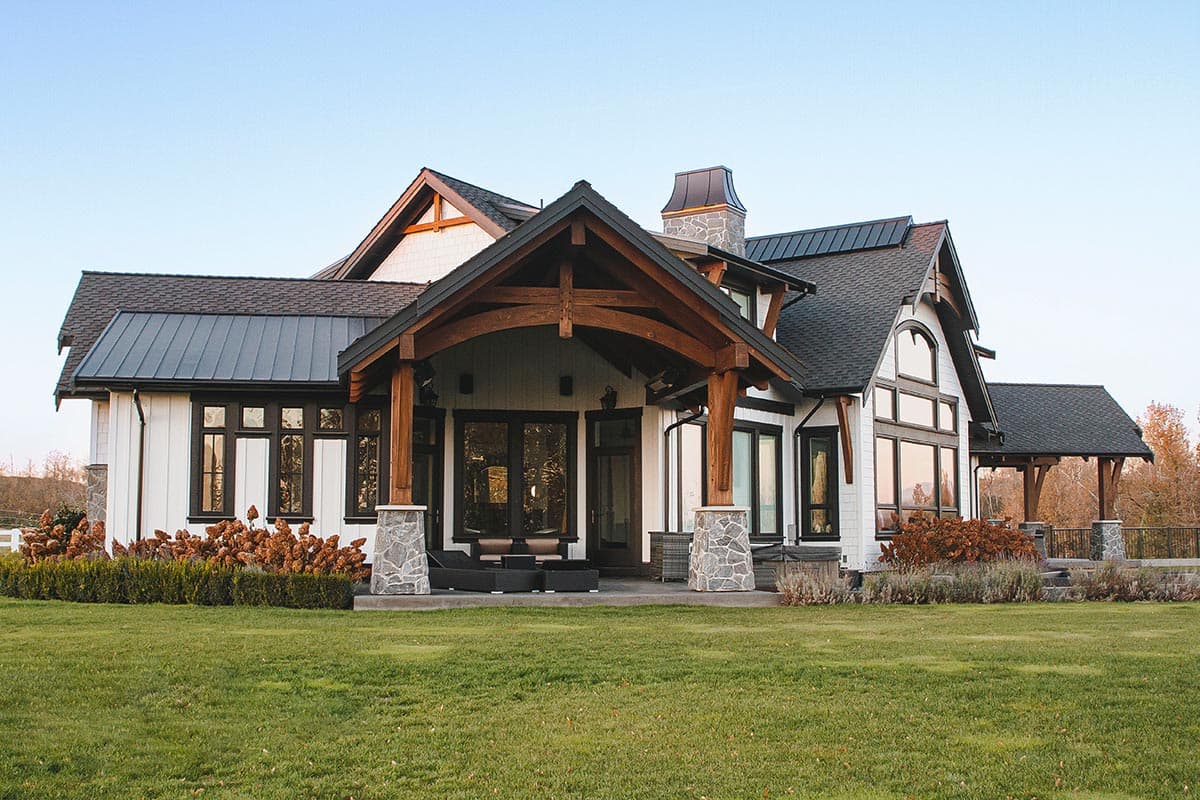

  • Occupying the right side of the main level, discover the master bedroom with an open and spa-like ensuite, dual walk-in closets, and a private covered patio. Bedrooms 2 and 3 can be found upstairs.

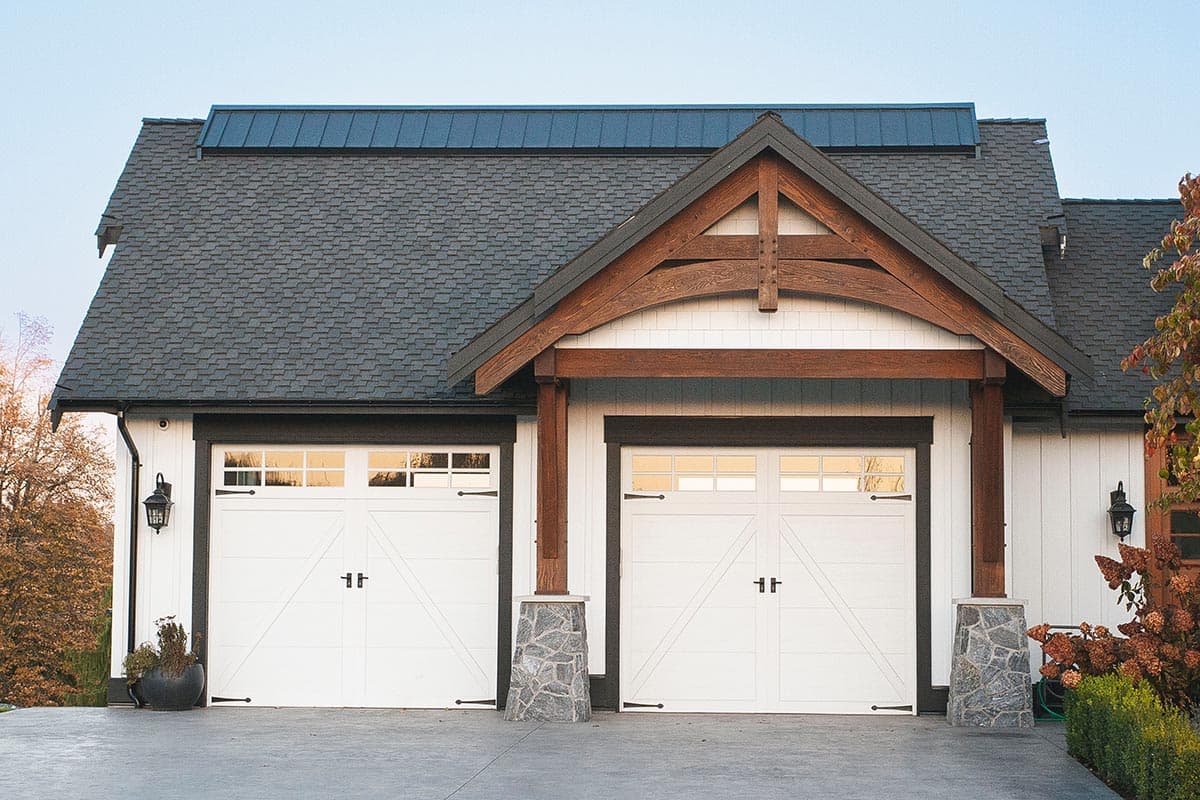

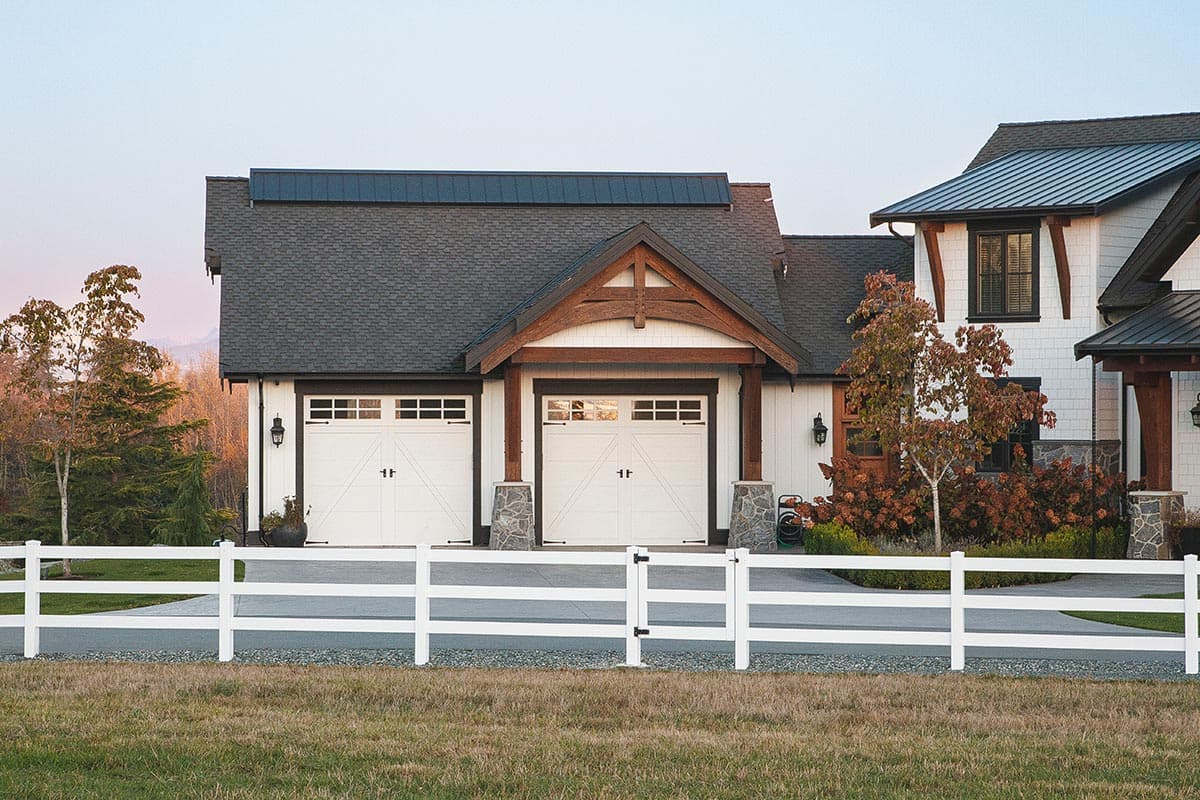

  • The angled garage provides space for 2 cars, while a mud / laundry room just inside serves as a catchall. A home office with rearward views completes the main floor.
  • Finish the lower level and gain a rec room, wet bar, wine room, and fourth bedroom suite.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

This plan includes the following details:

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections

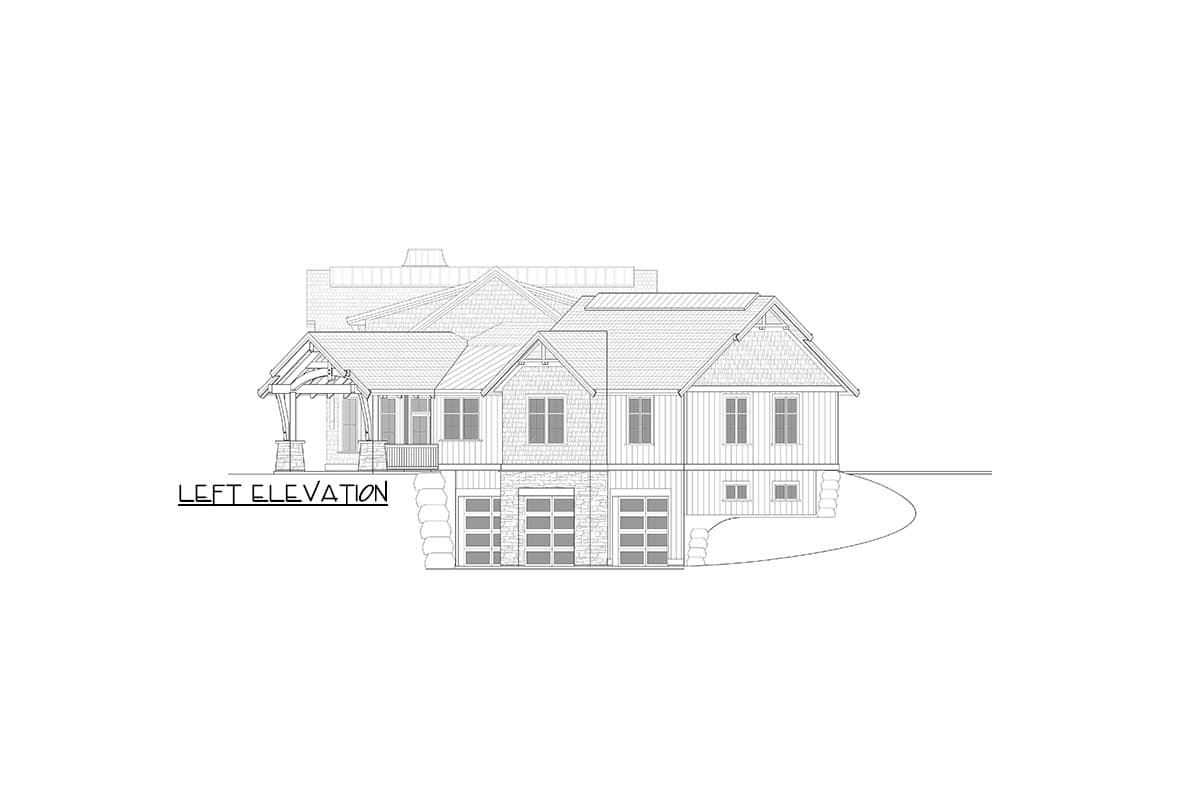

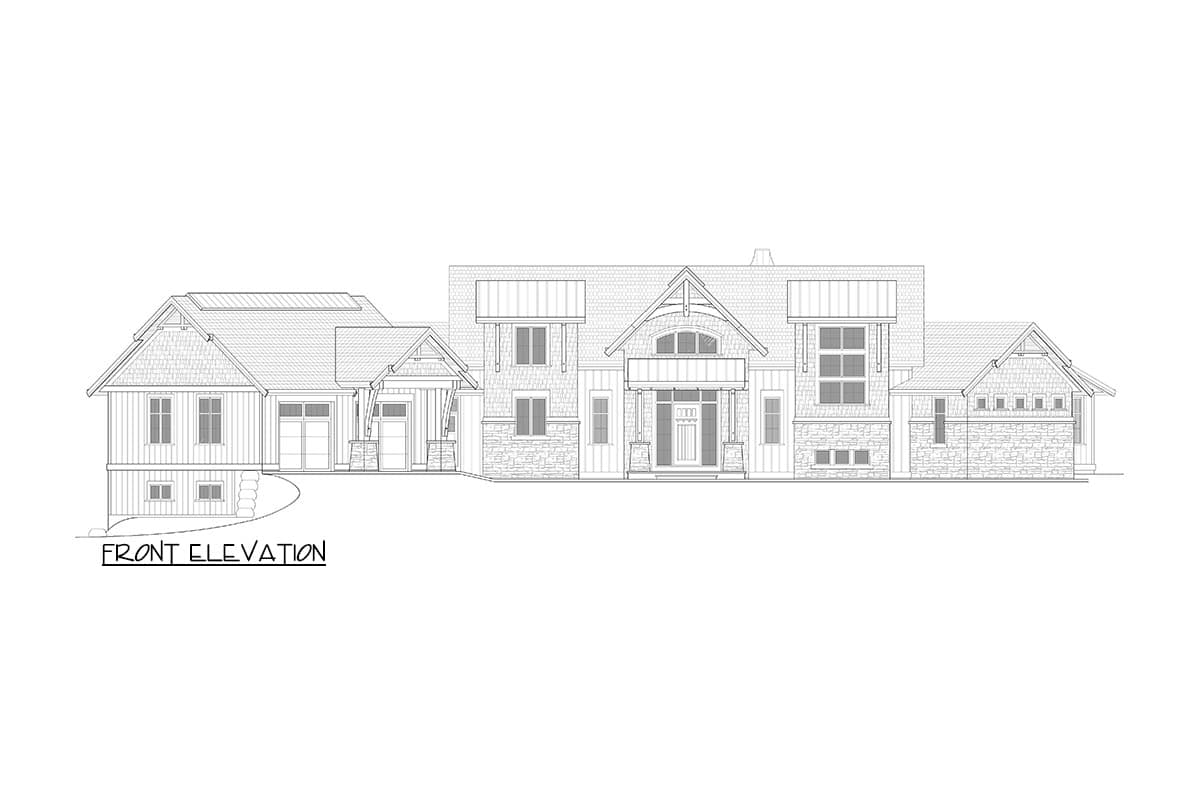

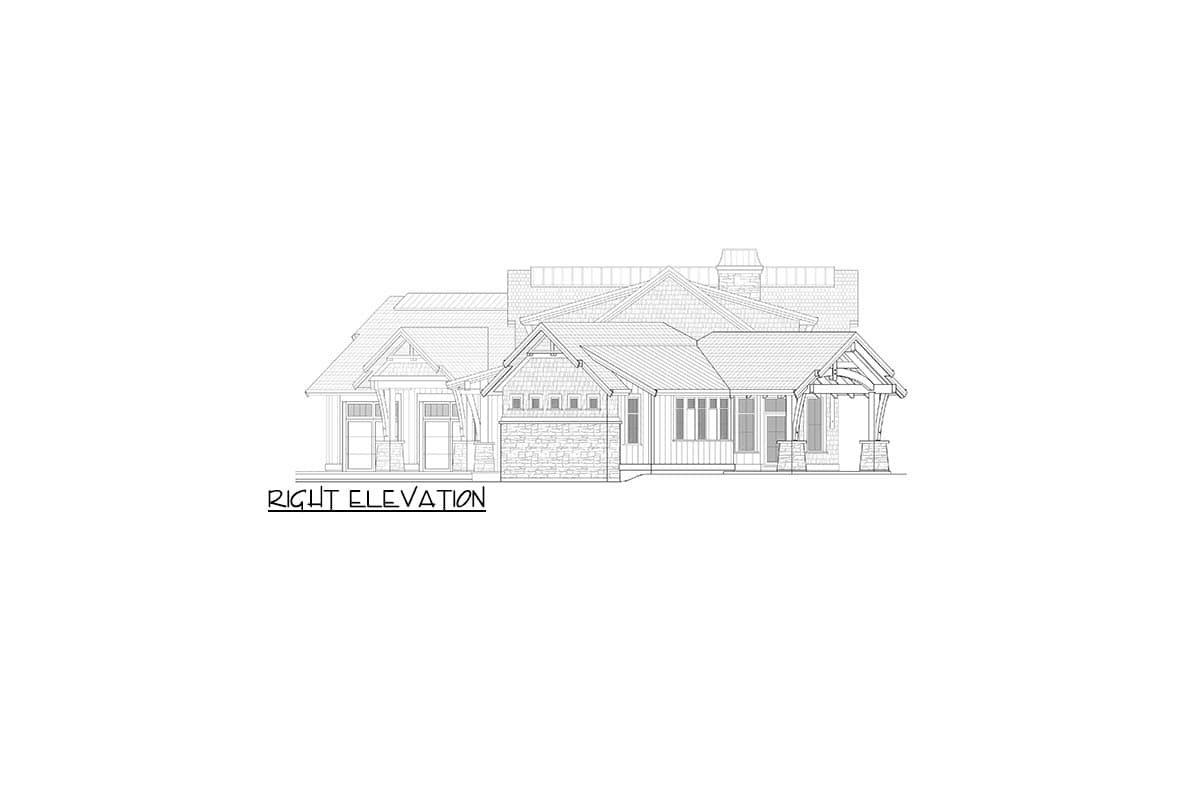

  • Elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

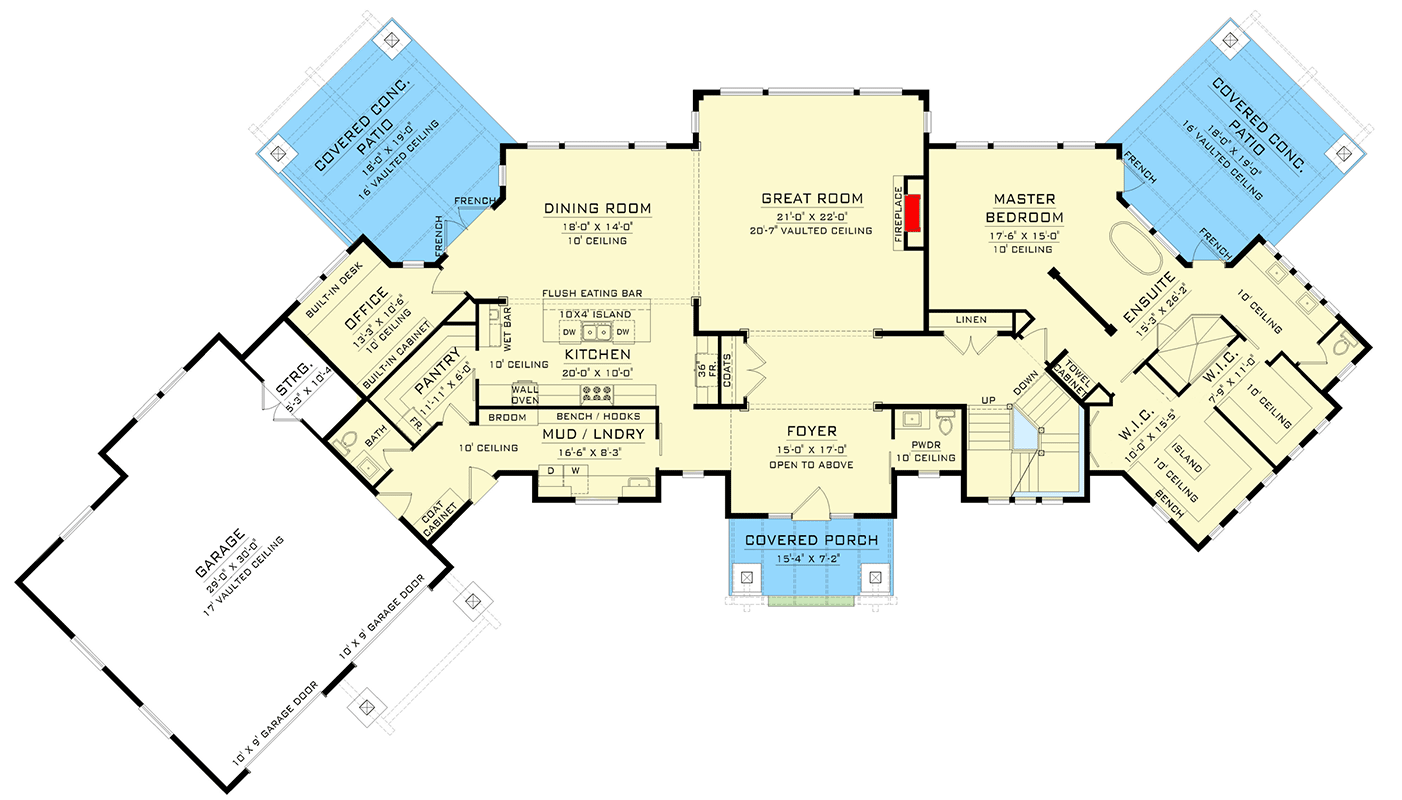

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Plan Under 4000 Square Feet with Optional Lower Level - 770509JME floor plan - Main Level

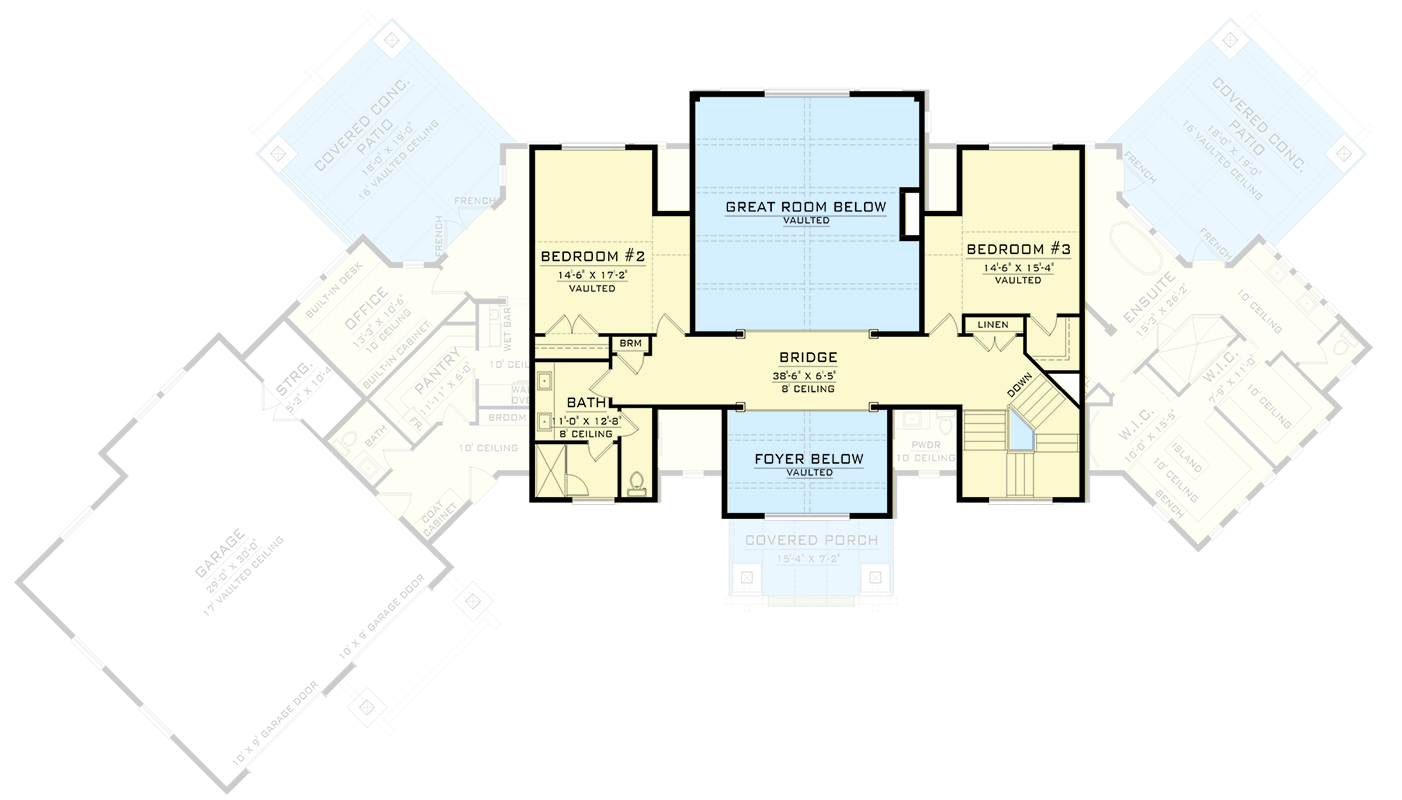

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Plan Under 4000 Square Feet with Optional Lower Level - 770509JME floor plan - 2nd Floor

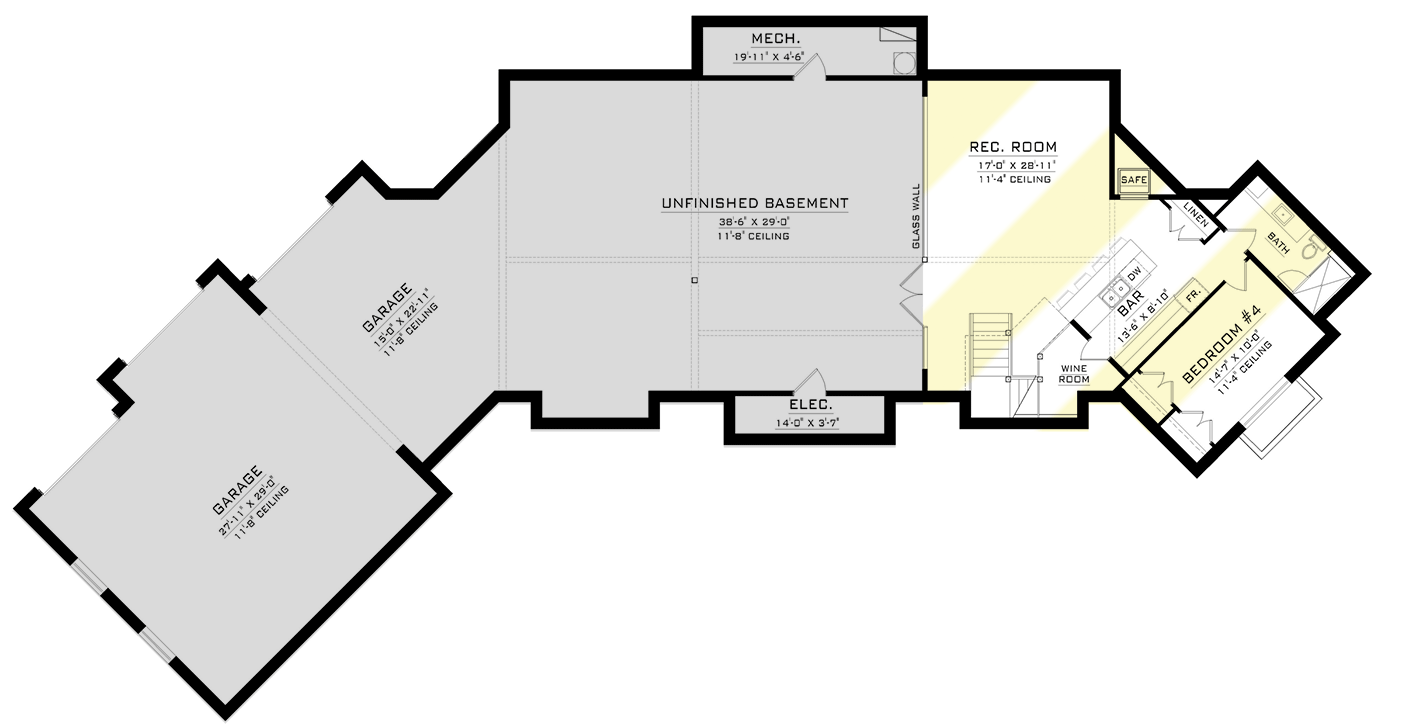

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Plan Under 4000 Square Feet with Optional Lower Level - 770509JME floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,907 sq. ft.
  • 1st Floor: 2,937 sq. ft.
  • 2nd Floor: 970 sq. ft.
  • Covered Patio: 632 sq. ft.
  • Porch, Combined: 745 sq. ft.
  • Porch, Front: 110 sq. ft.
  • Optional Lower Level: 1,047 sq. ft.
  • Basement Unfinished: 2,778 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 129' 9"
  • Depth: 72' 6"
  • Max ridge height: 27' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 888 sq. ft.
  • Count: 2, 3, or 4 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: Lower Level / 11' 4" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Craftsman Plan Under 4000 Square Feet with Optional Lower Level

  • 3,907

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2 - 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD + PDF - Single Build $2,495
  • CAD Unlimited + PDF $2,995
  • View all purchase option online

About This Plan

  • Metal roof accents and timber-framed gables decorate the front elevation of this Mountain Craftsman home plan that gives you 3,907 square feet of living space.
  • Tall ceilings crown the foyer and great room to create a light-filled living space, while the eat-in kitchen boasts a large range and walk-in pantry that conveniently connects to the mudroom.
  • Occupying the right side of the main level, discover the master bedroom with an open and spa-like ensuite, dual walk-in closets, and a private covered patio. Bedrooms 2 and 3 can be found upstairs.
  • The angled garage provides space for 2 cars, while a mud / laundry room just inside serves as a catchall. A home office with rearward views completes the main floor.
  • Finish the lower level and gain a rec room, wet bar, wine room, and fourth bedroom suite.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,907 sq. ft.
  • 1st Floor: 2,937 sq. ft.
  • 2nd Floor: 970 sq. ft.
  • Covered Patio: 632 sq. ft.
  • Porch, Combined: 745 sq. ft.
  • Porch, Front: 110 sq. ft.
  • Optional Lower Level: 1,047 sq. ft.
  • Basement Unfinished: 2,778 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 129' 9"
  • Depth: 72' 6"
  • Max ridge height: 27' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 888 sq. ft.
  • Count: 2, 3, or 4 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: Lower Level / 11' 4" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
Plan 770509JME
View this and more for this plan by visiting www.architechtecturaldesigns.com/770509JME
|
