Plan 95145RW

Mountain Craftsman Plan with Glass Elevator and Second Level Dedicated to Homeowner

Heated S.F.
4,235
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 95145RW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 95145RW

M-F 9am-5pm EST |

1-203-761-8500

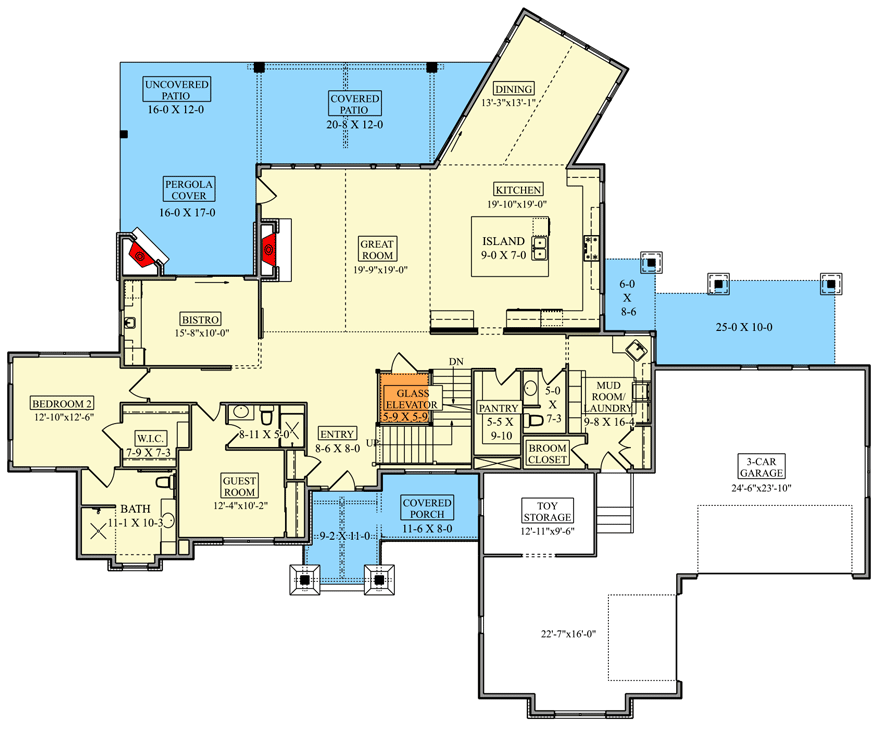

Main Level

Plan 95145RW: Mountain Craftsman Plan with Glass Elevator and Second Level Dedicated to Homeowner - Floor Plan - Main Level - Craftsman, Mountain, Northwest, Shingle

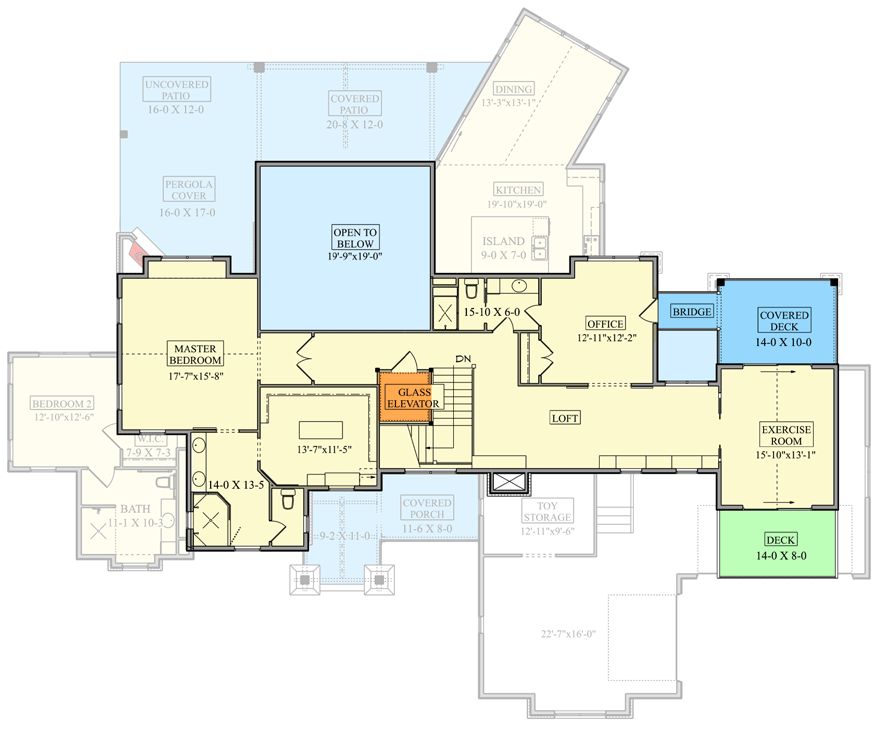

2nd Floor

Plan 95145RW: Mountain Craftsman Plan with Glass Elevator and Second Level Dedicated to Homeowner - Floor Plan - 2nd Floor - Craftsman, Mountain, Northwest, Shingle

Plan Details

  • This stunning Mountain Craftsman home plan dedicates the upstairs to the homeowner with a master suite, home office, and exercise room consuming the second level.
  • A spacious great room flows into the kitchen, anchored by an oversized island, and accompanied by a formal dining room that extends from the kitchen at an angle.
  • Retreat to the rear patio and enjoy the fireplace when entertaining. Sizable service areas, including the mud / laundry room and walk-in pantry, help accommodate even the most active families.
  • Two family bedroom suites are located on the main level, and a glass elevator provides a second option to get you upstairs and makes this design your potential forever home.
  • A large storage room in the 3-car garage is perfect for outdoor toys or lawn supplies and helps keep your garage free of clutter.

What's Included

  • Cover Page

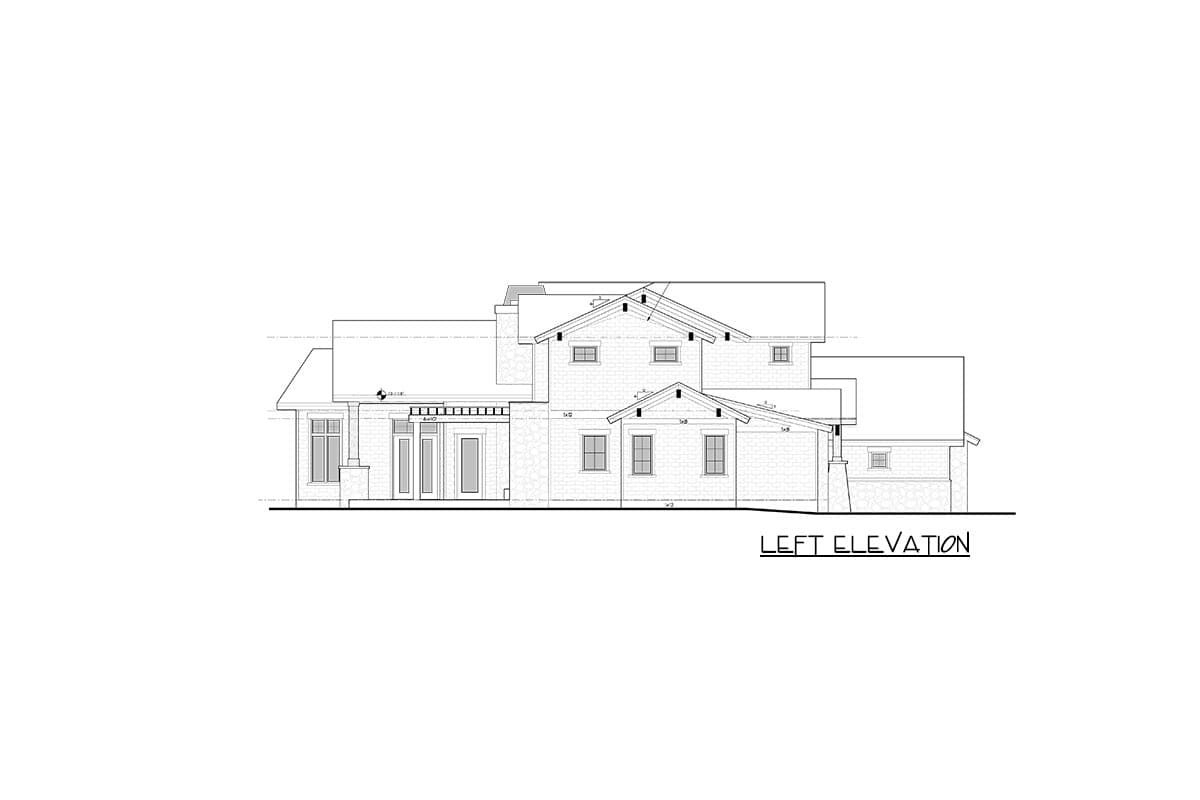

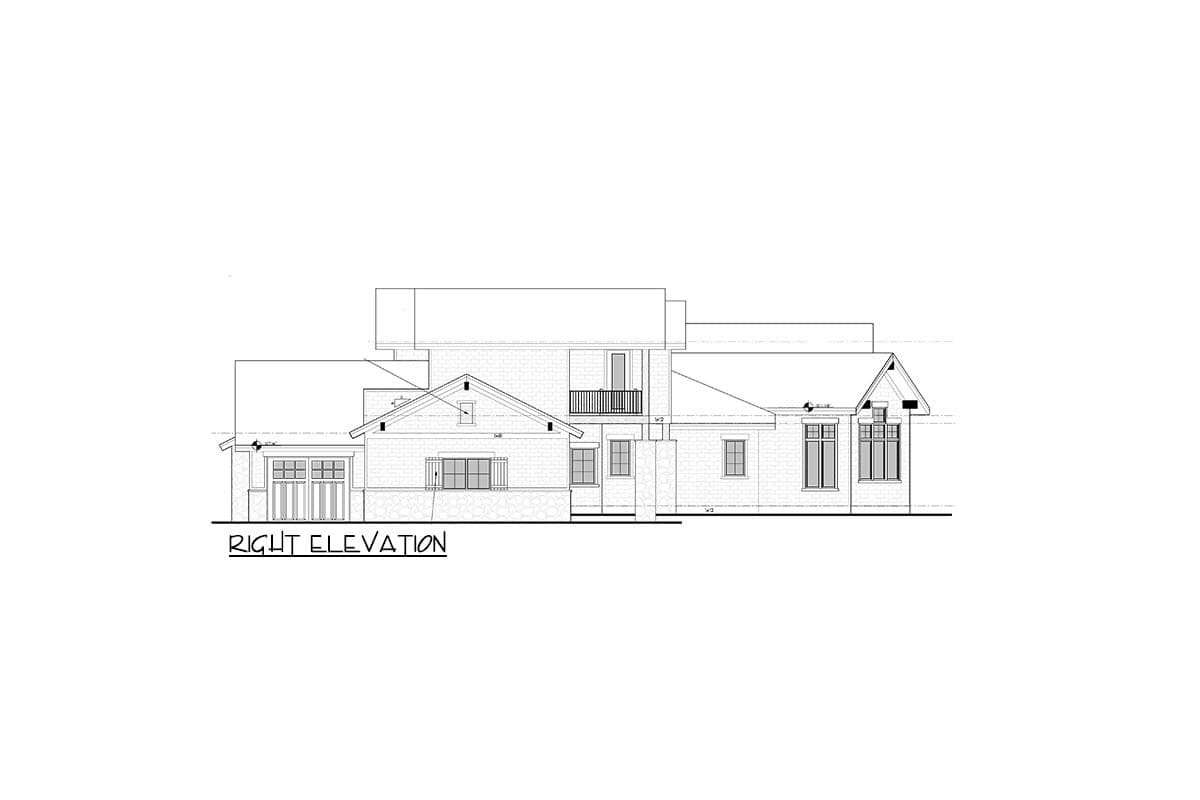

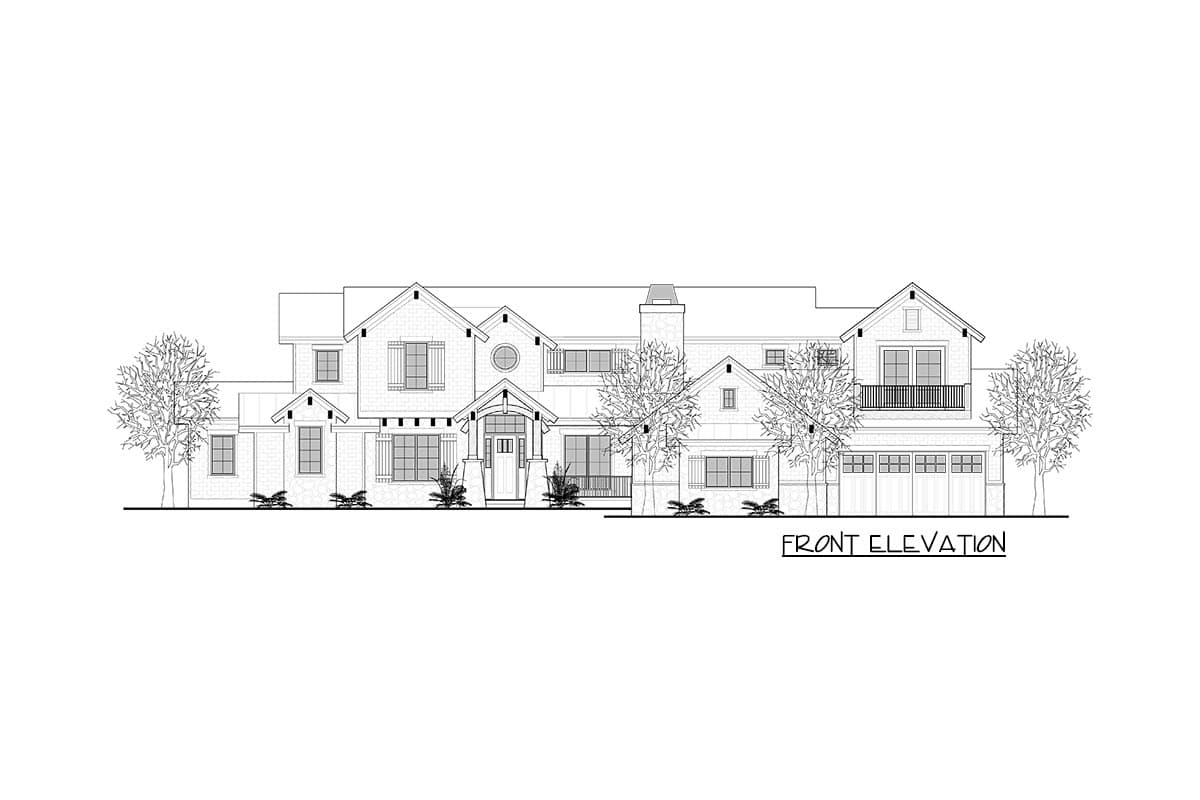

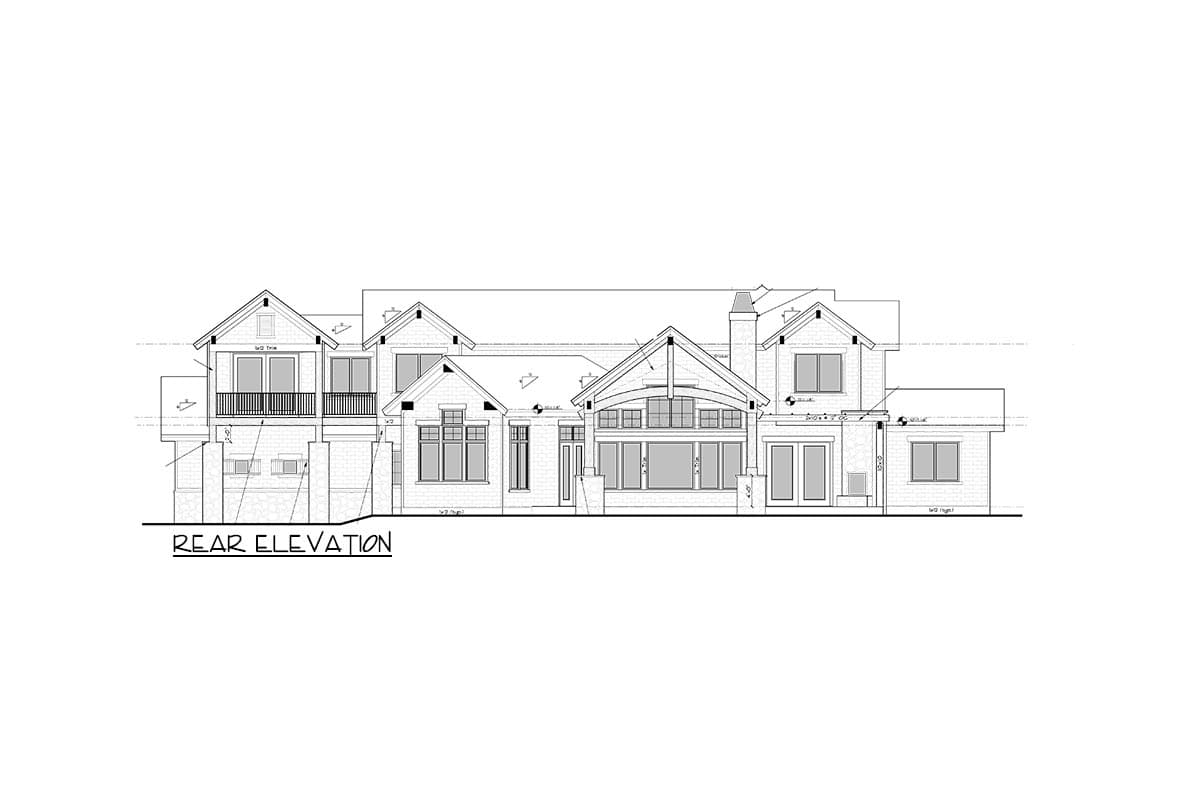

  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,235 sq. ft.

1st Floor

2,608 sq. ft.

2nd Floor

1,627 sq. ft.

Basement Unfinished

2,608 sq. ft.

Porch, Combined

1,173 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 6"

Depth

82' 6"

Max Ridge Height

26' 11"

Garage

Type

Attached

Area

1222 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Northwest

Shingle

Special Features

Den

Elevator

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections
