Plan 95020RW Mountain Elegance with Arched Entry

3,988 3-4 3.5 - 4.5 2 4-5
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Elegance with Arched Entry

Plan 95020RW

  • 3,988

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 4-5

    Cars

  • This mountain Craftsman house plan has an exterior with a great blend of materials, three shed roofs plus a barrel arched covered entry past your walled private courtyard.
  • Inside, you'll enjoy the open floor plan with the vaulted great room open to the kitchen and dining area. Windows overlook the covered deck in back and a fireplace adorns the gently curved wall on the left.
  • You get two islands in the kitchen plus a large walk-in pantry. Dining al fresco is easily facilitated with its location by the covered deck and the screened porch with outdoor fireplace.
  • The master bedroom is privately located on the main floor and has its own deck, a huge walk-in closet and great bath.
  • Angled off the front, the vaulted den gives you a quiet place to read or work.
  • Your 4-car garage leads to an oversized mudroom and adjacent laundry room. Stairs take you to the upstairs where there are two beds with walk-ins and private baths plus a communal loft space.
  • The optional finished lower level comes with the plans and gives you 1,531 square feet of finished expansion space plus parking for a fifth car.

page 1 - cover page

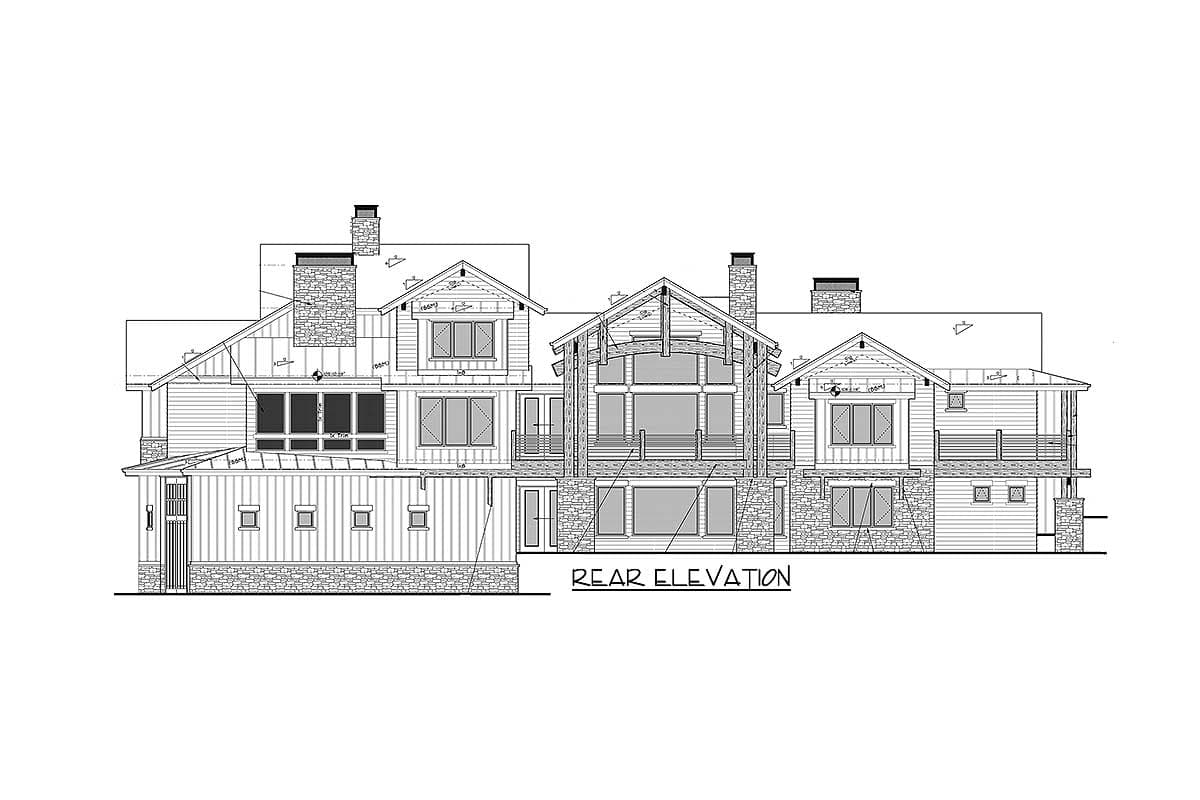

page 2 - front and back elevations

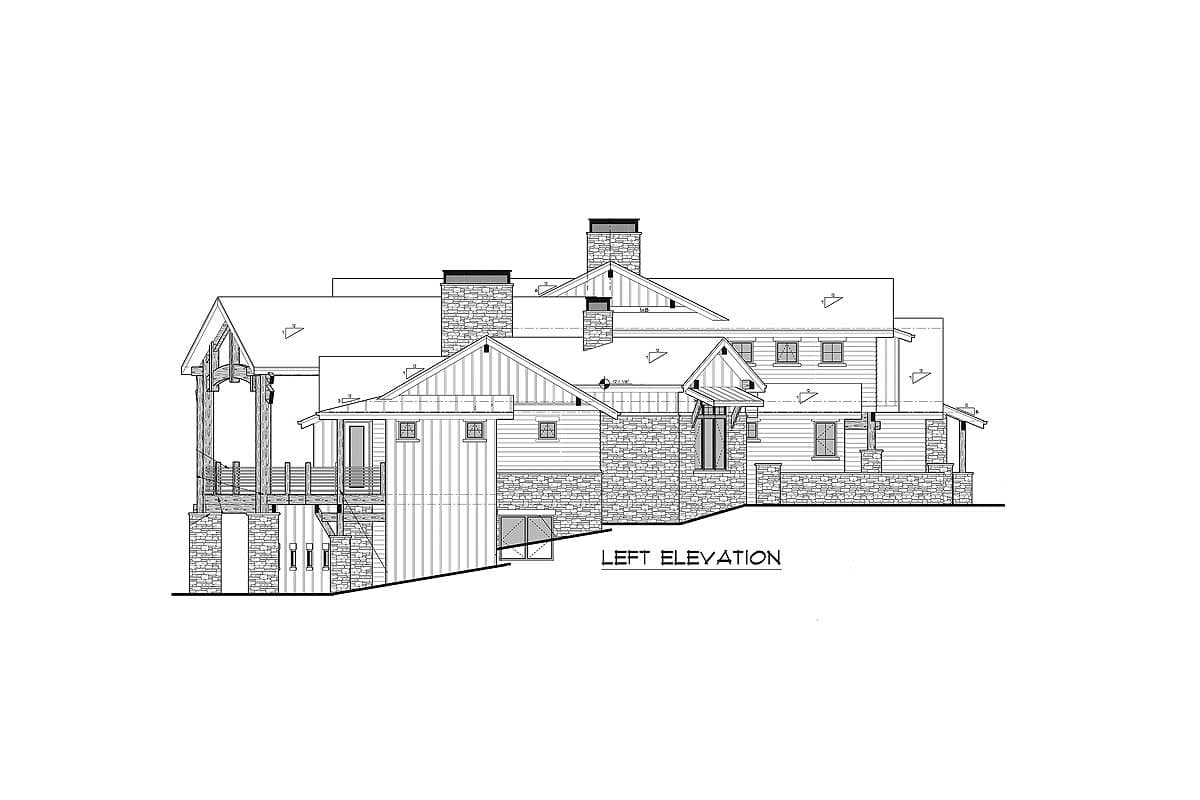

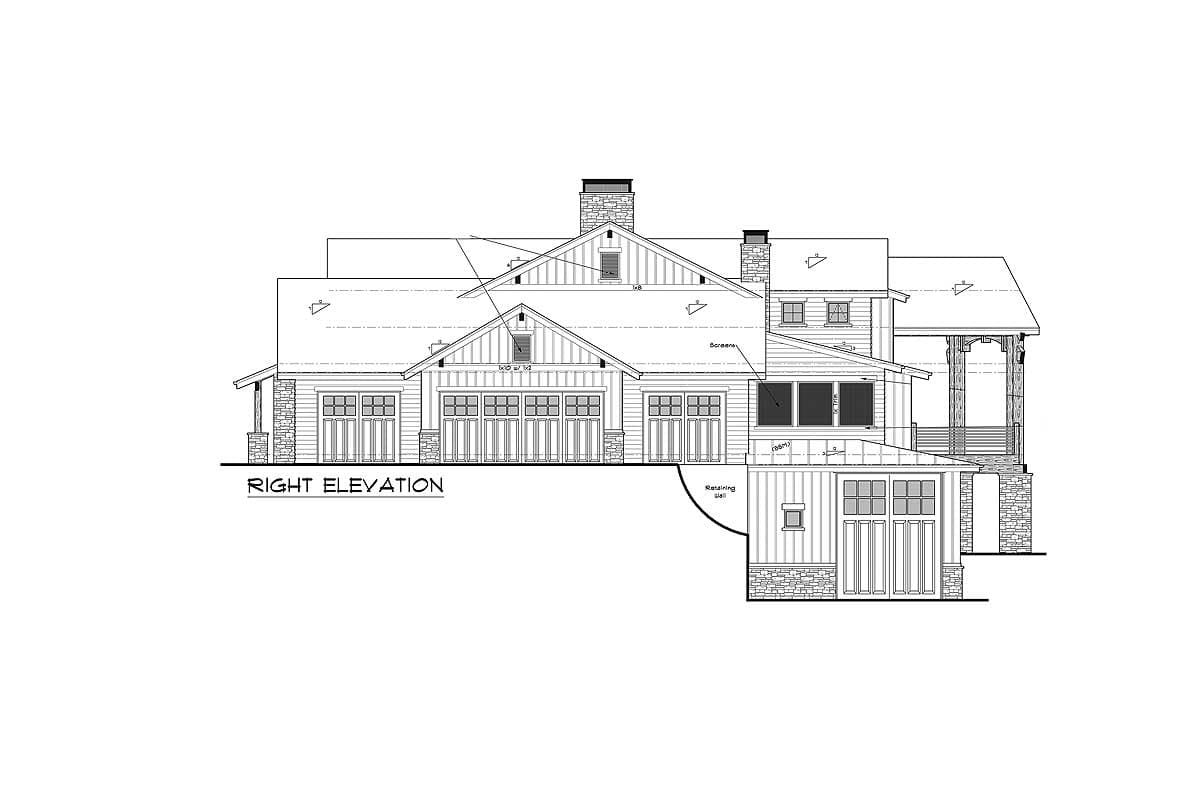

page 3 - left and right elevations
page 4 - lower floor plan
page 5 - main floor plan
page 6 - upper floor plan
page 7 - foundation plan (architectural)
page 8 - floor framing plans (architectural)
page 9 - roof plan (architectural)
page 10 - sections A&B, details A-E
page 11 - main floor electrical
page 12 - lower and upper floor electricals

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

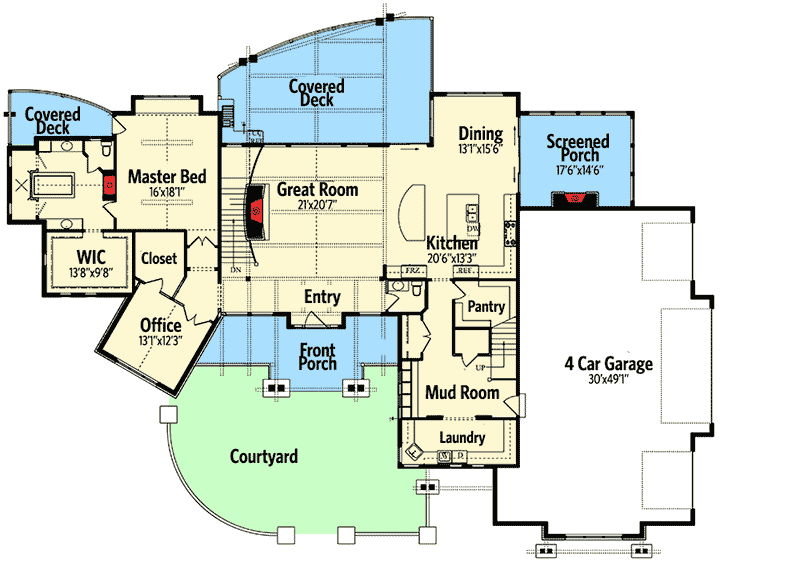

Mountain Elegance with Arched Entry - 95020RW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

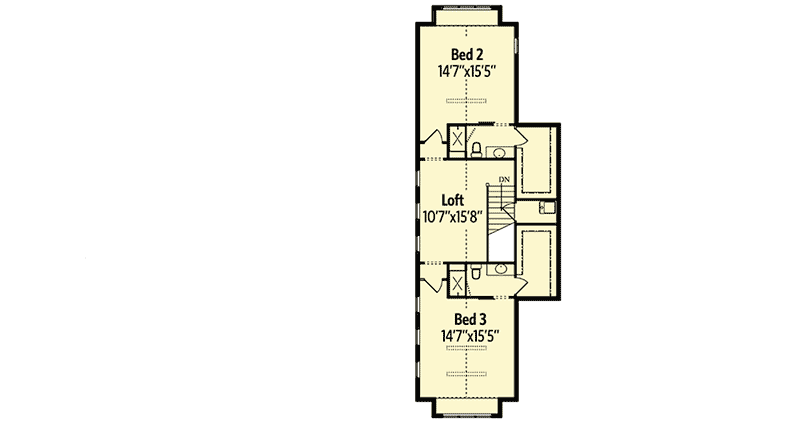

Mountain Elegance with Arched Entry - 95020RW floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

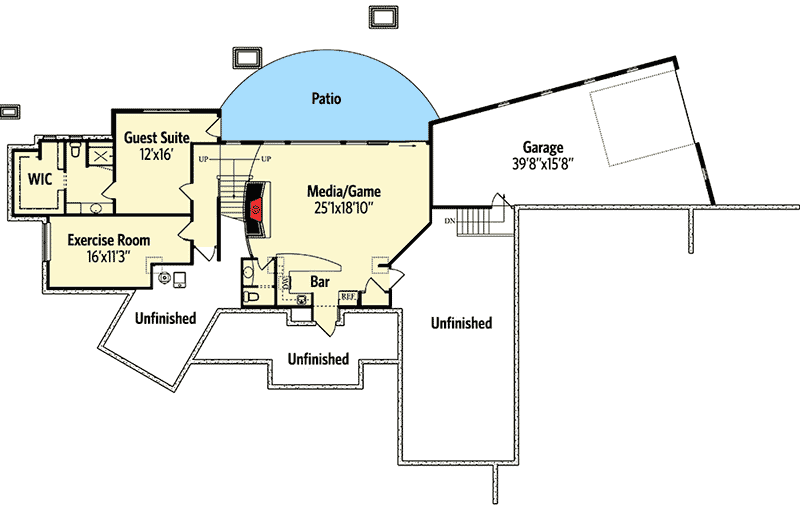

Mountain Elegance with Arched Entry - 95020RW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,988 sq. ft.
  • 1st Floor: 2,913 sq. ft.
  • 2nd Floor: 1,075 sq. ft.
  • Screened Porch: 254 sq. ft.
  • Porch, Combined: 2,081 sq. ft.
  • Optional Lower Level: 1,531 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 111' 0"
  • Depth: 84' 6"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 2286 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Bedroom 2 Vaulted 8' 0" to 12' 0"
Bedroom 3 Vaulted 8' 0" to 12' 0"
Loft Vaulted 8' 0" to 12' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Elegance with Arched Entry

  • 3,988

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 4 - 5

    Car garage

Buy This Plan
  • PDF - Single-Build $2,550
  • PDF - Unlimited Build $3,825
  • CAD + PDF - Single Build $4,050
  • CAD - Unlimited Build $6,075
  • View all purchase option online

About This Plan

  • This mountain Craftsman house plan has an exterior with a great blend of materials, three shed roofs plus a barrel arched covered entry past your walled private courtyard.
  • Inside, you'll enjoy the open floor plan with the vaulted great room open to the kitchen and dining area. Windows overlook the covered deck in back and a fireplace adorns the gently curved wall on the left.
  • You get two islands in the kitchen plus a large walk-in pantry. Dining al fresco is easily facilitated with its location by the covered deck and the screened porch with outdoor fireplace.
  • The master bedroom is privately located on the main floor and has its own deck, a huge walk-in closet and great bath.
  • Angled off the front, the vaulted den gives you a quiet place to read or work.
  • Your 4-car garage leads to an oversized mudroom and adjacent laundry room. Stairs take you to the upstairs where there are two beds with walk-ins and private baths plus a communal loft space.
  • The optional finished lower level comes with the plans and gives you 1,531 square feet of finished expansion space plus parking for a fifth car.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,988 sq. ft.
  • 1st Floor: 2,913 sq. ft.
  • 2nd Floor: 1,075 sq. ft.
  • Screened Porch: 254 sq. ft.
  • Porch, Combined: 2,081 sq. ft.
  • Optional Lower Level: 1,531 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 111' 0"
  • Depth: 84' 6"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 2286 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 95020RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95020RW
|
Need Help? 800-854-7852
|
Plan 95020RW
