Plan 18247BE

Mountain Escape with Shed Dormer

Heated S.F.
3,211
Beds
4 - 5
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 18247BE

Main Level
Main Level
2nd Floor
2nd Floor
Basement option
Basement option

Plan 18247BE

M-F 9am-5pm EST |

1-203-761-8500

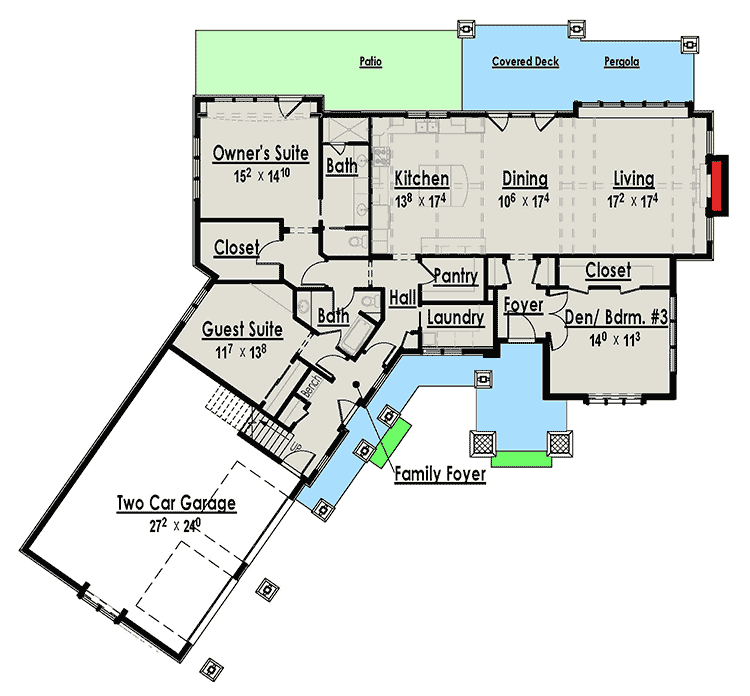

Main Level

Plan 18247BE: Mountain Escape with Shed Dormer - Floor Plan - Main Level - Country, Mountain, Rustic, Vacation

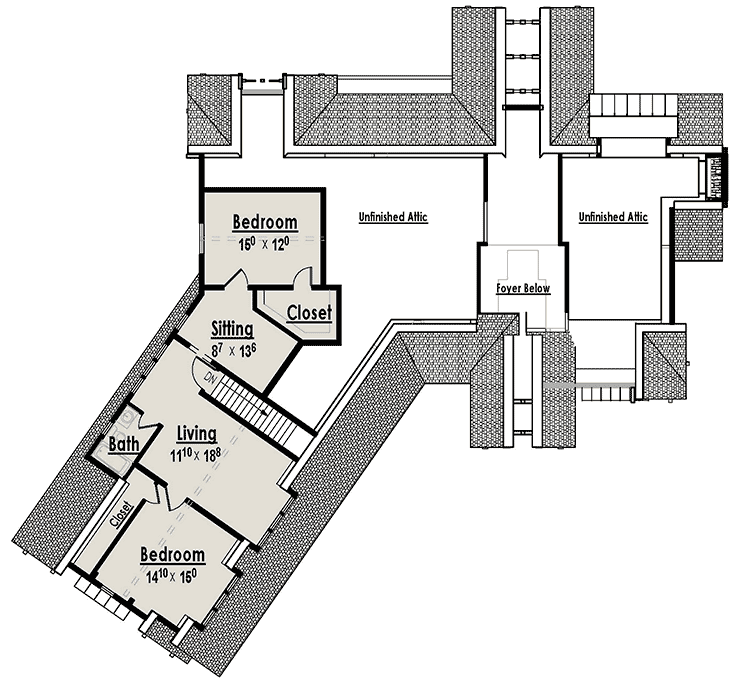

2nd Floor

Plan 18247BE: Mountain Escape with Shed Dormer - Floor Plan - 2nd Floor - Country, Mountain, Rustic, Vacation

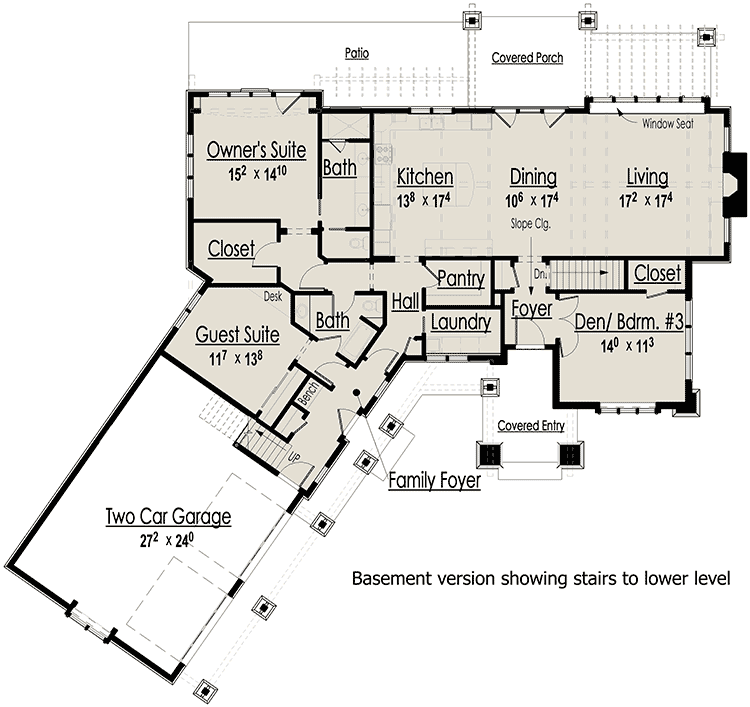

Basement option

Plan 18247BE: Mountain Escape with Shed Dormer - Floor Plan - Basement option - Country, Mountain, Rustic, Vacation

Plan Details

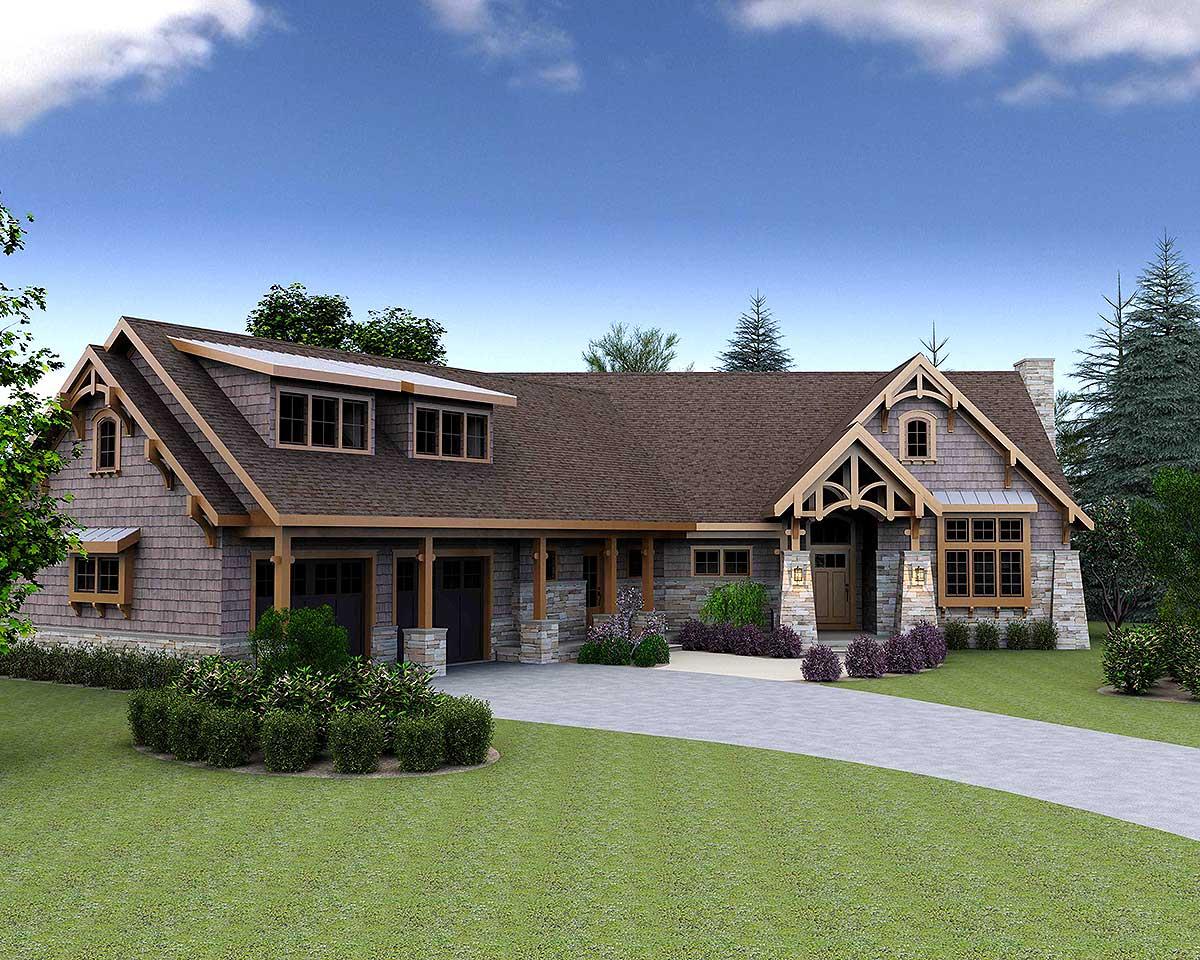

  • Based on our popular Red Cottage plan - see house plan 18222BE - this more rustic version has stout stone columns supporting a beautiful trussed covered entry.

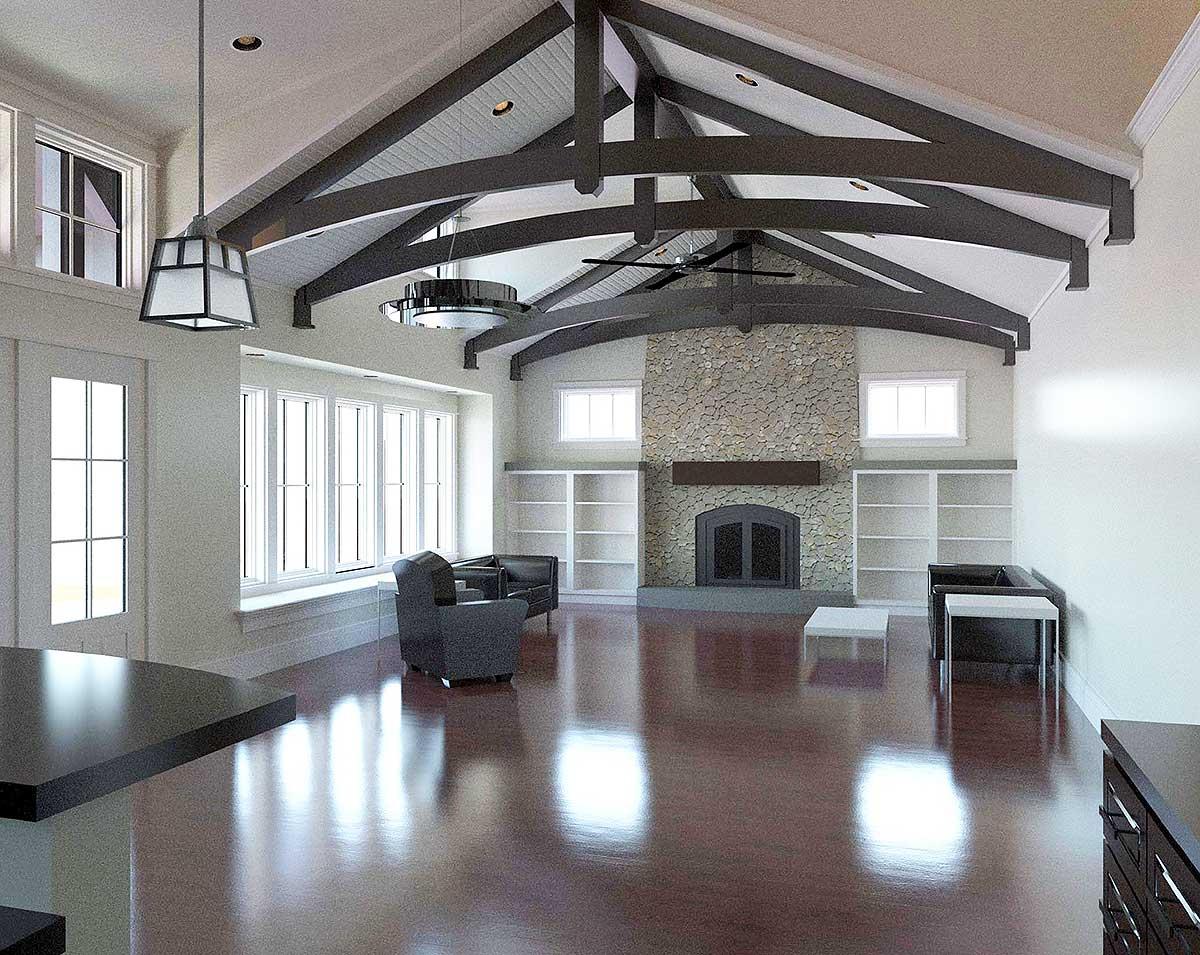

  • The vaulted spaces - foyer, living & dining rooms, and kitchen - add comfortable volume to nicely proportioned room sizes.

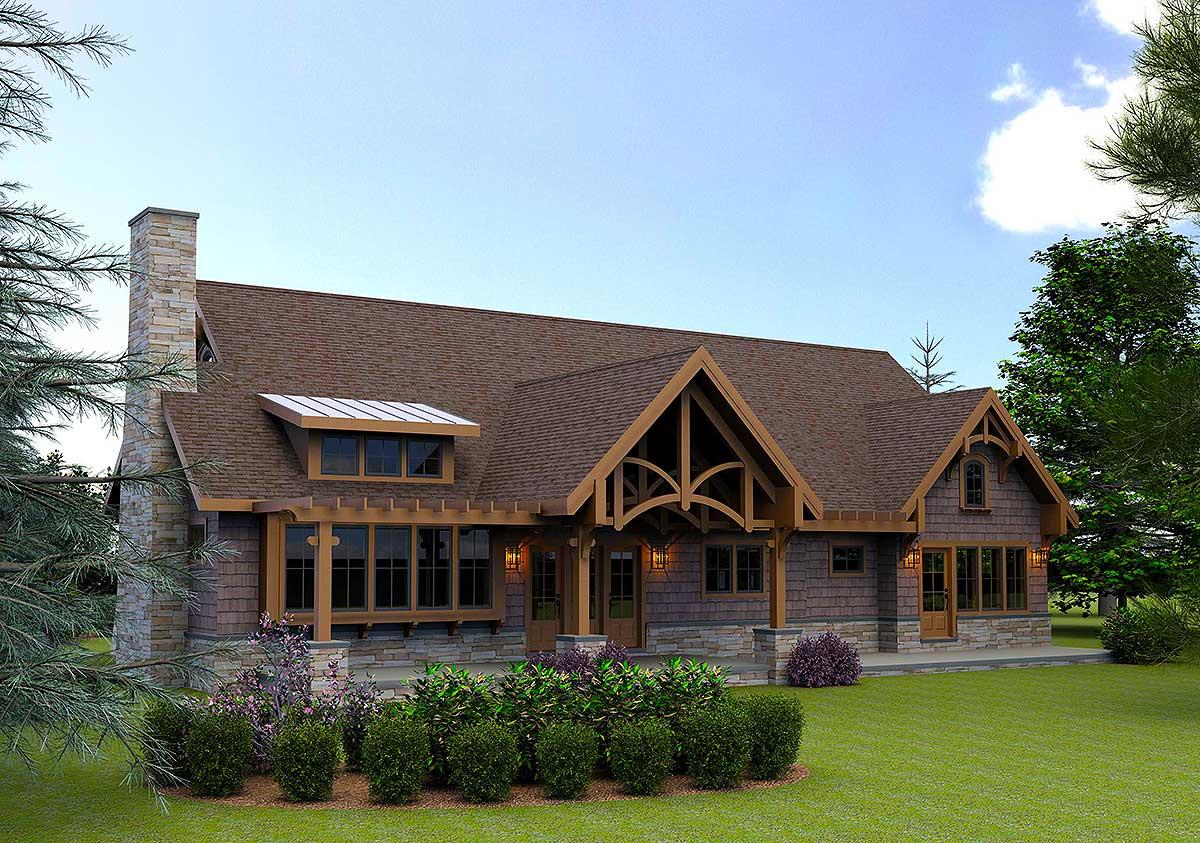

  • Abundant windows maximize views and natural light with an emphasis placed on views to the back.
  • Wide hallways and doorways make for easy traffic flow, even for those that need Barrier Free Access.
  • The front room off the foyer is perfect for a den or extra bedroom.
  • The kitchen is designed for both efficiency and aesthetics. The large island aids in food preparation, additional storage and allows for a nice seating area. There are both pantry cabinets and a spacious closet pantry.
  • The owners' suite has patio access and the handsome master bath has an extra spacious shower.
  • The upstairs delivers a vaulted living area plus two bedrooms, one with a sitting area behind pocket doors.
  • Related Plans: Get a more robust upstairs suite with house plan 18285BE. Get a less rustic exterior with house plan 18222BE (2 car garage) and 18249BE (3 car garage).
  • BUILD RESTRICTION: These plans cannot be sold or built in NY state.

What's Included

  • General Notes and Design Criteria
  • Perspective Views
  • Foundation Plan
  • Floor Plans
  • Elevations
  • Cross Sections
  • Door and Window Schedules
  • Roof Plan and Room Finish Schedule
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,211 sq. ft.

1st Floor

2,241 sq. ft.

2nd Floor

970 sq. ft.

Basement Unfinished

2,217 sq. ft.

Deck

374 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 2"

Depth

86' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

749 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3.5 on 12

Framing Type

Truss

Architectural Style

Country

Mountain

Rustic

Vacation

Special Features

Angled Garage

Bedrooms - Split

Den

Flex Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,211 sq. ft.

1st Floor

2,241 sq. ft.

2nd Floor

970 sq. ft.

Basement Unfinished

2,217 sq. ft.

Deck

374 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 2"

Depth

86' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

749 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3.5 on 12

Framing Type

Truss

Architectural Style

Country

Mountain

Rustic

Vacation

Special Features

Angled Garage

Bedrooms - Split

Den

Flex Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
