All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

About this plan What's included

Mountain Escape with Upstairs Quarters

Plan 18285BE

This plan plants 10 trees

3,454
Heated s.f.
2-3
Beds
2.5 - 3.5
Baths
1-2
Stories
2
Cars

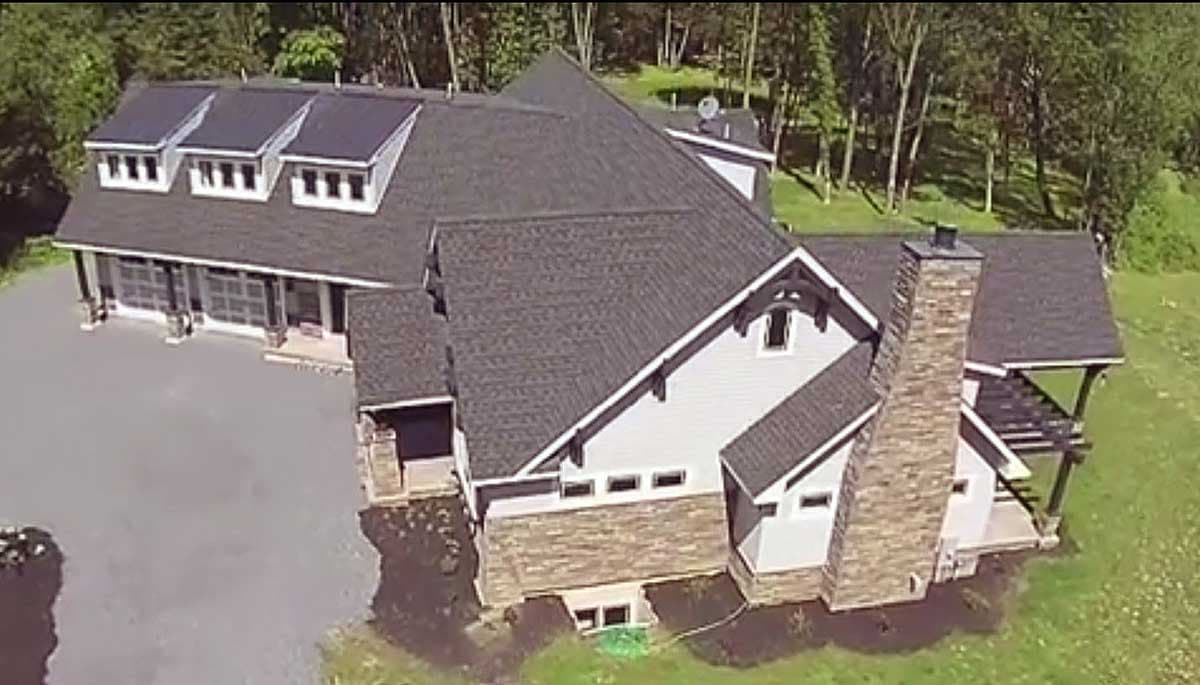

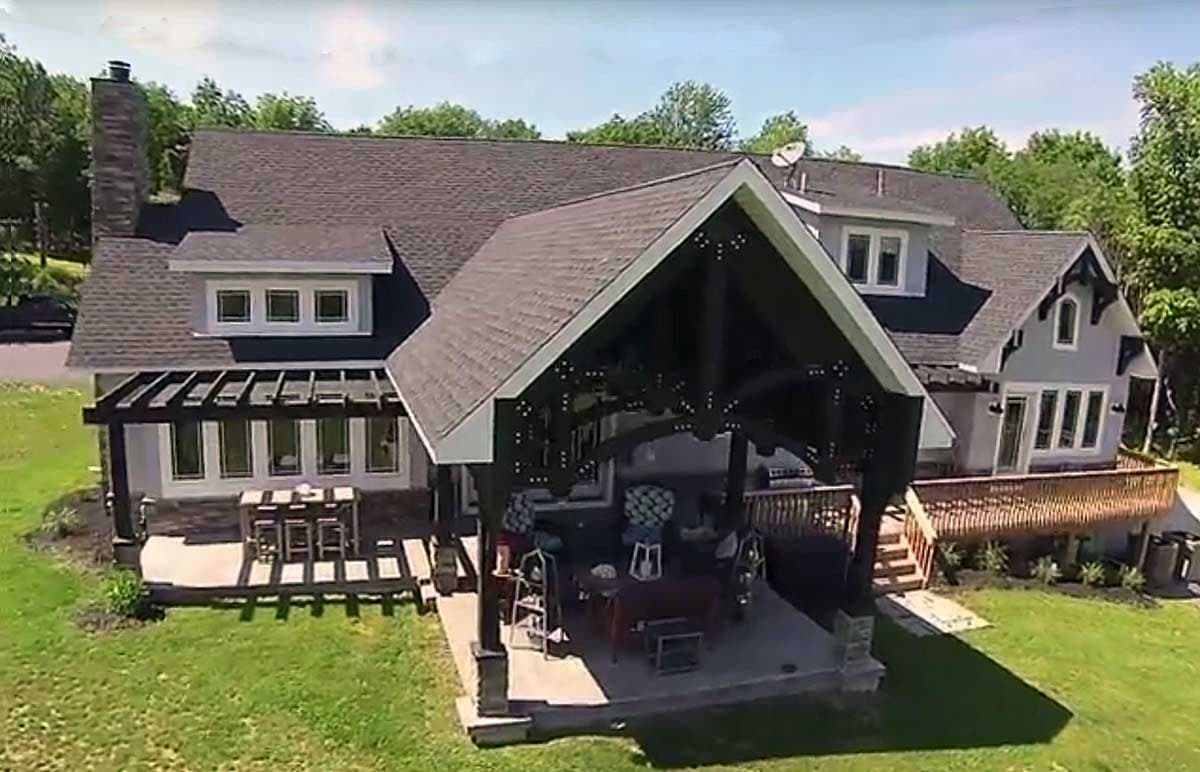

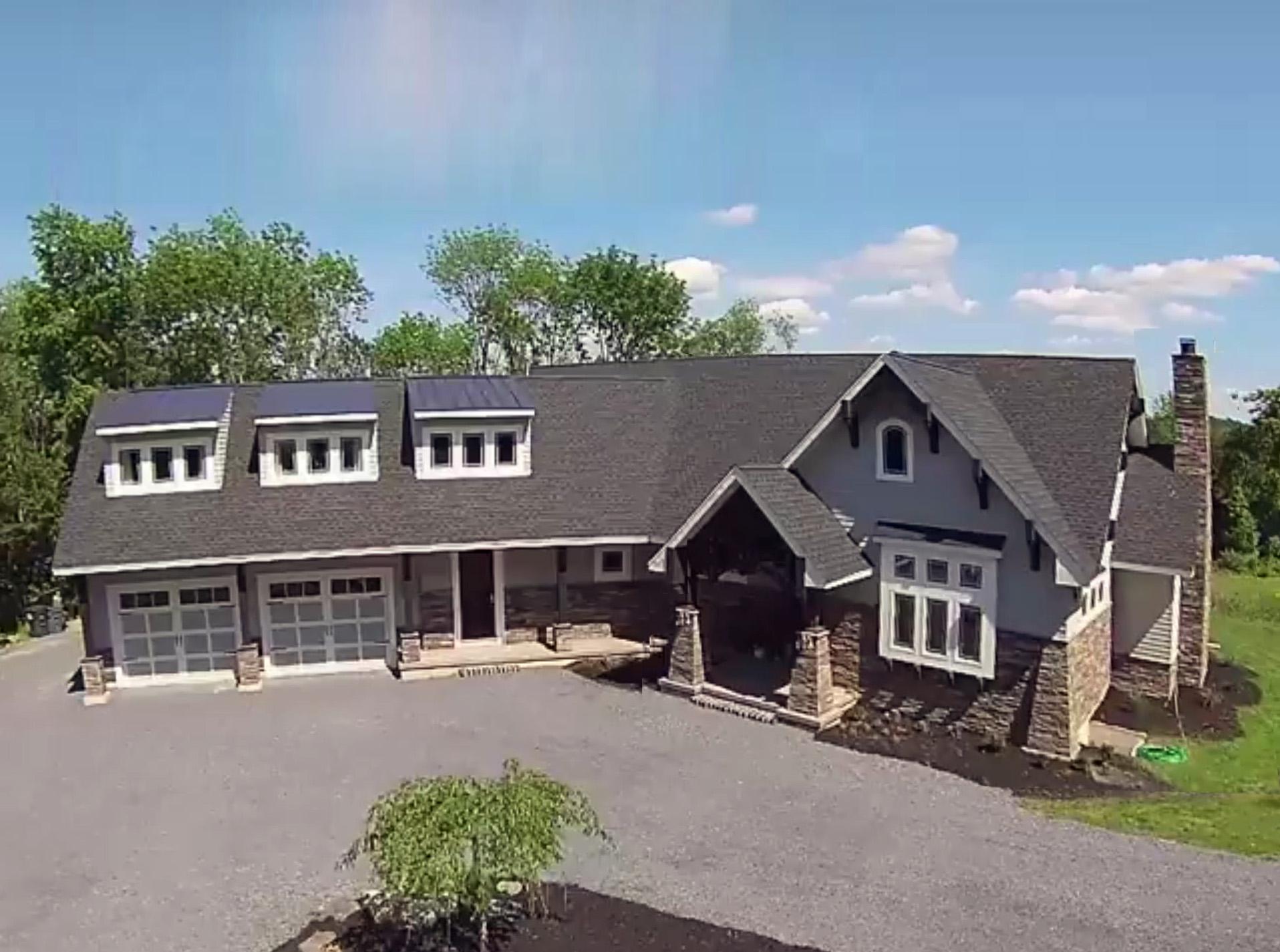

This rugged house plan has a wood and stone exterior with stout stone columns supporting a beautiful trussed covered entry. A shed dormer over the garage provides room and light for the upstairs living quarters inside.

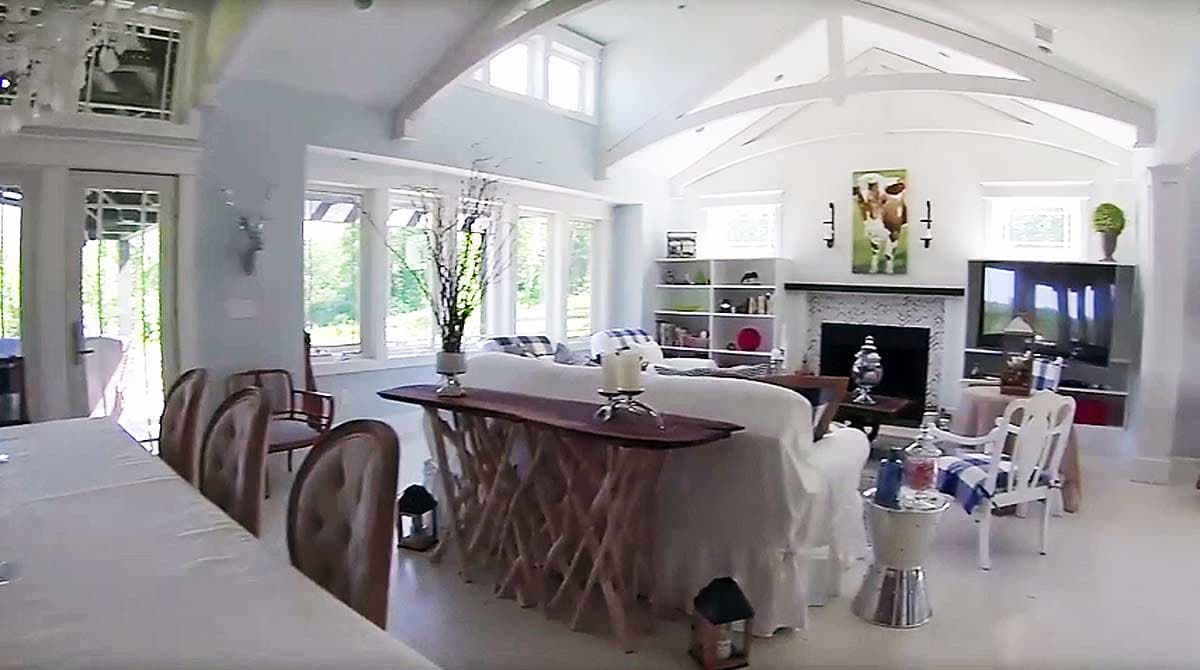

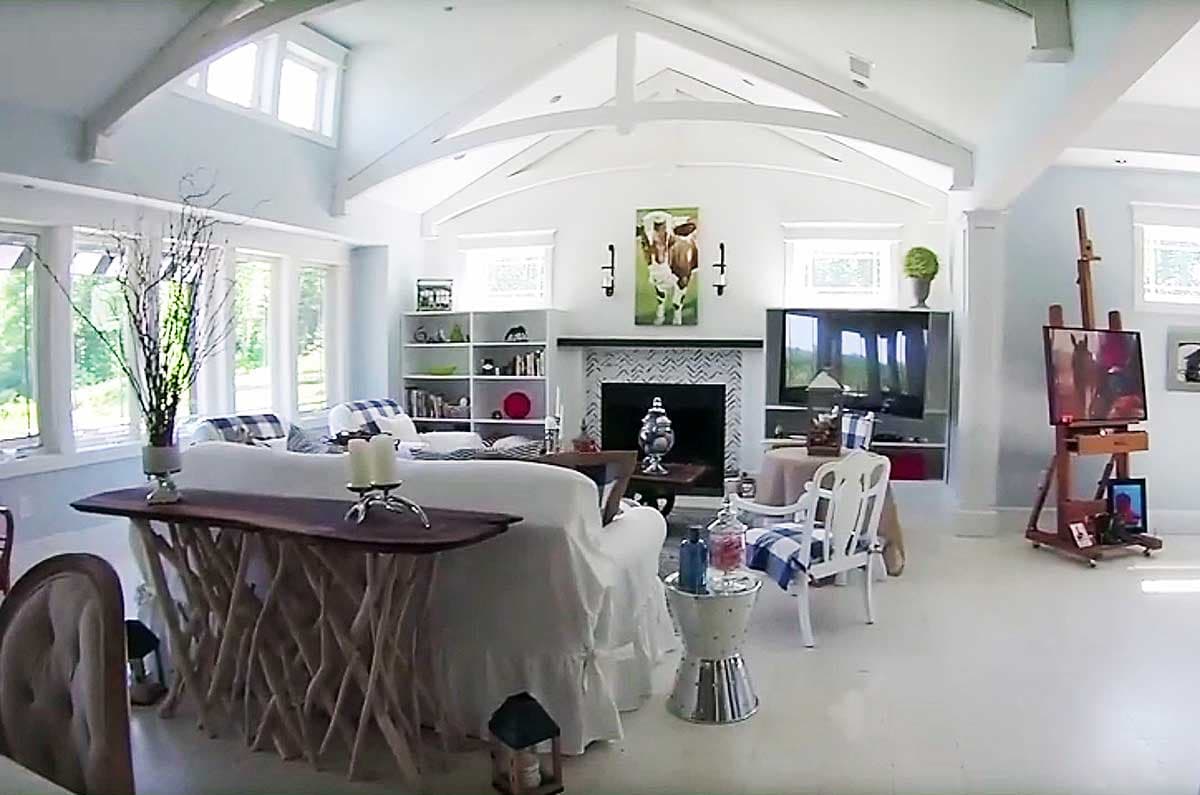

The vaulted spaces - foyer, living & dining rooms, and kitchen - add comfortable volume to nicely proportioned room sizes. Abundant windows maximize views and natural light with an emphasis placed on views to the back.

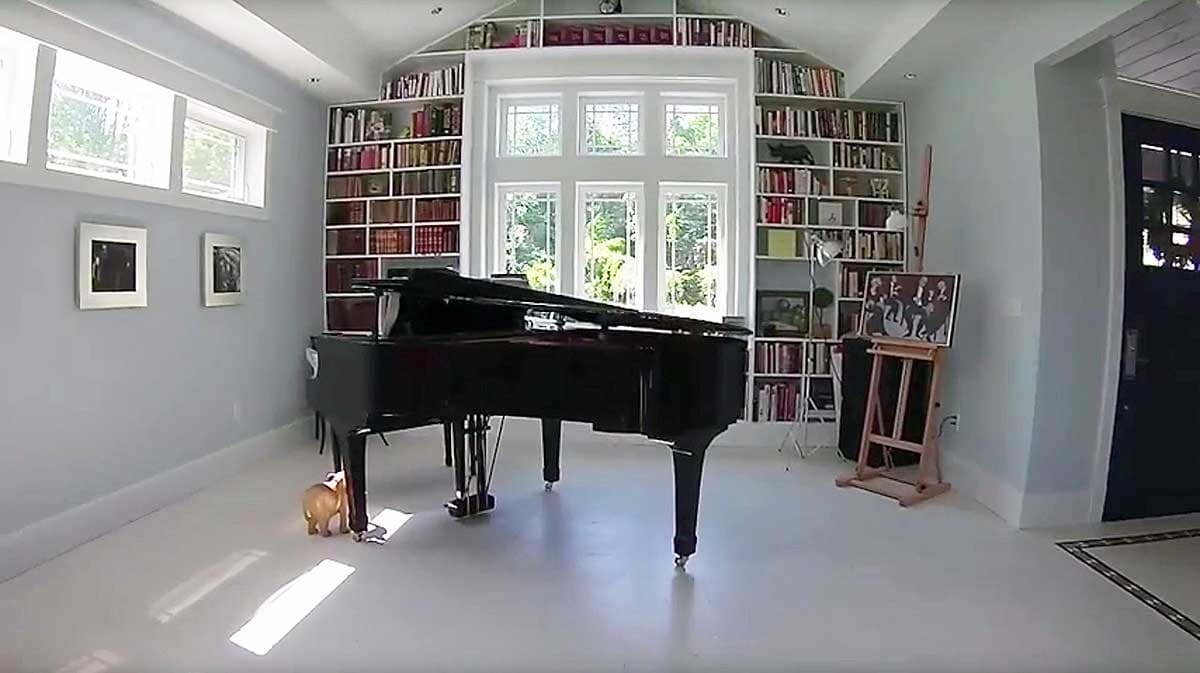

Wide hallways and doorways make for easy traffic flow, even for those that need Barrier Free Access. The front room off the foyer is perfect for a den or music room.
The kitchen has unobstructed views all the way to the fireplace in the living room and has a large island with seating. A large walk-in pantry and convenient access to the garage entry makes unloading groceries a breeze.
The owners' suite has patio access and the handsome master bath has an extra spacious shower.
The upstairs gives you a complete living suite with a kitchen, open living area and a full bedroom suite.
Related Plans: Get an alternate layout and a simpler upstairs with house plan 18247BE and a less rustic version with house plan 18222BE.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles. It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

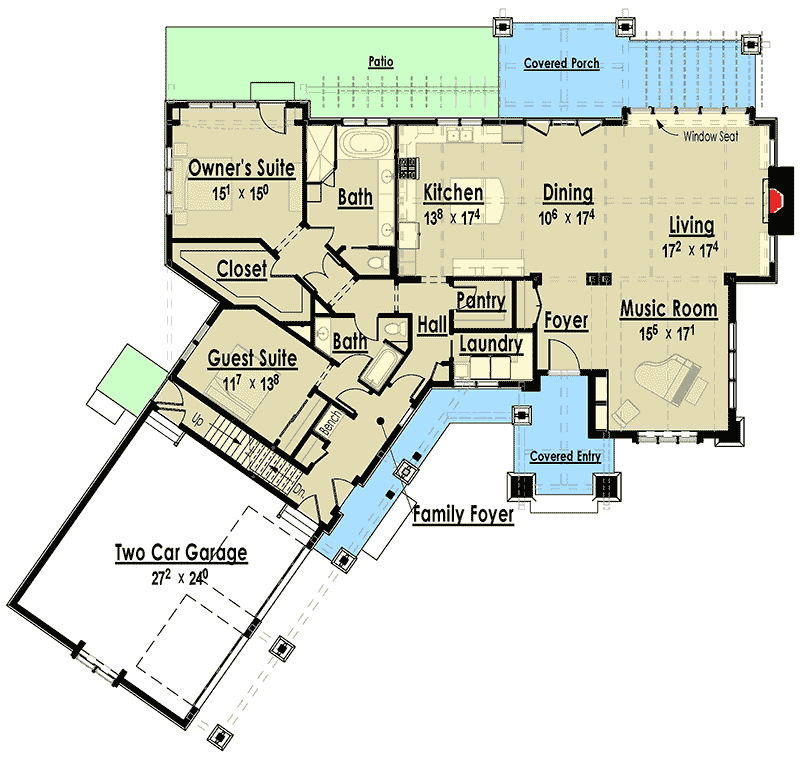

Mountain Escape with Upstairs Quarters - 18285BE floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

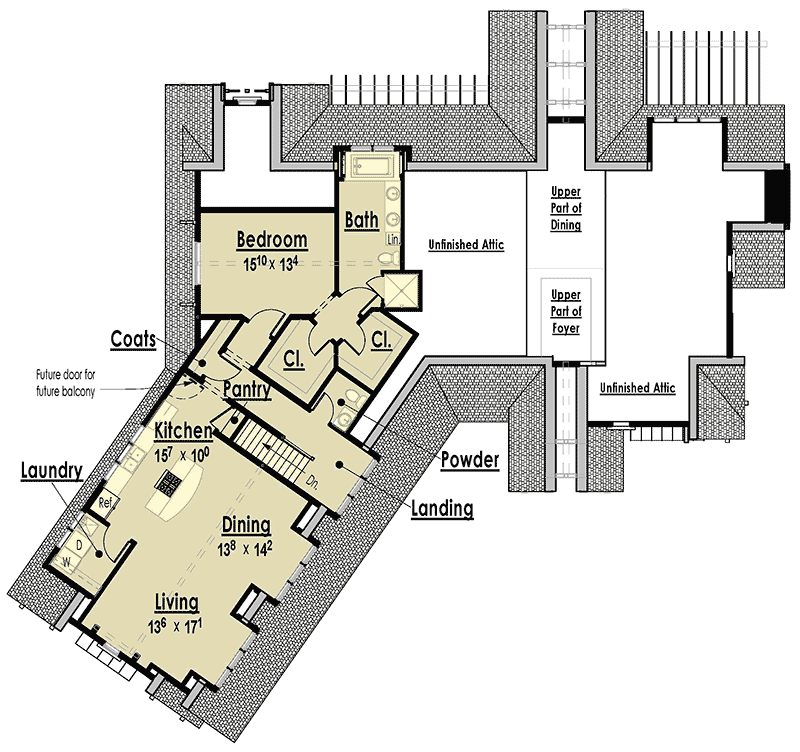

Mountain Escape with Upstairs Quarters - 18285BE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,454 sq. ft.
1st Floor: 2,188 sq. ft.
2nd Floor: 1,266 sq. ft.

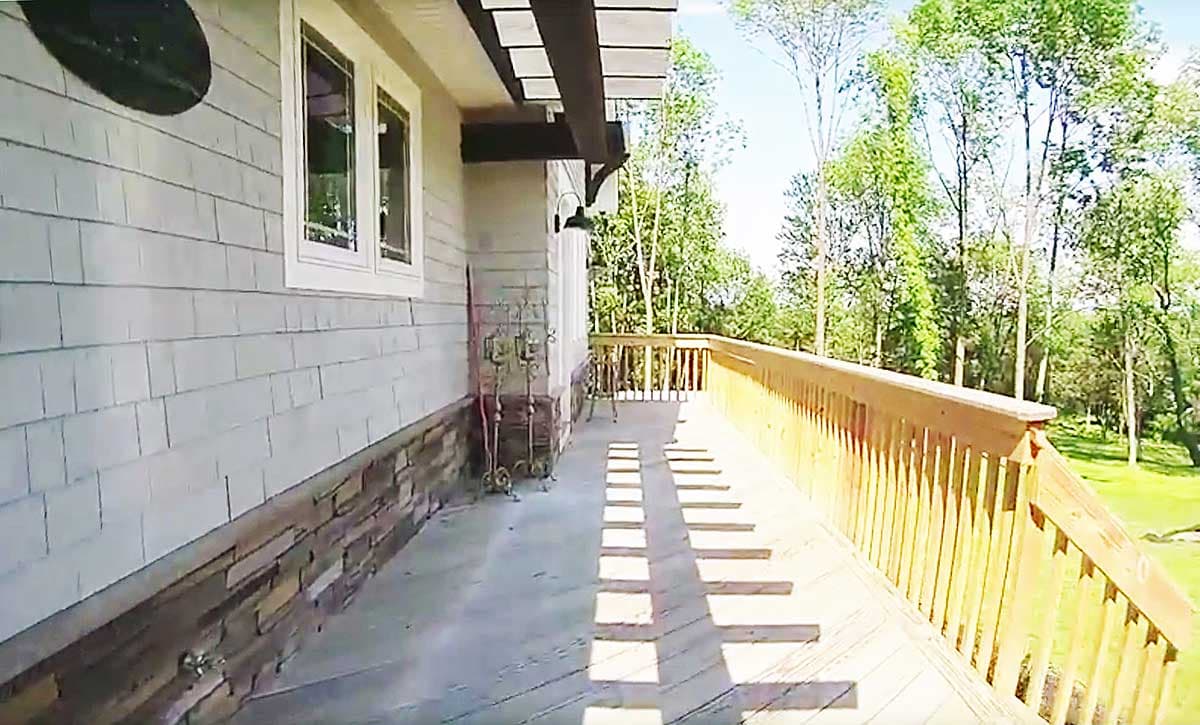

Deck: 371 sq. ft.
Porch, Front: 252 sq. ft.
Basement Unfinished: 2,247 sq. ft.

Beds/Baths

Bedrooms: 2 or 3

Full bathrooms: 2 or 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 89' 8"
Depth: 83' 6"

Garage

Type: Attached
Area: 632 sq. ft.
Count: 2 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

Special features
