Mountain Escape with Sunroom

Plan 80686PM

  • 1,196

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This mountain escape has a great sunroom with views on three sides. Add the vaulted front porch to the list of places to enjoy the views from.
  • The living room is vaulted and has sliding doors to he back. The fireplace helps divide it from the dining area and kitchen, the latter which features a casual counter seating.
  • Upstairs two bedrooms, storage, and views to below from thet bridge round out the vacation house plan.

Plan sets include the following:

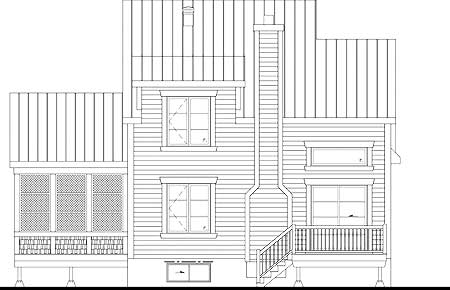

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Escape with Sunroom - 80686PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Escape with Sunroom - 80686PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,196 sq. ft.
  • 1st Floor: 749 sq. ft.
  • 2nd Floor: 447 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 28' 0"
  • Max ridge height: 28' 5"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Escape with Sunroom

  • 1,196

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $769
  • 8 Sets $816
  • PDF - Single-Build $1,007
  • CAD - Single-Build $1,564
  • View all purchase option online
