Plan 12928KN Mountain Home Plan with Breathtaking Vaulted Living Room

Mountain Home Plan with Breathtaking Vaulted Living Room

Plan 12928KN

  • 4,085

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This wonderful Mountain home plan is a blend of several styles, from Prairie to Contemporary to rugged Mountain.
  • The huge living room has a breathtaking vaulted ceiling and a big fireplace as the focal point. An open layout lets you see right into the spacious informal dining room.
  • In the gourmet kitchen, a massively big island has an eating bar and a 6 burner cooktop. Windows on three sides brighten the formal dining room that also enjoys a vaulted ceiling.
  • The master suite features a huge bathroom with a big soaking tub, two sinks, a large shower and an over-sized walk-in closet.
  • Step up to the second floor where the study opens to an outdoor sitting area. Relax in the loft that overlooks the living room below.
  • The fabulous lower level has both a cards room and a game room in addition to the huge family room. Two extra bedrooms can accommodate family and guests.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

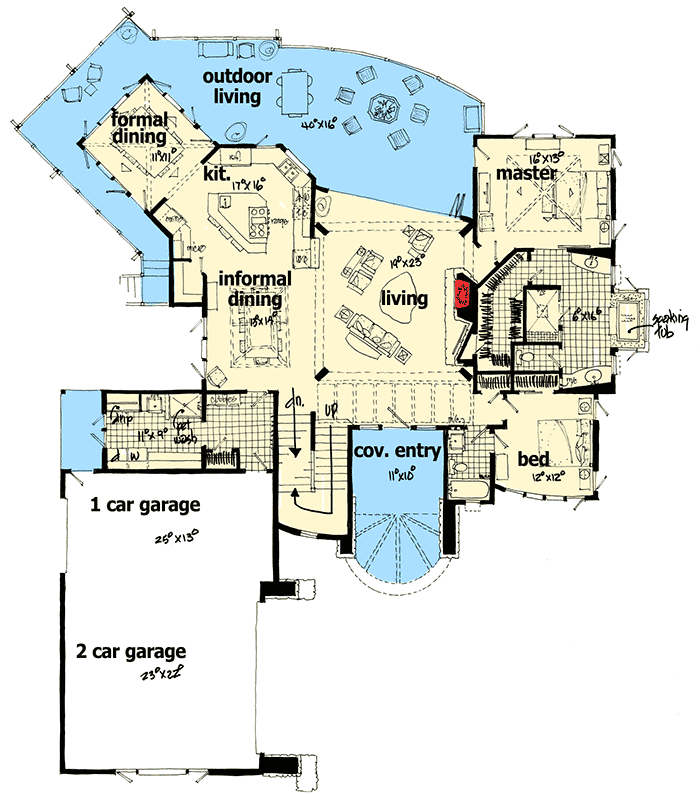

Mountain Home Plan with Breathtaking Vaulted Living Room - 12928KN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

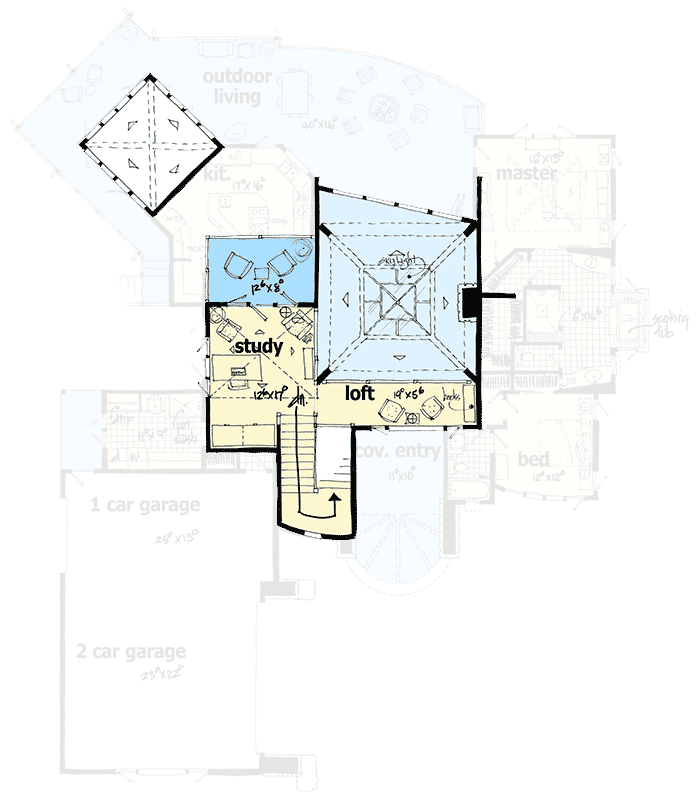

Mountain Home Plan with Breathtaking Vaulted Living Room - 12928KN floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

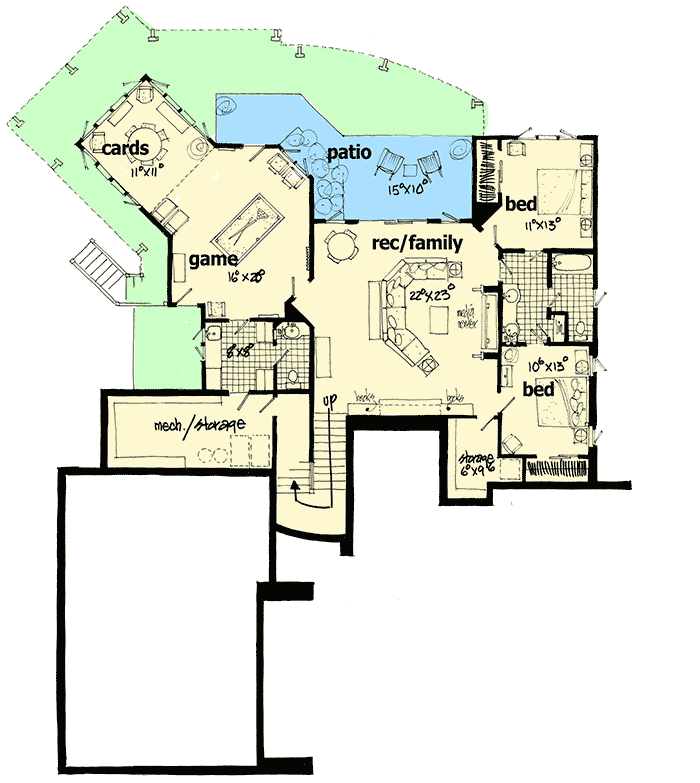

Mountain Home Plan with Breathtaking Vaulted Living Room - 12928KN floor plan - Lower Level

Plan details

Mountain Home Plan with Breathtaking Vaulted Living Room

  • 4,085

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,250
  • PDF - Single-Build $2,790
  • CAD - Single-Build $3,750
  • View all purchase option online

About This Plan

  • This wonderful Mountain home plan is a blend of several styles, from Prairie to Contemporary to rugged Mountain.
  • The huge living room has a breathtaking vaulted ceiling and a big fireplace as the focal point. An open layout lets you see right into the spacious informal dining room.
  • In the gourmet kitchen, a massively big island has an eating bar and a 6 burner cooktop. Windows on three sides brighten the formal dining room that also enjoys a vaulted ceiling.
  • The master suite features a huge bathroom with a big soaking tub, two sinks, a large shower and an over-sized walk-in closet.
  • Step up to the second floor where the study opens to an outdoor sitting area. Relax in the loft that overlooks the living room below.
  • The fabulous lower level has both a cards room and a game room in addition to the huge family room. Two extra bedrooms can accommodate family and guests.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,085 sq. ft.
  • Lower Level: 1,640 sq. ft.
  • 1st Floor: 2,225 sq. ft.
  • 2nd Floor: 220 sq. ft.
  • Balcony / Veranda: 172 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 70' 6"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 900 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
