Mountain Lodge with Elevator

Plan 15812GE

This plan plants 3 trees

6,733
Heated s.f.
3-4
Beds
3.5 - 5.5
Baths
1-2
Stories
3
Cars

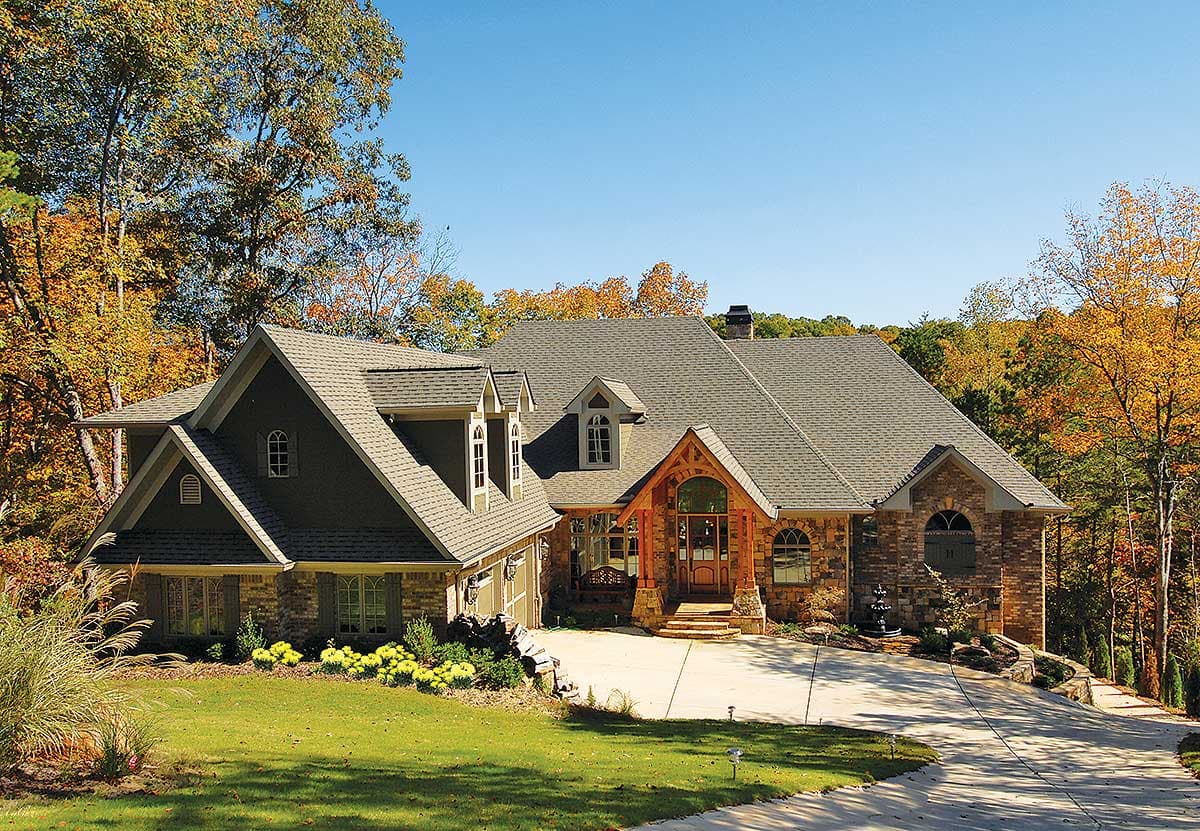

A stunning rustic exterior suits this home perfectly making it perfect for your mountain setting. An elevator adds a touch of convenience to an otherwise rustic design.

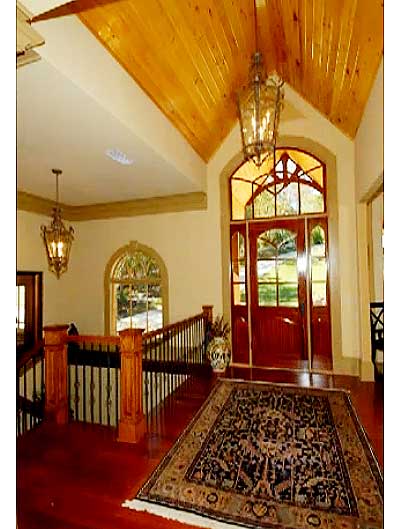

Inside, you have views to the beautiful lodge room with 2-sided fireplace (shared with the master suite) from the foyer. The lodge room has access to the open deck and covered deck beyond.
The master suite is privately located and has open deck access.
A combination kitchen, breakfast and keeping room creates one huge space with wonderful views.
Over the garage, you have the perfect in-law or teen suite.
The lower level is fully built out and ideal for a sloping lot.
Related Plans: For alternate layouts, see house plans 15663GE (4,042 sq. ft.). And get more room with house plan 15810GE (6,510 sq. ft.).

The plan set includes the following:

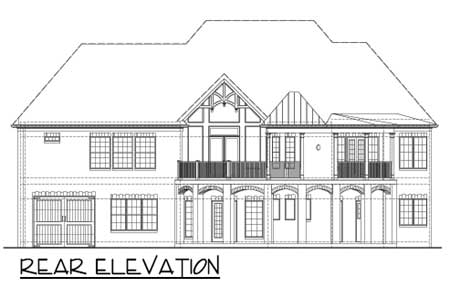

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

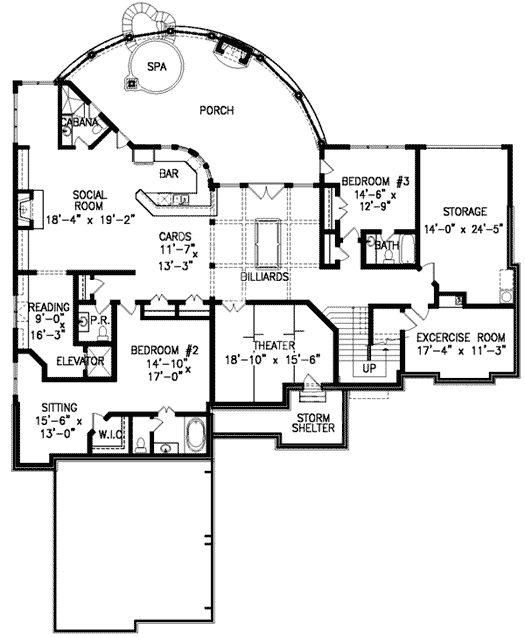

Mountain Lodge with Elevator - 15812GE floor plan - Basement

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

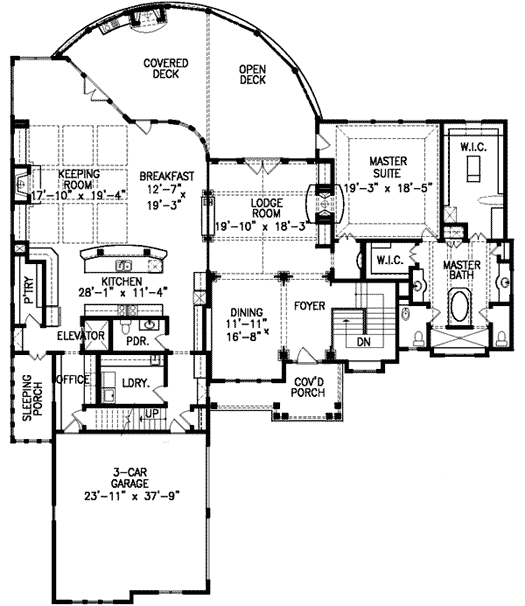

Mountain Lodge with Elevator - 15812GE floor plan - Main Level

Optional

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Mountain Lodge with Elevator - 15812GE floor plan - Optional

Plan details

Square Footage Breakdown

Total Heated Area: 6,733 sq. ft.
Lower Level: 3,362 sq. ft.
1st Floor: 3,371 sq. ft.

Bonus: 569 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3, 4, or 5
Half bathrooms: 1 or 2

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 78' 9"
Depth: 97' 0"

Garage

Type: Attached
Area: 903 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style
