Plan 15663GE Mountain Lodge with Options

4,042 3-6 2.5 - 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Lodge with Options

Plan 15663GE

  • 4,042

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

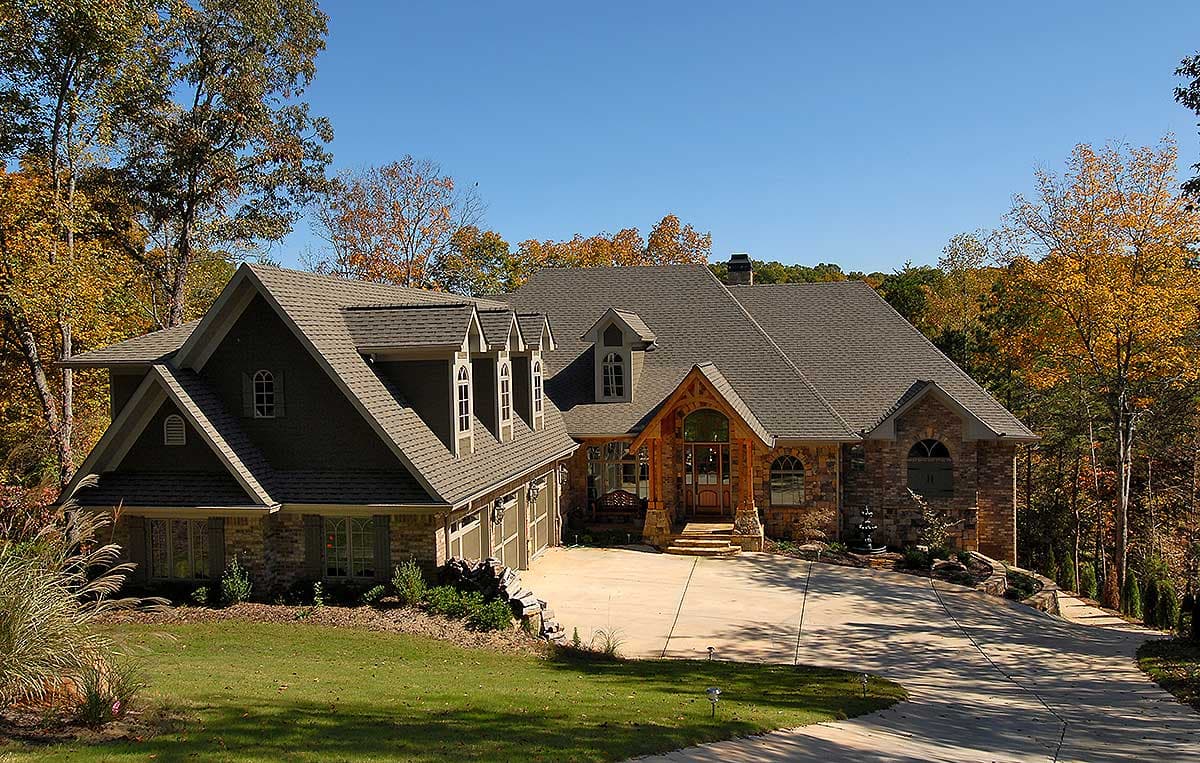

  • A stunning rustic exterior suits this home perfectly making it your mountain lodge retreat.

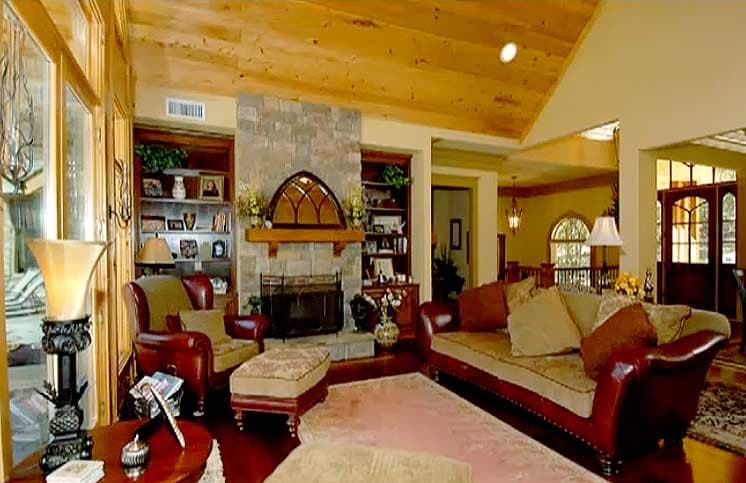

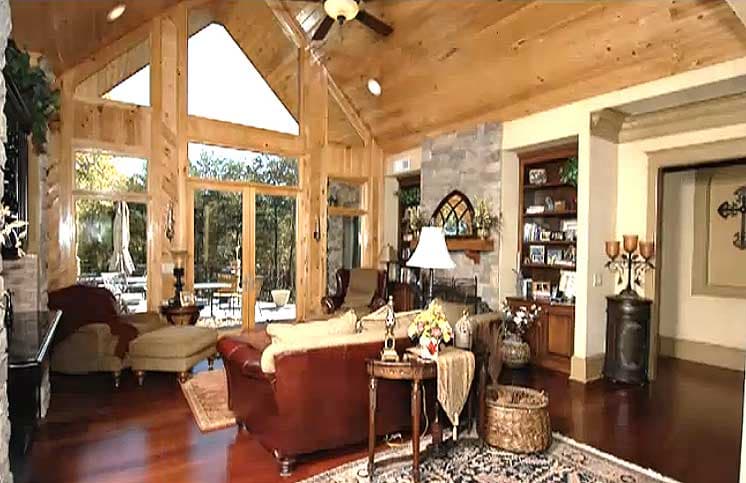

  • Inside, a two-sided fireplace is shared by the lodge room and the spacious master bedroom with both a sunroom and a sitting room to pamper the owners.
  • Spend time outdoors on your covered porch or open deck.

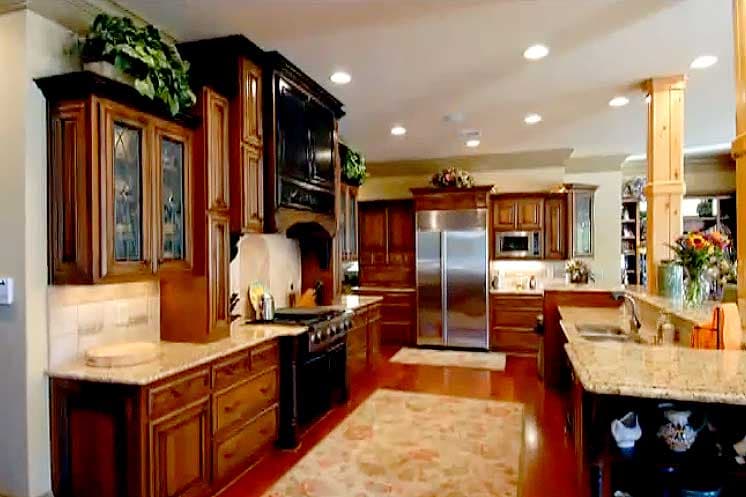

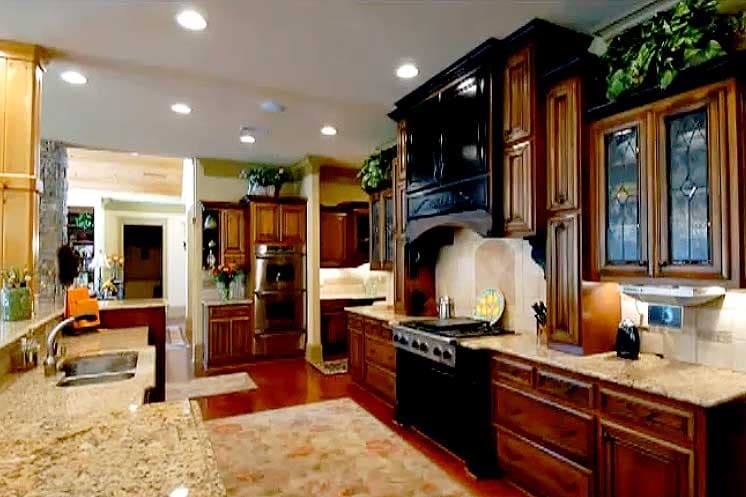

  • A combination kitchen and family room creates one huge space with wonderful views.
  • Over the garage, you have the perfect in-law or teen suite.
  • Should you need more space, the plans will come with an optional lower level that adds 2,902 square feet.
  • A spiral staircase on the rear porch leads up to an observatory porch.
  • Related Plans: Get more room with house plans 15810GE (6,510 sq. ft.) and 15812GE (6,733 sq. ft.).

The plan set includes the following:

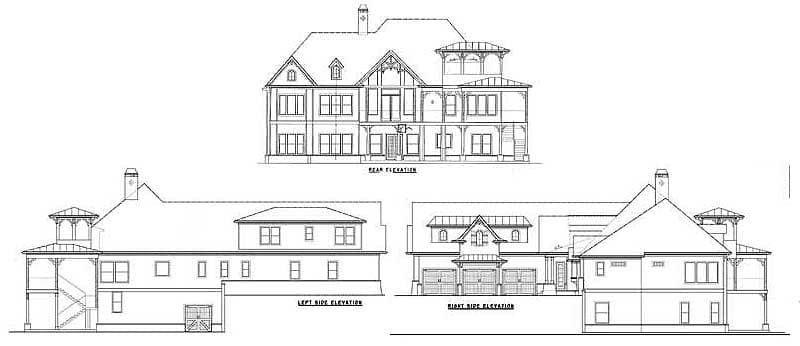

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

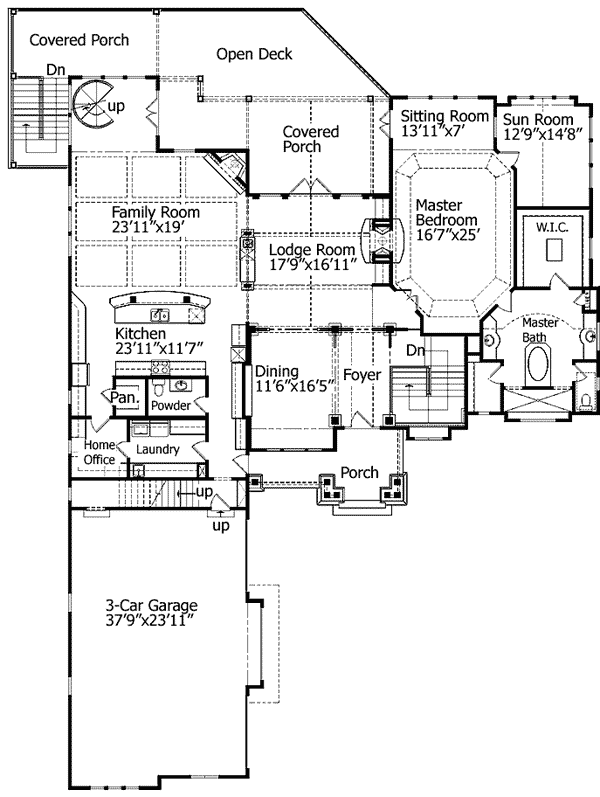

Mountain Lodge with Options - 15663GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Lodge with Options - 15663GE floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

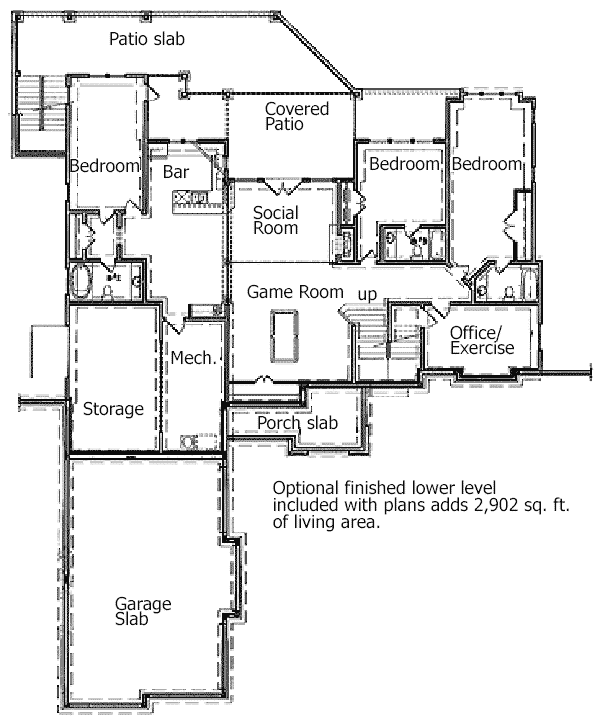

Mountain Lodge with Options - 15663GE floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,042 sq. ft.
  • 1st Floor: 3,217 sq. ft.
  • 2nd Floor: 825 sq. ft.
  • Basement Unfinished: 2,902 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 81' 2"
  • Depth: 107' 2"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 937 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Mountain Lodge with Options

  • 4,042

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,895
  • CAD - Single-Build $4,245
  • View all purchase option online

About This Plan

  • A stunning rustic exterior suits this home perfectly making it your mountain lodge retreat.
  • Inside, a two-sided fireplace is shared by the lodge room and the spacious master bedroom with both a sunroom and a sitting room to pamper the owners.
  • Spend time outdoors on your covered porch or open deck.
  • A combination kitchen and family room creates one huge space with wonderful views.
  • Over the garage, you have the perfect in-law or teen suite.
  • Should you need more space, the plans will come with an optional lower level that adds 2,902 square feet.
  • A spiral staircase on the rear porch leads up to an observatory porch.
  • Related Plans: Get more room with house plans 15810GE (6,510 sq. ft.) and 15812GE (6,733 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,042 sq. ft.
  • 1st Floor: 3,217 sq. ft.
  • 2nd Floor: 825 sq. ft.
  • Basement Unfinished: 2,902 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 81' 2"
  • Depth: 107' 2"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 937 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 15663GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/15663GE
|
