Plan 35214GH

Mountain Log Home Plan

2,870 3 3 2
Pageloader

Mountain Log Home Plan

Plan 35214GH

  • 2,870

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • Built with solid logs and a two-story prow-shaped window in the massive great room, this is truly a home for the mountains.
  • The kitchen and foyer are a step up from the sunken great room with its wall of windows that take advantage of your views.
  • The ' suite is off by itself and has its own private bath and access to the expansive deck area.
  • On the second floor, a large loft overlooks the great room below and shares space with the two additional bedrooms, a hall bath and a home office with storage space.
  • Ceilings: 8'2' first floor; 23'11' vaulted great room; 9' second floor.
  • Related Plans: Building in reverse? See house plan 35127GH and gain a larger bedroom by eliminating the home office.
  • Need a basement? See house plan 35128GH, also in reverse, and gain a future bath, two-car garage and additional storage.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

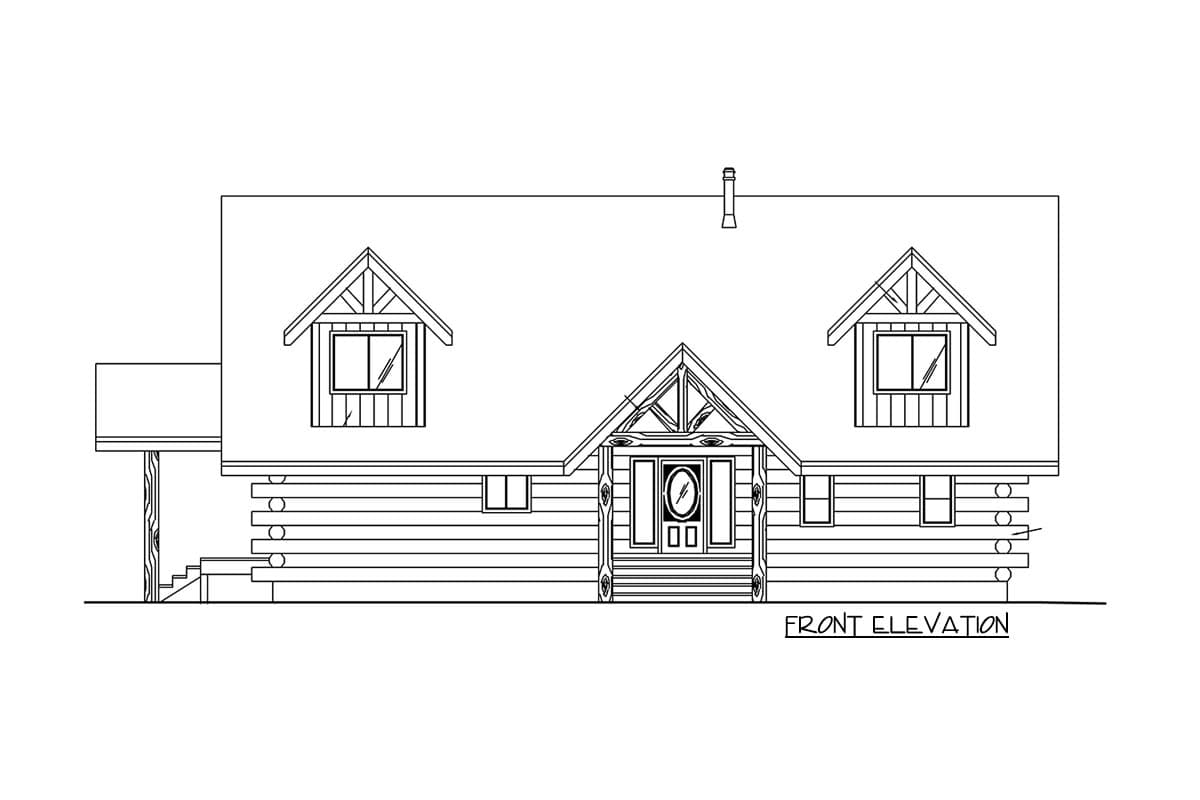

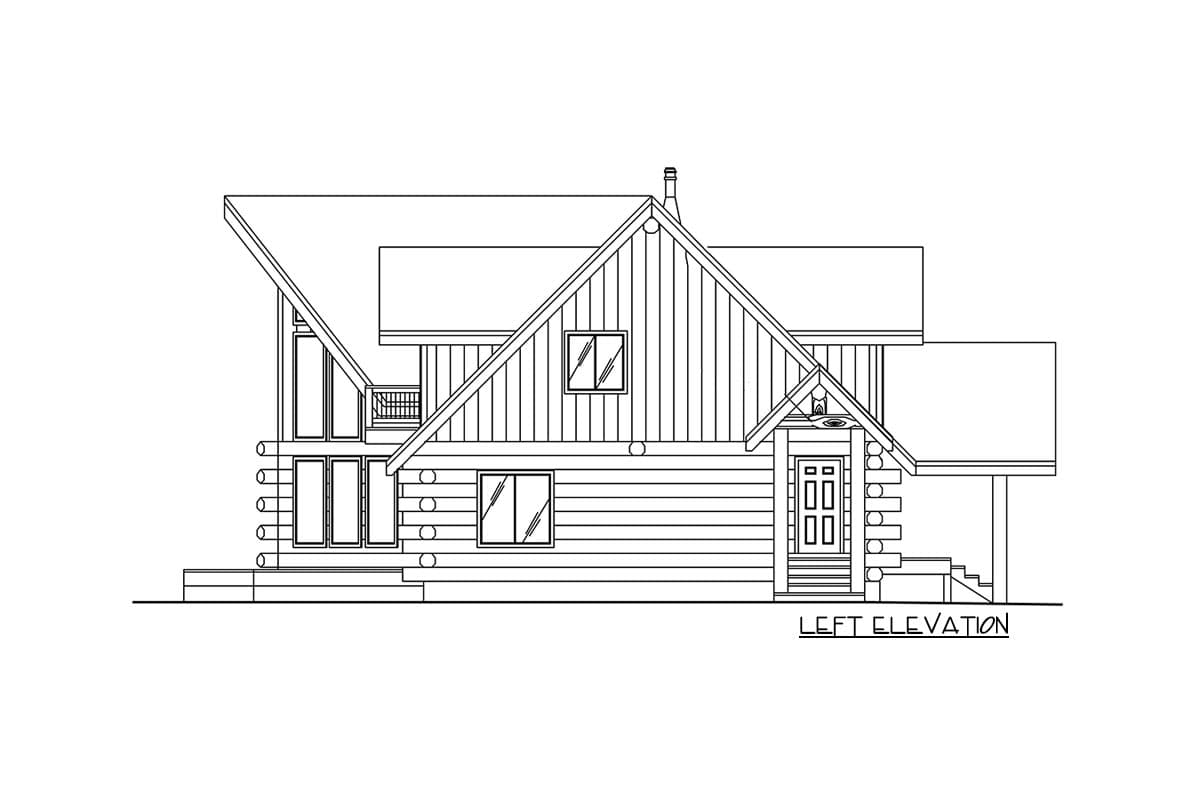

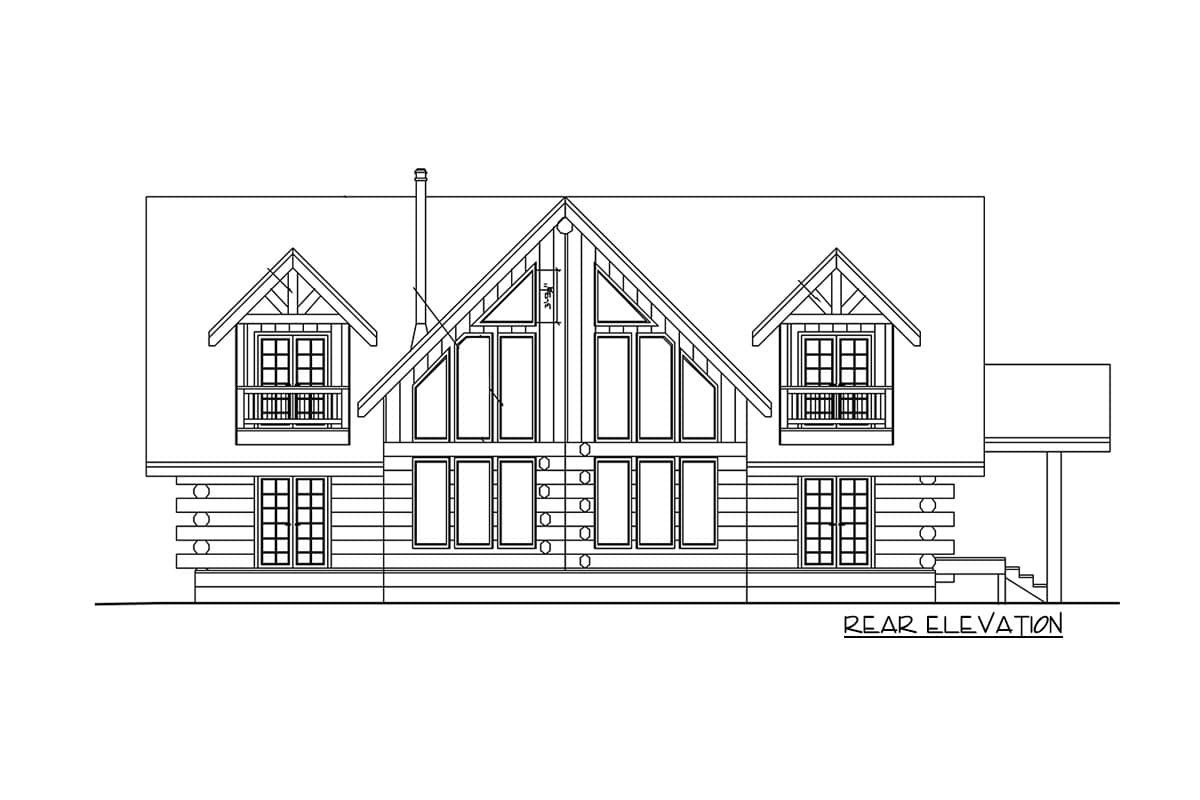

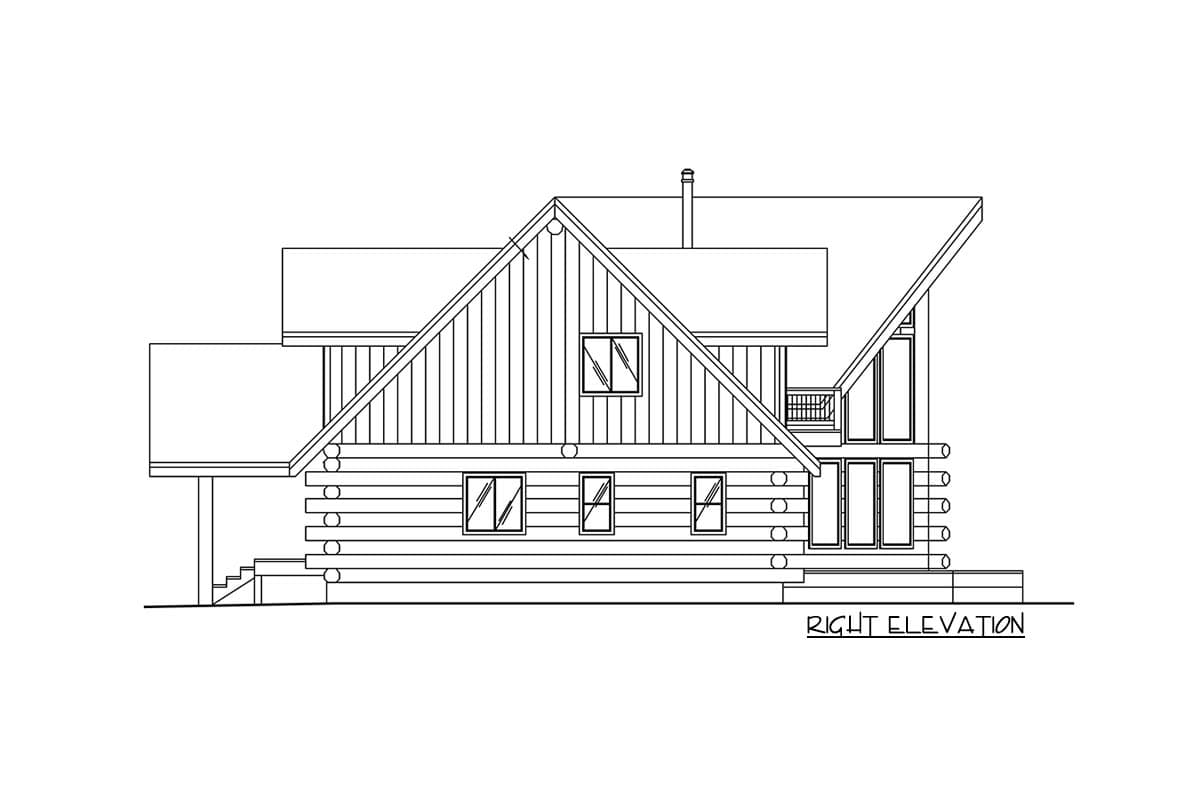

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

Floor Plan

Plan details

Architectural Style

Plan Collections



Mountain Log Home Plan

  • 2,870

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,100
  • CAD $1,300
  • PDF - single-use $1,300
  • 8 Sets $1,350
  • CAD - multi-use $2,100
  • View all purchase option online

About This Plan

  • Built with solid logs and a two-story prow-shaped window in the massive great room, this is truly a home for the mountains.
  • The kitchen and foyer are a step up from the sunken great room with its wall of windows that take advantage of your views.
  • The ' suite is off by itself and has its own private bath and access to the expansive deck area.
  • On the second floor, a large loft overlooks the great room below and shares space with the two additional bedrooms, a hall bath and a home office with storage space.
  • Ceilings: 8'2' first floor; 23'11' vaulted great room; 9' second floor.
  • Related Plans: Building in reverse? See house plan 35127GH and gain a larger bedroom by eliminating the home office.
  • Need a basement? See house plan 35128GH, also in reverse, and gain a future bath, two-car garage and additional storage.

Floor Plans

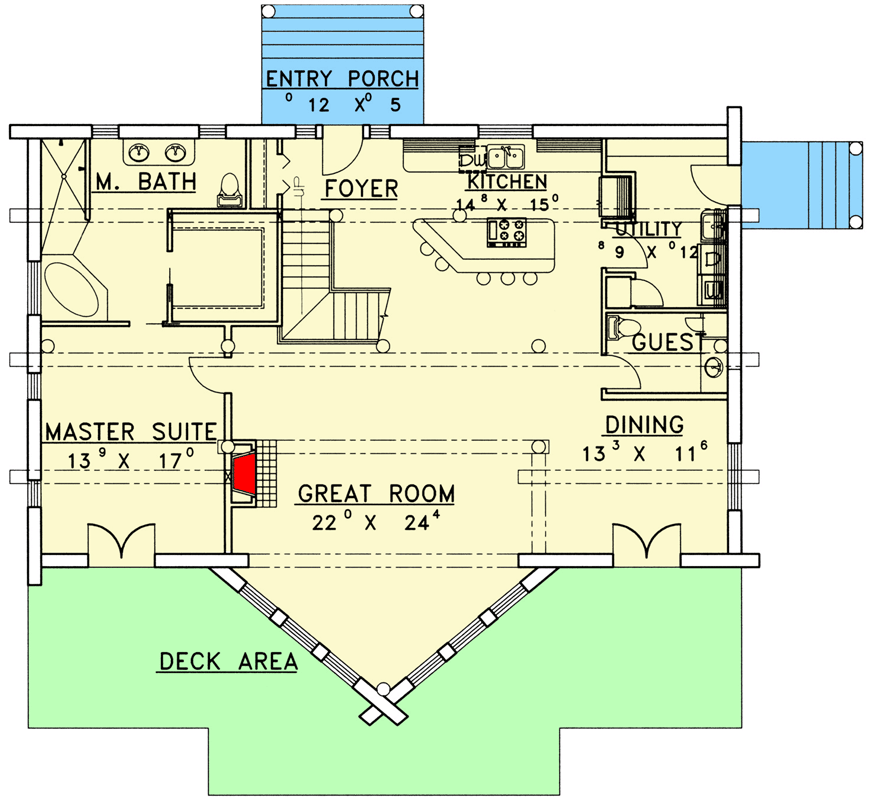

  • Main Level

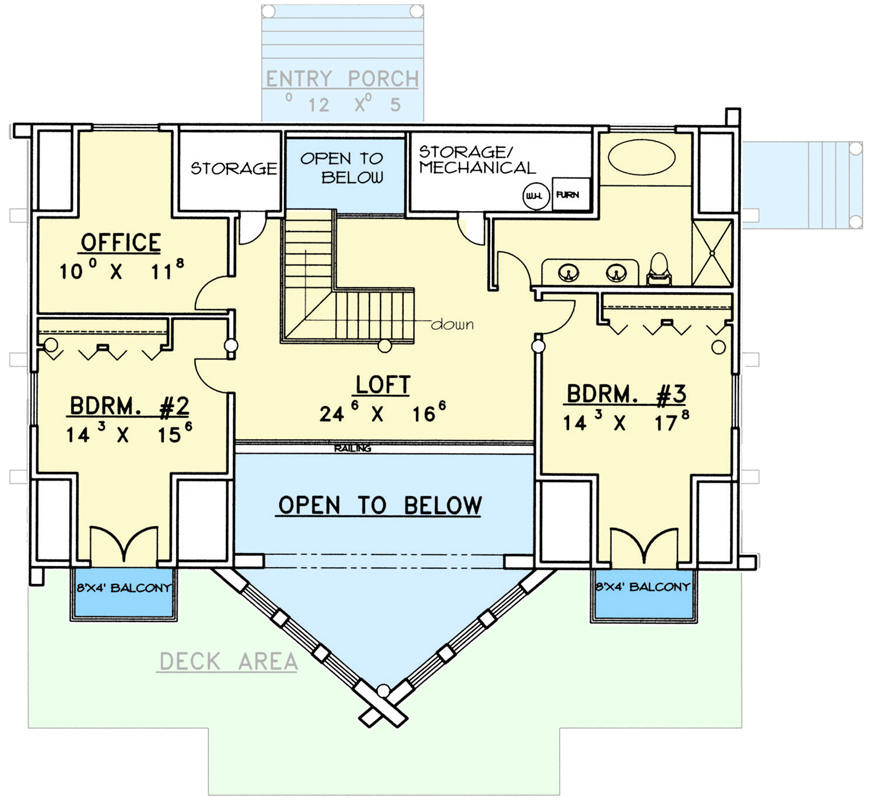

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,870 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • 2nd Floor: 1,110 sq. ft.
  • Attic: 240 sq. ft.
  • Screened Porch: 124 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): Log

Dimensions

  • Width: 55' 8"
  • Depth: 51' 4"
  • Max ridge height: 29' 2"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" 0' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: N on N
  • Framing Type: Stick

Architectural Style

  • Log
  • Mountain

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Loft
  • PDF

Plan Collections

  • Metric
