Plan 35128GH Sloping Lot Mountain Log Home Plan

3,219 3 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Sloping Lot Mountain Log Home Plan

Plan 35128GH

  • 3,219

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Built with solid logs and a two-story prow-shaped window in the massive great room, this is truly a home for the mountains.
  • The kitchen and foyer are a step up from the sunken great room with its wall of windows that take advantage of your views.
  • The ' suite is off by itself and has its own private bath and access to the expansive deck area.
  • On the second floor, a large loft overlooks the great room below and shares space with the two additional bedrooms and a hall bath.
  • An unfinished basement and two car drive-under garage occupy the lower level.
  • Ceilings: 8'2' first floor; 23'11' vaulted great room; 9' second floor.
  • Related Plans: Building on a crawl space? See house plan 35127GH and 35214GH (reverse layout and a home office).

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

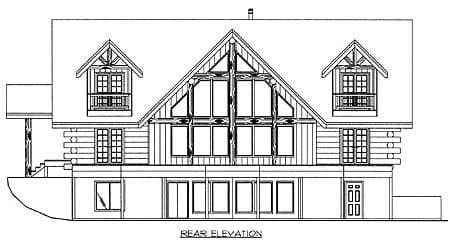

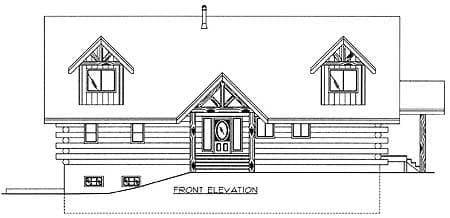

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

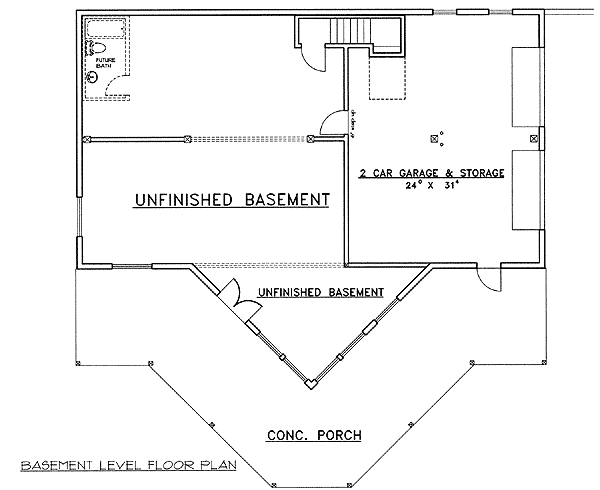

Sloping Lot Mountain Log Home Plan - 35128GH floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

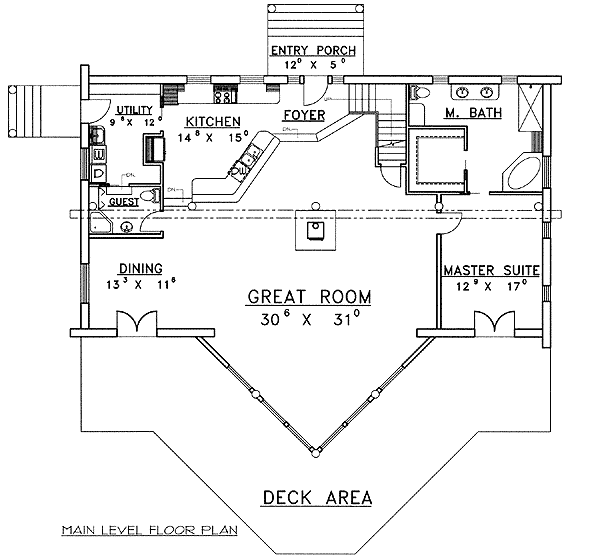

Sloping Lot Mountain Log Home Plan - 35128GH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

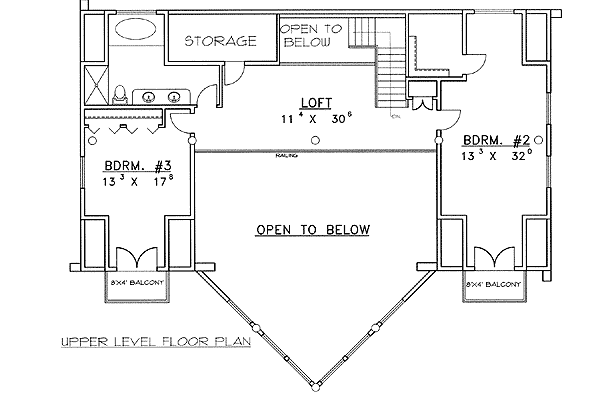

Sloping Lot Mountain Log Home Plan - 35128GH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,219 sq. ft.
  • 1st Floor: 2,089 sq. ft.
  • 2nd Floor: 1,130 sq. ft.
  • Attic: 240 sq. ft.
  • Basement Unfinished: 1,385 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): Log

Dimensions

  • Width: 68' 0"
  • Depth: 69' 6"
  • Max ridge height: 28' 8"

Garage

  • Type: Drive Under
  • Area: 764 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 2"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: N on N
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Sloping Lot Mountain Log Home Plan

  • 3,219

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • CAD + PDF - Single Build $1,495
  • PDF - Single-Build $1,495
  • 5 Sets + PDF $1,645
  • CAD + PDF - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • Built with solid logs and a two-story prow-shaped window in the massive great room, this is truly a home for the mountains.
  • The kitchen and foyer are a step up from the sunken great room with its wall of windows that take advantage of your views.
  • The ' suite is off by itself and has its own private bath and access to the expansive deck area.
  • On the second floor, a large loft overlooks the great room below and shares space with the two additional bedrooms and a hall bath.
  • An unfinished basement and two car drive-under garage occupy the lower level.
  • Ceilings: 8'2' first floor; 23'11' vaulted great room; 9' second floor.
  • Related Plans: Building on a crawl space? See house plan 35127GH and 35214GH (reverse layout and a home office).

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,219 sq. ft.
  • 1st Floor: 2,089 sq. ft.
  • 2nd Floor: 1,130 sq. ft.
  • Attic: 240 sq. ft.
  • Basement Unfinished: 1,385 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): Log

Dimensions

  • Width: 68' 0"
  • Depth: 69' 6"
  • Max ridge height: 28' 8"

Garage

  • Type: Drive Under
  • Area: 764 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 2"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: N on N
  • Framing Type: Truss
