Plan 777009MTL
Mountain Modern Home Plan for Tiny Living
Heated S.F.
879
Beds
2
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 777009MTL

Main Level
slide image 0
2nd Floor
slide image 1
Wall Framing Section
slide image 2

Plan 777009MTL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Wall Framing Section
floor plan image Wall Framing Section
Plan Details
  • Clean lines, a metal exterior, and sloped roof define this Mountain Modern home plan that delivers a functional layout within its compact footprint.

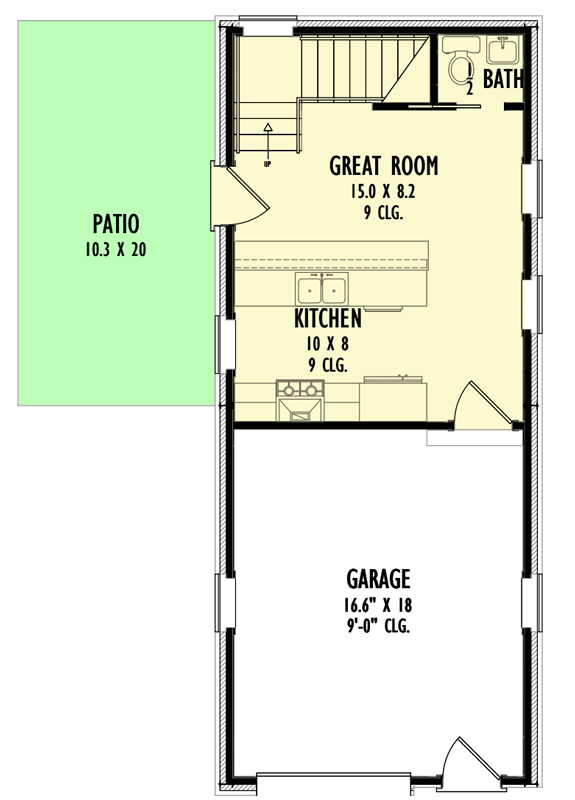

  • A 10' by 20' covered patio welcomes you inside where the great room and eat-in kitchen consume the main level. A powder bath is conveniently tucked beneath the stairwell.
  • The peninsula-style counter includes an eating bar for meals and snacks, and a nearby door provides easy access to the single garage bay.

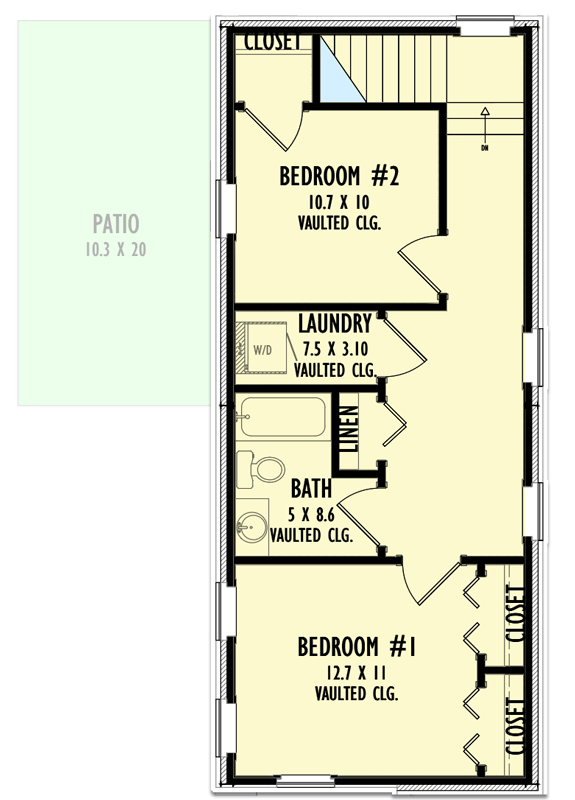

  • Upstairs, two bedrooms are separated by the full bath, linen closet, and laundry room with a stackable washer / dryer unit.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

879 sq. ft.

1st Floor

301 sq. ft.

2nd Floor

578 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

16' 6"

Depth

40' 0"

Garage

Type

Attached

Area

277 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

0.5 on 12

Architectural Style

Contemporary

Cottage

Modern

Mountain

Northwest

Vacation

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

879 sq. ft.

1st Floor

301 sq. ft.

2nd Floor

578 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

16' 6"

Depth

40' 0"

Garage

Type

Attached

Area

277 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

0.5 on 12

Architectural Style

Contemporary

Cottage

Modern

Mountain

Northwest

Vacation

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Tiny Home House Plans
