Plan 871028JEN Mountain Modern House Plan with Courtyard Entry and 2-Story Great Room

4,394 4 4.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Modern House Plan with Courtyard Entry and 2-Story Great Room

Plan 871028JEN

  • 4,394

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

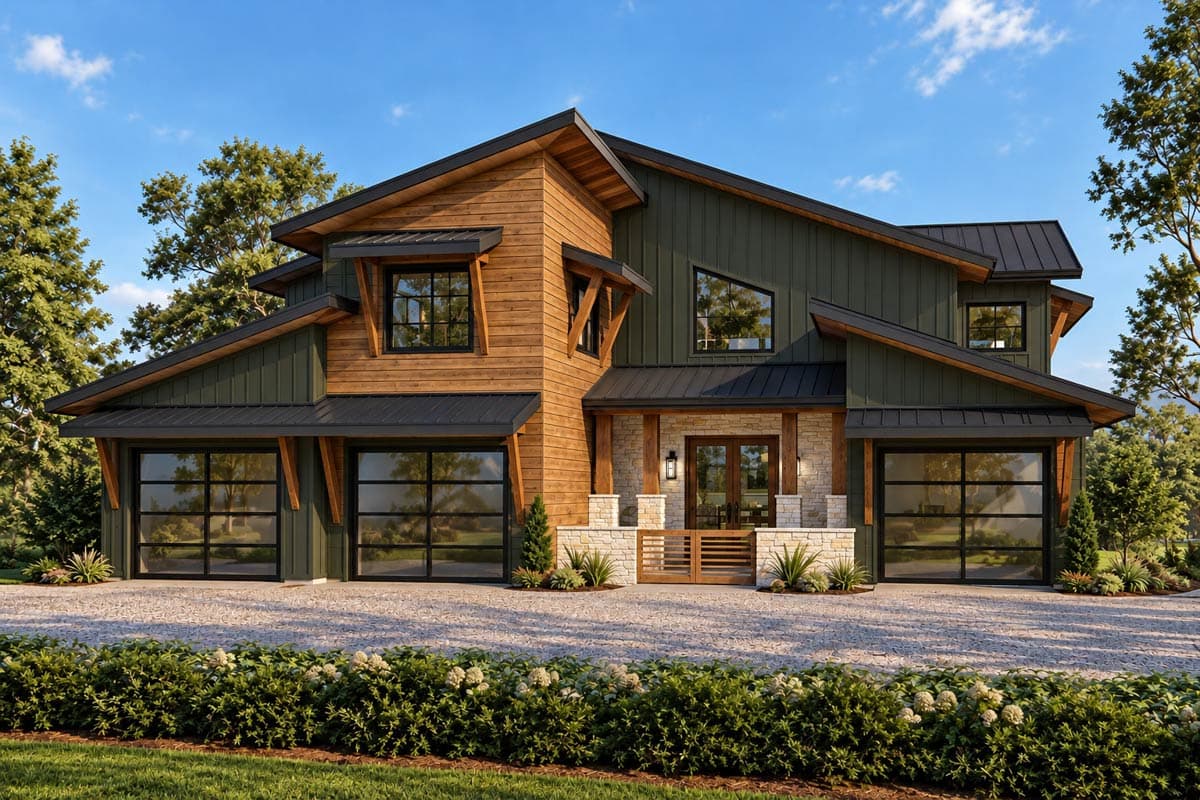

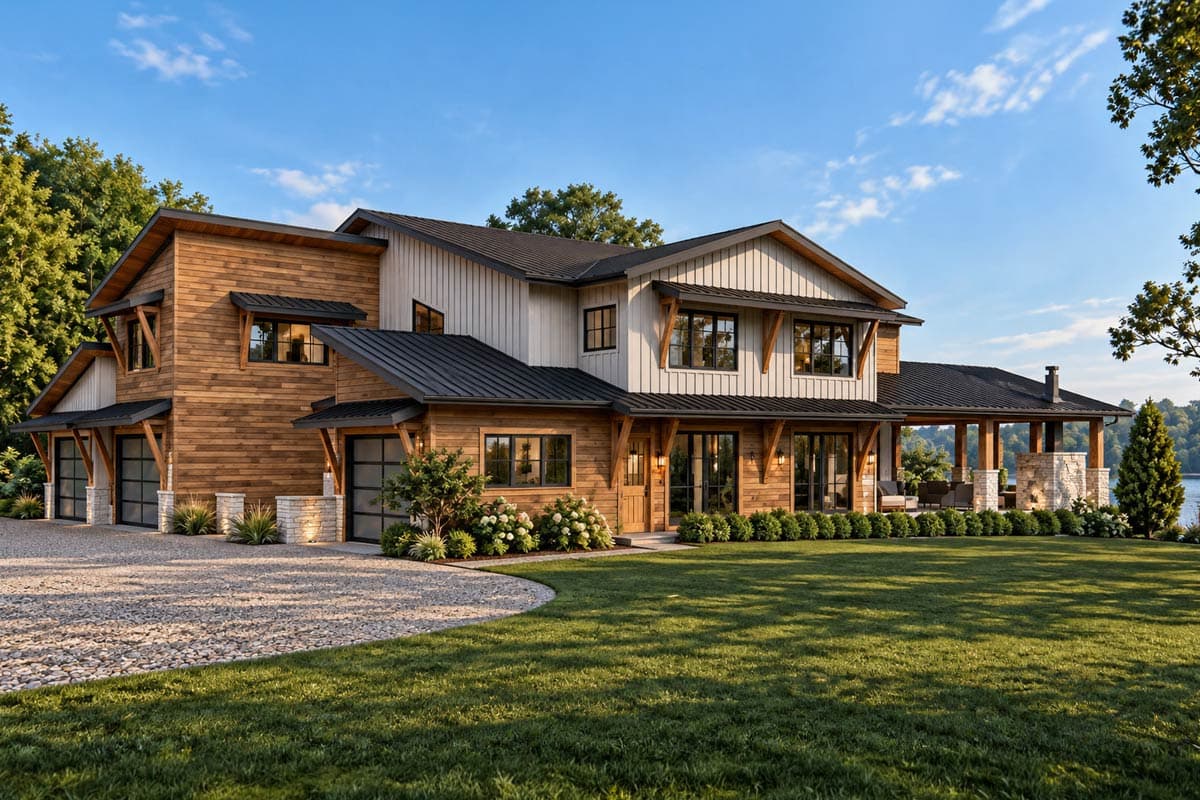

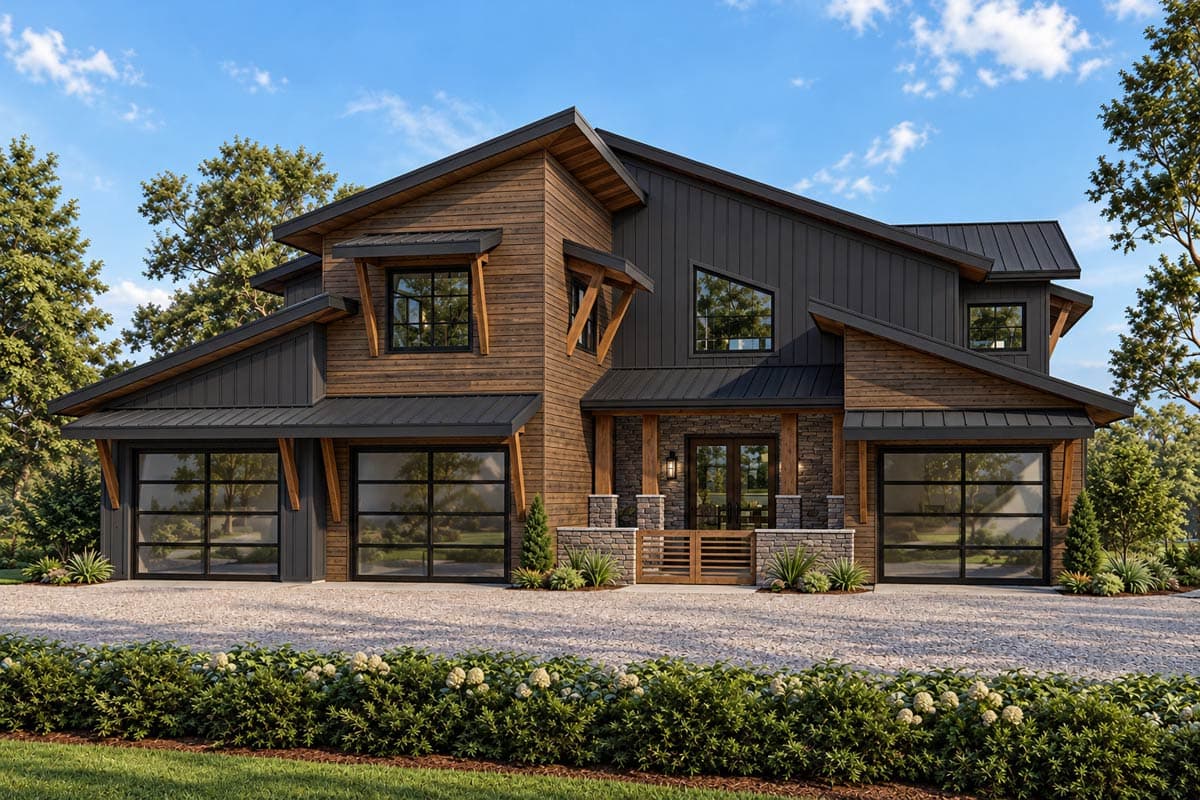

  • Live your best life in this Exclusive Mountain Modern house plan, complete with a courtyard entry to greet your guests.
  • Walk through the foyer to find an elegant glass-encased wine room that sets the mood for the kitchen just around the corner. The master chef’s kitchen has a large island with two sinks, a built-in spice rack, and barn doors that open to a walk-in pantry.
  • The kitchen, dining, and great room expand upward with 2-story ceilings surrounded by windows for a first floor flooded with natural light.

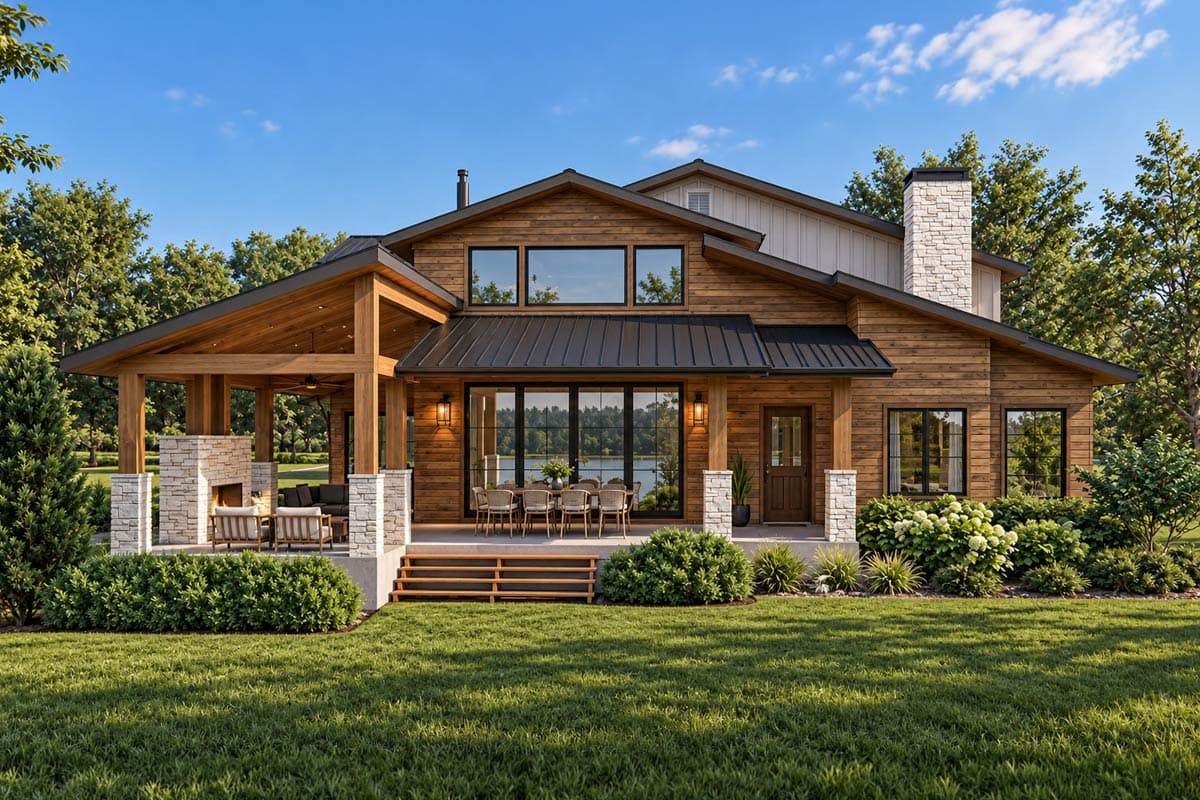

  • The first-floor master bedroom has a private entry to the covered porch along with a window-side seat that doubles as storage. A see-thru fireplace between the master bed and bath provides lake views from a luxurious soaking tub.
  • Two home offices (one doubles as a guest bedroom) allow you to work comfortably with your partner, while two more bedrooms and a bonus room with wet bar can be found upstairs.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

This house plan set has the following details:


Foundation plan
Detailed floor plans
Roof plan
Elevations (all four sides)
Sections
3D model views
Electrical plans
Framing details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Modern House Plan with Courtyard Entry and 2-Story Great Room - 871028JEN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Modern House Plan with Courtyard Entry and 2-Story Great Room - 871028JEN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,394 sq. ft.
  • 1st Floor: 2,852 sq. ft.
  • 2nd Floor: 1,542 sq. ft.
  • Courtyard: 190 sq. ft.
  • Porch, Rear: 1,062 sq. ft.
  • Porch, Front: 110 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Combo Slab-Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 102' 10"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 1048 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Cathedral 19' 10" 18' 11"
Dining Room Cathedral 26' 3" 14' 5"
Kitchen Cathedral 16' 9" 14' 11"
Foyer Vaulted 7' 2" 12' 9"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Mountain Modern House Plan with Courtyard Entry and 2-Story Great Room

  • 4,394

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,395
  • 5 Sets + PDF $2,695
  • PDF - Unlimited Build $3,195
  • CAD - Single-Build $3,395
  • View all purchase option online

About This Plan

  • Live your best life in this Exclusive Mountain Modern house plan, complete with a courtyard entry to greet your guests.
  • Walk through the foyer to find an elegant glass-encased wine room that sets the mood for the kitchen just around the corner. The master chef’s kitchen has a large island with two sinks, a built-in spice rack, and barn doors that open to a walk-in pantry.
  • The kitchen, dining, and great room expand upward with 2-story ceilings surrounded by windows for a first floor flooded with natural light.
  • The first-floor master bedroom has a private entry to the covered porch along with a window-side seat that doubles as storage. A see-thru fireplace between the master bed and bath provides lake views from a luxurious soaking tub.
  • Two home offices (one doubles as a guest bedroom) allow you to work comfortably with your partner, while two more bedrooms and a bonus room with wet bar can be found upstairs.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,394 sq. ft.
  • 1st Floor: 2,852 sq. ft.
  • 2nd Floor: 1,542 sq. ft.
  • Courtyard: 190 sq. ft.
  • Porch, Rear: 1,062 sq. ft.
  • Porch, Front: 110 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Slab-Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 102' 10"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 1048 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 871028JEN
View this and more for this plan by visiting www.architechtecturaldesigns.com/871028JEN
|
