Plan 61483UT

Exclusive

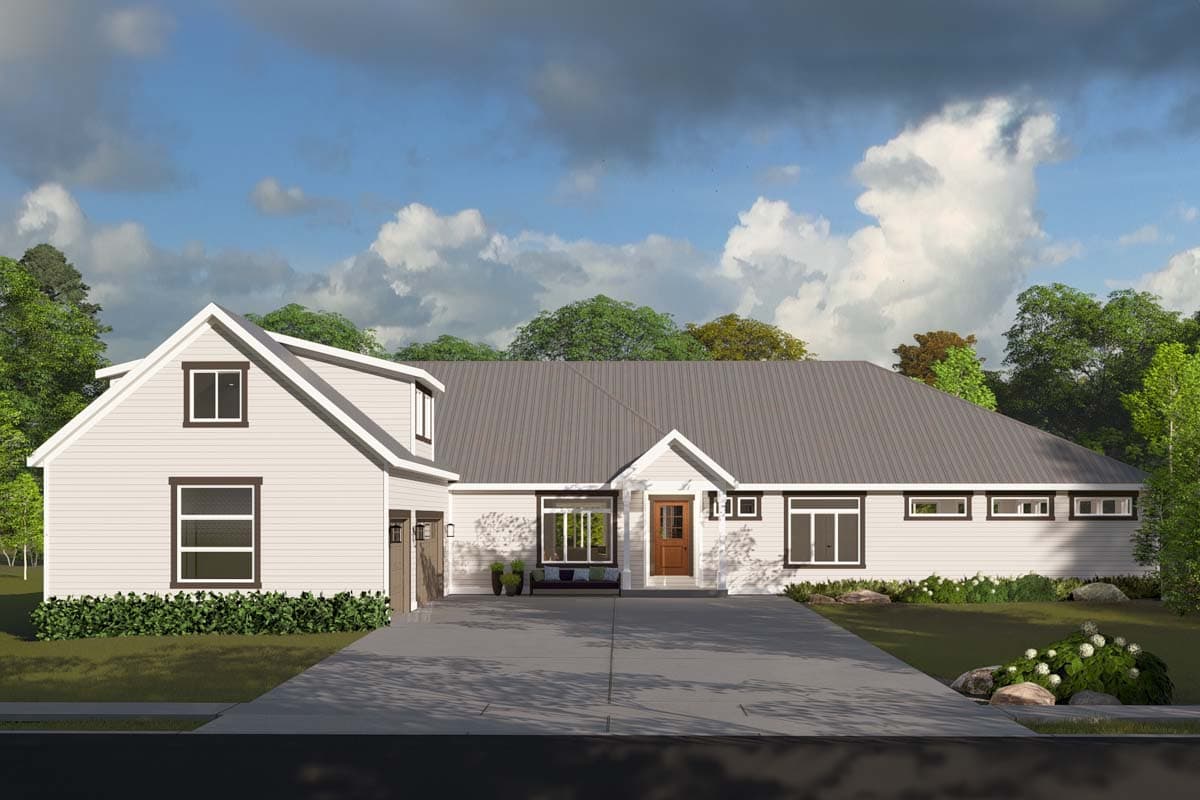

Mountain Ranch Home Plan with Lower Level Expansion - 4057 Sq Ft

Heated S.F.
4,057
Beds
3
Baths
4.5
Stories
1
Cars
3

Floor Plan

Plan 61483UT

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 61483UT

M-F 9am-5pm EST |

1-203-761-8500

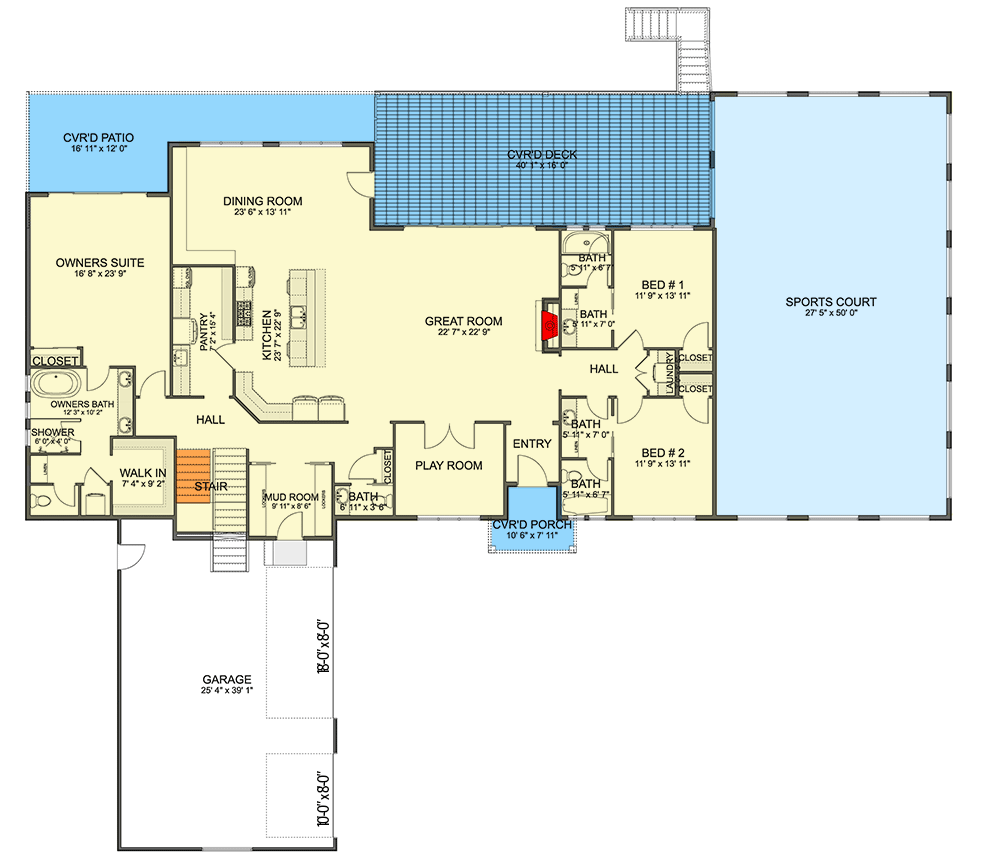

Main Level

Plan 61483UT: Mountain Ranch Home Plan with Lower Level Expansion - 4057 Sq Ft - Floor Plan - Main Level - Mountain, New American, Ranch

2nd Floor

Plan 61483UT: Mountain Ranch Home Plan with Lower Level Expansion - 4057 Sq Ft - Floor Plan - 2nd Floor - Mountain, New American, Ranch

Optional Lower Level

Plan 61483UT: Mountain Ranch Home Plan with Lower Level Expansion - 4057 Sq Ft - Floor Plan - Optional Lower Level - Mountain, New American, Ranch

Plan Details

  • This 3 bed Mountain Ranch house plan gives you 4,057 square feet of single floor living and has lower level expansion with a loaded floor plan with a sports court and more.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

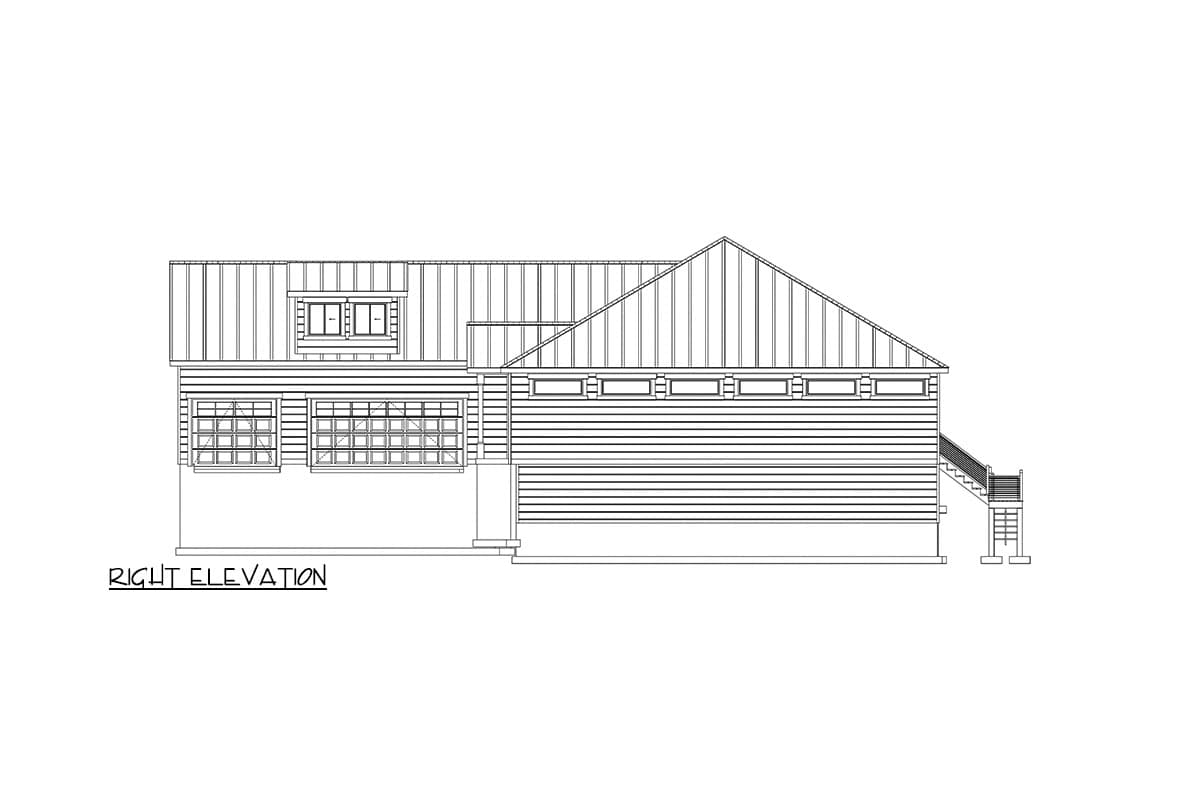

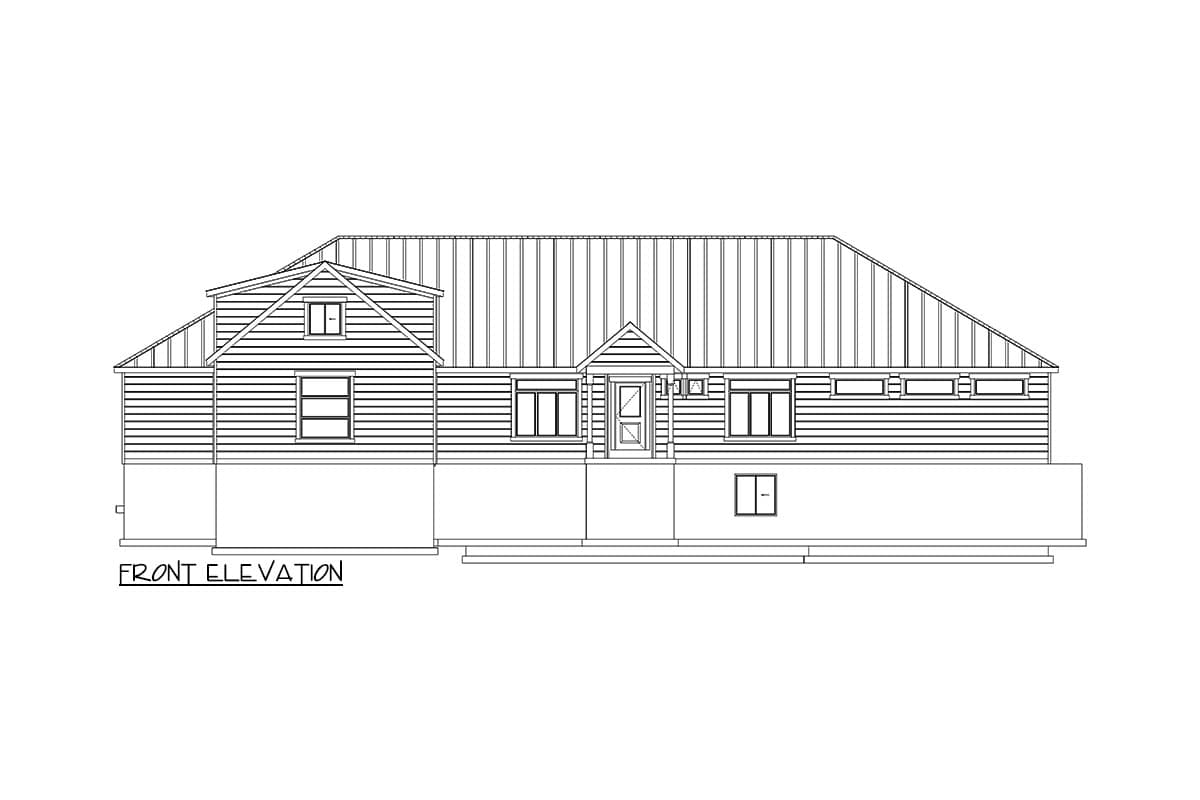

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,057 sq. ft.

1st Floor

3,225 sq. ft.

2nd Floor

832 sq. ft.

Basement Unfinished

5,709 sq. ft.

Porch, Combined

1,065 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 6"

Depth

90' 6"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

978 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

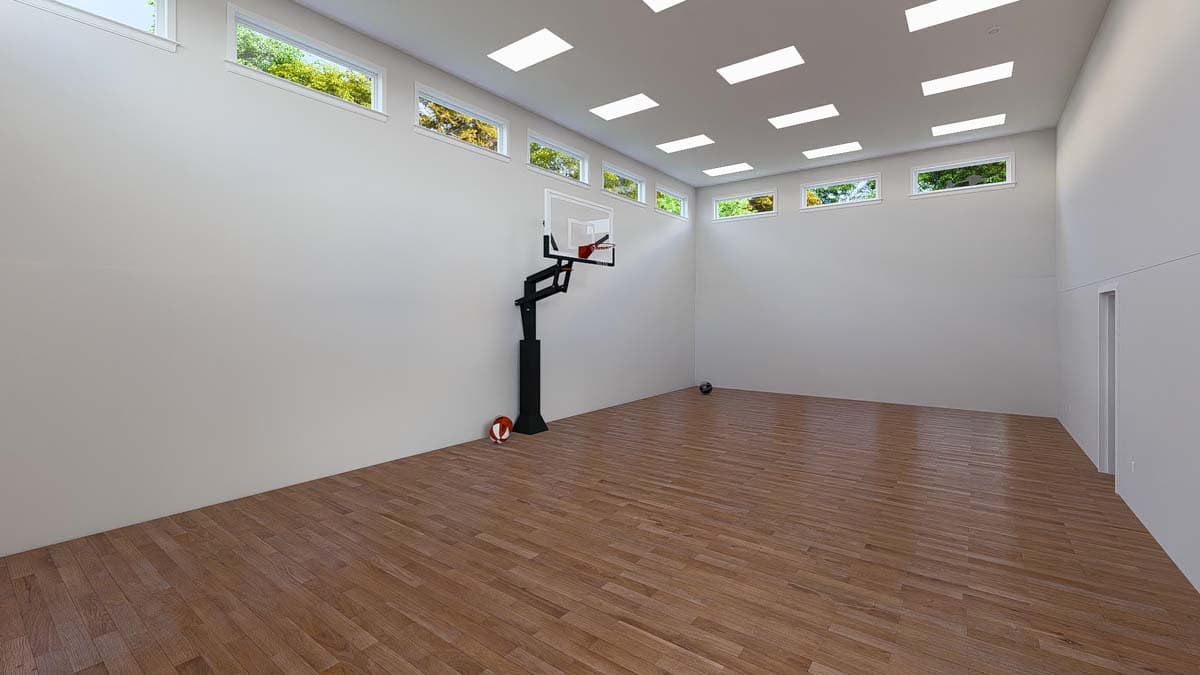

Sports Court

20' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Mountain

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Home Theater

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Playroom

Sport Court

Walk-in Pantry

Plan Collections

Exclusive

Lake House Plans

Sloping Lot
