Plan 68748VR Mountain Ranch Home Plan with Master Suite Sun Room and 3-car Front-facing Garage

1,763 2 2 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Ranch Home Plan with Master Suite Sun Room and 3-car Front-facing Garage

Plan 68748VR

  • 1,763

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This versatile mountain ranch home plan welcomes you with its dramatic vaulted front porch. In back, the vaulted rear porch gives you another place to enjoy your views.
  • Through the vaulted front entry, discover a spacious open floor plan with your vaulted kitchen and great room combined into one entertaining space. French doors in the breakfast area open to the rear covered deck.
  • Your master suite takes up the right side of the home and includes a sun room with covered deck access. Across the home, a second bedroom has its own bathroom.
  • In front of the garage, there is a 16' door for 2 cars and a 9' door for a third car. On the side, a 7' garage door gives you room for smaller vehicles.
  • Related Plans: Get a 2-car front-facing garage with house plans 68585VR, 68510VR and 68616VR and a 3-car side garage with house plan 68464VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

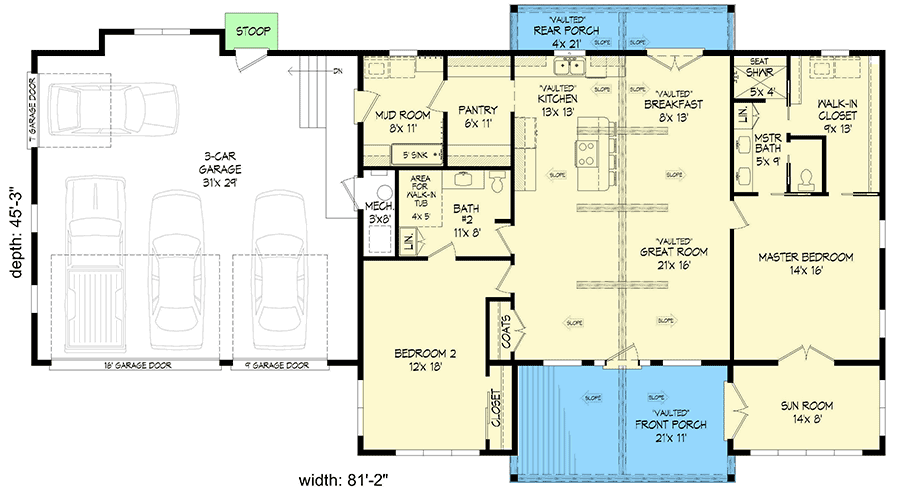

Mountain Ranch Home Plan with Master Suite Sun Room and 3-car Front-facing Garage - 68748VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,763 sq. ft.
  • 1st Floor: 1,763 sq. ft.
  • Porch, Rear: 90 sq. ft.
  • Porch, Front: 223 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 2"
  • Depth: 45' 3"
  • Max ridge height: 19' 10"

Garage

  • Area: 954 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Mountain Ranch Home Plan with Master Suite Sun Room and 3-car Front-facing Garage

  • 1,763

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,175
  • 5 Sets $1,260
  • 5 Sets + PDF $1,390
  • CAD + PDF - Single-Build $1,725
  • View all purchase option online

About This Plan

  • This versatile mountain ranch home plan welcomes you with its dramatic vaulted front porch. In back, the vaulted rear porch gives you another place to enjoy your views.
  • Through the vaulted front entry, discover a spacious open floor plan with your vaulted kitchen and great room combined into one entertaining space. French doors in the breakfast area open to the rear covered deck.
  • Your master suite takes up the right side of the home and includes a sun room with covered deck access. Across the home, a second bedroom has its own bathroom.
  • In front of the garage, there is a 16' door for 2 cars and a 9' door for a third car. On the side, a 7' garage door gives you room for smaller vehicles.
  • Related Plans: Get a 2-car front-facing garage with house plans 68585VR, 68510VR and 68616VR and a 3-car side garage with house plan 68464VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,763 sq. ft.
  • 1st Floor: 1,763 sq. ft.
  • Porch, Rear: 90 sq. ft.
  • Porch, Front: 223 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 2"
  • Depth: 45' 3"
  • Max ridge height: 19' 10"

Garage

  • Area: 954 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
Plan 68748VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68748VR
|
Need Help? 800-854-7852
|
Plan 68748VR
