Plan 54236HU Mountain Ranch Home Plan with Upstairs Bonus

2,554 3-4 3.5 1-2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Ranch Home Plan with Upstairs Bonus

Plan 54236HU

  • 2,554

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

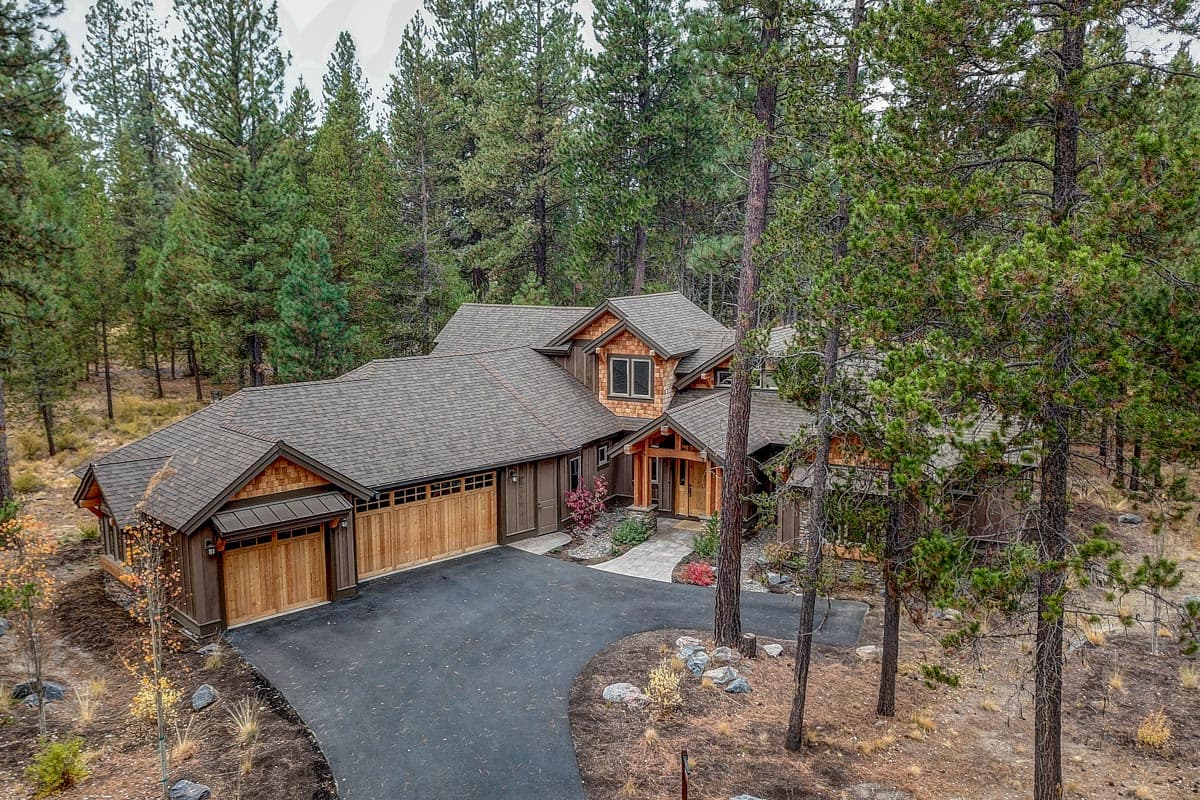

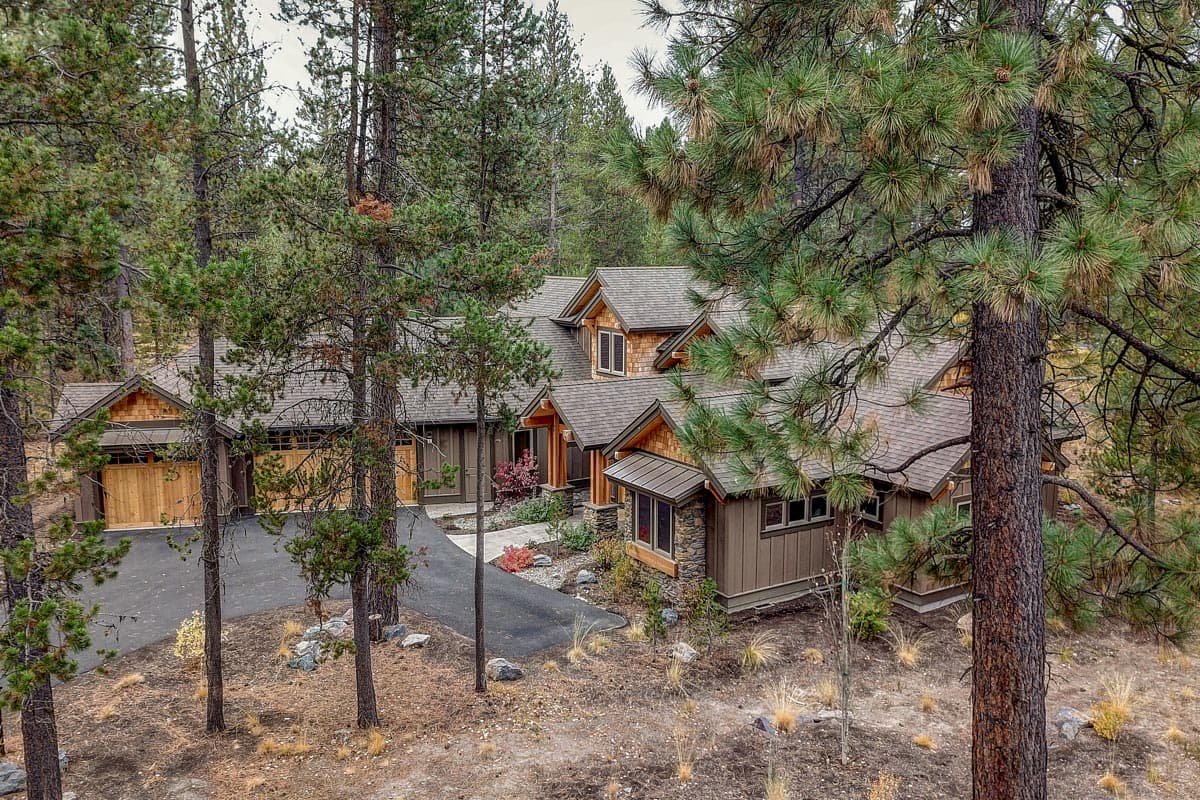

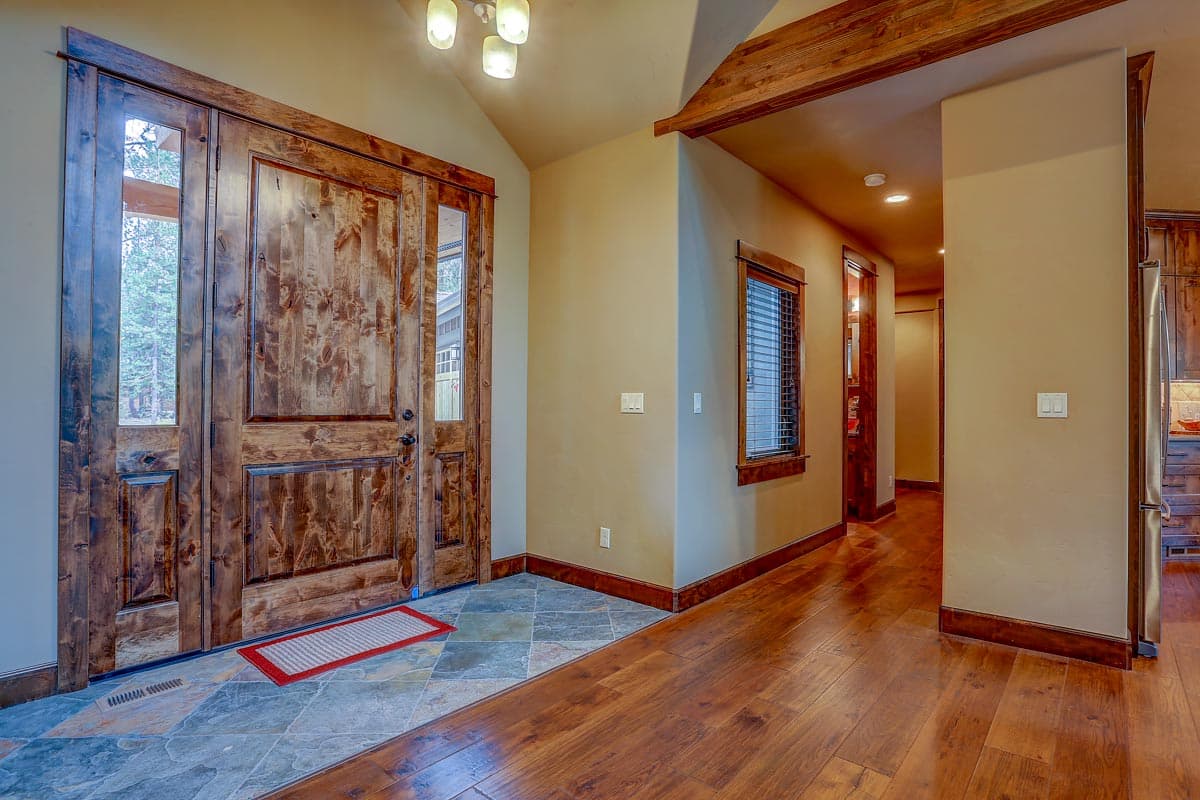

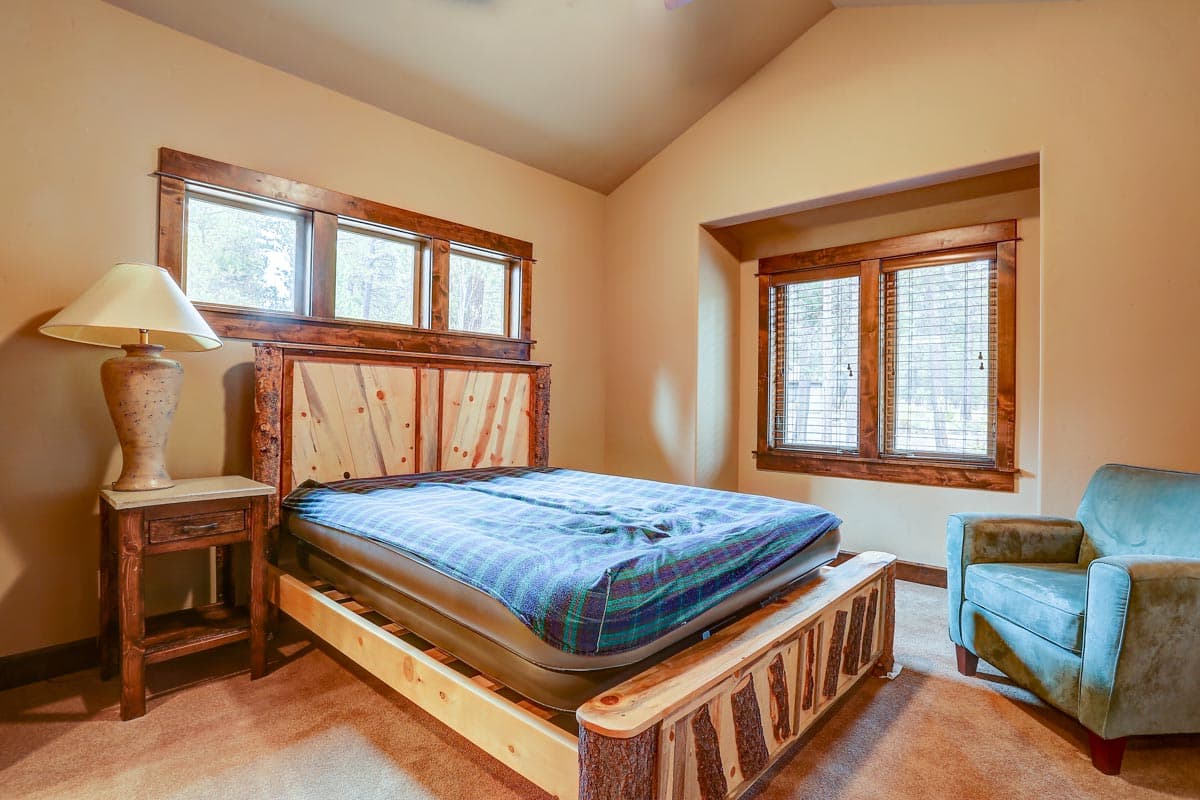

  • All three bedrooms on the main floor have vaulted ceilings in this beautiful mountain living house plan. The exterior has a sturdy look to it and the inside has an elegant flow. Step inside and you're greeted by a foyer with 11' ceilings and clear sightlines into the great room ahead.

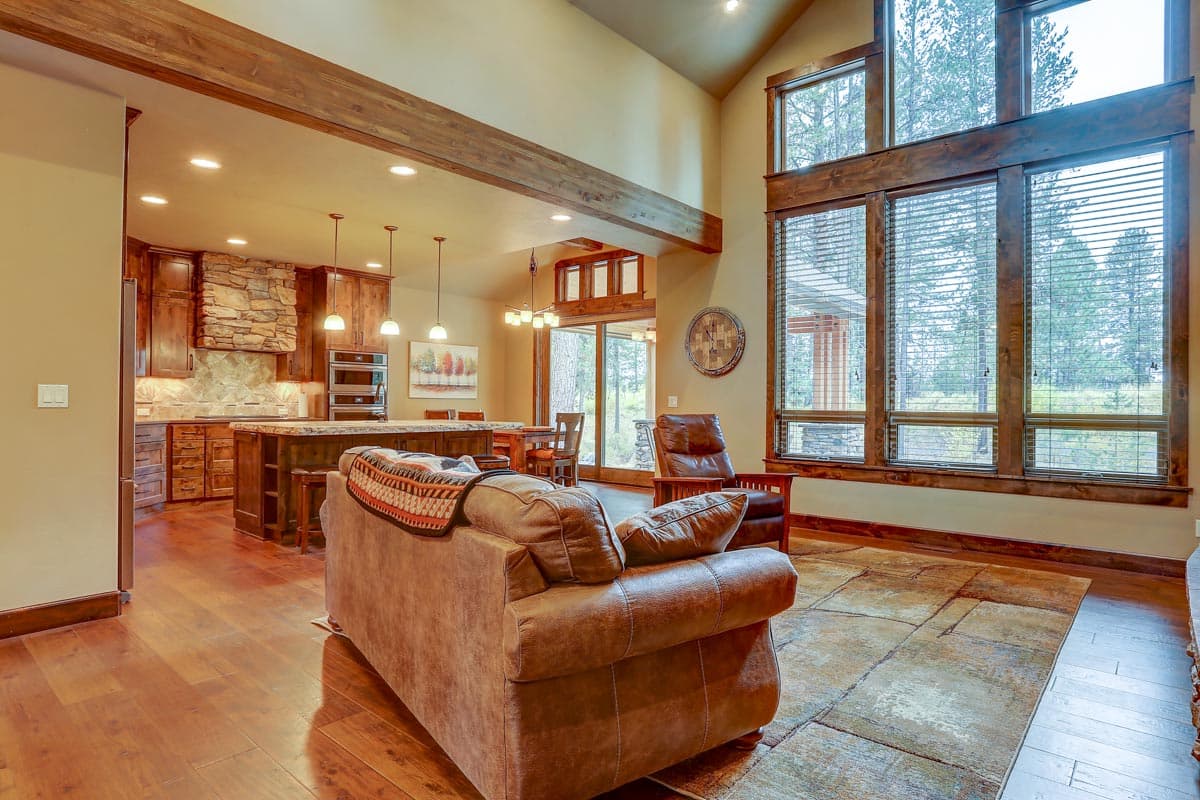

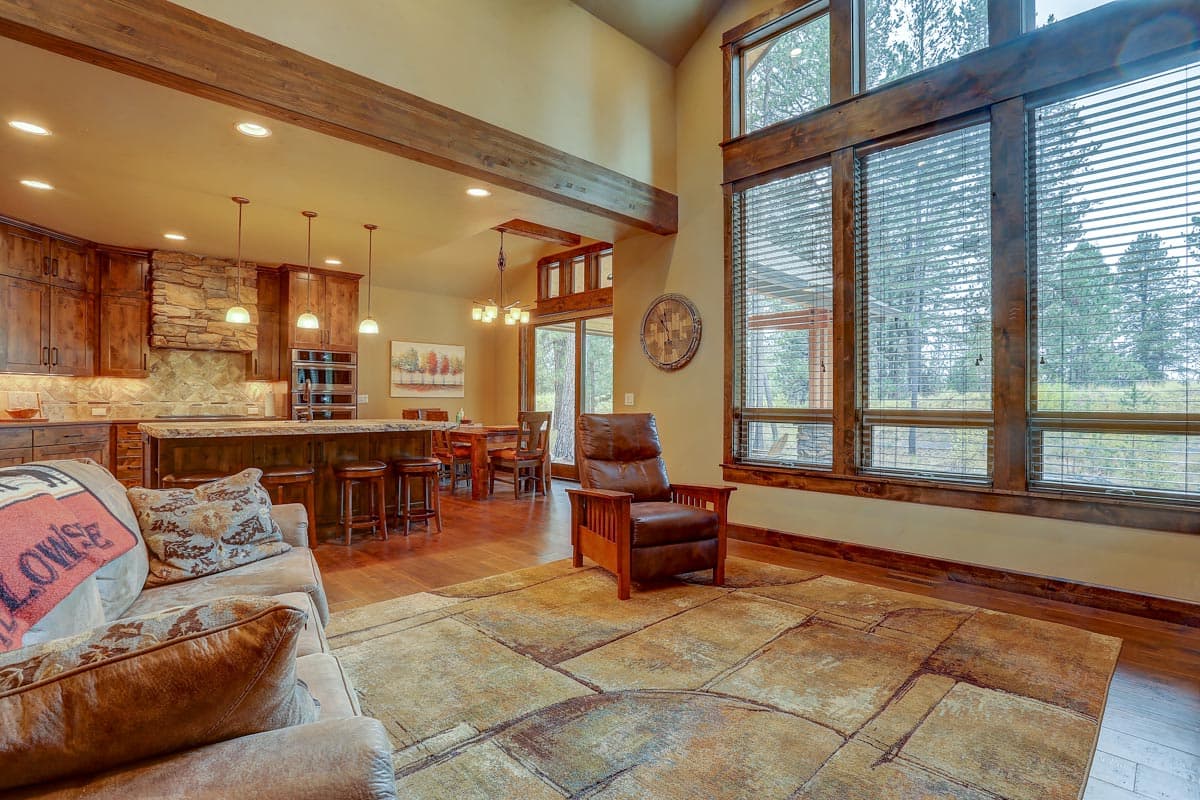

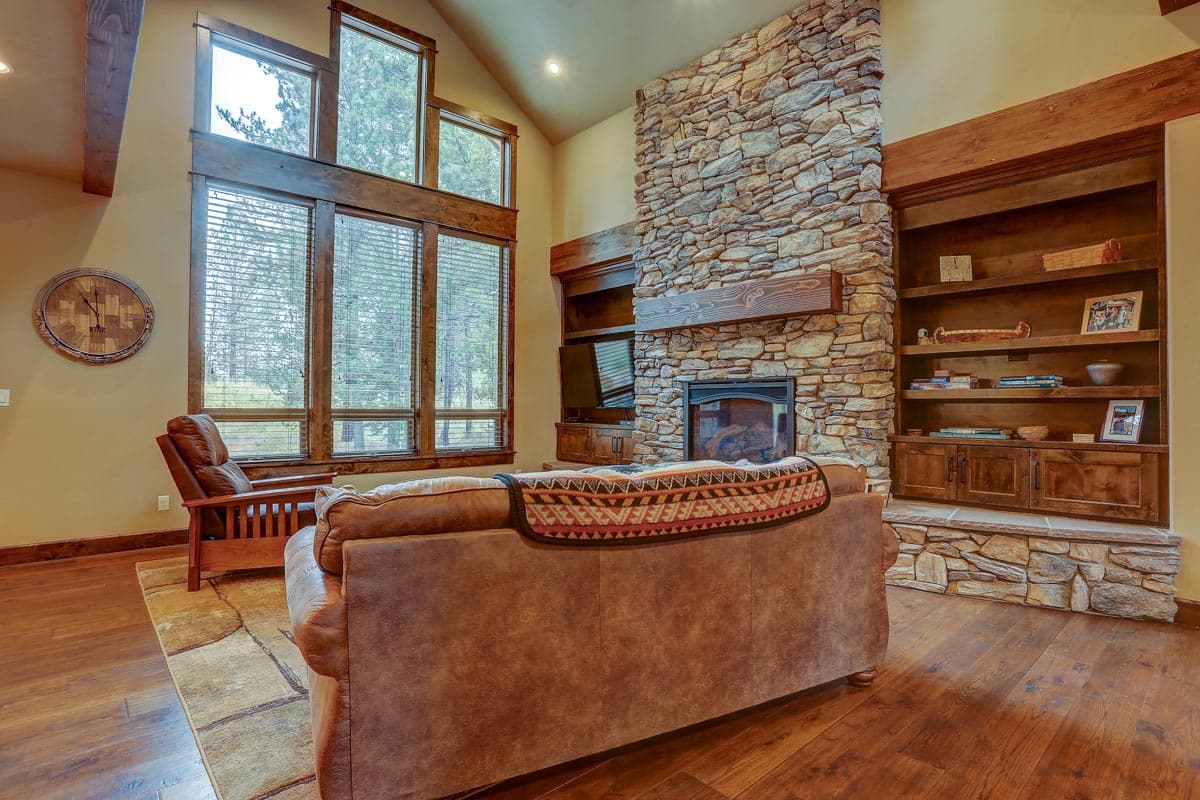

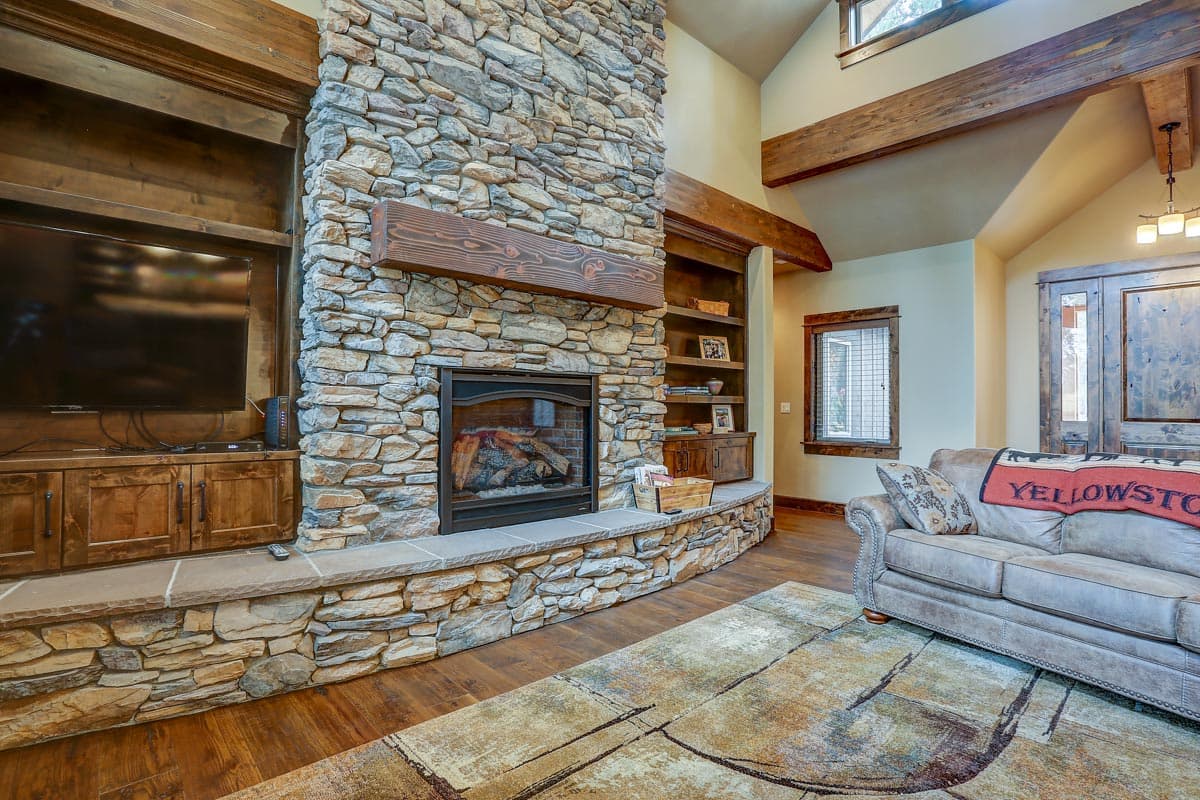

  • The great room is vaulted and gets great natural light from the windows in front and has tremendous views to the rear. The room is open to the kitchen and has a fireplace that soars to the ceiling.

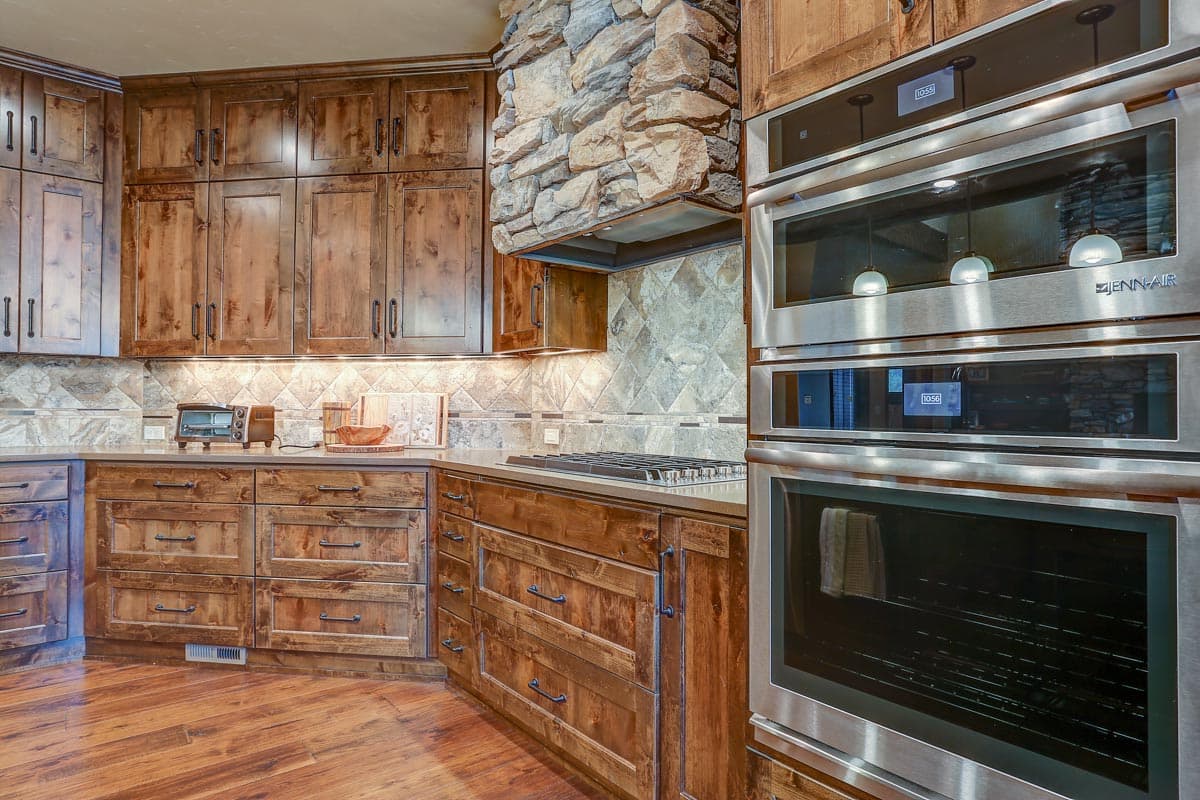

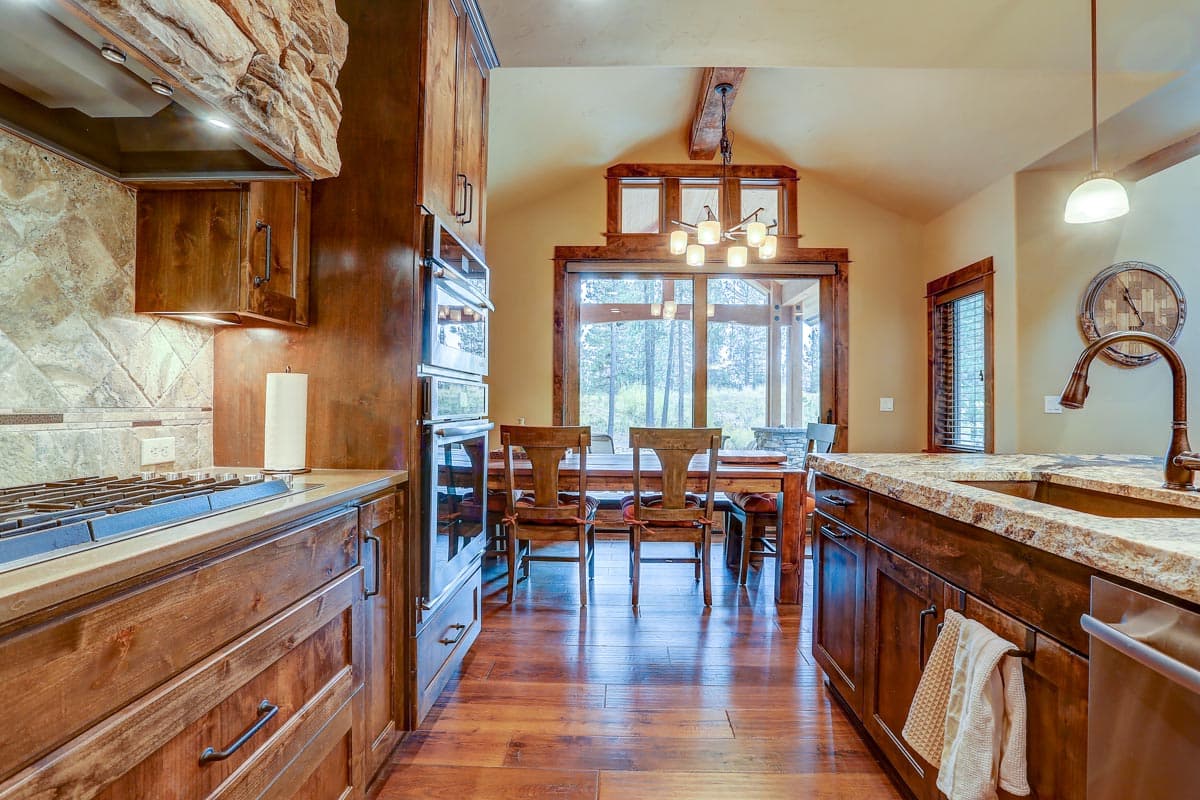

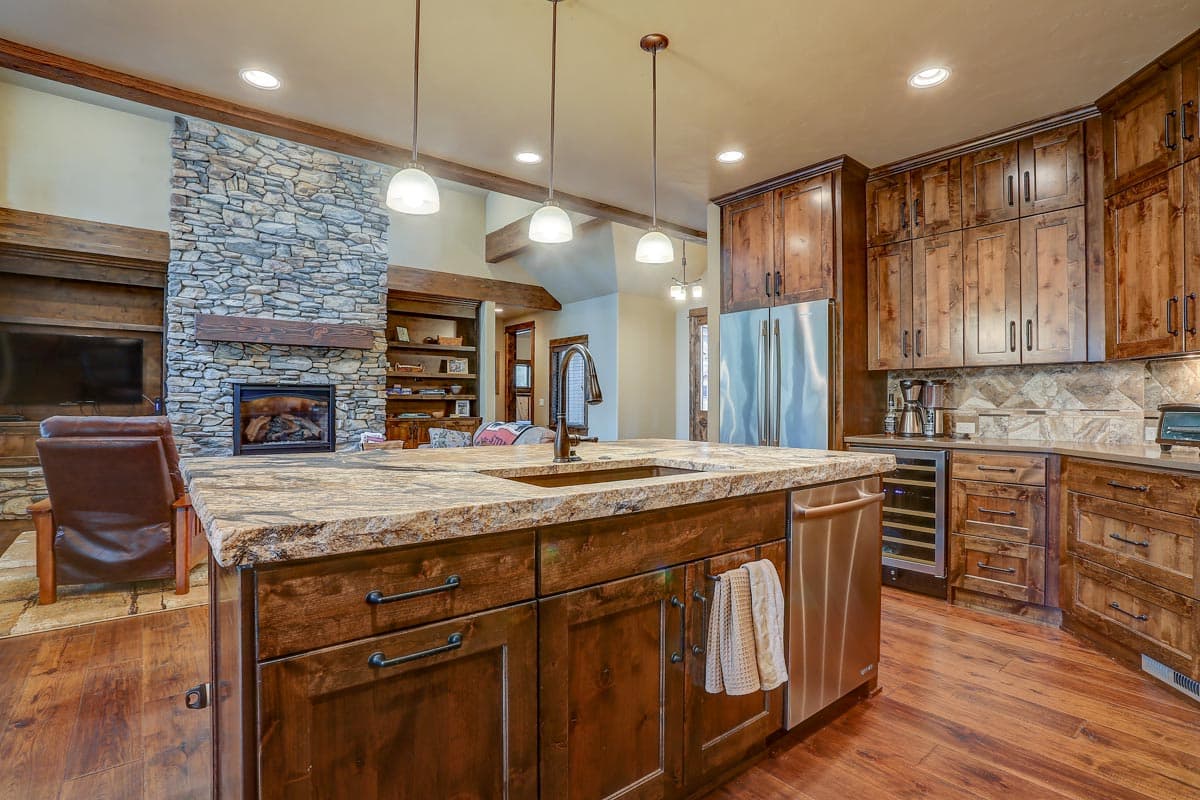

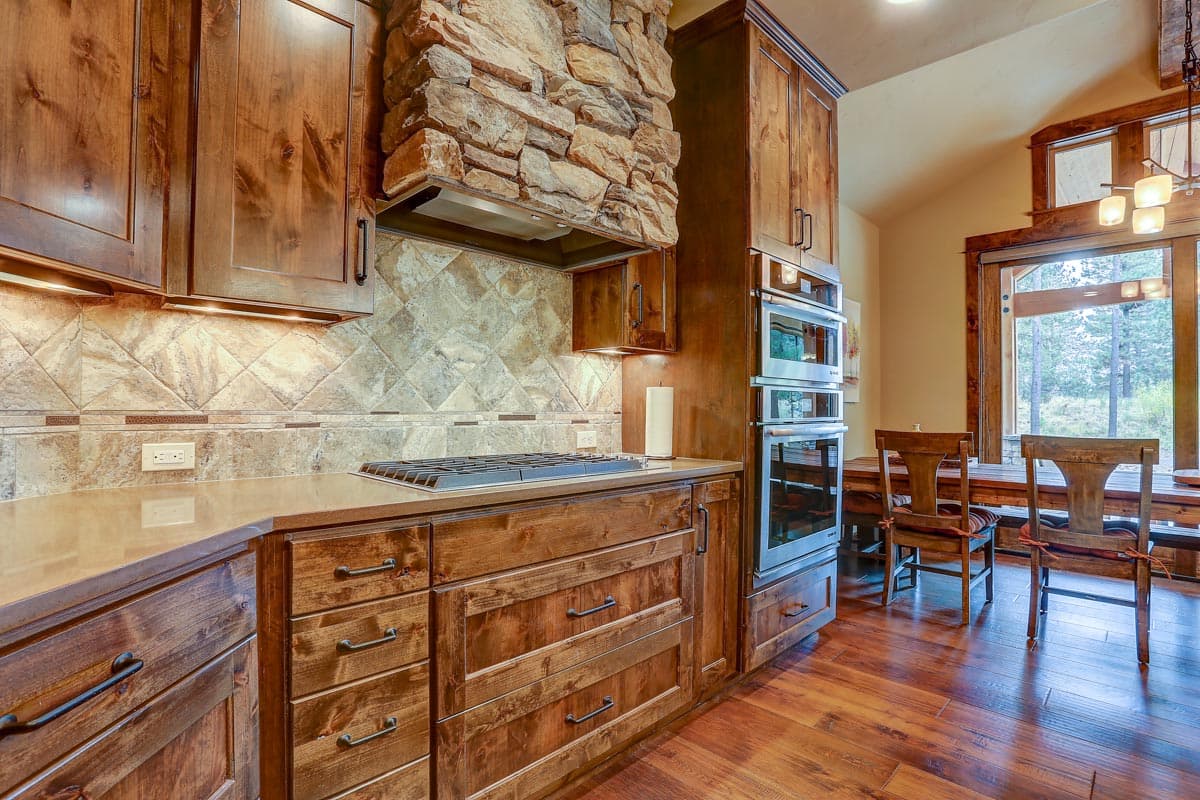

  • The kitchen has 9' ceilings and features a large center island with a raised bar for casual dining or serving and sinks.
  • Life in the mountains means you need space outside to enjoy the views, and the covered living area and open air terrace deliver two spaces for doing just that in back.
  • The "bonus" second floor, included in the living area figures, gives you a flexible room and a fulll bath and the possibility for four bedrooms or a spot to use as a media room, play room, or man cave.
  • Related Plans: Get a slightly alternate exterior in reverse orientation with house plan 54220HU. Get an angled 2 car garage with house plan 54205HU and a straight 2-car garage with house plans 54239HU and 54221HU.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

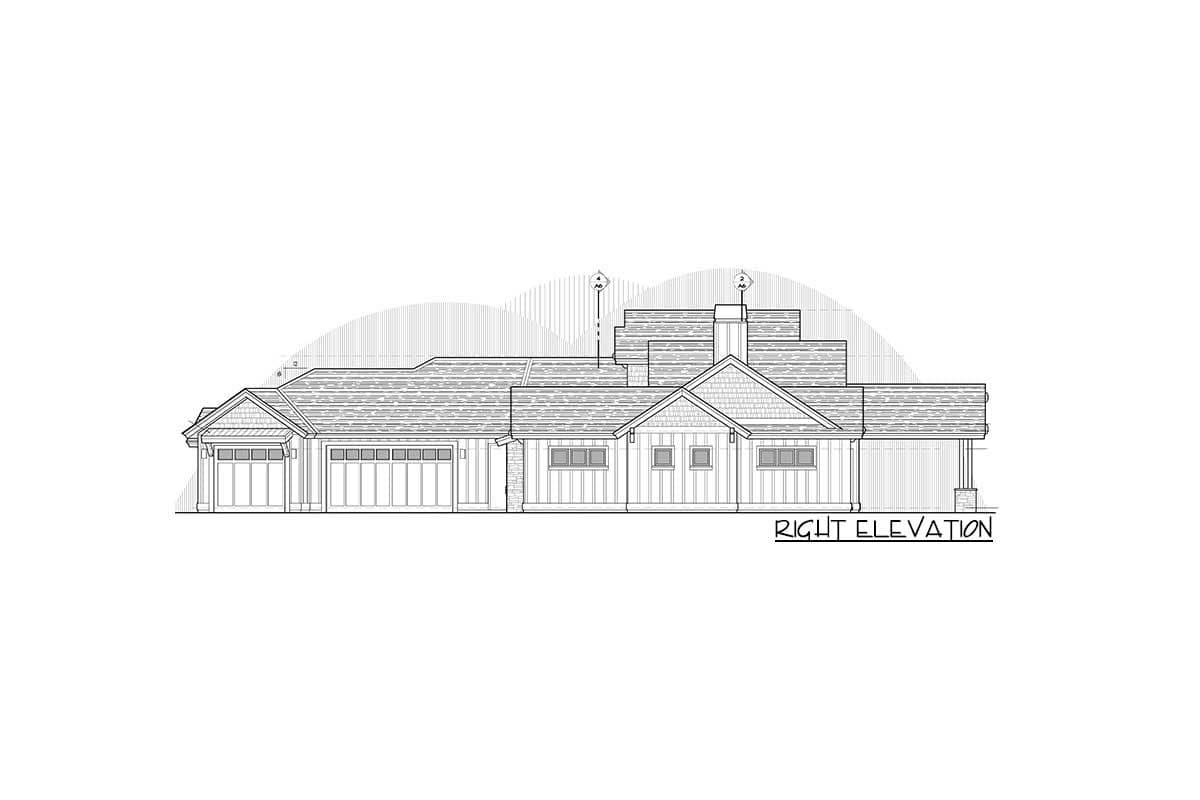

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

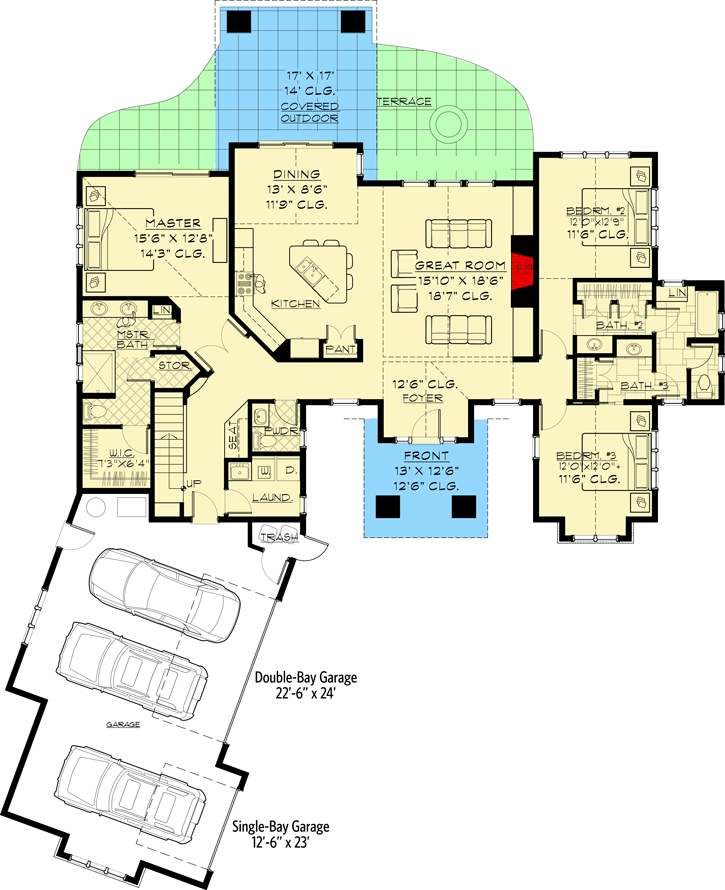

Mountain Ranch Home Plan with Upstairs Bonus - 54236HU floor plan - Main Level

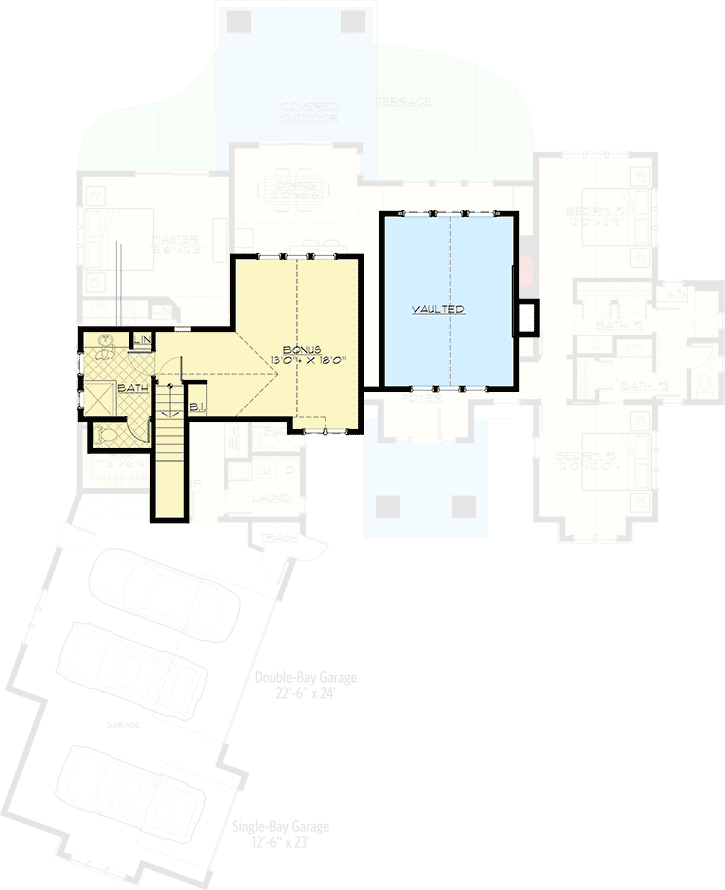

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Ranch Home Plan with Upstairs Bonus - 54236HU floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,554 sq. ft.
  • 1st Floor: 2,125 sq. ft.
  • 2nd Floor: 429 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 92' 6"
  • Max ridge height: 23' 8"

Garage

  • Type: Attached
  • Area: 883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Mountain Ranch Home Plan with Upstairs Bonus

  • 2,554

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • 5 Sets $1,795
  • 8 Sets $1,895
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • All three bedrooms on the main floor have vaulted ceilings in this beautiful mountain living house plan. The exterior has a sturdy look to it and the inside has an elegant flow. Step inside and you're greeted by a foyer with 11' ceilings and clear sightlines into the great room ahead.
  • The great room is vaulted and gets great natural light from the windows in front and has tremendous views to the rear. The room is open to the kitchen and has a fireplace that soars to the ceiling.
  • The kitchen has 9' ceilings and features a large center island with a raised bar for casual dining or serving and sinks.
  • Life in the mountains means you need space outside to enjoy the views, and the covered living area and open air terrace deliver two spaces for doing just that in back.
  • The "bonus" second floor, included in the living area figures, gives you a flexible room and a fulll bath and the possibility for four bedrooms or a spot to use as a media room, play room, or man cave.
  • Related Plans: Get a slightly alternate exterior in reverse orientation with house plan 54220HU. Get an angled 2 car garage with house plan 54205HU and a straight 2-car garage with house plans 54239HU and 54221HU.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,554 sq. ft.
  • 1st Floor: 2,125 sq. ft.
  • 2nd Floor: 429 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 92' 6"
  • Max ridge height: 23' 8"

Garage

  • Type: Attached
  • Area: 883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
Plan 54236HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54236HU
|
Need Help? 800-854-7852
|
