Plan 54239HU Attractive Mountain Craftsman House Plan with Vaulted Upstairs

2,683 3-4 4.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Attractive Mountain Craftsman House Plan with Vaulted Upstairs

Plan 54239HU

  • 2,683

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

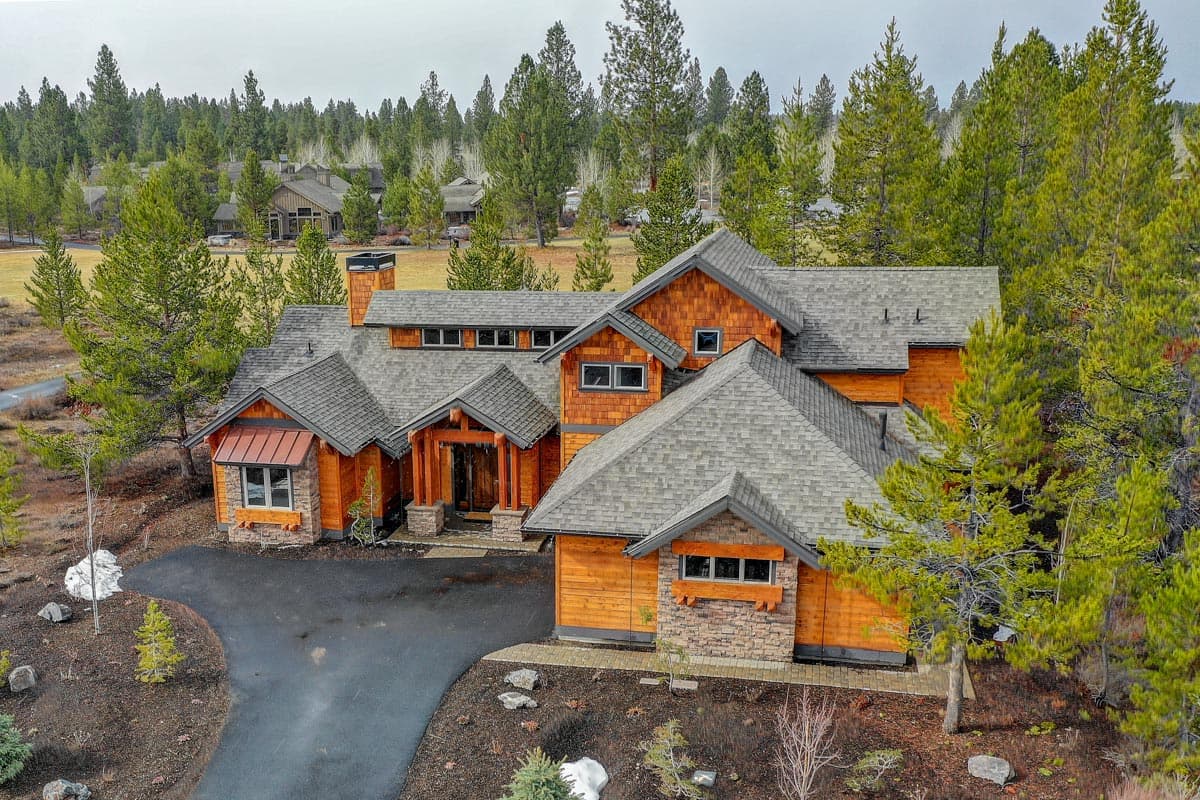

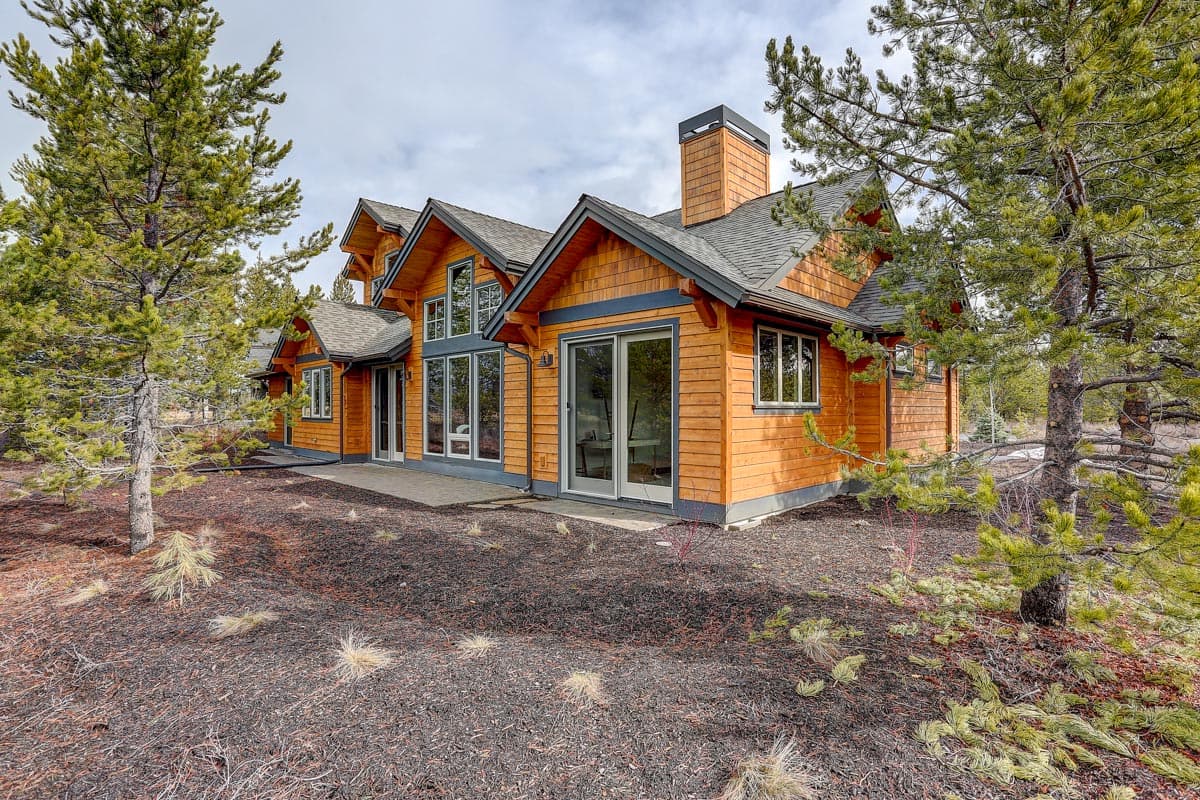

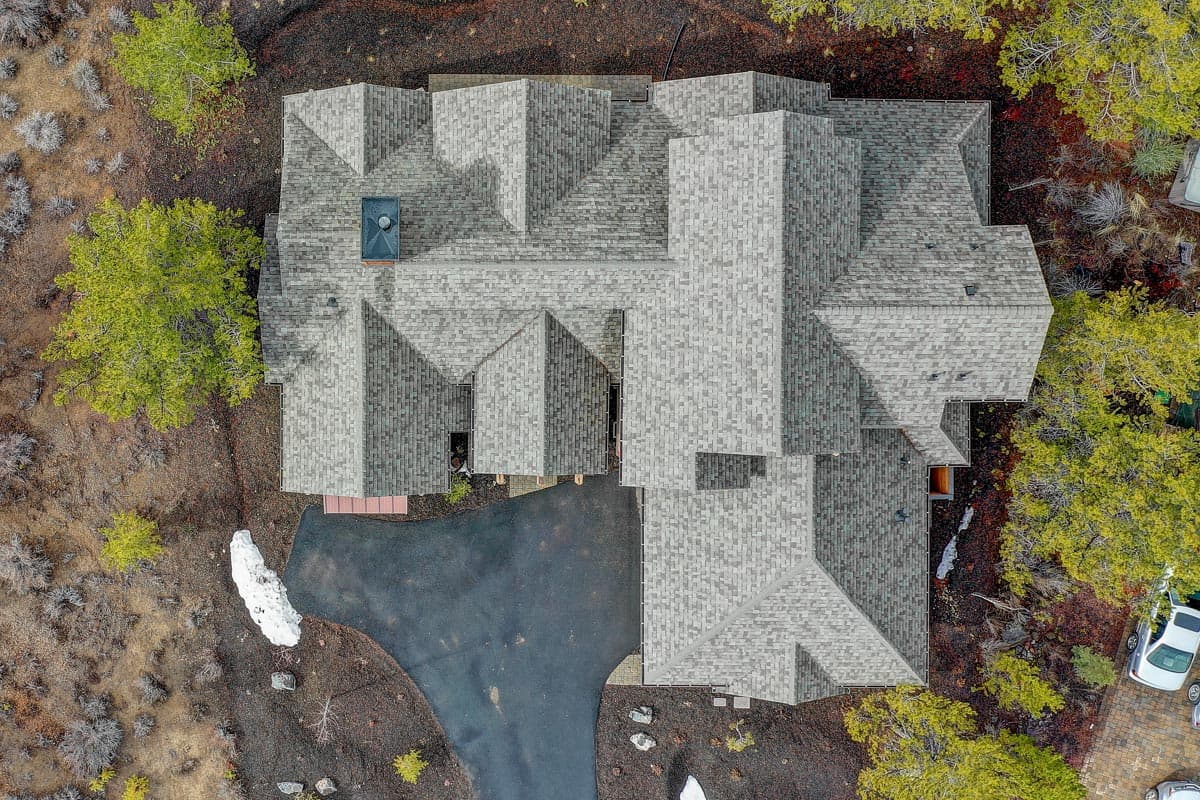

  • This Mountain Craftsman house plan gives has a rugged exterior with a gabled covered entry and a 2-car garage with stone accents.

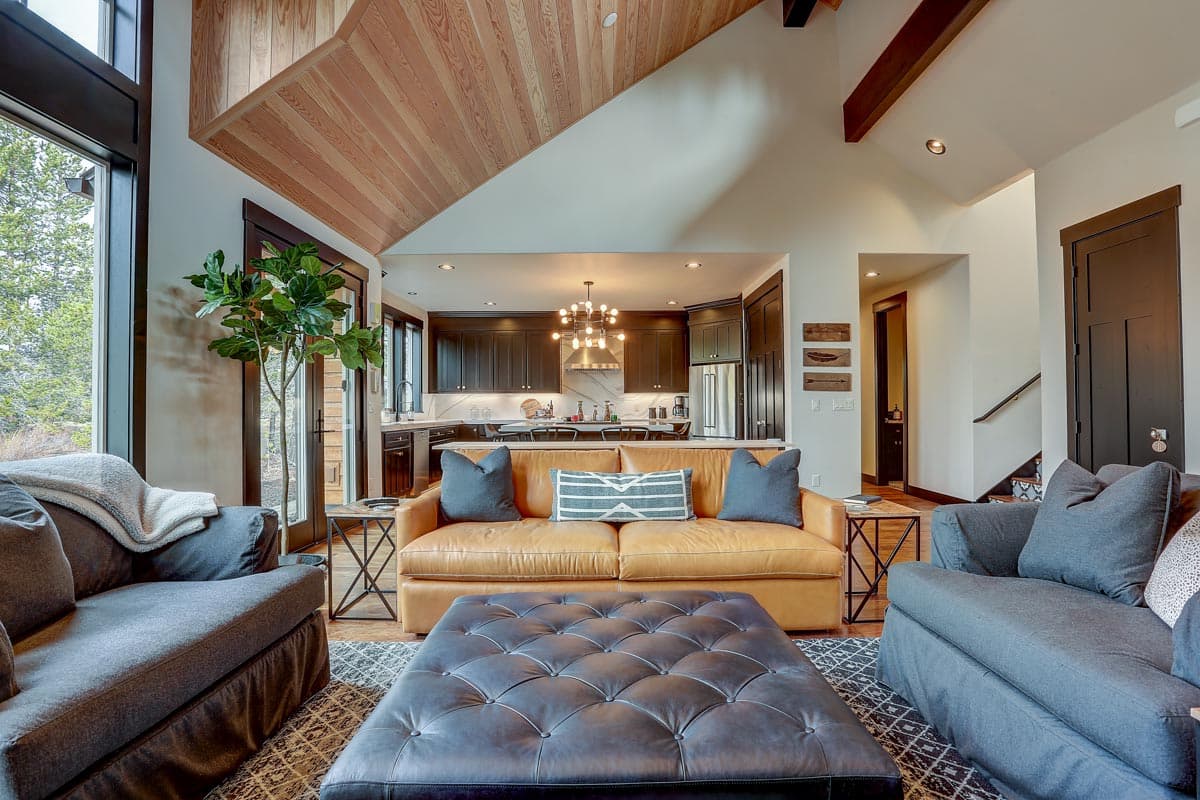

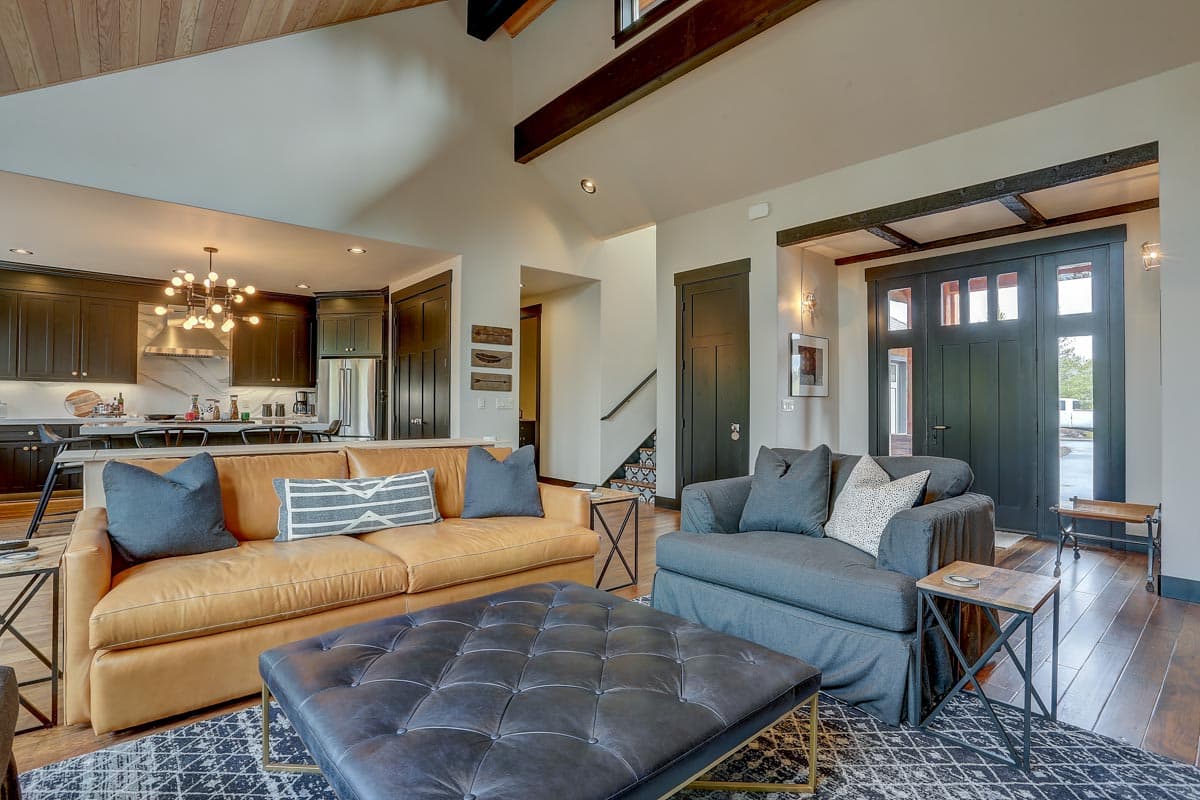

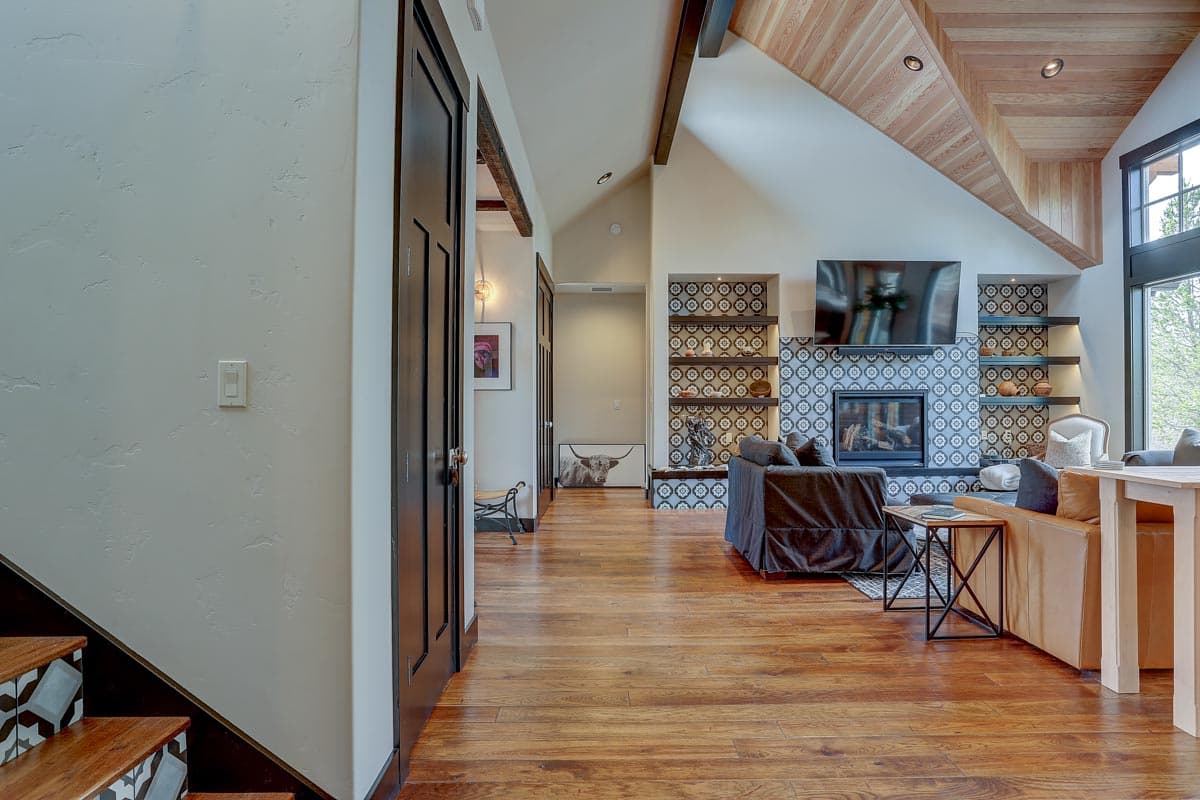

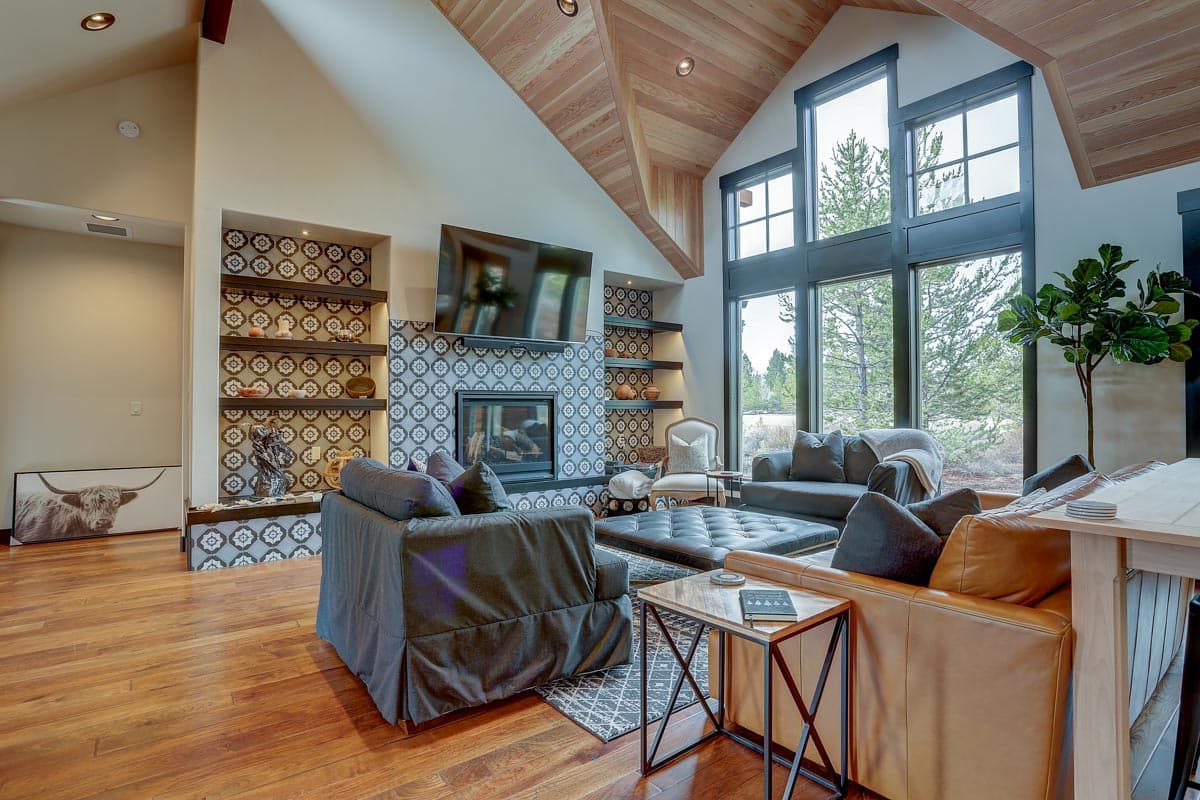

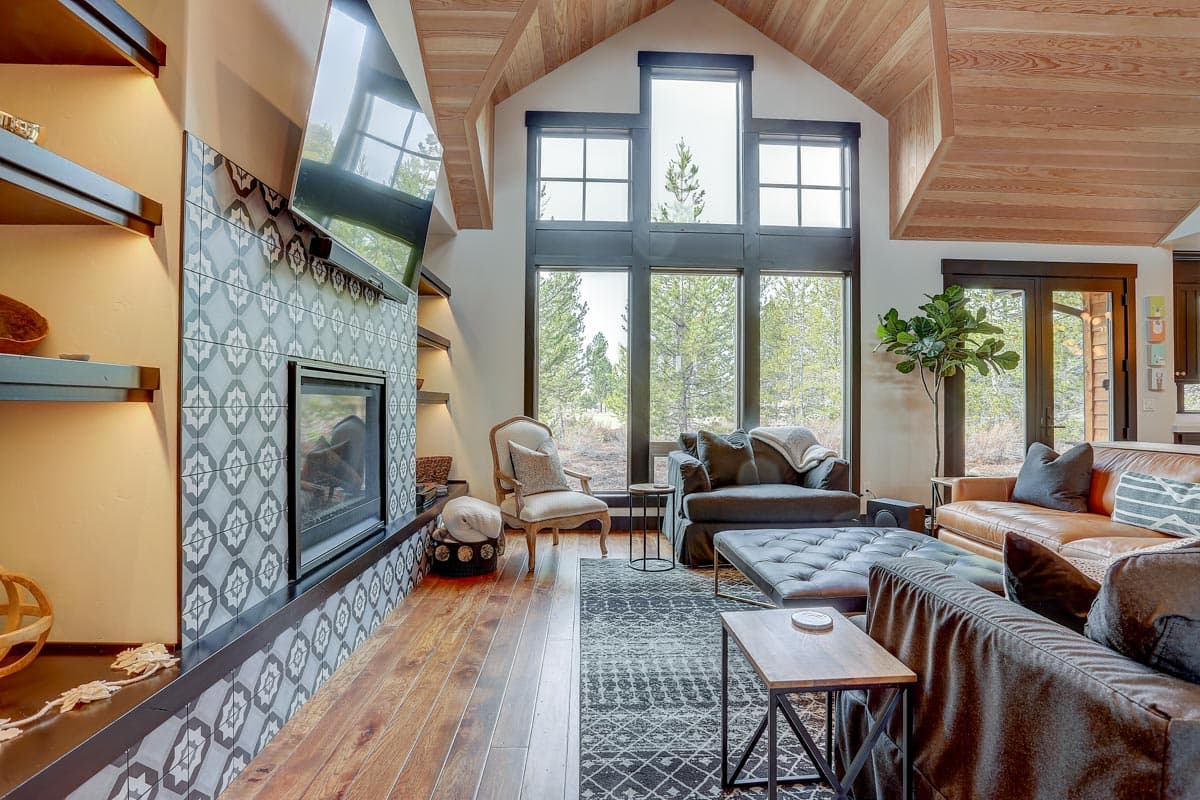

  • The great room is vaulted and gets great natural light from the windows in front and has tremendous views to the rear. The room is open to the kitchen and has a fireplace that soars to the ceiling.

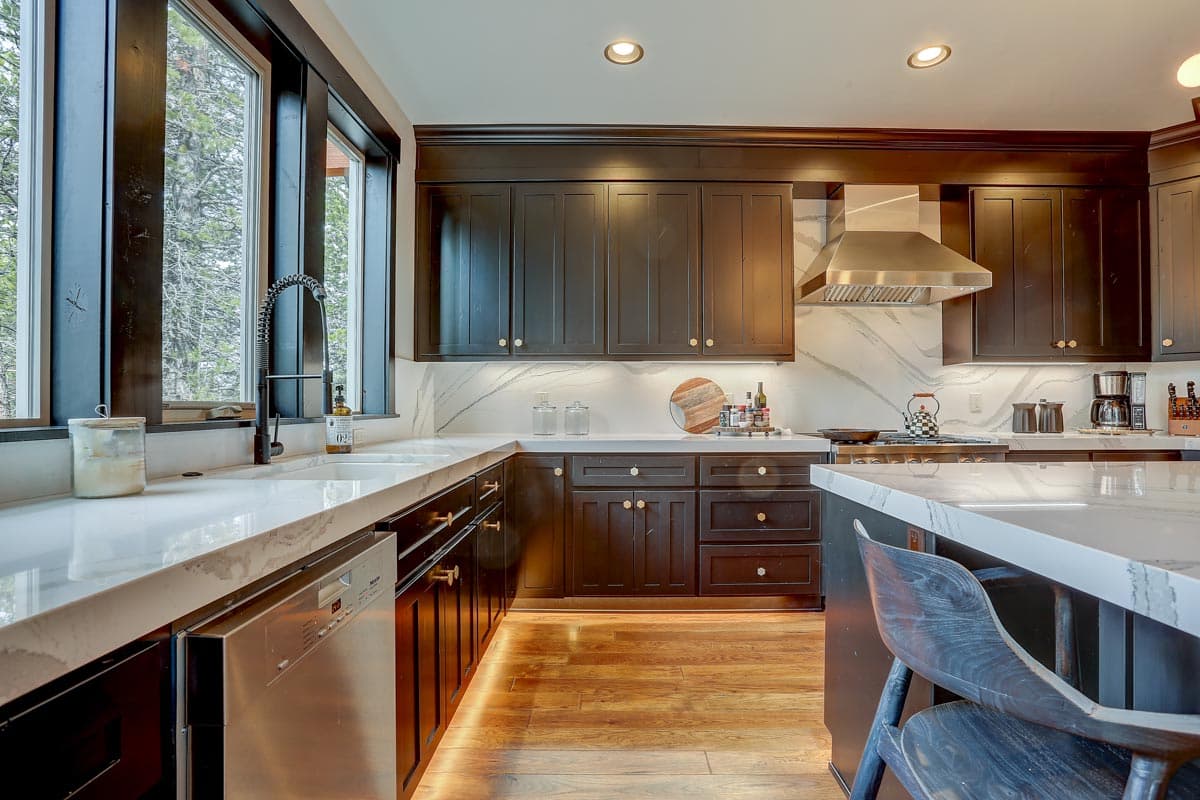

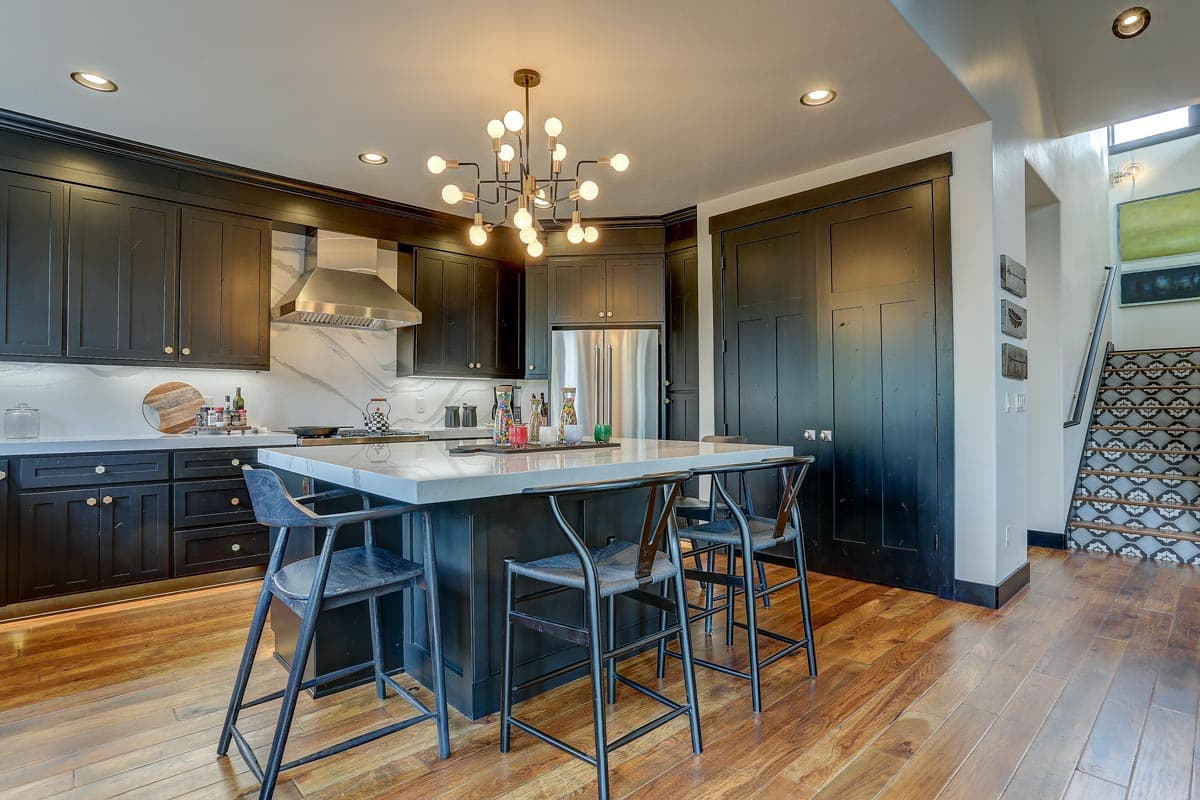

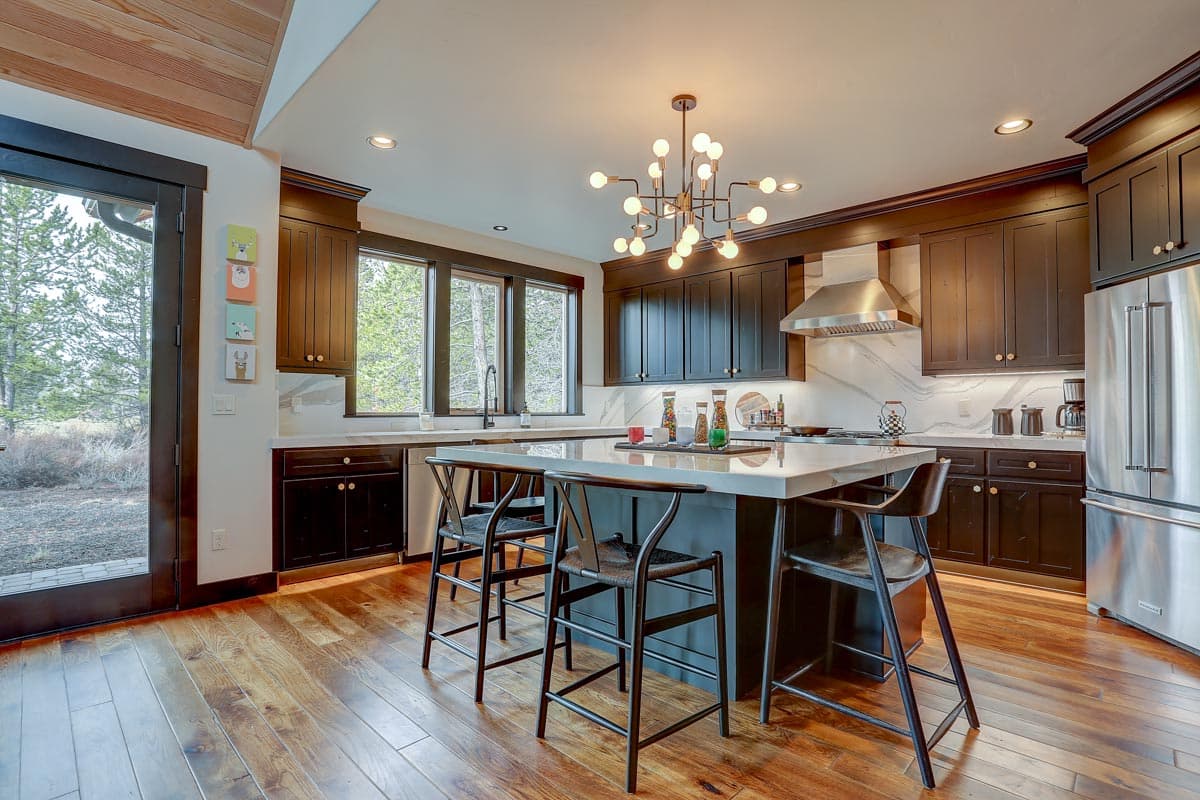

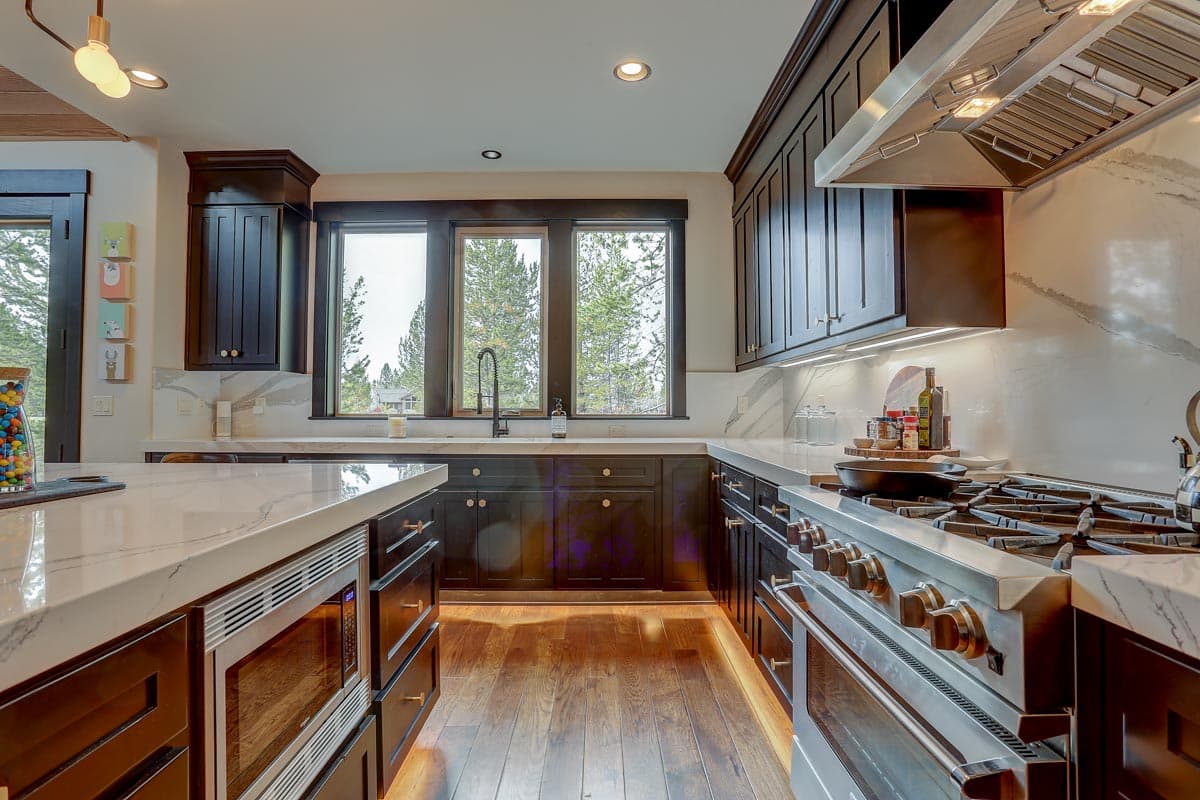

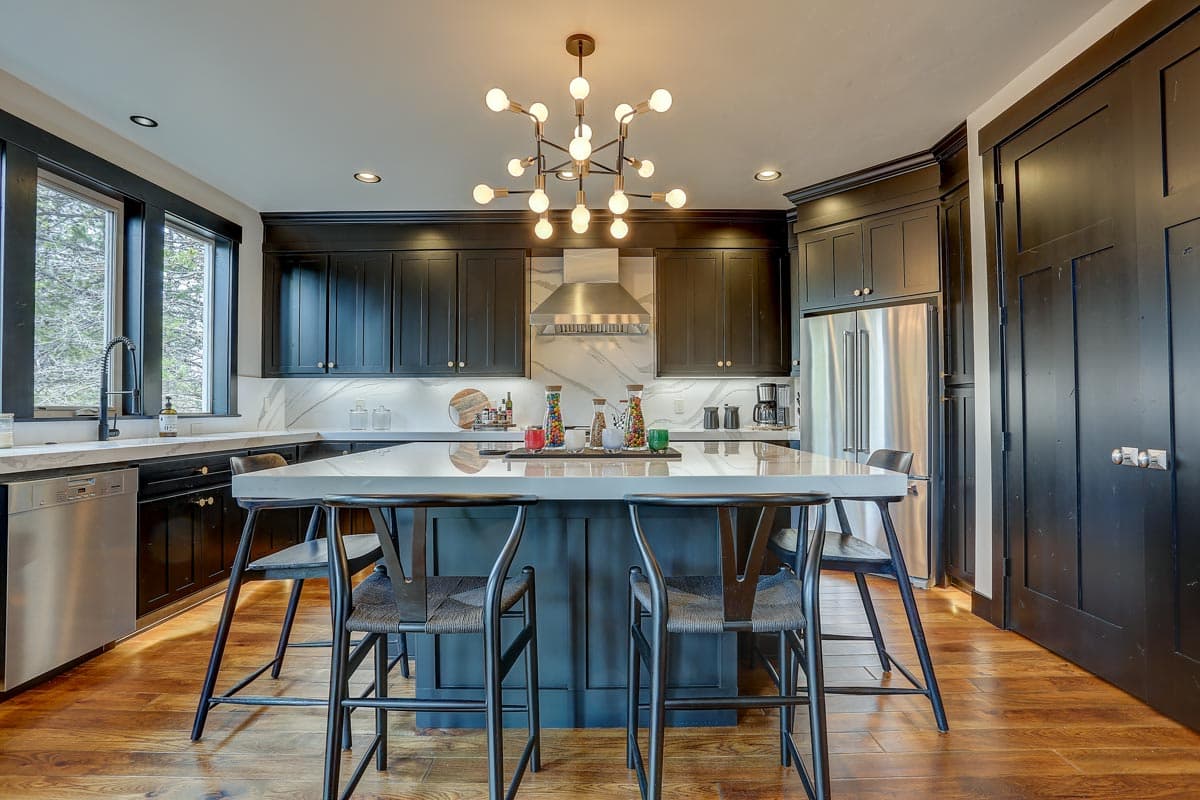

  • The kitchen is open to the great room and has 9' ceilings. It features a roomy wall pantry and has an island with counter seating for three.

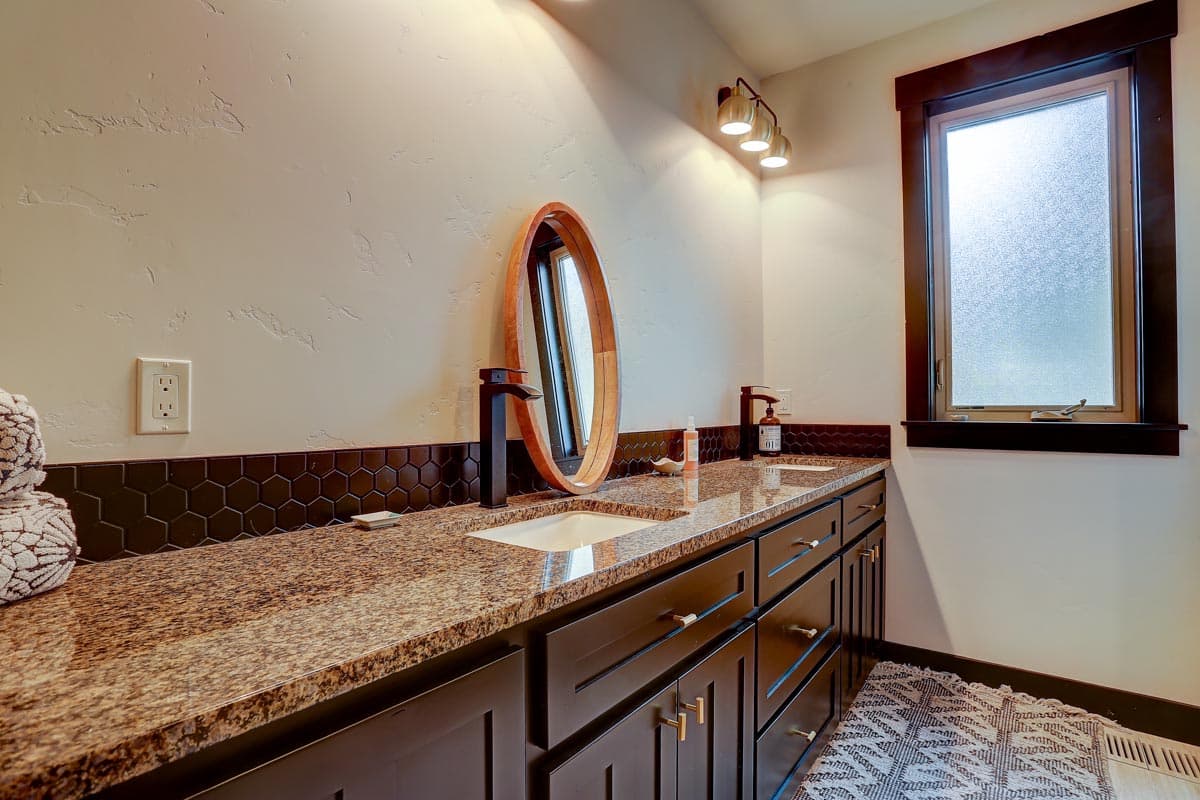

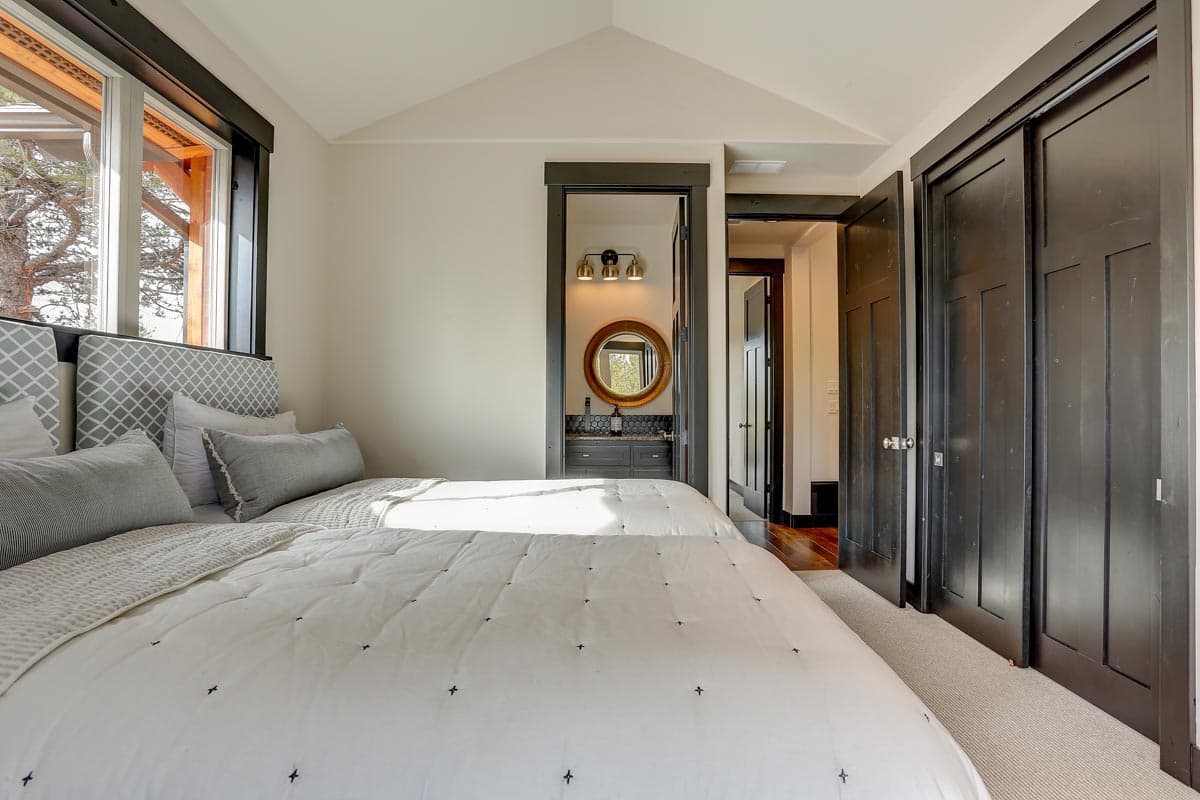

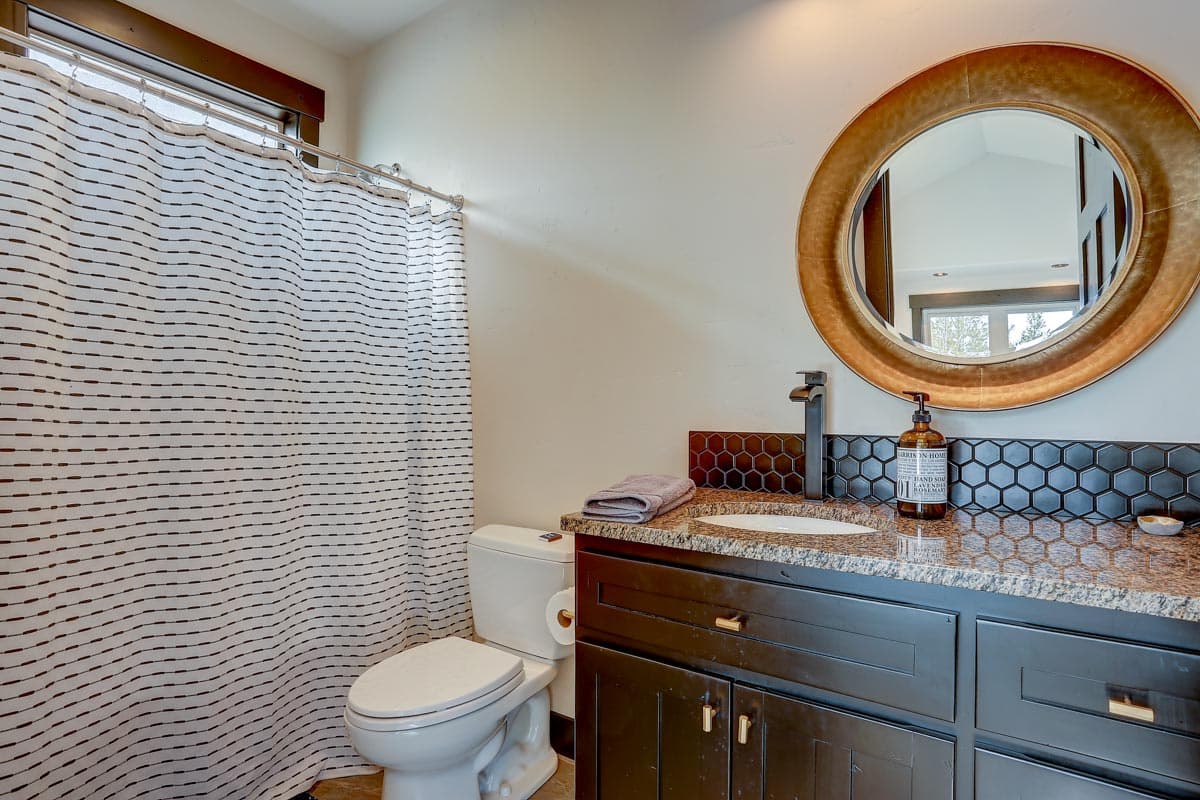

  • The master has a large walk-in closet and his and her vanities. Across the home two beds each get their own bath.

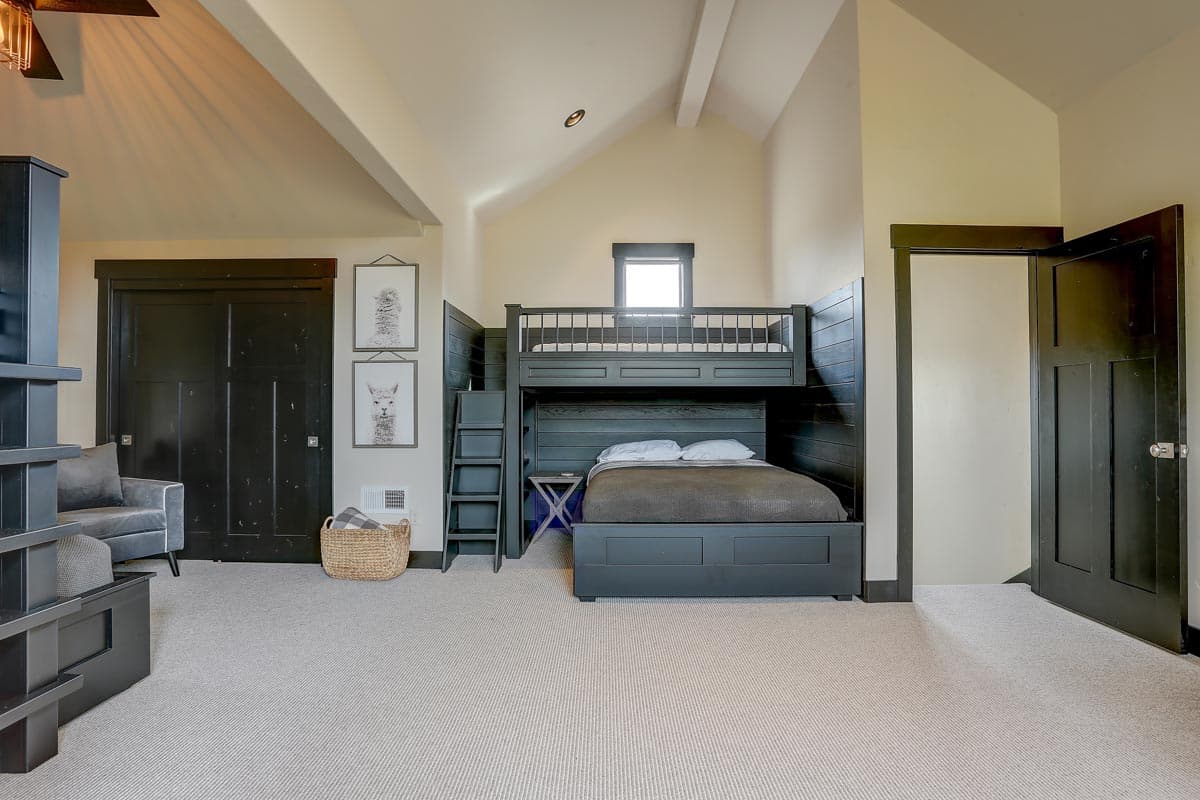

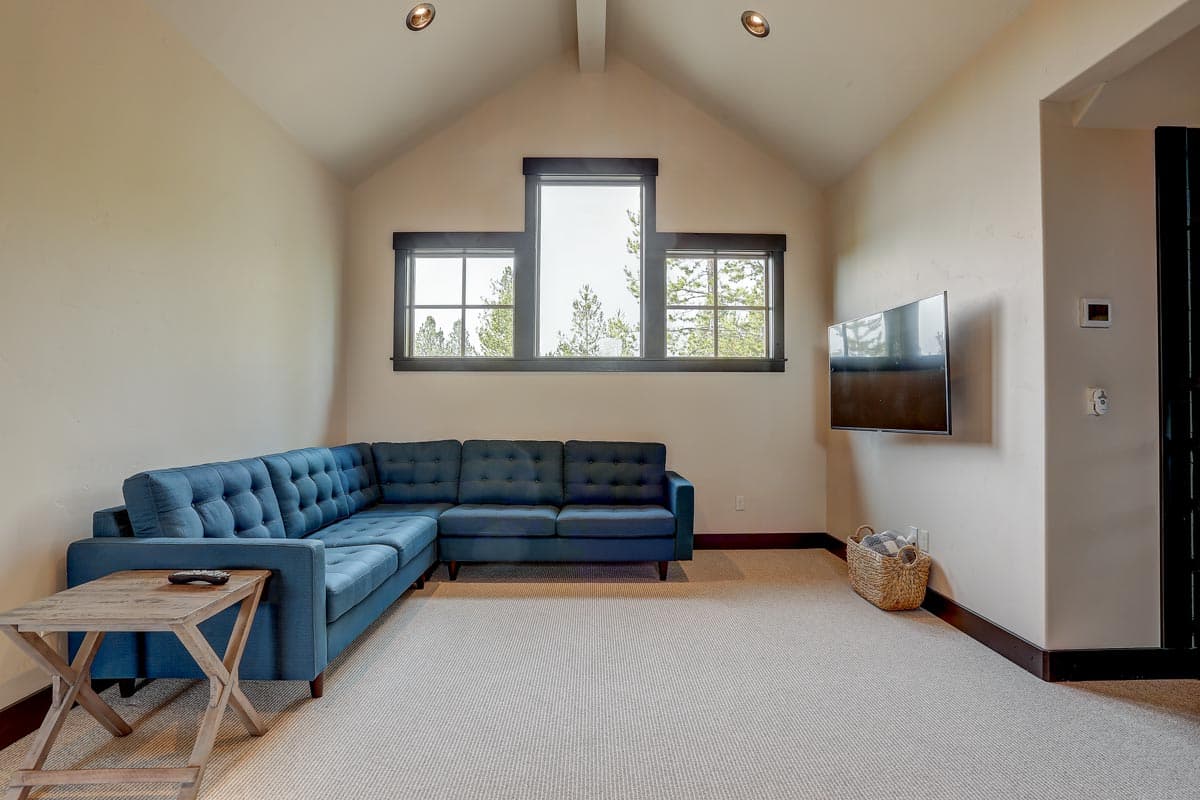

  • Upstairs, there is a vaulted rec room with an adjacent vaulted nook and a full bath. This space can be used as a bunk room, game room or flex space to be used however you want.
  • Related Plans: Get a smaller version with house plan 54221HU and 54205HU (angled garage). Get a 3-car angled garage with house plans 54220HU and 54236HU.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

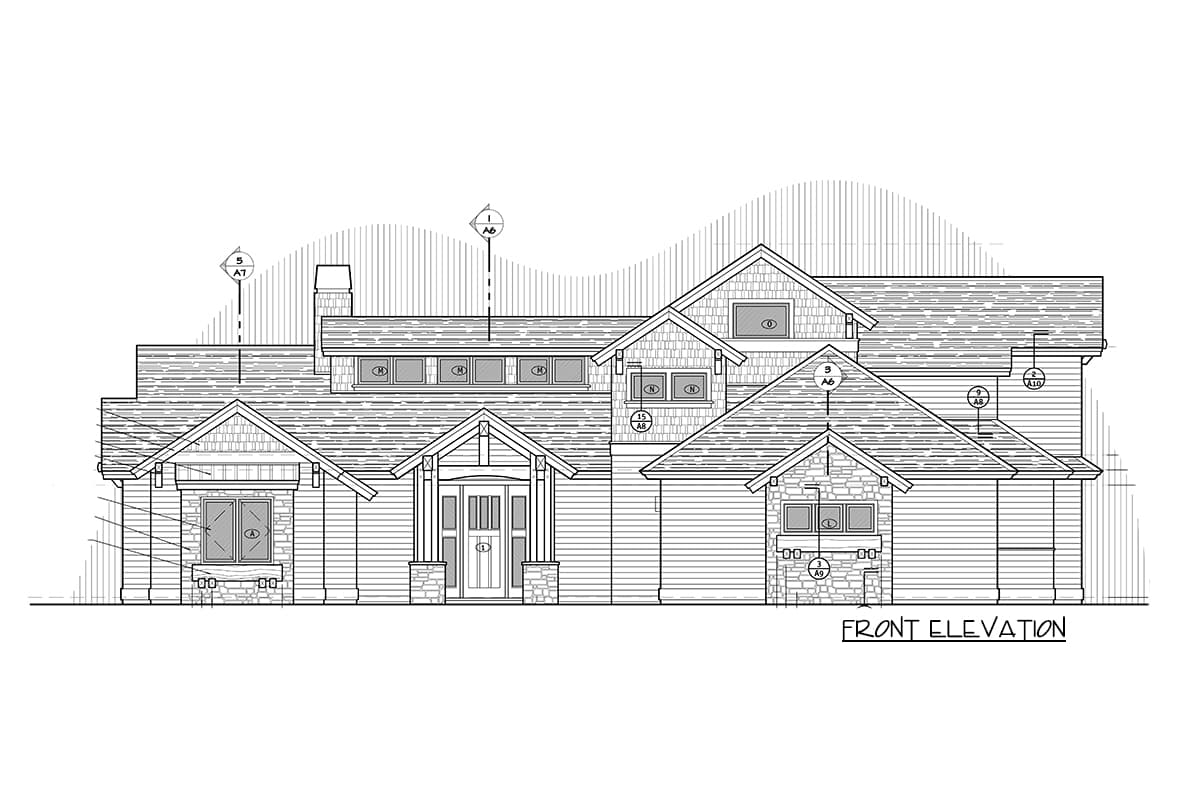

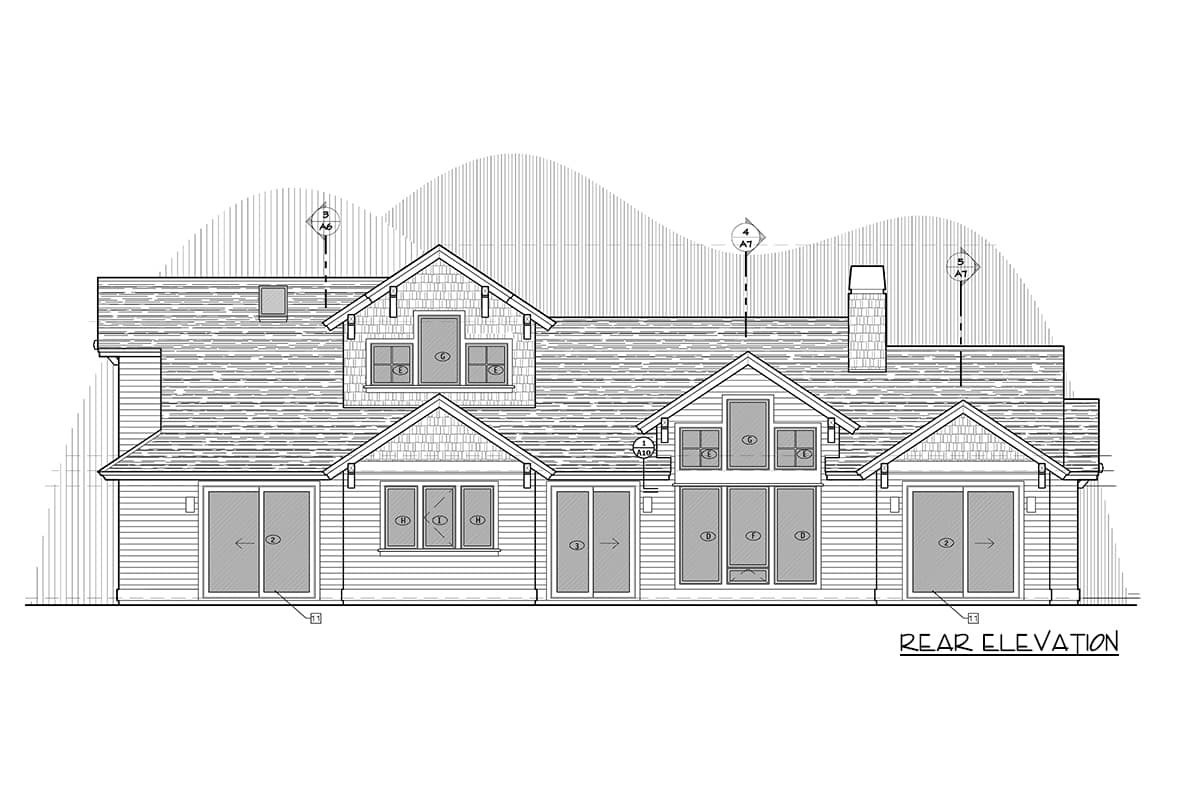

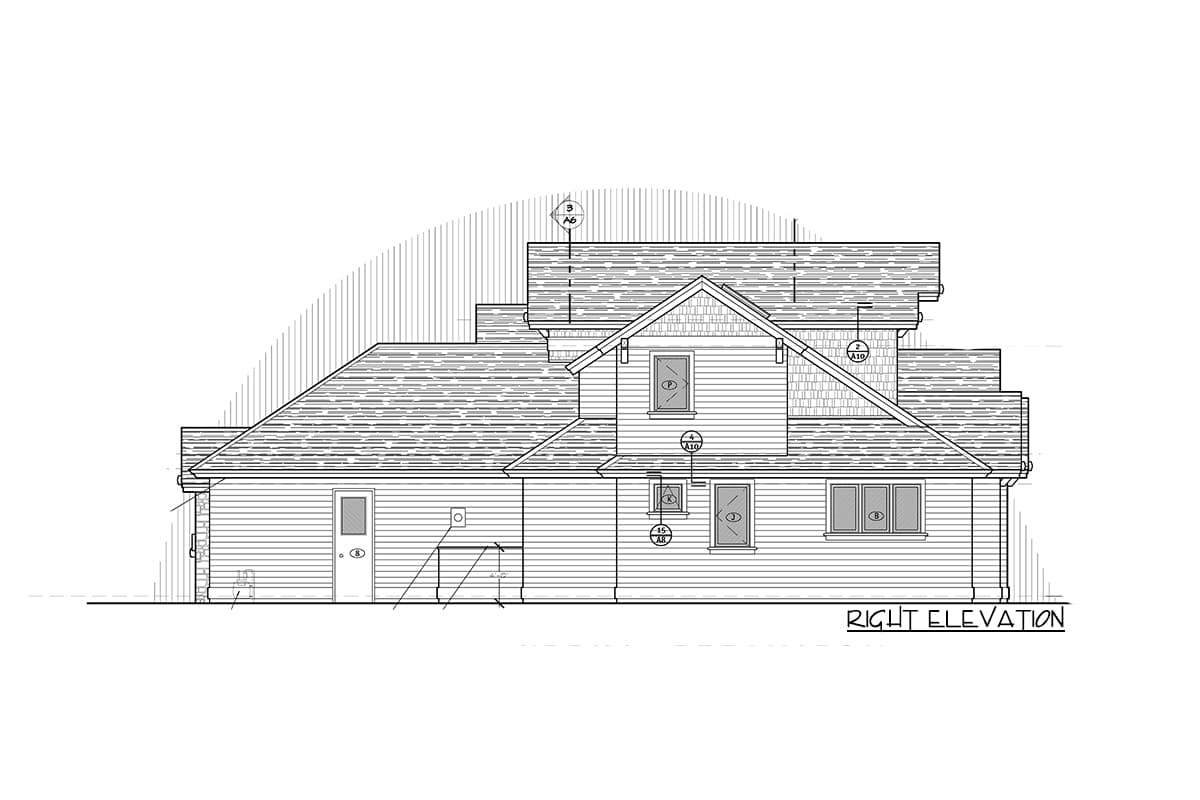

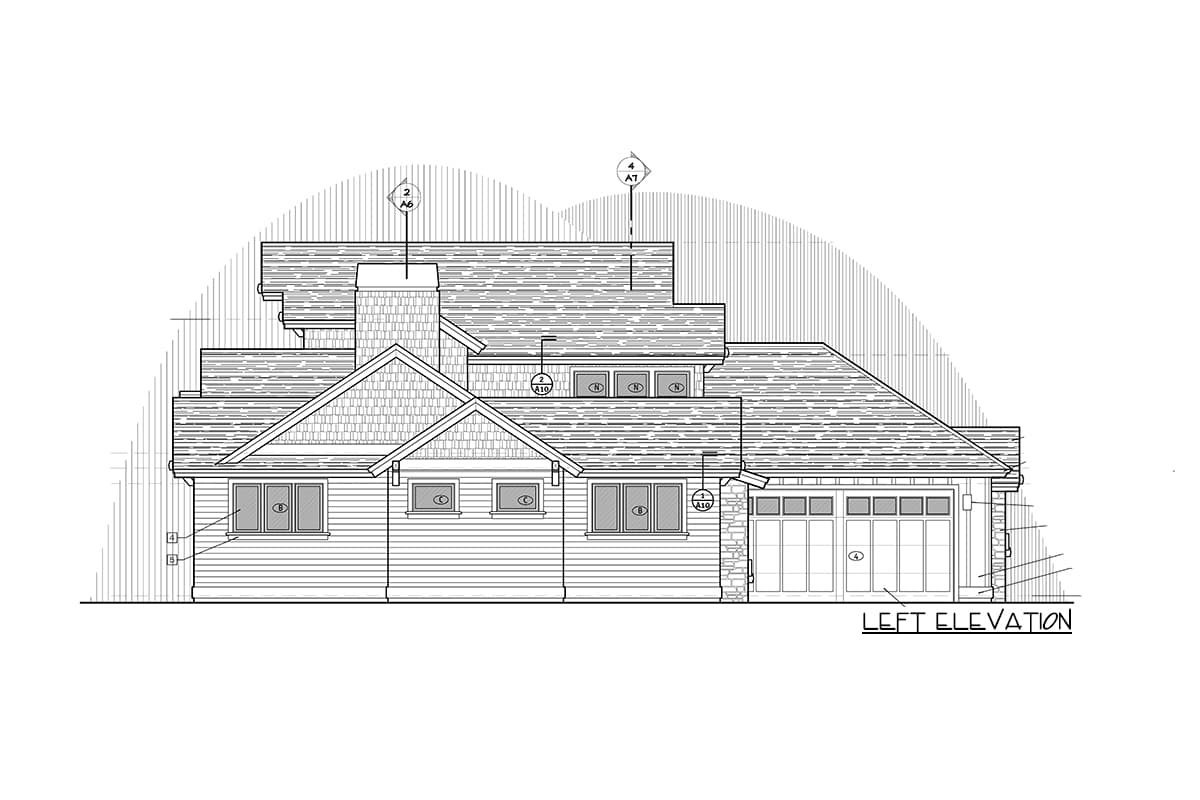

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

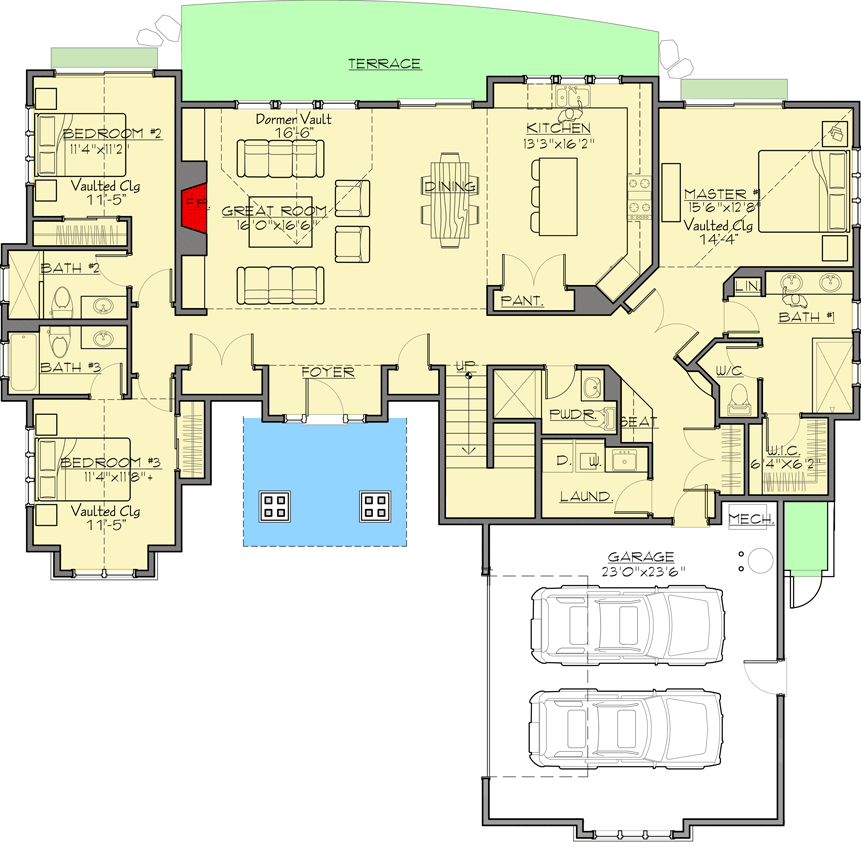

Attractive Mountain Craftsman House Plan with Vaulted Upstairs - 54239HU floor plan - Main Level

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

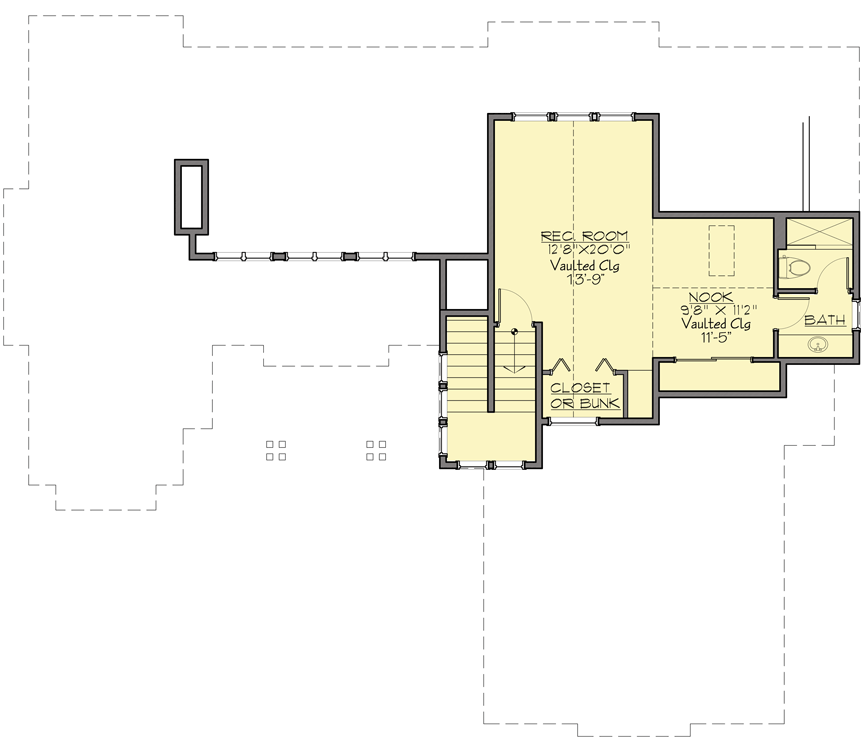

Attractive Mountain Craftsman House Plan with Vaulted Upstairs - 54239HU floor plan - Second Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,683 sq. ft.
  • 1st Floor: 2,157 sq. ft.
  • 2nd Floor: 526 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 4"
  • Depth: 59' 7"
  • Max ridge height: 25' 2"

Garage

  • Type: Attached
  • Area: 594 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 1"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Attractive Mountain Craftsman House Plan with Vaulted Upstairs

  • 2,683

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • 5 Sets $1,795
  • 8 Sets $1,895
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • This Mountain Craftsman house plan gives has a rugged exterior with a gabled covered entry and a 2-car garage with stone accents.
  • The great room is vaulted and gets great natural light from the windows in front and has tremendous views to the rear. The room is open to the kitchen and has a fireplace that soars to the ceiling.
  • The kitchen is open to the great room and has 9' ceilings. It features a roomy wall pantry and has an island with counter seating for three.
  • The master has a large walk-in closet and his and her vanities. Across the home two beds each get their own bath.
  • Upstairs, there is a vaulted rec room with an adjacent vaulted nook and a full bath. This space can be used as a bunk room, game room or flex space to be used however you want.
  • Related Plans: Get a smaller version with house plan 54221HU and 54205HU (angled garage). Get a 3-car angled garage with house plans 54220HU and 54236HU.

Floor Plans

  • Main Level

  • Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,683 sq. ft.
  • 1st Floor: 2,157 sq. ft.
  • 2nd Floor: 526 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 4"
  • Depth: 59' 7"
  • Max ridge height: 25' 2"

Garage

  • Type: Attached
  • Area: 594 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 1"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
Plan 54239HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54239HU
|
Need Help? 800-854-7852
|
Plan 54239HU
