Plan 54205HU Attractive Craftsman Home Plan

2,350 3-4 2.5 - 3.5 1-2 2
2 Client
Albums Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Attractive Craftsman Home Plan

Plan 54205HU

  • 2,350

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

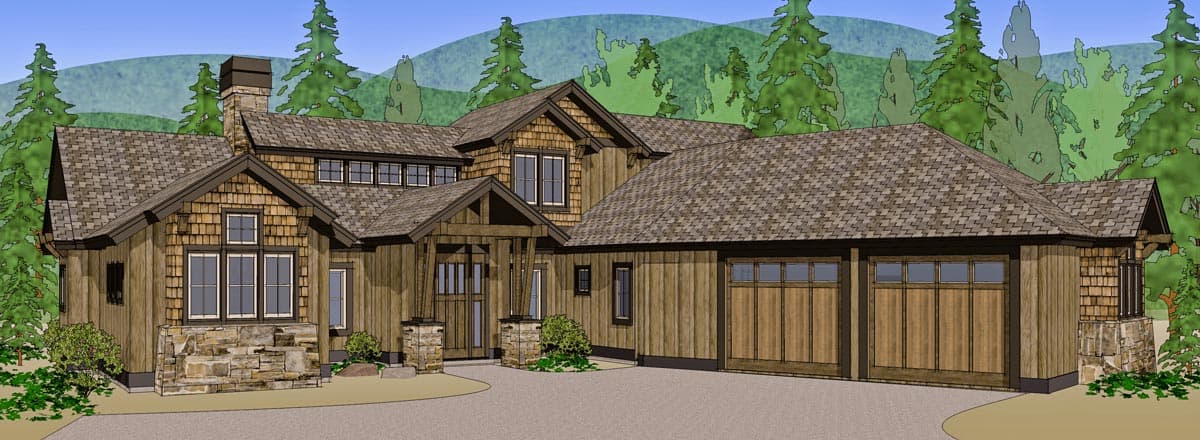

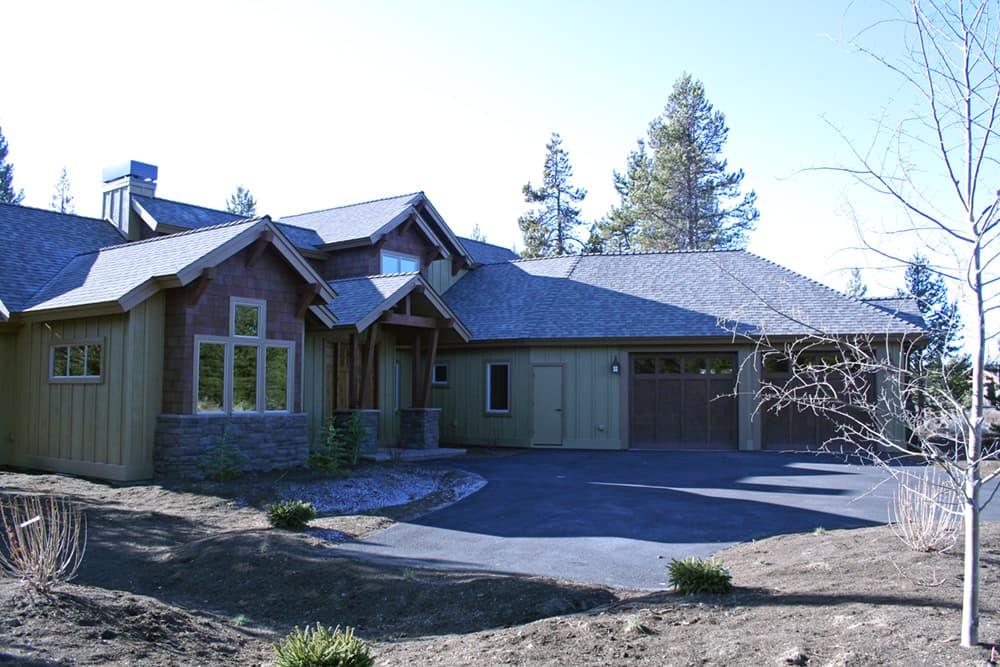

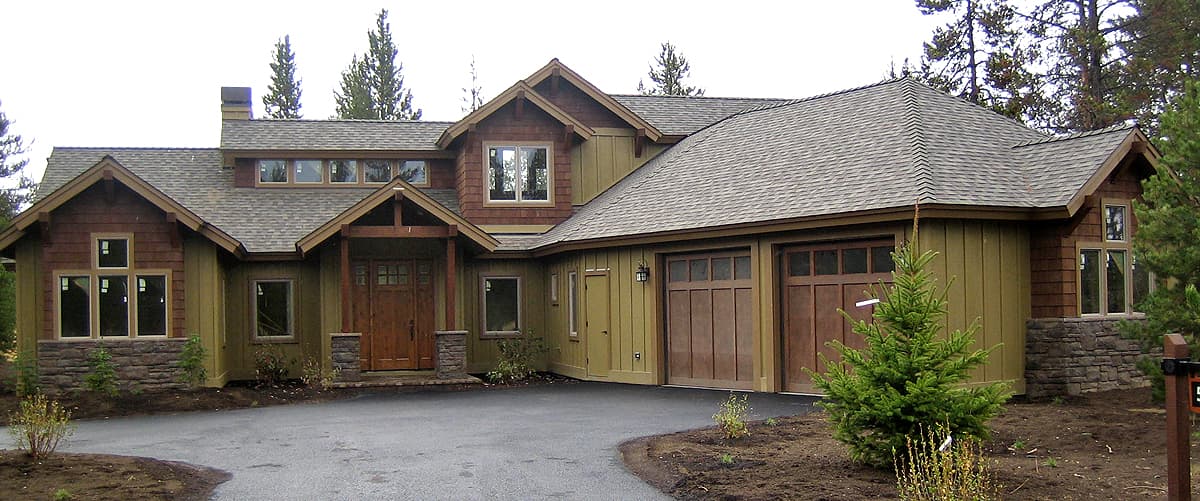

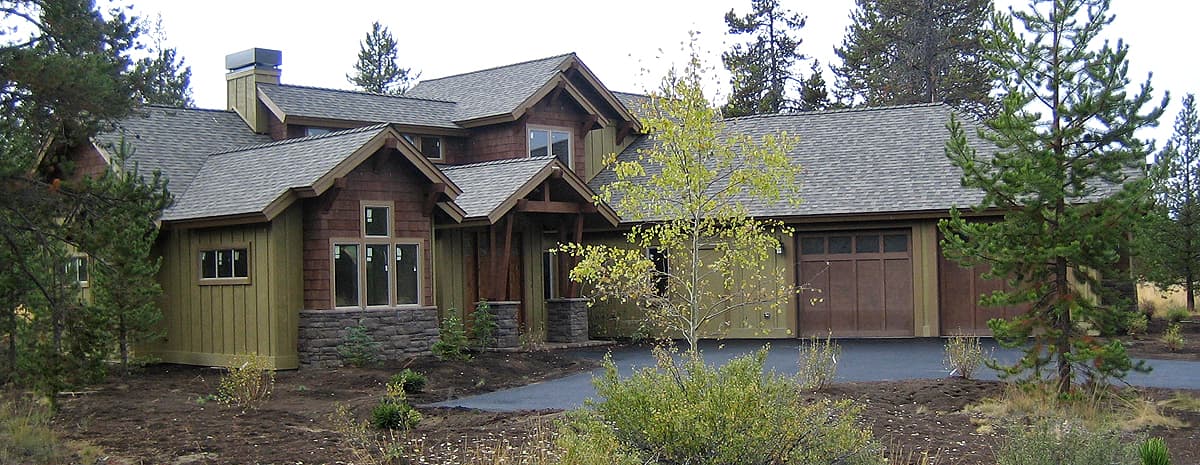

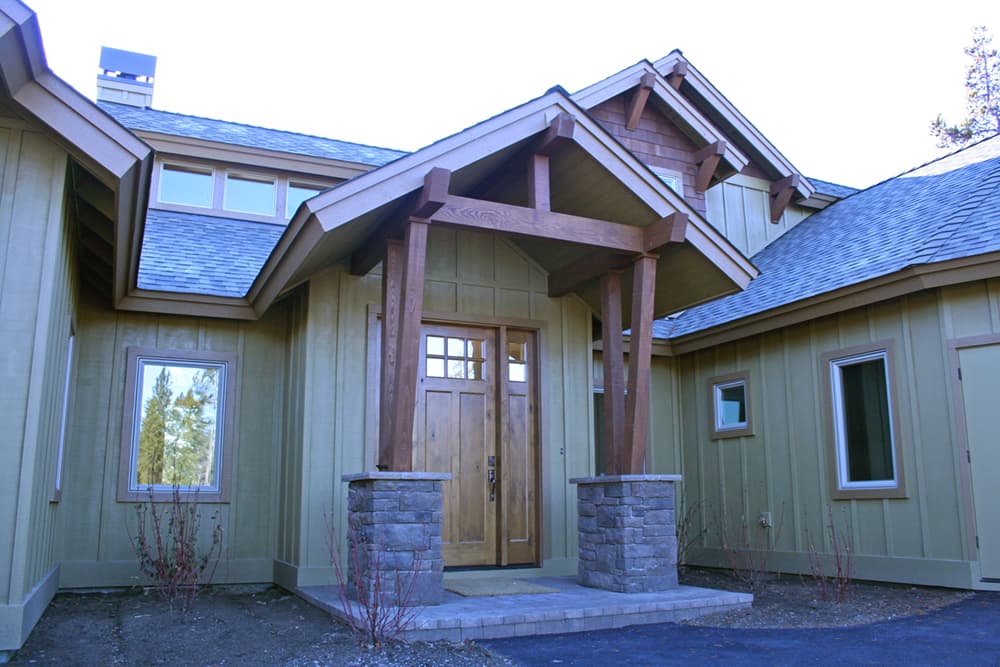

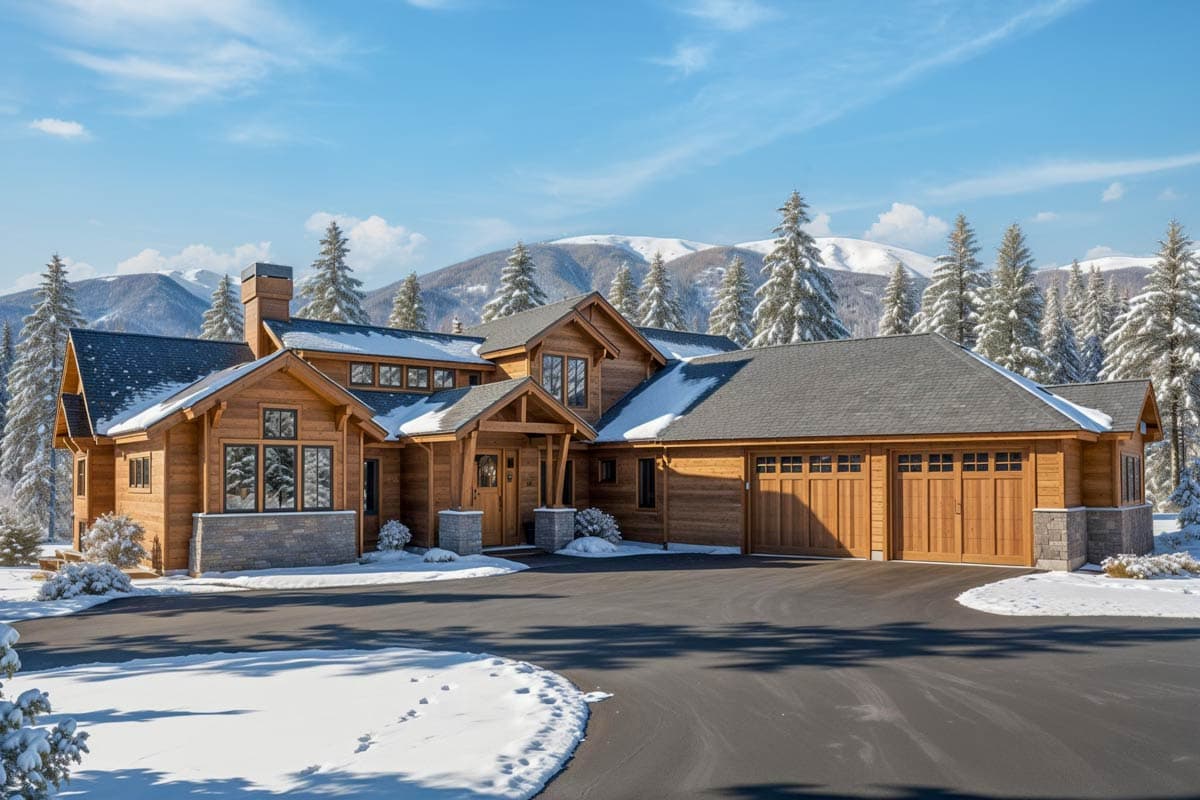

  • The attractive Craftsman exterior of this home plan will draw you in to see the exciting floor plan.

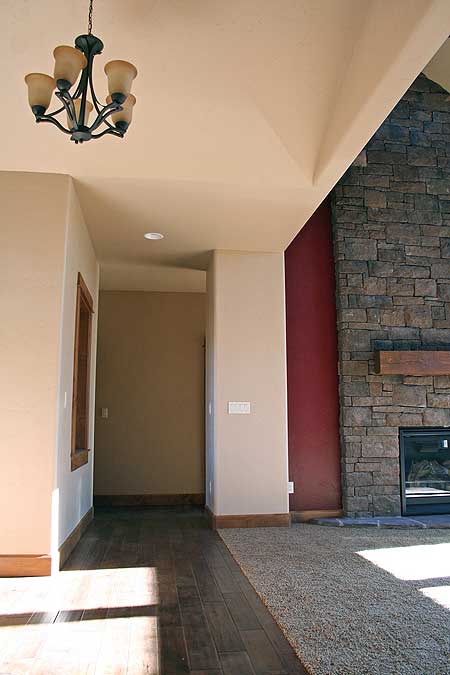

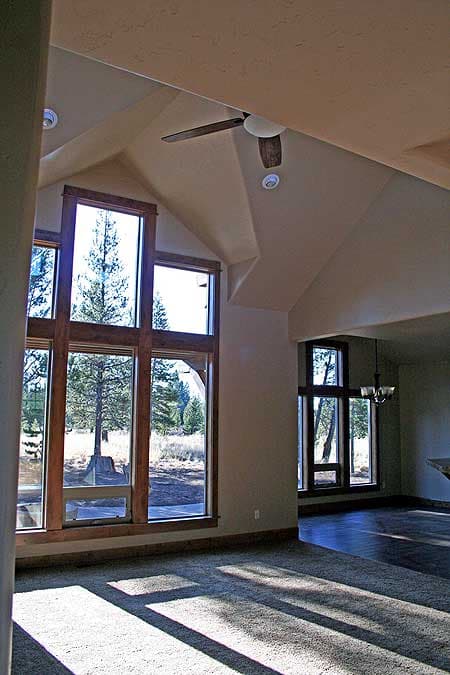

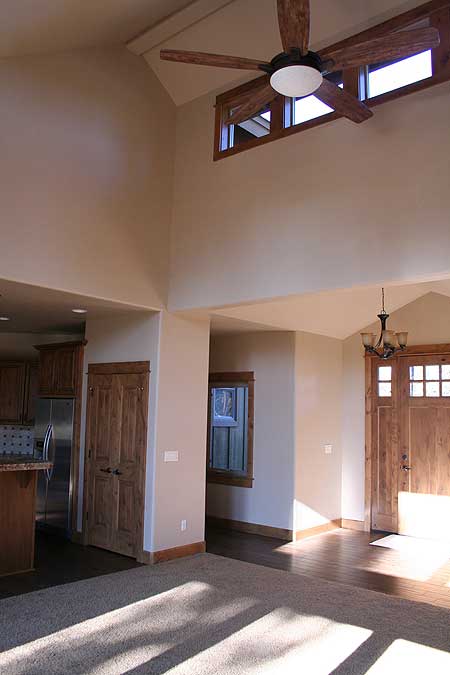

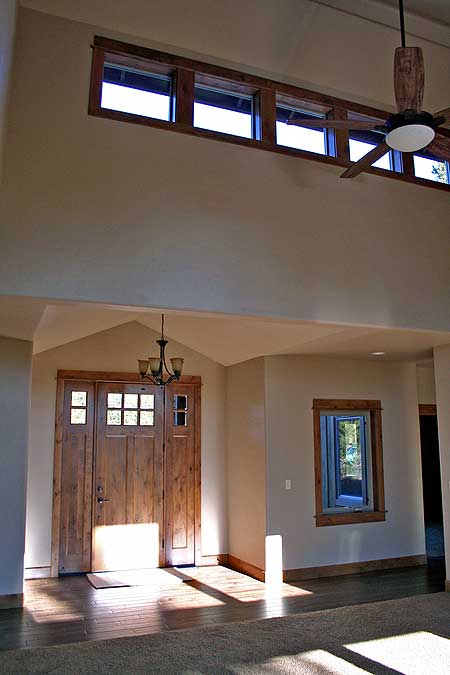

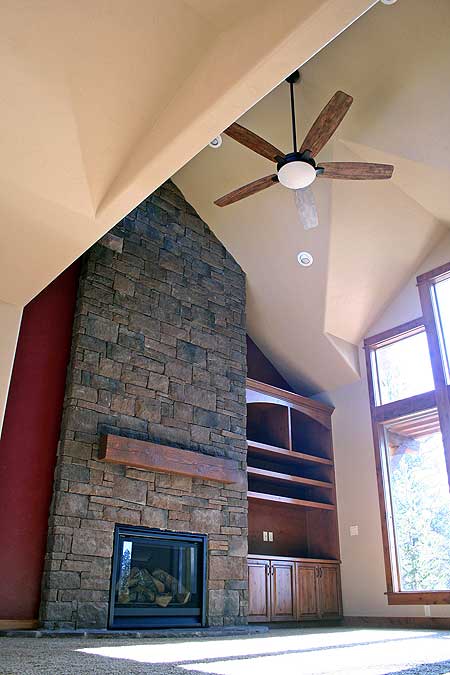

  • An 11' vaulted ceiling tops the foyer that has clear sightlines into the great room with its ceiling that soars to 15'6" angling in several directions.
  • A row of clerestory windows allow even more natural light to flood the room.

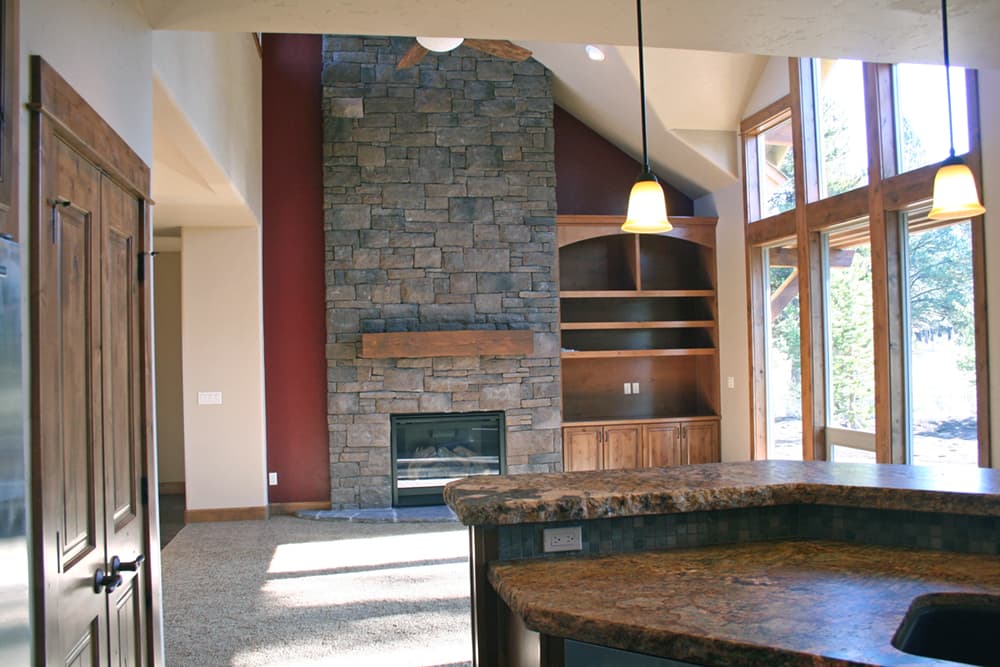

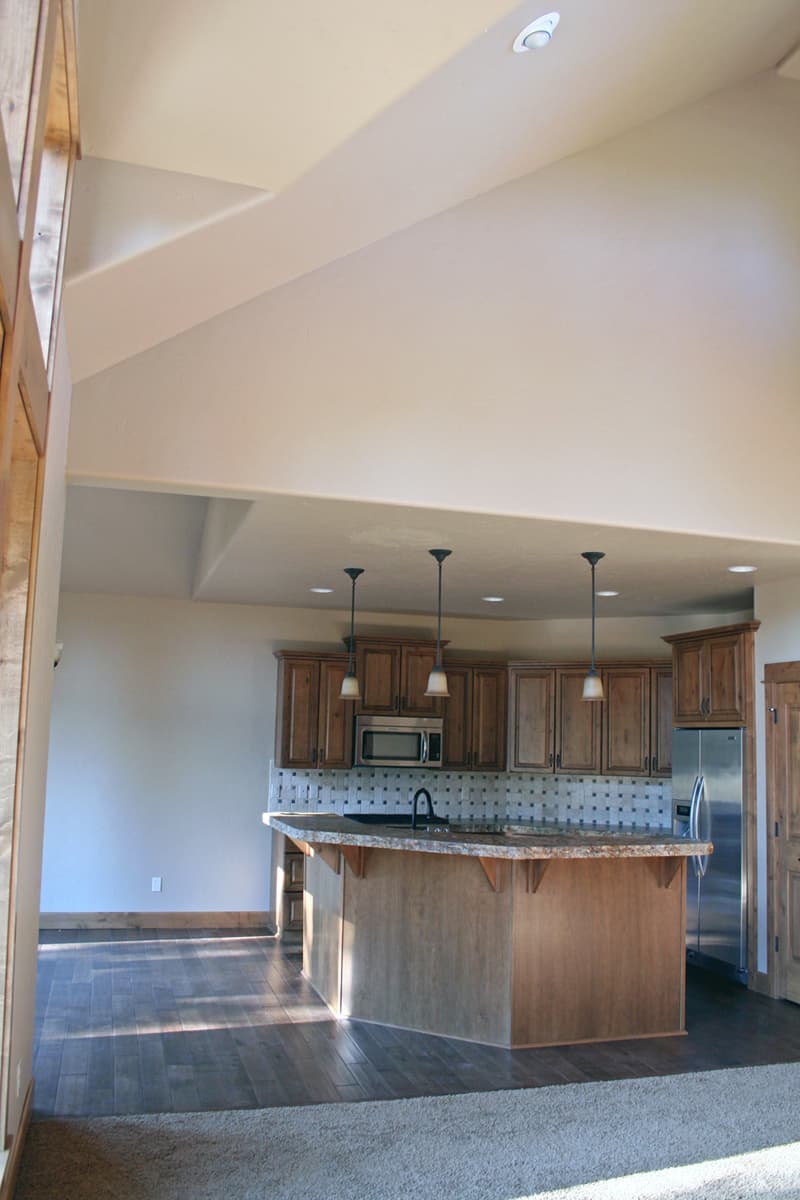

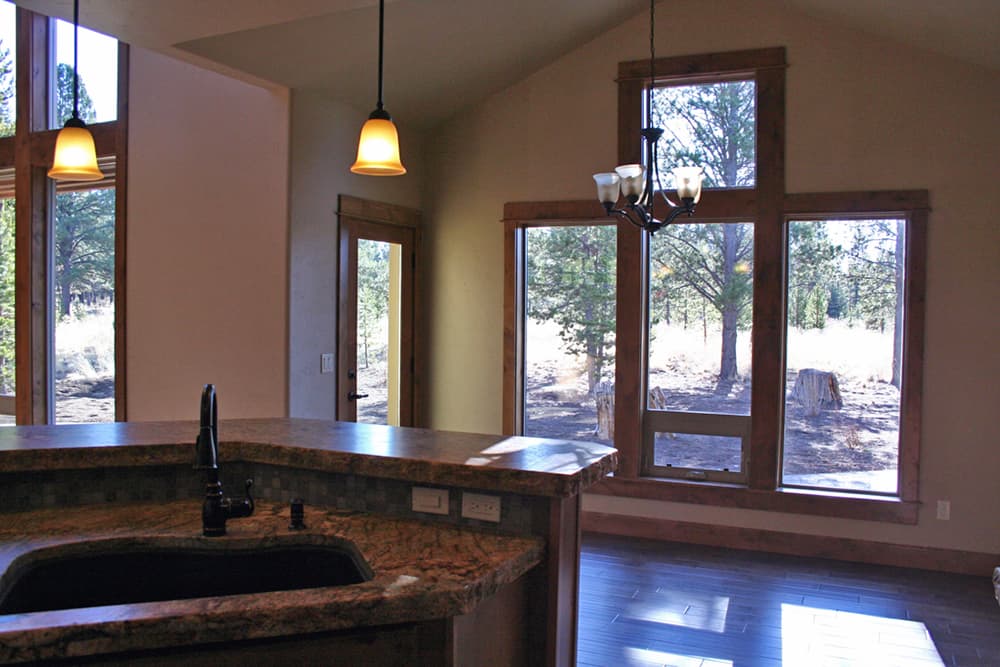

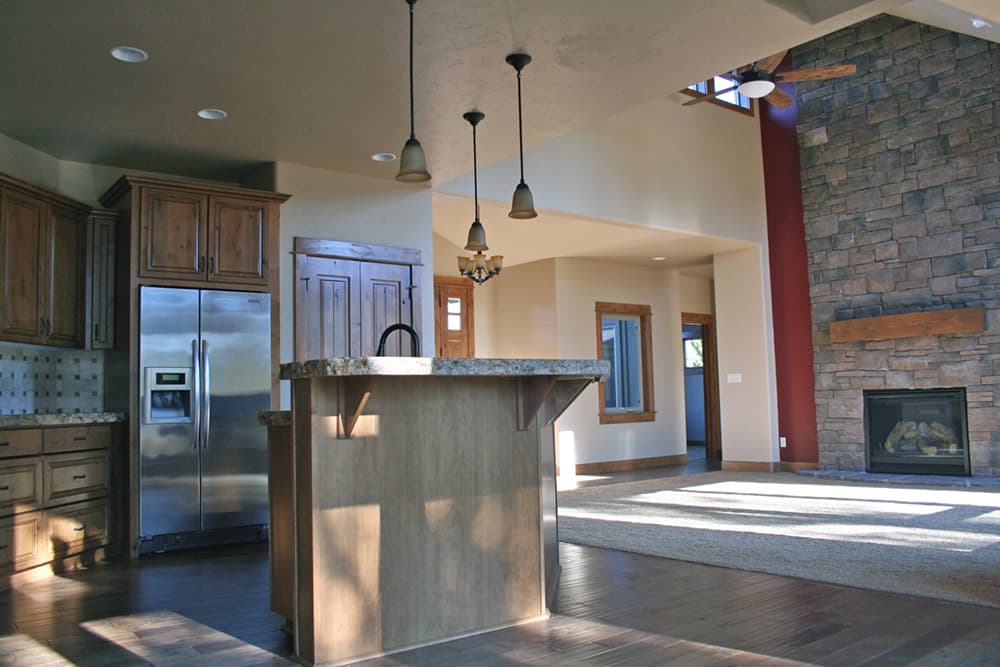

  • From the great room you can see right into the large 14' by 13' kitchen with its huge island, and on into the dining room.

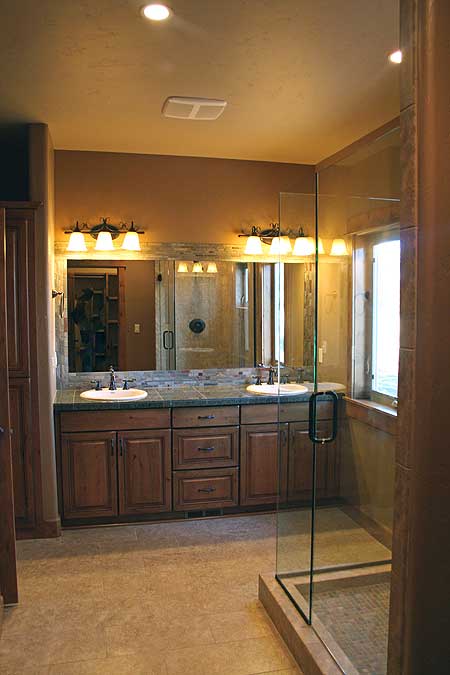

  • A split bedroom layout affords privacy to the master suite that also has a vaulted ceiling.
  • Two family bedrooms on the opposite side of the home share a hall bathroom with two sinks and pocket doors.
  • Bonus space on the second floor - included in the total living area - includes an optional additional bathroom.
  • Related Plans: Get a 3-car garage with house plans 54236HU and 54220HU and straighten the garage with house plans 54221HU and 54239HU.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

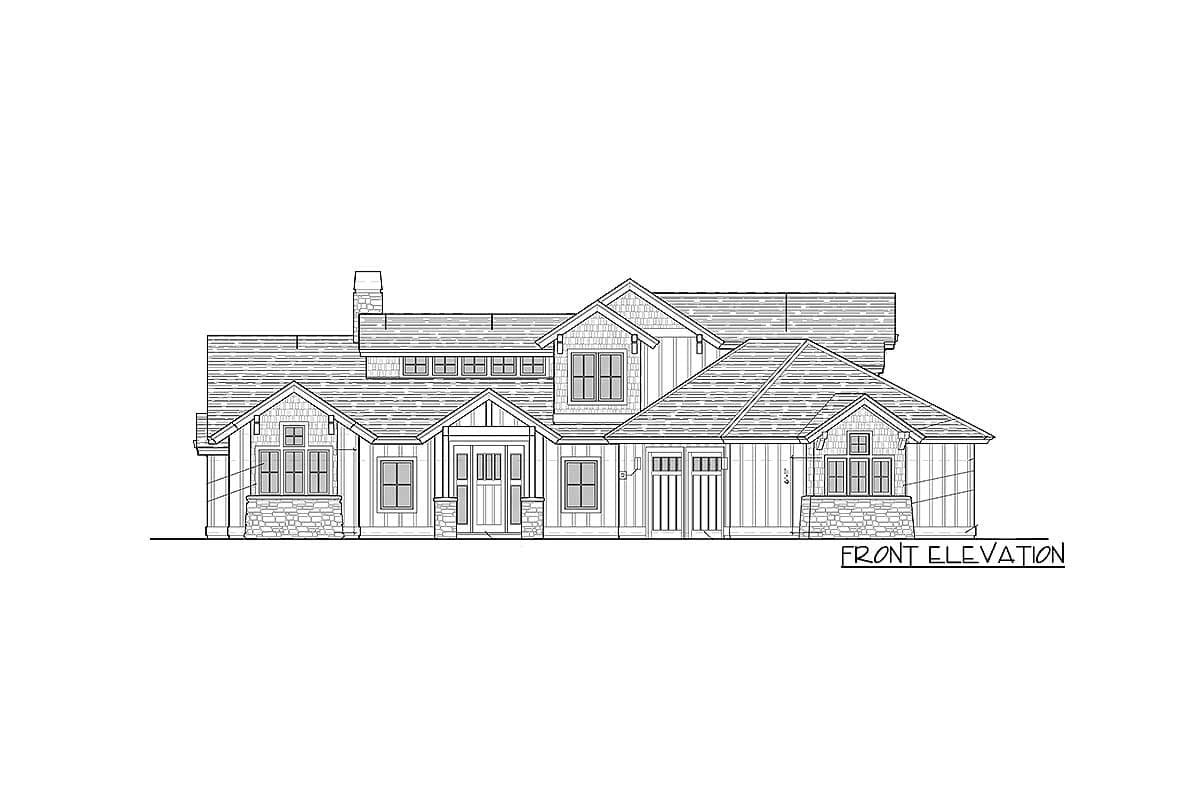

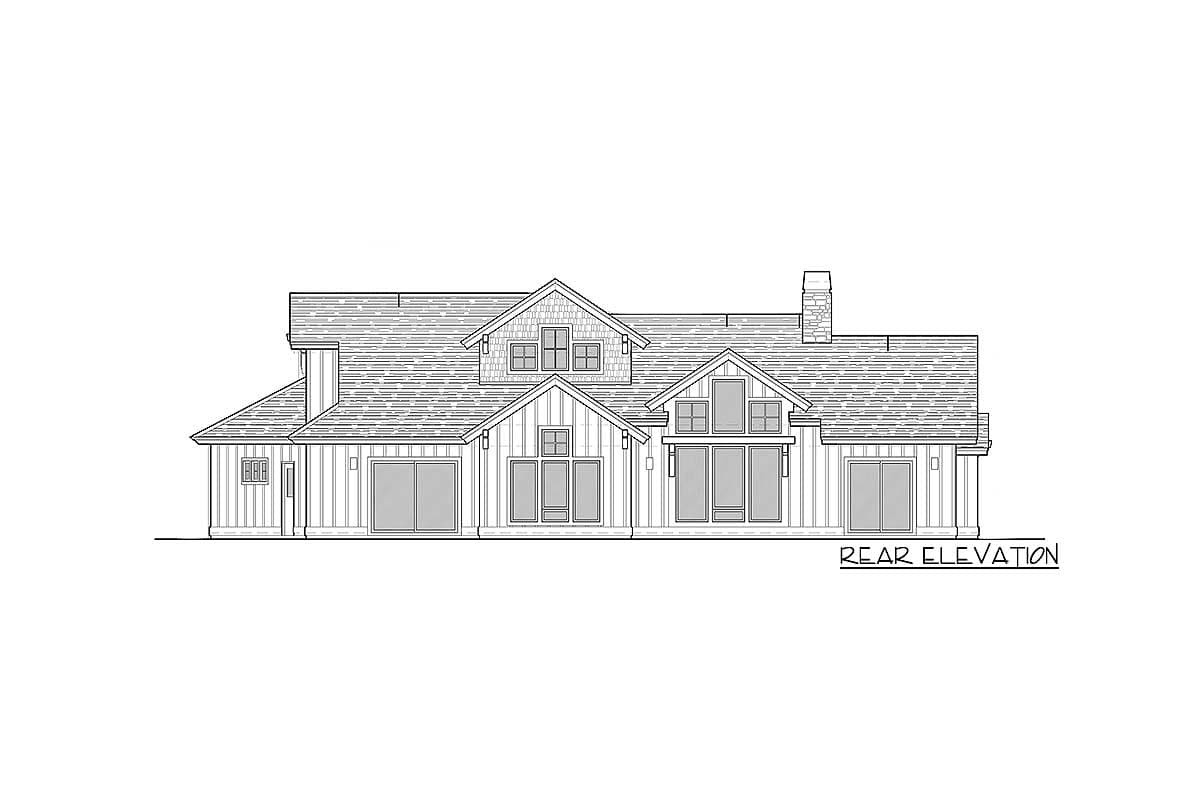

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

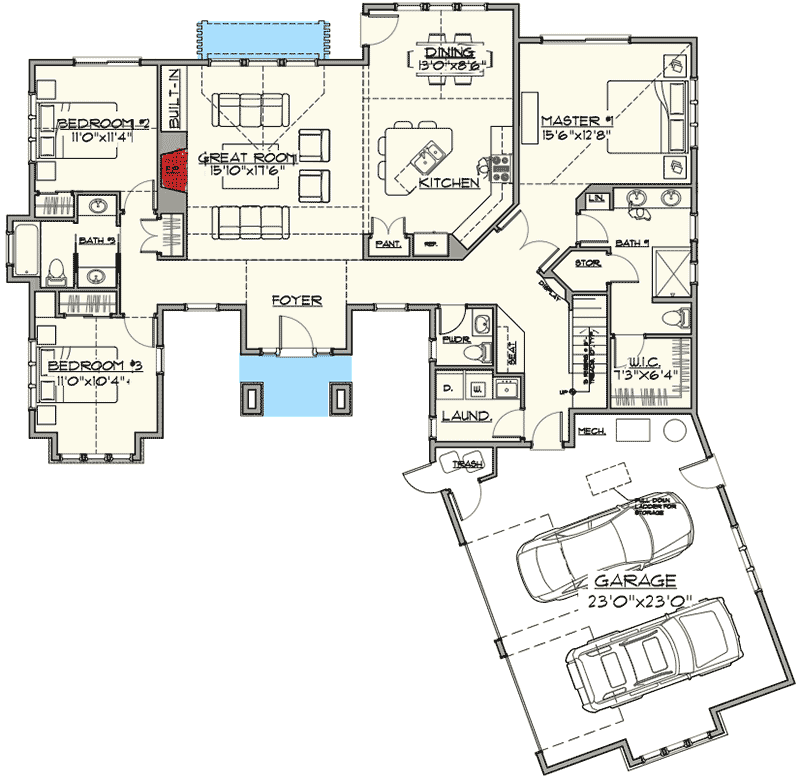

Attractive Craftsman Home Plan - 54205HU floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

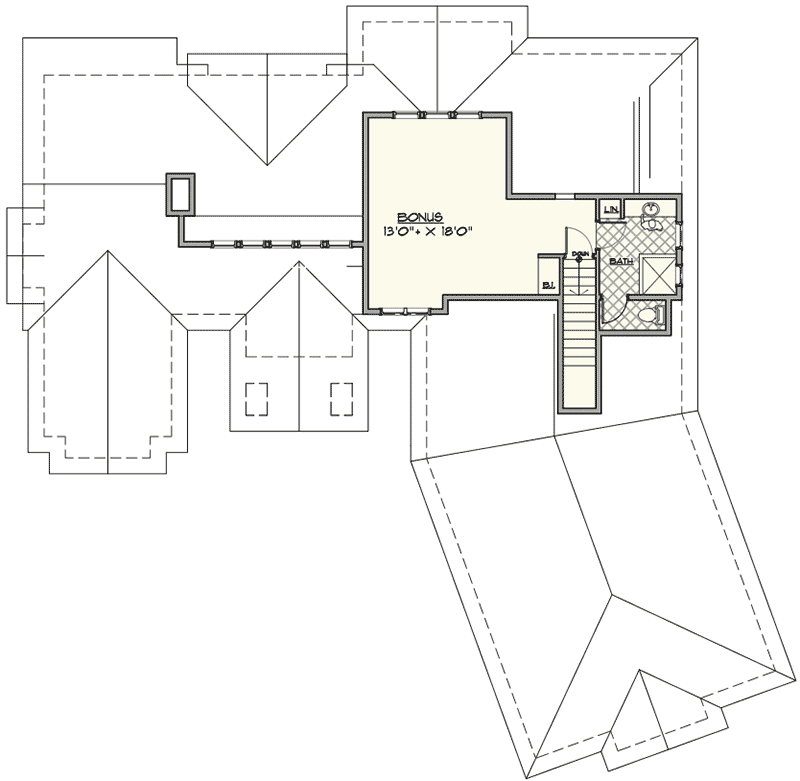

Attractive Craftsman Home Plan - 54205HU floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,350 sq. ft.
  • 1st Floor: 1,921 sq. ft.
  • 2nd Floor: 429 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 69' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Attractive Craftsman Home Plan

  • 2,350

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • 5 Sets $1,795
  • 8 Sets $1,895
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • The attractive Craftsman exterior of this home plan will draw you in to see the exciting floor plan.
  • An 11' vaulted ceiling tops the foyer that has clear sightlines into the great room with its ceiling that soars to 15'6" angling in several directions.
  • A row of clerestory windows allow even more natural light to flood the room.
  • From the great room you can see right into the large 14' by 13' kitchen with its huge island, and on into the dining room.
  • A split bedroom layout affords privacy to the master suite that also has a vaulted ceiling.
  • Two family bedrooms on the opposite side of the home share a hall bathroom with two sinks and pocket doors.
  • Bonus space on the second floor - included in the total living area - includes an optional additional bathroom.
  • Related Plans: Get a 3-car garage with house plans 54236HU and 54220HU and straighten the garage with house plans 54221HU and 54239HU.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,350 sq. ft.
  • 1st Floor: 1,921 sq. ft.
  • 2nd Floor: 429 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 69' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 54205HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54205HU
|
Need Help? 800-854-7852
|
Plan 54205HU
