Plan 135156GRA

Mountain Ranch Plan with Split-bed Layout and 3-Car Garage - 2166 Sq Ft

Heated S.F.
2,166
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 135156GRA

Main Level
Main Level
Basement Stairs Location
Basement Stairs Location

Plan 135156GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

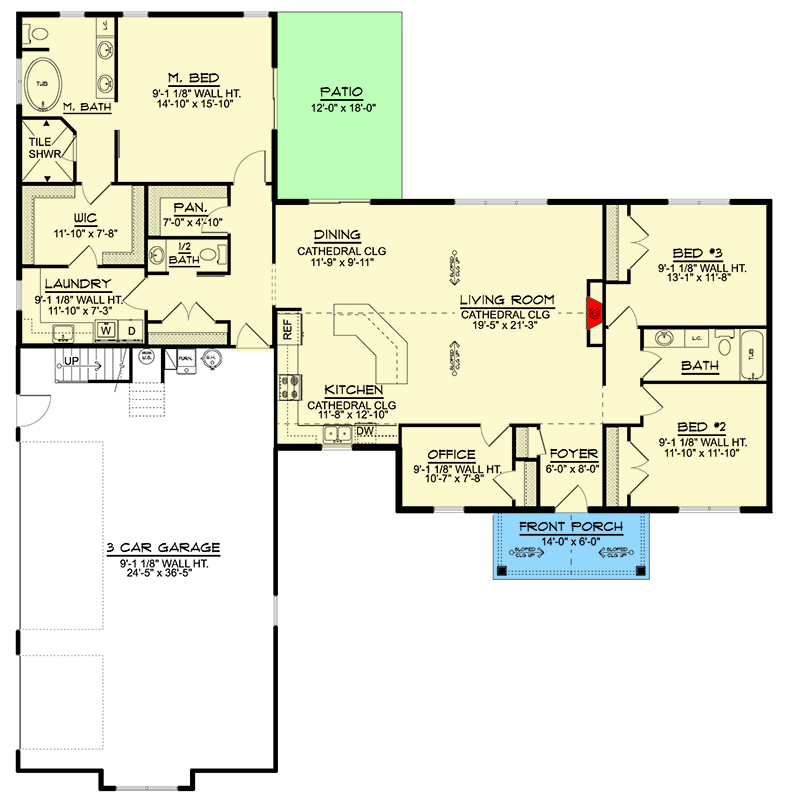

Plan 135156GRA: Mountain Ranch Plan with Split-bed Layout and 3-Car Garage - 2166 Sq Ft - Floor Plan - Main Level - Country, Mountain, Ranch, Rustic, Traditional

Basement Stairs Location

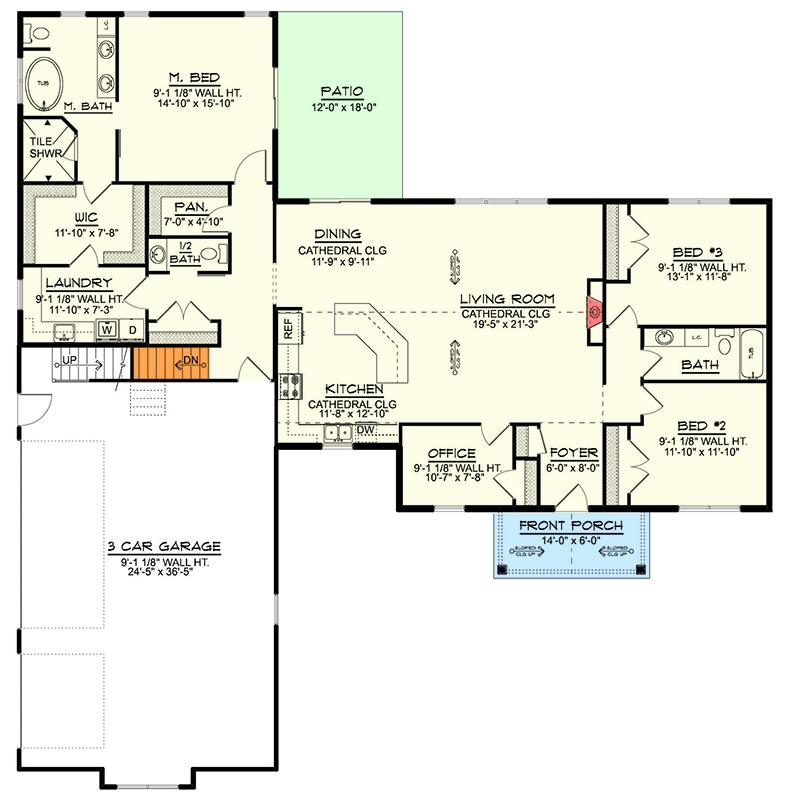

Plan 135156GRA: Mountain Ranch Plan with Split-bed Layout and 3-Car Garage - 2166 Sq Ft - Floor Plan - Basement Stairs Location - Country, Mountain, Ranch, Rustic, Traditional

Plan Details

  • The open-gable, front porch captures your eye when gazing at this Mountain Ranch home plan, with a 3-car garage extending from the front of the design.
  • Inside, the central and open living space is topped by a cathedral ceiling. An angled island in the kitchen offers a casual spot for a quick meal, while also increasing available meal prep space.
  • A home office just off the living room considers the work-at-home resident, while a back patio is accessible from the dining area and master bedroom.
  • For privacy purposes, the master bedroom is set apart from the other bedrooms and includes a 5-fixture ensuite with an oversized shower and a walk-in closet with access to the laundry room.
  • Bedrooms 2 and 3 are nearly identical and separated by a full bathroom.
  • Related Plan: Move the garage with house plan 135212GRA.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,166 sq. ft.

1st Floor

2,166 sq. ft.

Porch, Front

80 sq. ft.

Covered Patio

216 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 6"

Depth

74' 8"

Max Ridge Height

18' 11"

Garage

Type

Attached

Area

1028 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Country

Mountain

Ranch

Rustic

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area
