Plan 29816RL

Mountain Retreat with 2-Story Great Room

Heated S.F.

1,053

Beds

2

Baths

2 - 3

Stories

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

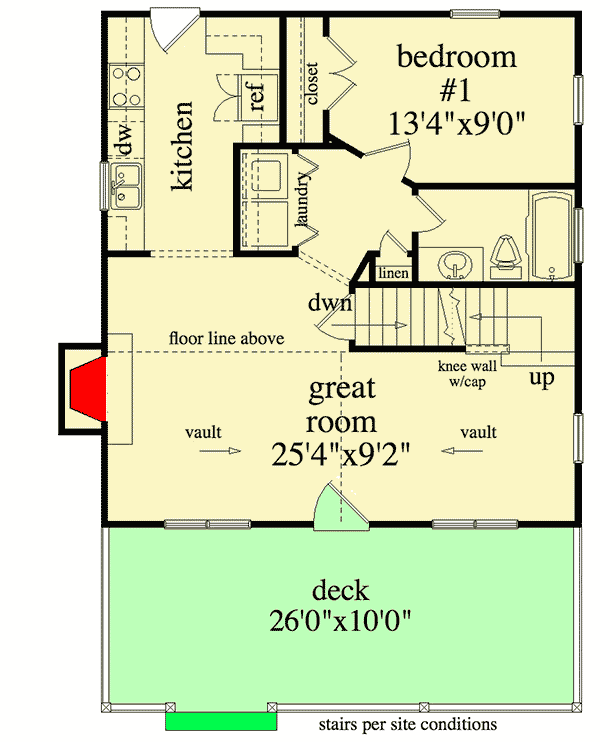

Mountain Retreat with 2-Story Great Room - 29816RL floor plan - Main Level

2nd Floor

Reverse Floor Plan

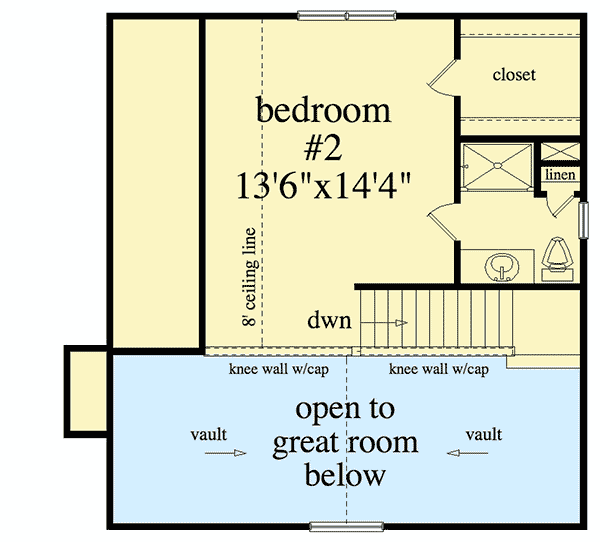

Mountain Retreat with 2-Story Great Room - 29816RL floor plan - 2nd Floor

Lower Level

Reverse Floor Plan

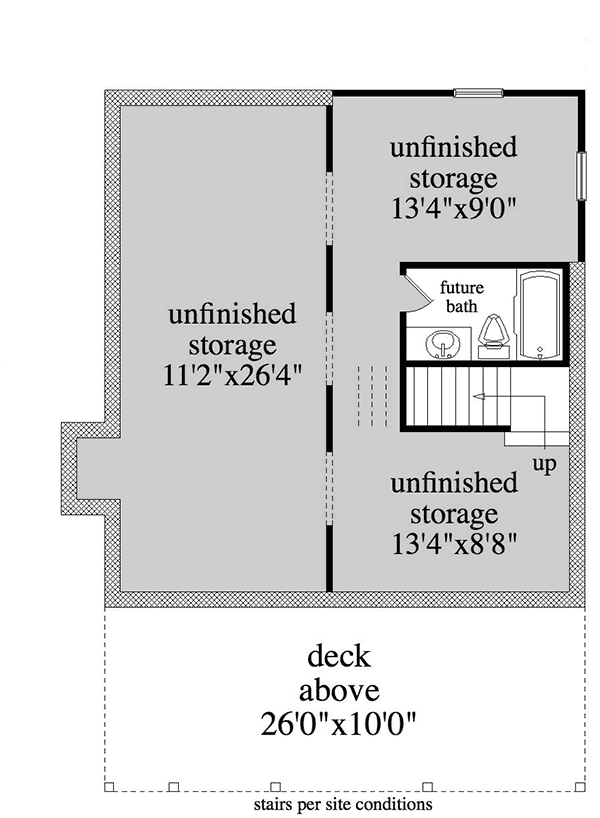

Mountain Retreat with 2-Story Great Room - 29816RL floor plan - Lower Level

Plan Details

A huge covered deck becomes an outdoor living room in this rustic mountain home.
Sit by the fireplace in your spacious vaulted great room with plenty of room to spread out.
The efficient kitchen has a window over the sink and a handy laundry room close by.
Guests can stay in the first floor bedroom while the loft master suite lies on the second floor with its own bath and views of the great room below.

What's Included

All 4 elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section
Typical Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,053 sq. ft.

1st Floor:

718 sq. ft.

2nd Floor:

335 sq. ft.

Deck:

260 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2 or 3

Foundation Type

Standard Foundations:

Daylight

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

26' 0"

Depth:

28' 0"

Max Ridge Height:

22' 4"

Ceiling Heights

Floor / Height:

Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch:

14 on 12

Secondary Pitch:

14 on 12

Framing Type:

Stick and Truss

Architectural Style

Special Features

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections
