Mountaintop Retreat

Plan 9541RW

This plan plants 10 trees

7,649
Heated s.f.
3-4
Beds
3.5+
Baths
1
Stories
3
Cars

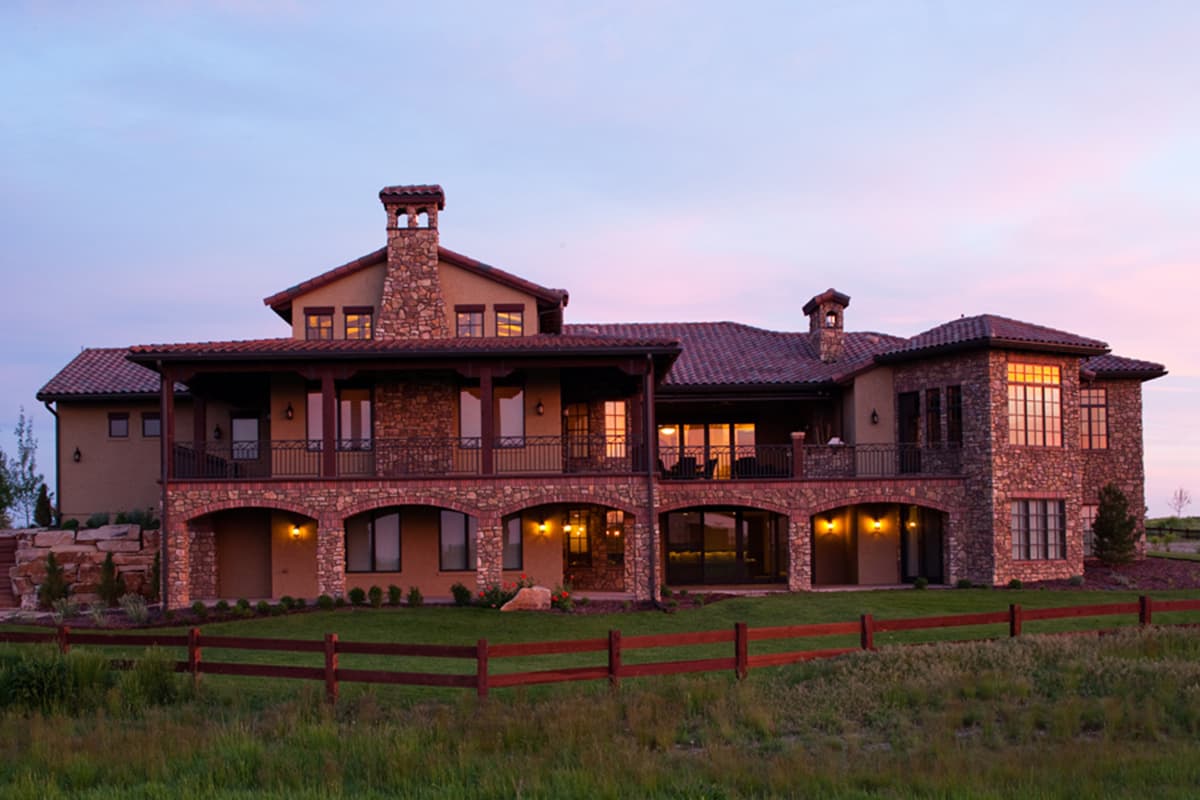

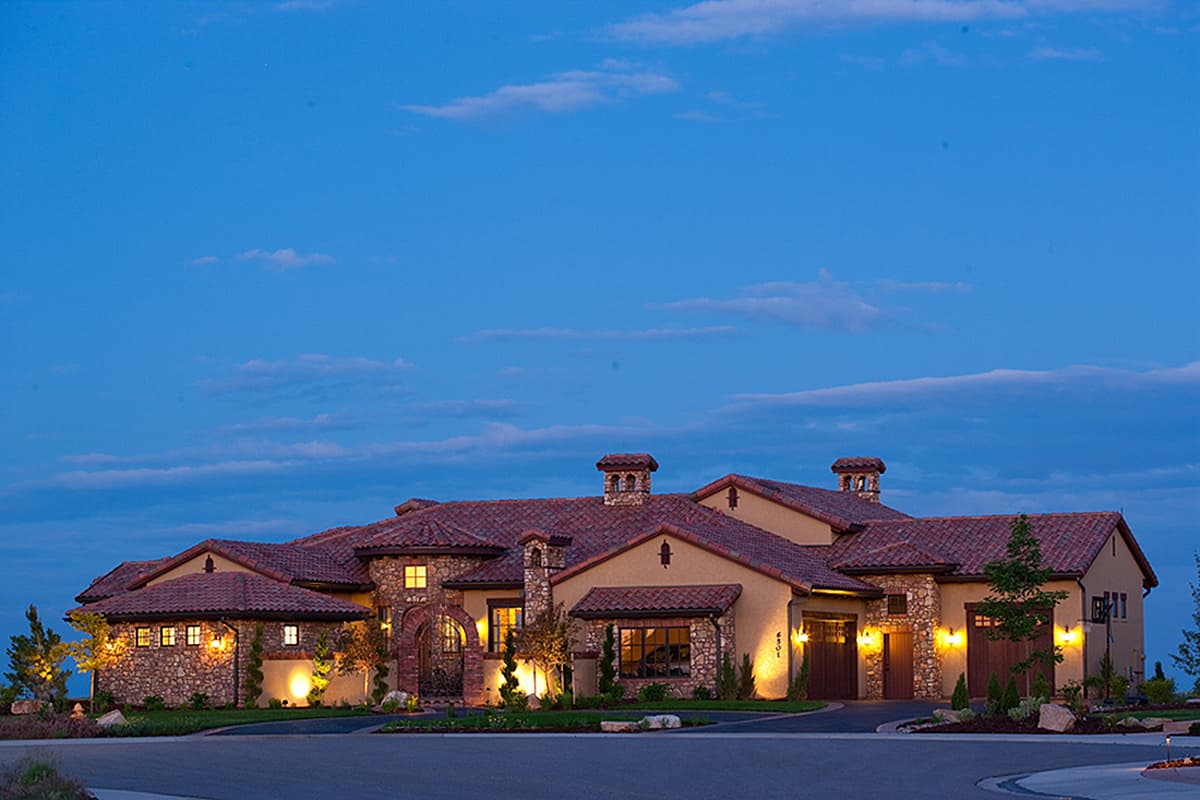

Designed to take advantage of commanding views to the back with its numerous decks and patios, this mountaintop retreat deserves a special lot.
An entry couryard has a fireplace for outdoor enjoyment but you'll want to head to the back to really enjoy the views.

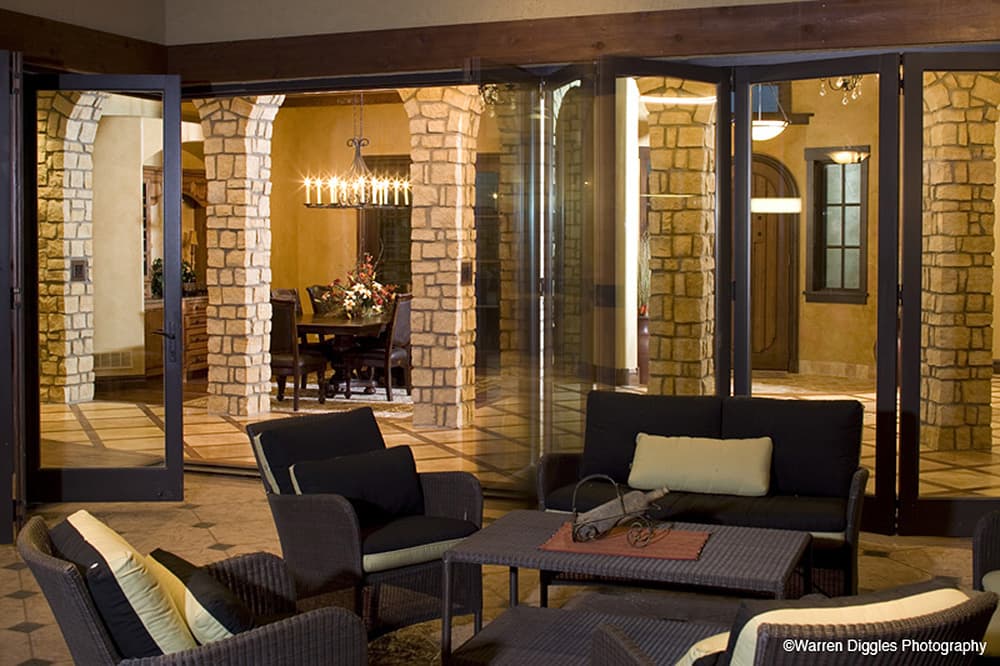

Step up as you enter the circular foyer and you'll notice the collapsing wall ahead of you that reveals an indoor/outdoor covered terrace with bar and fireplace.

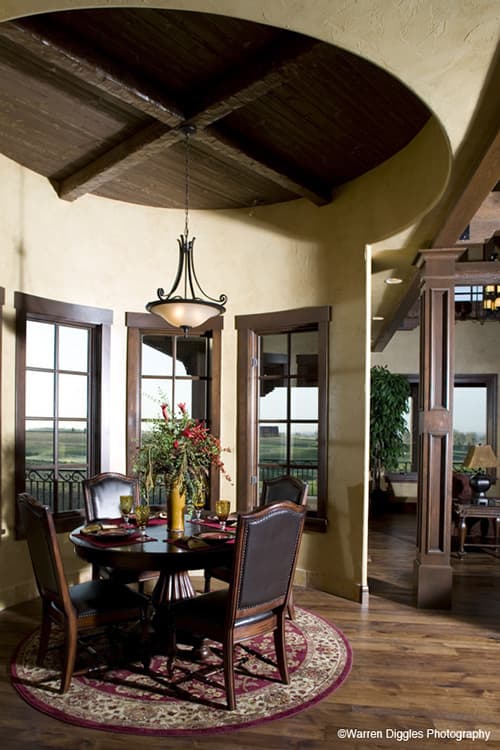

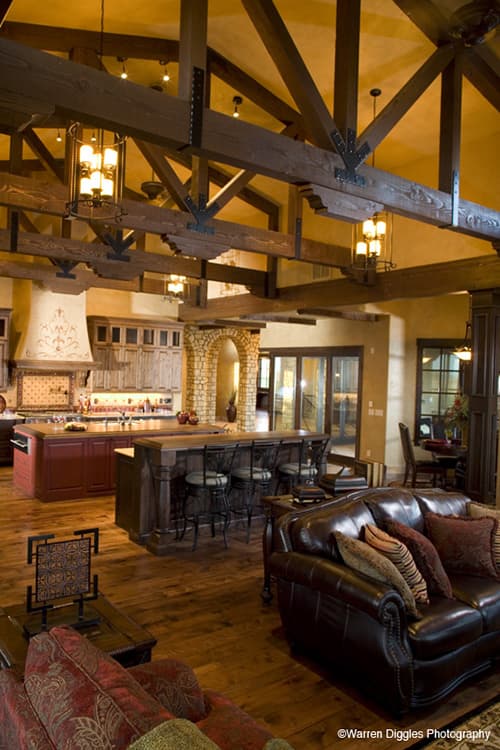

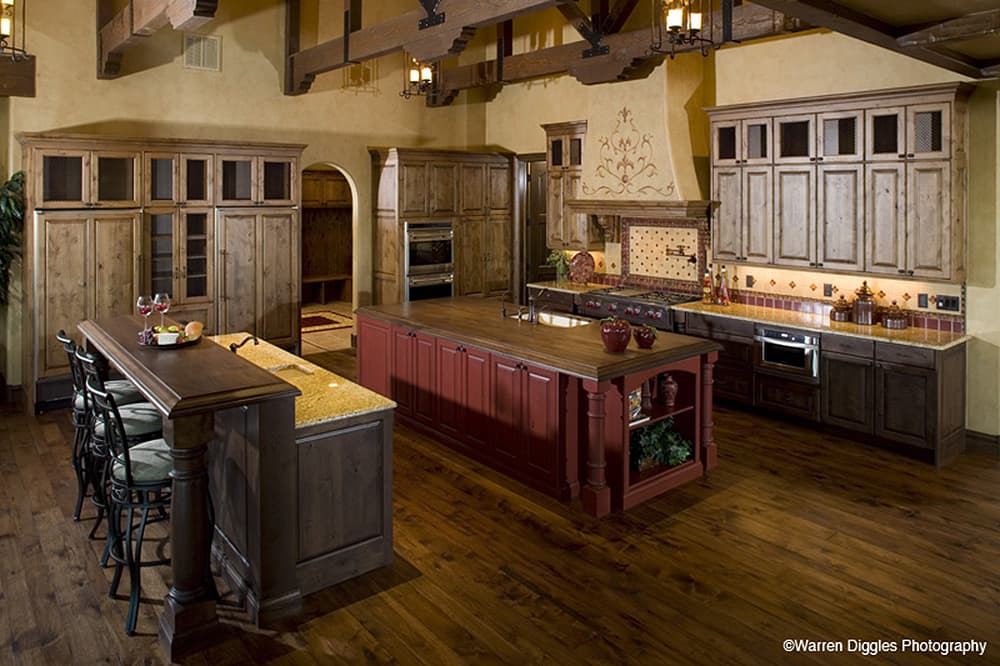

Another circular space - the casual dining area - has five windows and ties in to the vaulted kitchen and hearth room space.

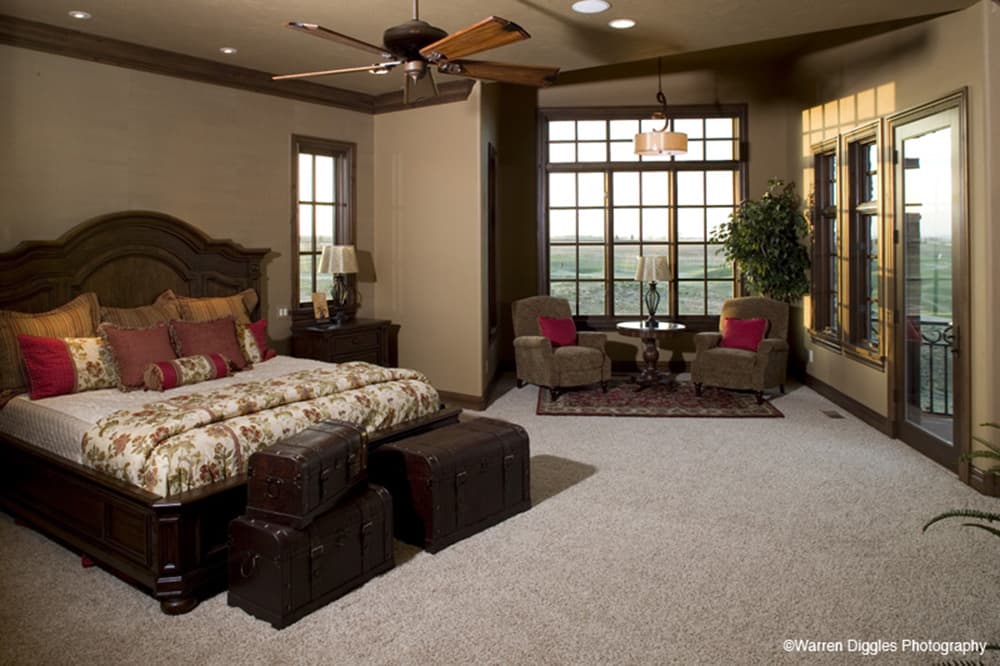

The master suite features an angled sitting room to take advantage of the views and features a circular entryway.

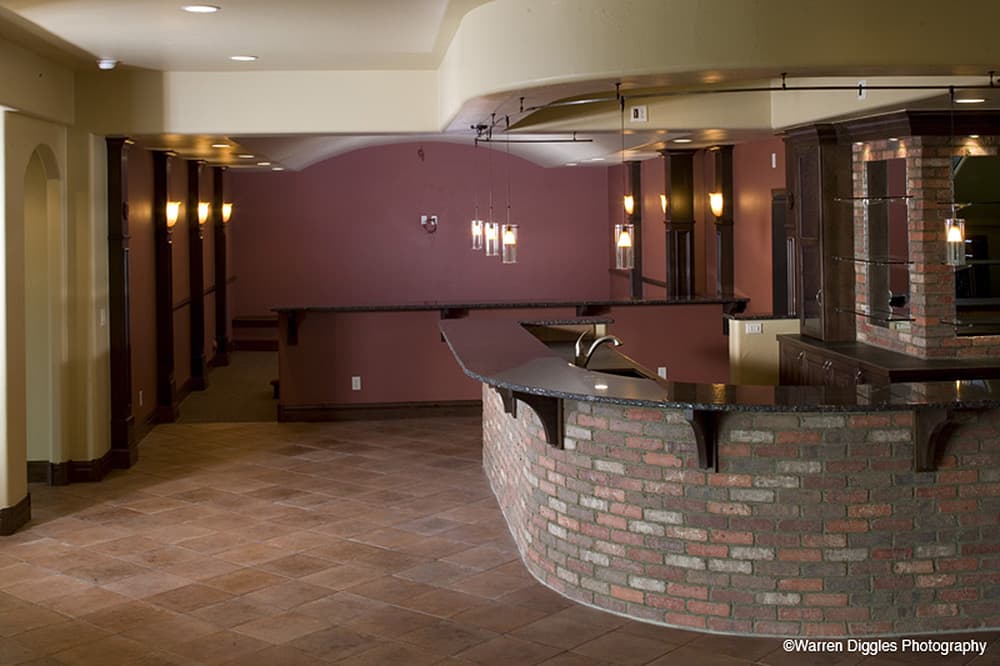

The lower level features wide open spaces including a theater and also gives you up to three additional bedrooms. And the back is lined by a spacious patio to help you enjoy the outdoors.

The following details are included with this house plan:

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

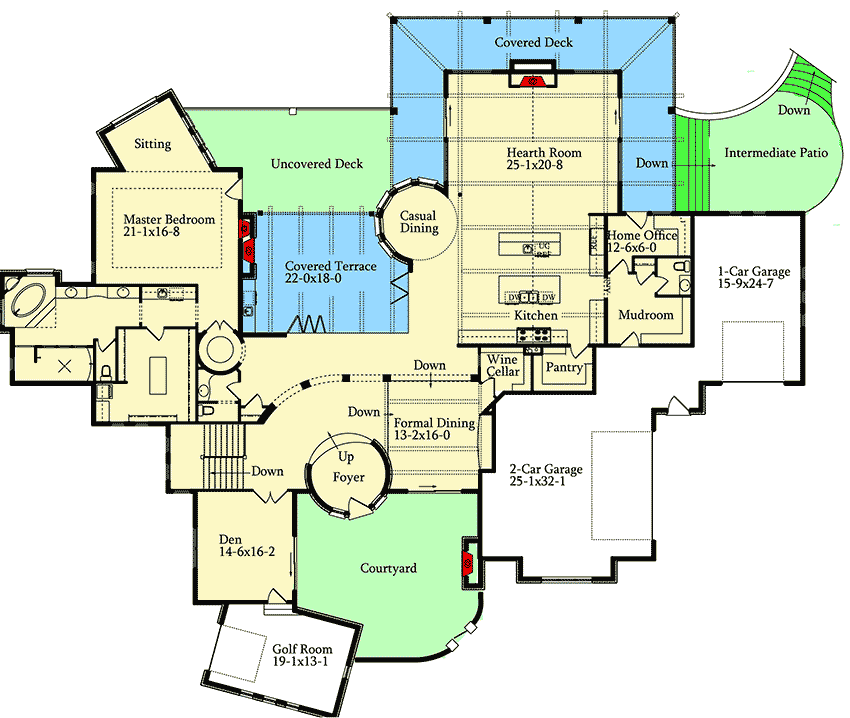

Mountaintop Retreat - 9541RW floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

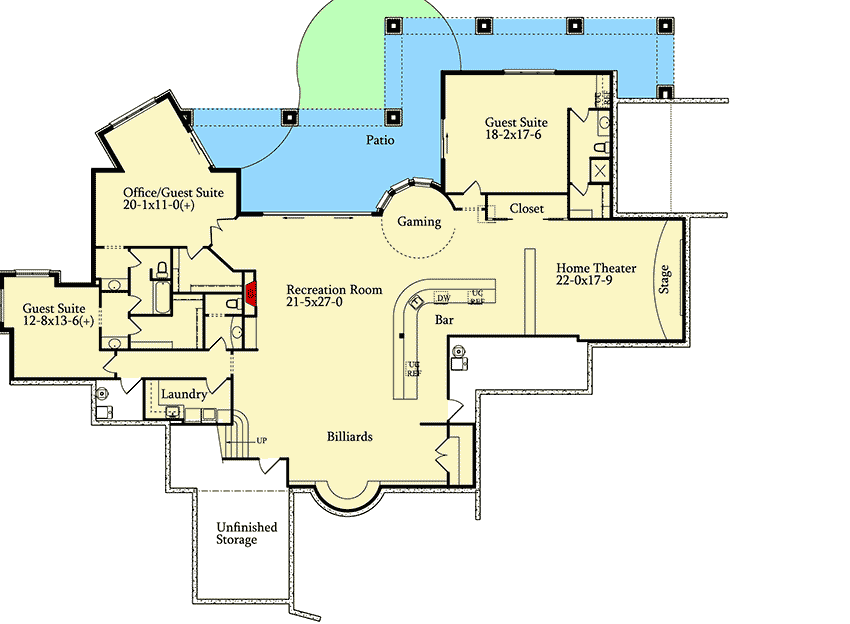

Mountaintop Retreat - 9541RW floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 7,649 sq. ft.
Lower Level: 3,705 sq. ft.
1st Floor: 3,944 sq. ft.

Basement Unfinished: 239 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3
Half bathrooms: 3

Foundation Type

Standard Foundations: Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 118' 6"
Depth: 104' 0"
Max ridge height: 24' 4"

Garage

Type: Attached
Area: 1461 sq. ft.
Count: 3 Cars
Entry Location: Front, Side

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

Primary Pitch: 5 on 12

Framing Type: Truss

Architectural Style

Special features
