Plan 81620AB

Multi-Family Home with Shingles and Siding

Heated S.F.
3,290
Units
2
Width
Depth

Floor Plan

Plan 81620AB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81620AB

M-F 9am-5pm EST |

1-203-761-8500

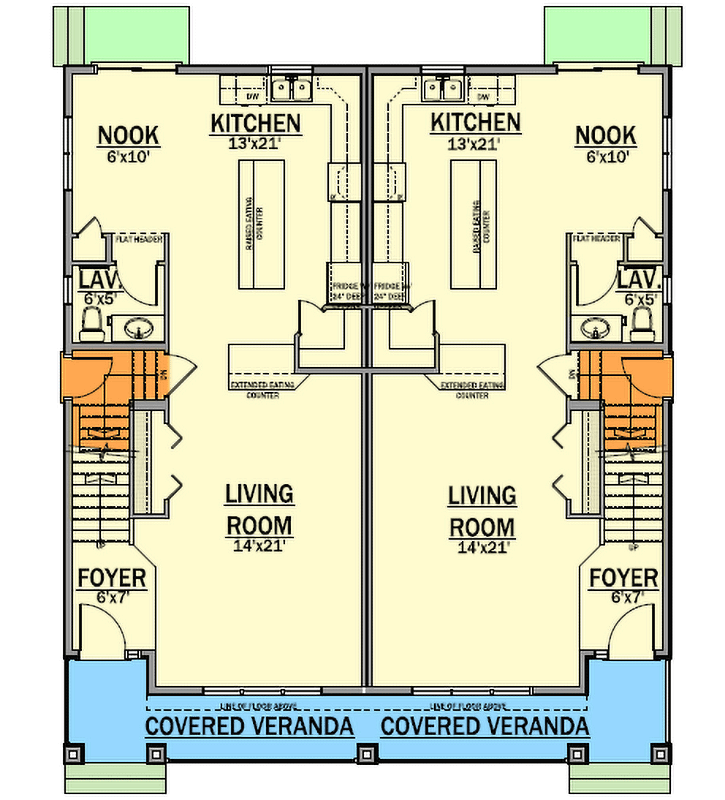

Main Level

Plan 81620AB: Multi-Family Home with Shingles and Siding - Floor Plan - Main Level - Craftsman, Traditional

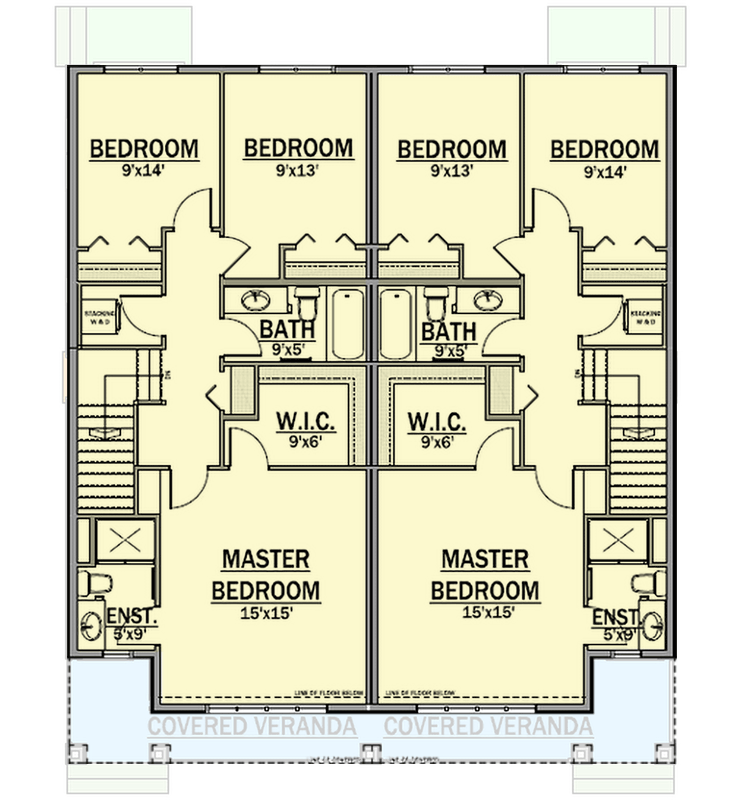

2nd Floor

Plan 81620AB: Multi-Family Home with Shingles and Siding - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • A combination of shingles, siding and covered verandas gives this multi-family home an attractive exterior.
  • The spacious living room leads back to the kitchen with a walk-in pantry and a dining nook.
  • Three bedrooms occupy with upper floor and the master suite has its own private bath.
Unit A
Heated Area
1,645Sq. Ft.
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
21'width
52'depth
28'height
Unit B
Heated Area
1,645Sq. Ft.
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
21'width
52'depth
28'height

What's Included

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,290 sq. ft.

1st Floor

1,630 sq. ft.

2nd Floor

1,660 sq. ft.

Deck

268 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

52' 0"

Max Ridge Height

28' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,290 sq. ft.

1st Floor

1,630 sq. ft.

2nd Floor

1,660 sq. ft.

Deck

268 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

52' 0"

Max Ridge Height

28' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans
