Plan 68916VR Multi-Family Unit with Mirrored Floor Plans

1,762 2 75' 0" 30' 0" 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Multi-Family Unit with Mirrored Floor Plans

Plan 68916VR

  • 1,762

    Heated s.f.

  • 2

    Units

  • 75' 0"

    Width

  • 30' 0"

    Depth

  • The sloped roofline adds a contemporary touch to these side-by-side units, while allowing transom windows to flood the interiors with natural lighting.
  • The double garages on the lower level offer additional storage space, along with an entryway with a built-in bench and hooks above.
  • Upstairs, each unit provides an open living, dining, and kitchen area, anchored by an island and embracing an abundance of natural light.
  • The sloped roof goes from 7' in back to 13' in front, allowing for large windows to soak up the surrounding views.
  • The bedrooms include a walk-in closet and full bathroom with a linen closet.
  • Related Plan: Get a single family version with house plan 68915VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

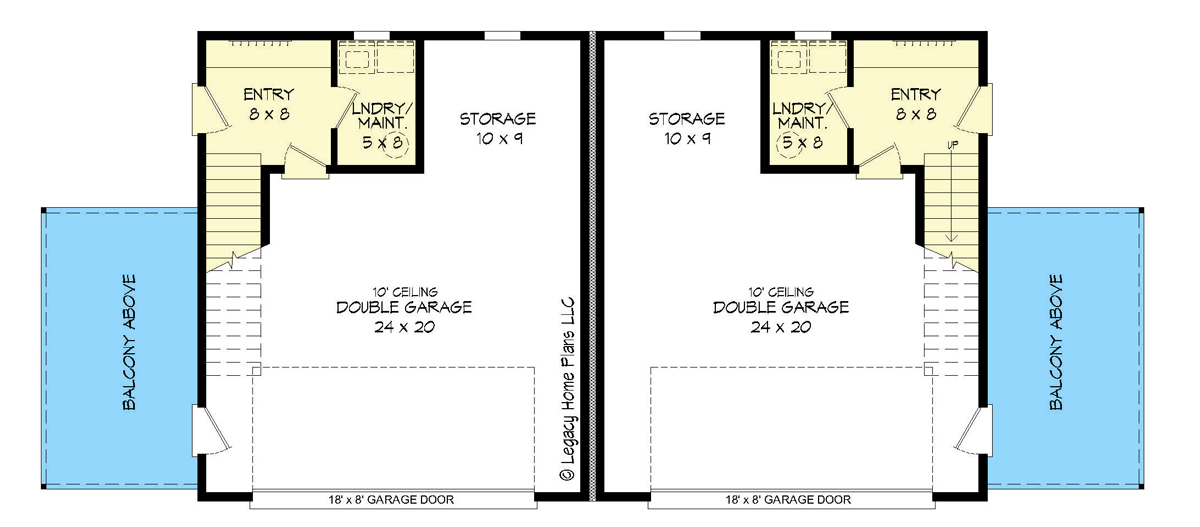

Multi-Family Unit with Mirrored Floor Plans - 68916VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

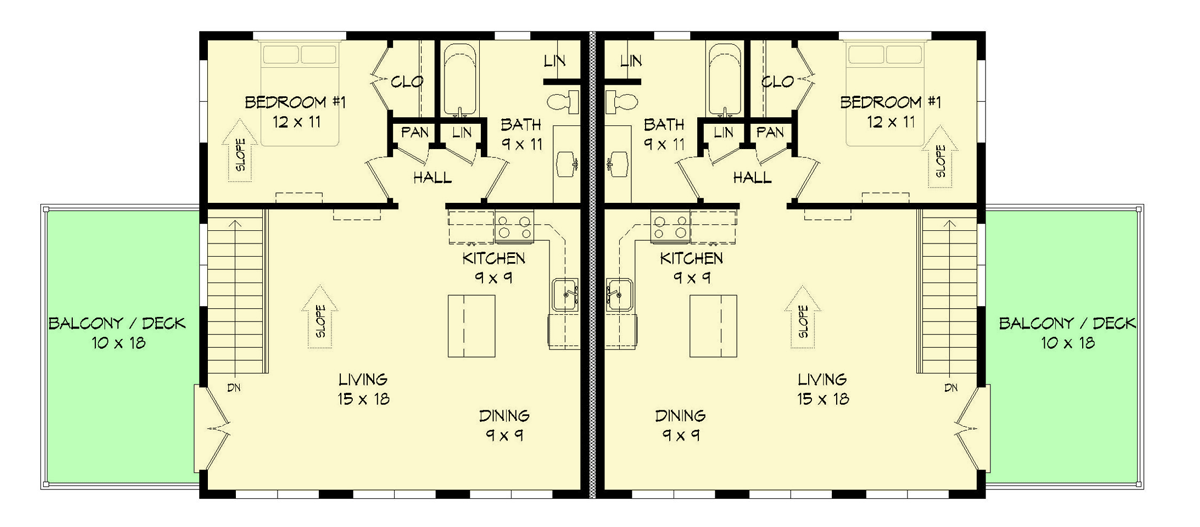

Multi-Family Unit with Mirrored Floor Plans - 68916VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,762 sq. ft.
  • 1st Floor: 262 sq. ft.
  • 2nd Floor: 1,500 sq. ft.
  • Balcony / Veranda: 360 sq. ft.
  • Porch, Front: 180 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 1238 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 13' 0"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Multi-Family Unit with Mirrored Floor Plans

  • 1,762

    Heated s.f.

  • 2

    Units

  • 75' 0"

    Width

  • 30' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets $1,260
  • 5 Sets + PDF $1,307
  • CAD + PDF - Single-Build $1,645
  • View all purchase option online

About This Plan

  • The sloped roofline adds a contemporary touch to these side-by-side units, while allowing transom windows to flood the interiors with natural lighting.
  • The double garages on the lower level offer additional storage space, along with an entryway with a built-in bench and hooks above.
  • Upstairs, each unit provides an open living, dining, and kitchen area, anchored by an island and embracing an abundance of natural light.
  • The sloped roof goes from 7' in back to 13' in front, allowing for large windows to soak up the surrounding views.
  • The bedrooms include a walk-in closet and full bathroom with a linen closet.
  • Related Plan: Get a single family version with house plan 68915VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,762 sq. ft.
  • 1st Floor: 262 sq. ft.
  • 2nd Floor: 1,500 sq. ft.
  • Balcony / Veranda: 360 sq. ft.
  • Porch, Front: 180 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 1238 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 13' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
Plan 68916VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68916VR
|
Need Help? 800-854-7852
|
Plan 68916VR
