Plan 42554DB

Multi-Generation House Plan with Alternate Exteriors

Heated S.F.
2,500
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 42554DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42554DB

M-F 9am-5pm EST |

1-203-761-8500

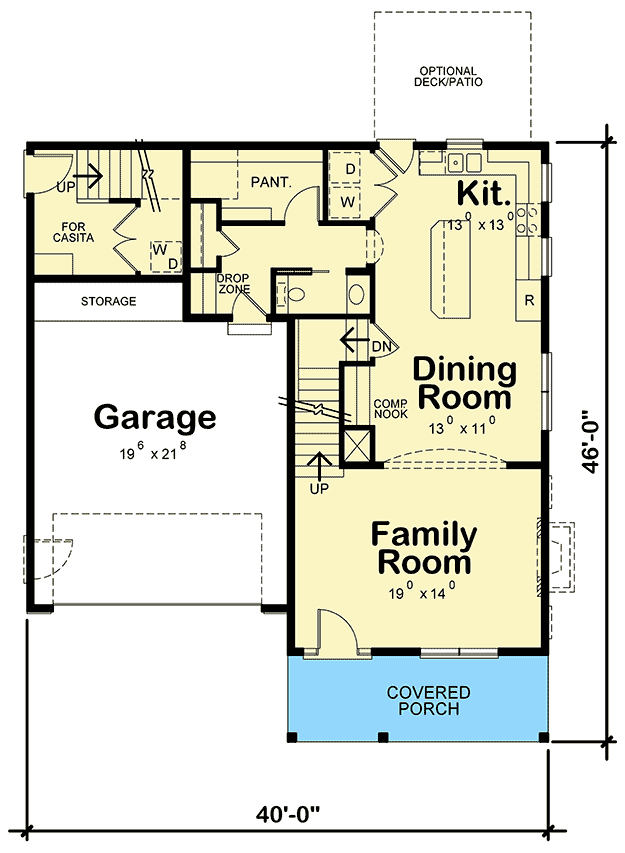

Main Level

Plan 42554DB: Multi-Generation House Plan with Alternate Exteriors - Floor Plan - Main Level - Contemporary, Craftsman, Northwest

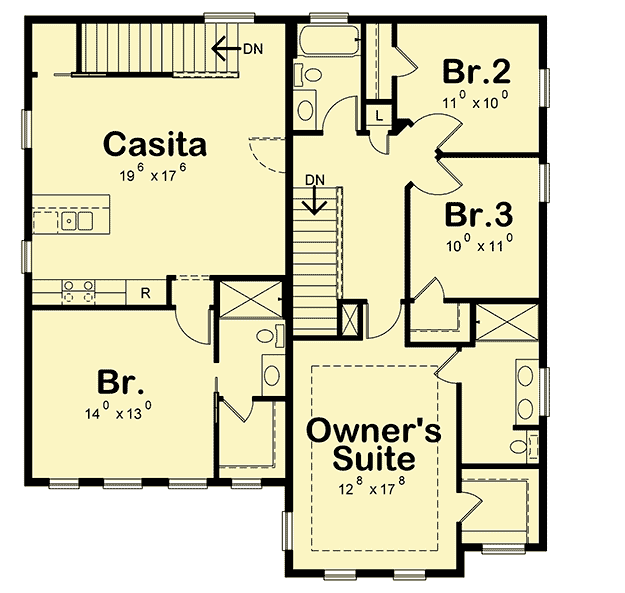

2nd Floor

Plan 42554DB: Multi-Generation House Plan with Alternate Exteriors - Floor Plan - 2nd Floor - Contemporary, Craftsman, Northwest

Plan Details

  • This attractive multi-generation house plan offers a well-organized floor plan with lots of built-ins that add charm and storage.
  • An arched entryway divides the dining area from the big family room.
  • The eating area flows into the compact kitchen that has a large island to add counter space. The walk-in pantry lies near the drop zone off the garage.
  • Upstairs, the master suite has a tray ceiling, private bathroom and a walk-in closet.
  • A separate outdoor entrance in back of the home leads up to the in-law casita that could also be used for rental income if desired.
  • Related Plans: Get alternate exteriors with house plan 42413DB and 42553DB.

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,500 sq. ft.

1st Floor

1,025 sq. ft.

2nd Floor

1,475 sq. ft.

Porch, Front

133 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

31' 7"

Garage

Type

Attached

Area

482 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Craftsman

Northwest

Special Features

In-Law Suite

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,500 sq. ft.

1st Floor

1,025 sq. ft.

2nd Floor

1,475 sq. ft.

Porch, Front

133 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

31' 7"

Garage

Type

Attached

Area

482 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Craftsman

Northwest

Special Features

In-Law Suite

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry
