Multi-Generational Barndo-Style House Plan with Massive Connecting Garage Shop - 4314 Sq Ft

Heated S.F.
4,314
Beds
4
Baths
3.5+
Stories
2
Cars
2

Floor Plan

Plan 135207GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135207GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 135207GRA: Multi-Generational Barndo-Style House Plan with Massive Connecting Garage Shop - 4314 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Mountain, New American, Rustic, Traditional

2nd Floor

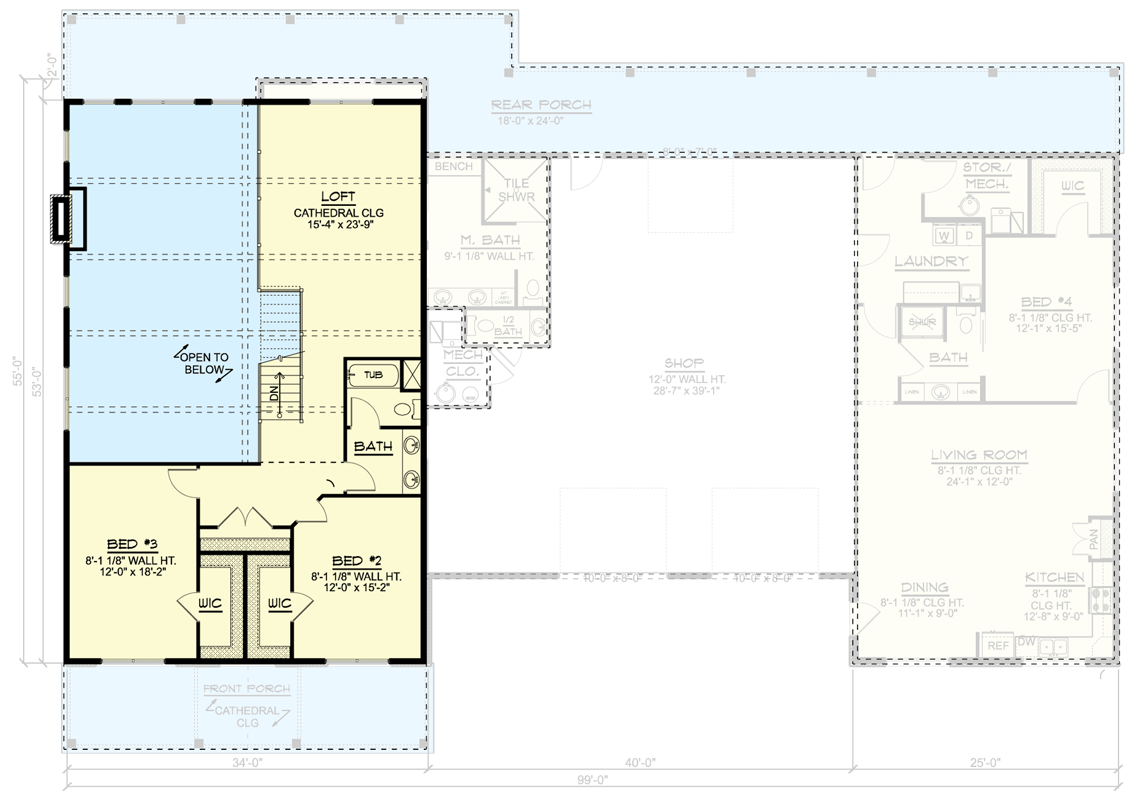

Plan 135207GRA: Multi-Generational Barndo-Style House Plan with Massive Connecting Garage Shop - 4314 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Country, Mountain, New American, Rustic, Traditional

Plan Details

  • This barndominium house plan designed with standard framing (i.e. 2x6 exterior walls) gives you 1,455 square feet of garage and shop space which provides separation between two separate-but-connected independent units, giving you multi-generational living with all its benefits.
  • The heart of the main home on the left is open with a two-story ceiling above the living and dining rooms. The spacious kitchen makes entertaining easy, while a quiet den nearby provides a more secluded space to unwind.
  • The master bedroom is located on the main level and features a 5-fixture bathroom with a walk-in closet that connects to the laundry room.
  • Upstairs, bedrooms 2 and 3 are mirror images of each other, and a loft offers a communal space for the kids to enjoy.
  • The right side gives you single-floor living with an open concept living area complete with a corner kitchen and a bedroom with bath, walk-in closet and its own laundry room.
  • The garage lends plenty of space for a shop or storage with two 10' by 8' garage doors in front and a smaller 8' by 7' one in back.
  • This plan is designed with conventional wood framing - with 2x6 exterior walls. The exterior finish is spec'd for corrugated metal siding.
  • Related Plans: Remove the unit on the right with house plan 135047GRA, 135190GRA, 135158GRA (on a walkout basement), 135078GRA and 135184GRA.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
