Plan 135217GRA
Multi-Generational Barndominium-Style House Plan with an Industrial Vibe
Heated S.F.
2,288
Beds
3
Baths
3
Stories
1
Cars
3
What's Included
Plan Details

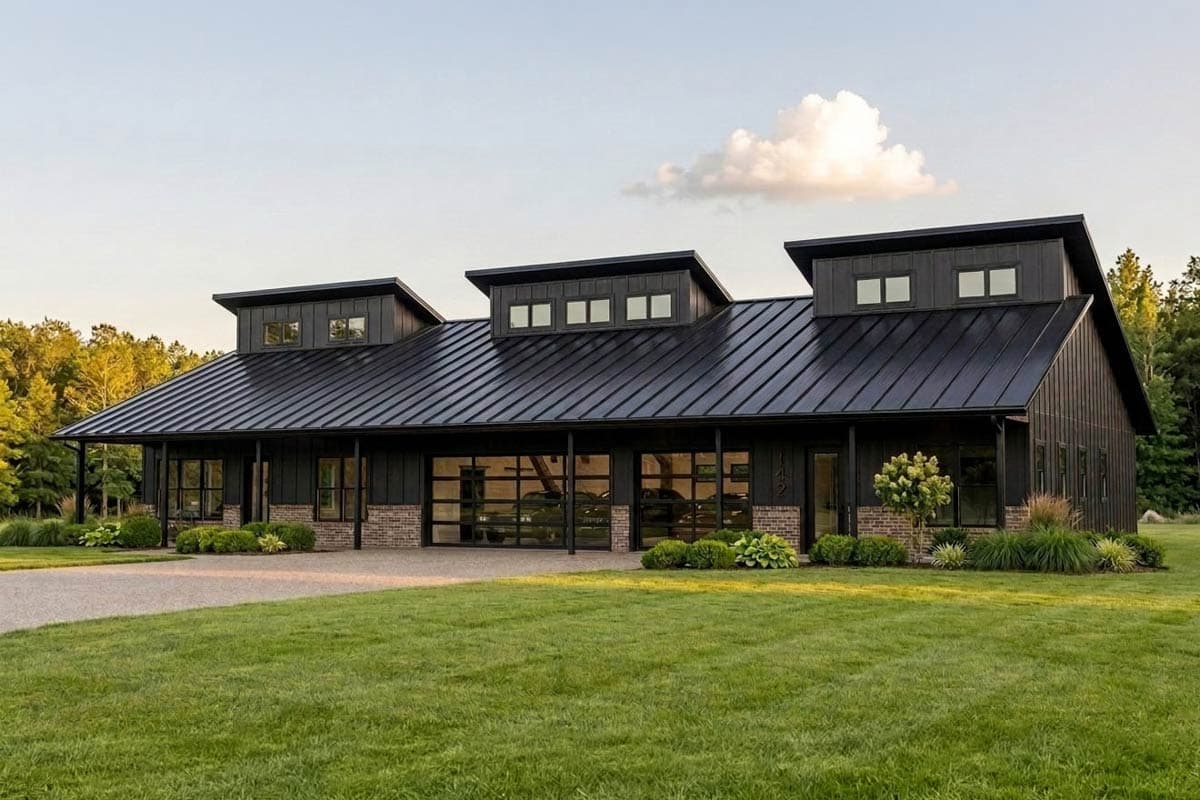

  • This house plan pairs the best of multi-generational and barndominium living into a single 2,288 square foot home with an oversized 1,408 square foot 3-car drive-through garage. An 8'-deep porch spans the entire front giving you 672 square feet of shaded space to enjoy.
  • The clerestory windows are functional and are open to the first floor throughout the plan. The ceiling at that point reaches 23' 8" throughout. On the left side and the garage, the lowest point of the sloped ceiling reaches 15' 9". On the right side, the lowest point of the sloped ceiling is 19' 6".
  • The left side gives you 1,408 square feet and 2 beds in a split layout and an open concept great room and kitchen layout. The right side has a similar open layout with 880 square feet and a single bedroom with its own laundry.
  • The exterior finish is spec'd for corrugated metal siding.
  • A 2-car 18' by 8' overhead door and a 10' by 8' overhead garage open in front while two 10' by 8' overhead doors open in back giving you the ability to drive in and out from both sides.
  • Related Plan: Get an alternate version with house plan 135144GRA.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Generational Barndominium-Style House Plan with an Industrial Vibe

  • 2,288

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,288 sq. ft.
  • 1st Floor: 2,288 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 52' 0"
  • Max ridge height: 25' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 1408 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
