Plan 42582DB

Multi-Generational House Plan with Attached Casita

Heated S.F.
2,591
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 42582DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42582DB

M-F 9am-5pm EST |

1-203-761-8500

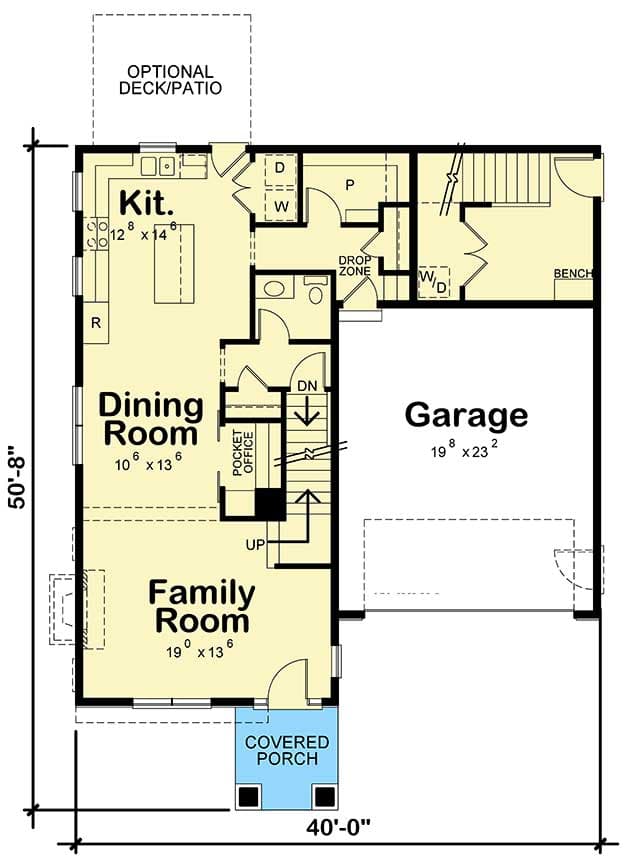

Main Level

Plan 42582DB: Multi-Generational House Plan with Attached Casita - Floor Plan - Main Level - Craftsman, Northwest

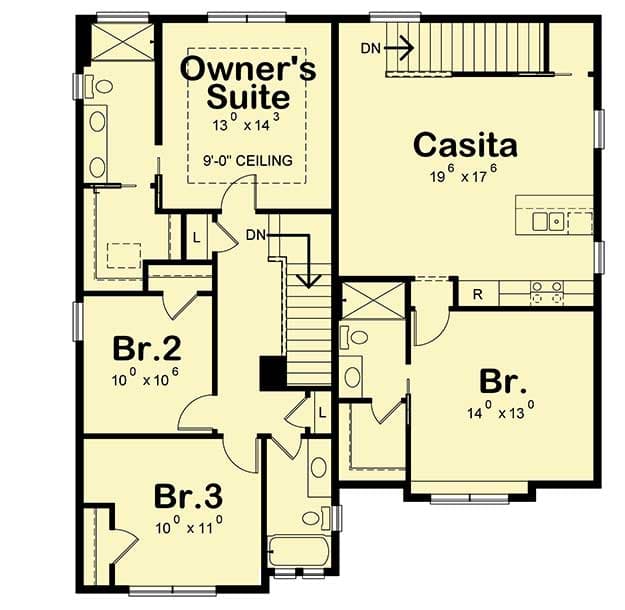

2nd Floor

Plan 42582DB: Multi-Generational House Plan with Attached Casita - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • This magnificent, multi-generational house plan boasts an attached casita with a private entrance, which is perfect for extended family members.
  • The two-story front porch and exterior craftsman detailing contribute to the curb appeal.
  • The family room greets guests upon entering, providing views through the dining room and into the kitchen. Barn doors give way to unveil a pocket office with a built-in desk.
  • A prep island in the kitchen offers ample workspace and a spacious walk-in pantry sits nearby.
  • The laundry closet is located next to the kitchen to help multi-task, and a door off the kitchen leads to an optional back deck.
  • The second level of the main home features an owner's suite, complete with a step ceiling, 4-fixture bath, and a large walk-in closet. Two additional bedrooms share a full bath just down the hall.
  • Behind the 2-stall garage, a second entrance leads to a foyer with a built-in drop zone and a closet laundry room. Upstairs, discover an open family room and kitchen, storage closet, and bedroom with a full bath and walk-in closet.
  • Related Plans: Get alternate exteriors with house plan 42581DB and 42584DB.
  • Note: Please allow 10-15 business days for delivery.

What's Included

  • General Notes

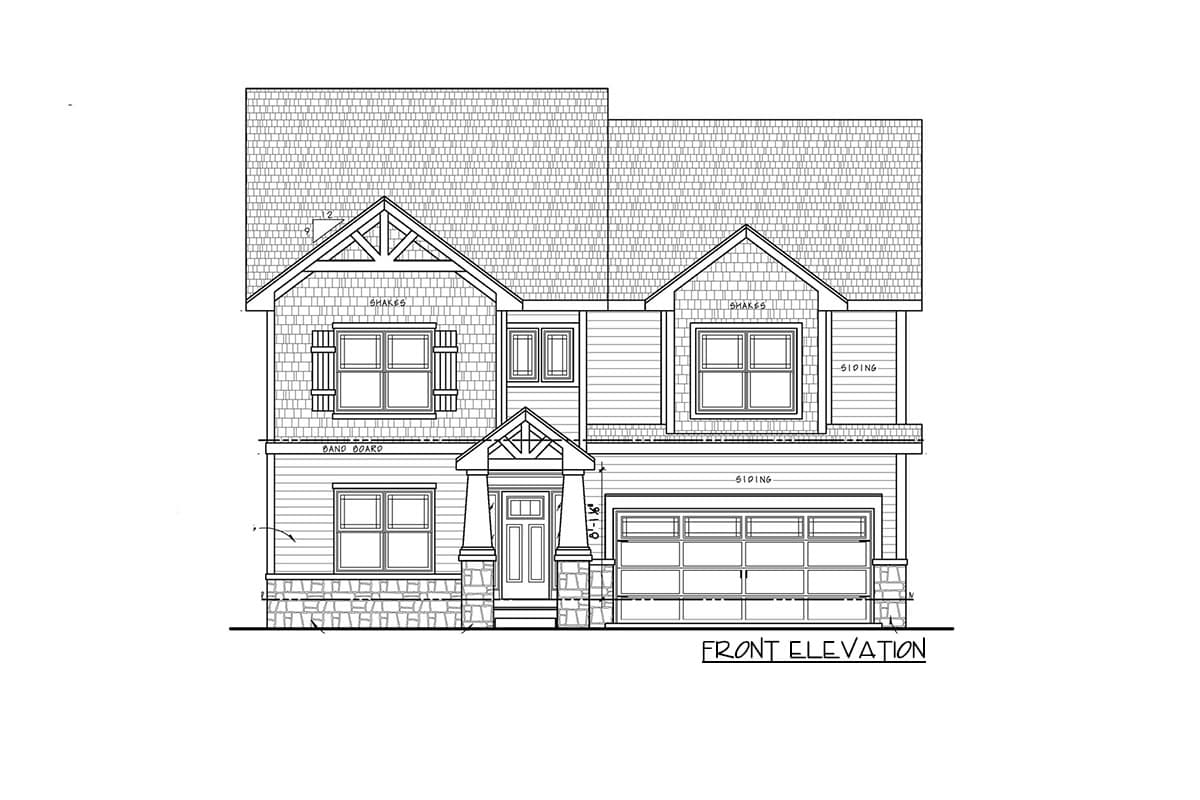

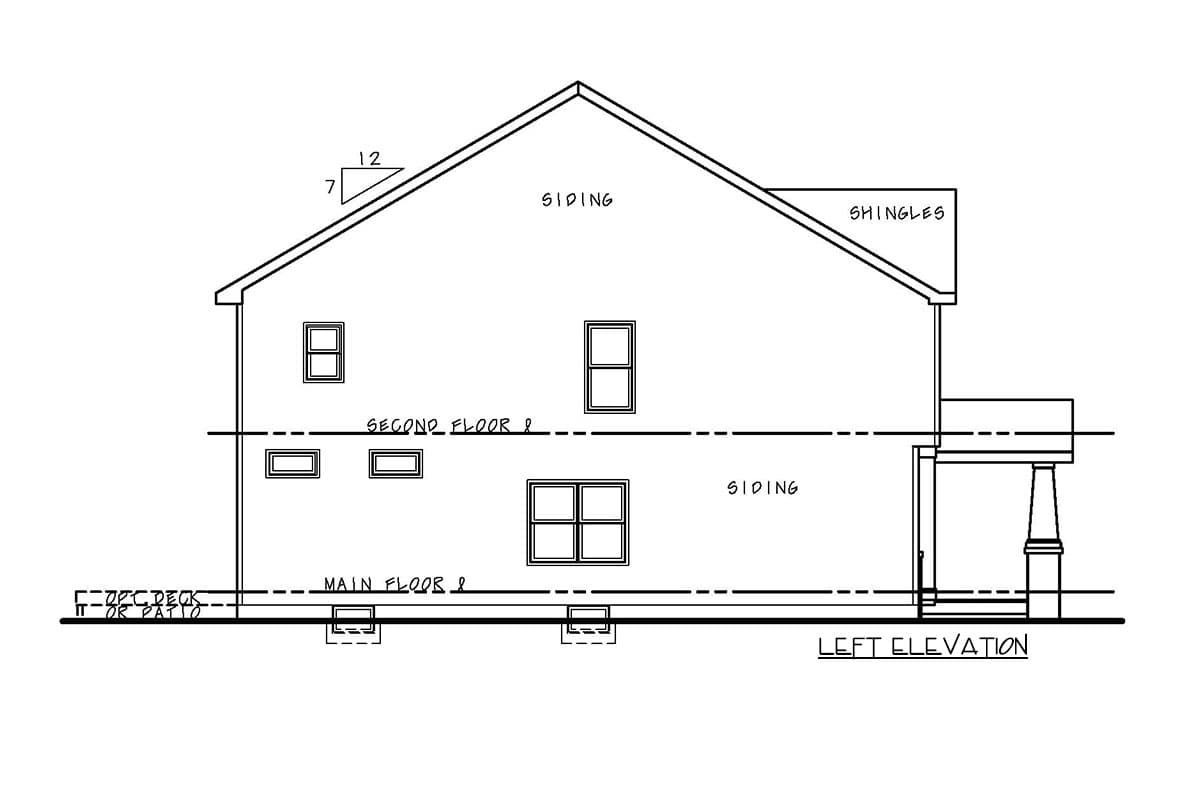

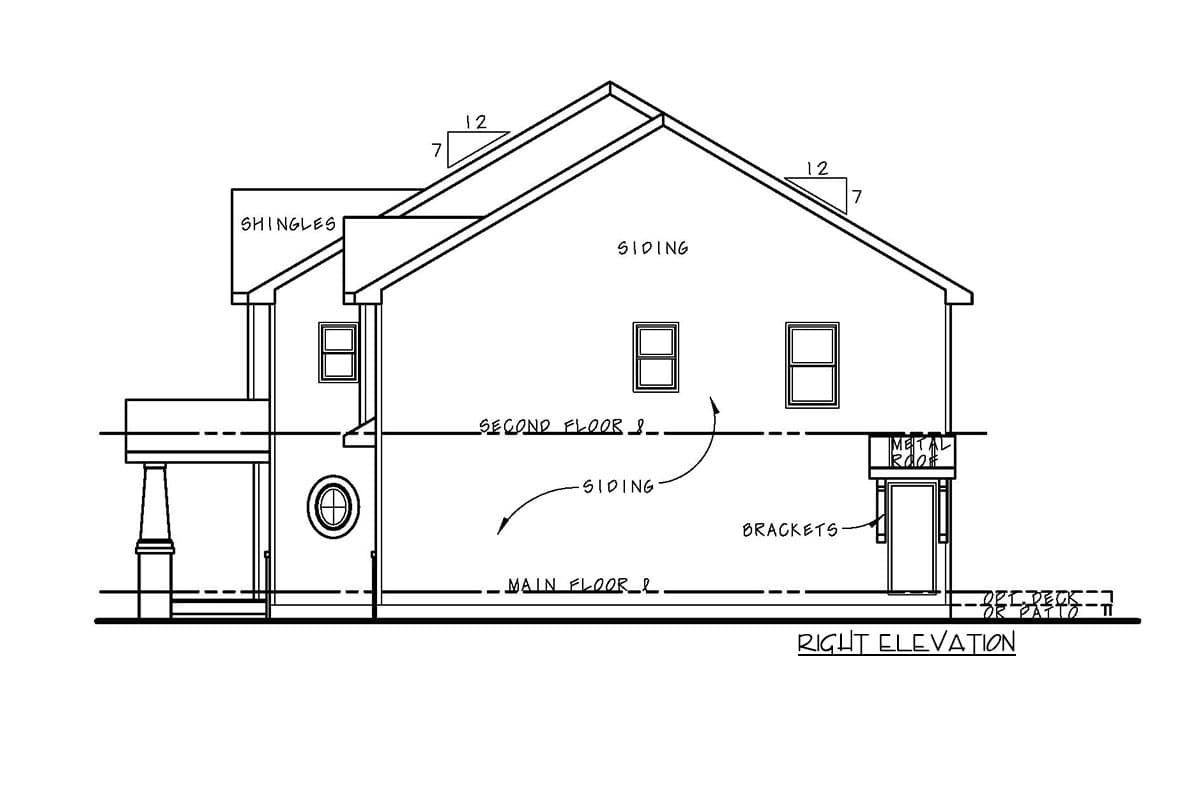

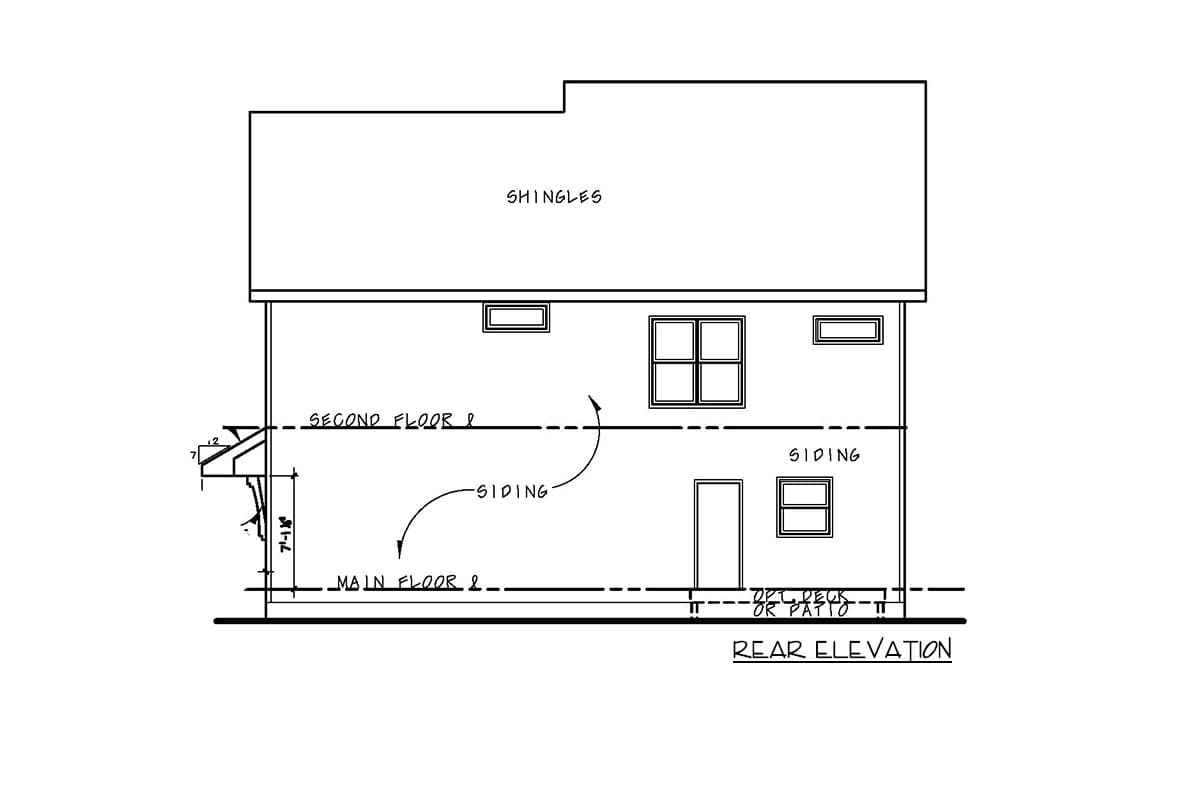

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,591 sq. ft.

1st Floor

1,103 sq. ft.

2nd Floor

1,488 sq. ft.

Porch, Front

63 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

50' 8"

Max Ridge Height

33' 10"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Craftsman

Northwest

Special Features

Home Office

In-Law Suite

Laundry - Upstairs

Master Suite - Upstairs

Two Master Suites

Walk-in Pantry

Plan Collections

Home Office

Two Master Suites

Square Footage Breakdown

Total Heated Area

2,591 sq. ft.

1st Floor

1,103 sq. ft.

2nd Floor

1,488 sq. ft.

Porch, Front

63 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

50' 8"

Max Ridge Height

33' 10"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Craftsman

Northwest

Special Features

Home Office

In-Law Suite

Laundry - Upstairs

Master Suite - Upstairs

Two Master Suites

Walk-in Pantry

Plan Collections

Home Office

Two Master Suites
